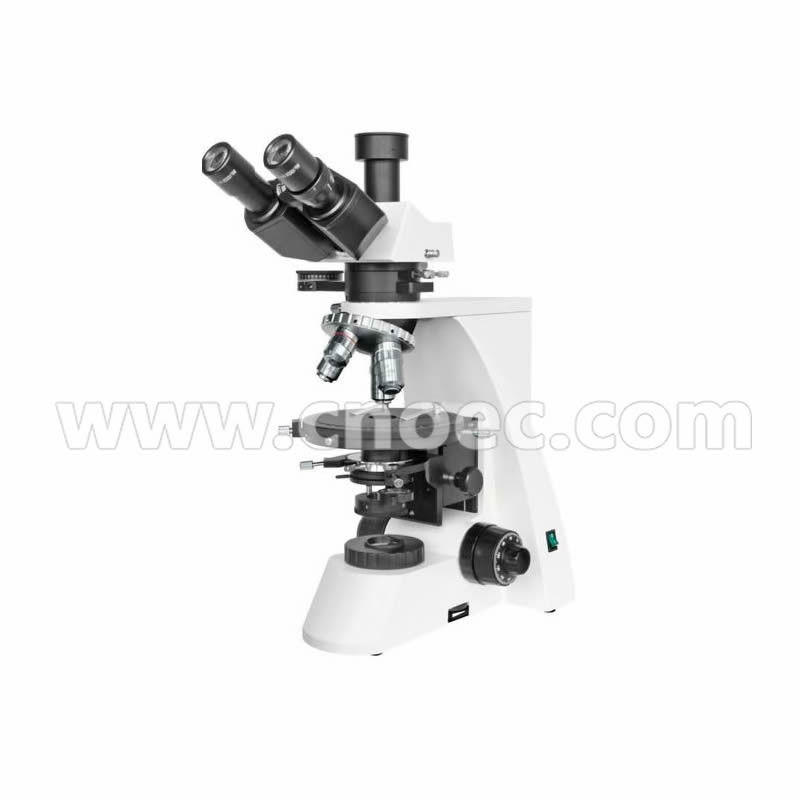

40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202

China 40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202 supplier
40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202 supplier 40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202 supplier

Large Image :  40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A15.0202

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Research, Laboratory Certification: CE, Rohs
Drawtube: Binocular Illumination: Halogen Lamp
Magnification: 40x - 1000x Theory: Polarizing Light Microscope



Description:


--Equipped with strain-free plan achromatic objectives and wide field eyepiece
--Coaxial coarse/fine focus system with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
--Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm
--Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
--Collector composed with field diaphragm and filter seat
--Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6' when using vernier scale, center adjustable and with tightener
--Illumination with 6V20W halogen lamp, adjustable brightness
--Trinocular and digital & video camera can be chosen






Specifications:



A15.0202 Polarizing Microscope Specification
A1
A2
B1
B2
Eyepieces WF10X/18mm Wide Field
Division eyepiece 10X (Ф18mm) 0.10mm/div
Strain-free Plan Achromatic Objectives
281 series
PL 4X/0.10
-
-
-
PL 10X/0.25
-
-
-
PL 40X/0.65 (spring)
-
-
-
PL 100X/1.25(Spring,oil)
-
-
-
Strain-free Infinity Plan Achromatic
282 series
PL 4X/0.10
-
-
-
PL 10X/0.25
-
-
-
PL 40X/0.65 (spring)
-
-
-
PL 100X/1.25(Spring,oil)
-
-
-
Strain-free Plan Achromatic
(no cover glass)
284 series
PLL4X/0.10
-
-
-
PLL10X/0.25
-
-
-
PLL 40X/0.6
-
-
-
PLL 60X/0.75 (spring)
-
-
-
Strain-free Infinity Plan Achromatic (no cover glass)
286 series
PL 5X/0.12
-
-
-
PL 10X/0.25
-
-
-
PL20X/0.4
-
-
-
PL 40X/0.6 (spring)
-
-
-
Head Trinocular head,revolved (inclination of 30 °),100% image light for photography capable
Intermediate Attachment 360° rotatable with scale and minimum vernier
Bertrand lens, impellent style, center adjustable
λ compensator
λ 1/4 compensator
Quarts wedge compensator
Focus System Coaxial coarse/fine system, with tension adjustable and limit stopper, minimum division of fine focusing 2um
Nosepiece Quadruple, frontward ball bearing inner locating
Stage

Rotatable stage, diameter |μ150mm, 360° graduated (in 1° increasements), minimum retardation resolution 6' center adjustable and with tightener

Abbe Condenser

N.A. 1.25 rack & Pinion adjustable

Polarizer 360°rotatable, with four scale is 0°, 90°,180°,270°
Filter Frosted filter
Blue filter
Collector For illumination with halogen lamp (with field diaphragm)
Illumination Unit With polarizer, 6V20w, halogen lamp, adjustable brightness
Optional Accessories
Item No.
Eyepiece WF16x/11mm wide field
A51.0203-16A
Eyepiece Tube Binocular, inclination of 30°
A53.0204-9
Objective Strain-free plan achromatic PL 5x/0.12
A5P.0205-5
Strain-free plan achromatic PL 20x/0.40
A5P.0205-20
Strain-free plan achromatic PL 60x/0.85(Spring)
A5P.0205-60
Infinity strain-free plan achromatic PL 4X/0.10
A5P.0207-04
Infinity strain-free plan achromatic PL 20X/0.40
A5P.0207-20
Nosepiece Quintuple, frontward ball bearing inner locating
A54.0203-4
Filter Green filter
A56.0209-2
Yellow filter
A56.0209-3
CCD Adapter
0.4X
A55.0202-01
0.5X
A55.0202-04
1X
A55.0202-02
0.5X with dividing 0.1mm/Div
A55.0202-03
Photo Adapter
2.5X/4X Change over photograph adapter with 10X viewing eyepiece
A55.0201-1
4X Focusing photograph adapter
A55.0201-2
MD Adapter
A55.0201-3
PK Adapter
A55.0201-4
DC Adapter
Digital camera adapter CANON (A610,A620,A630,A640)
A55.0204-01





40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202
