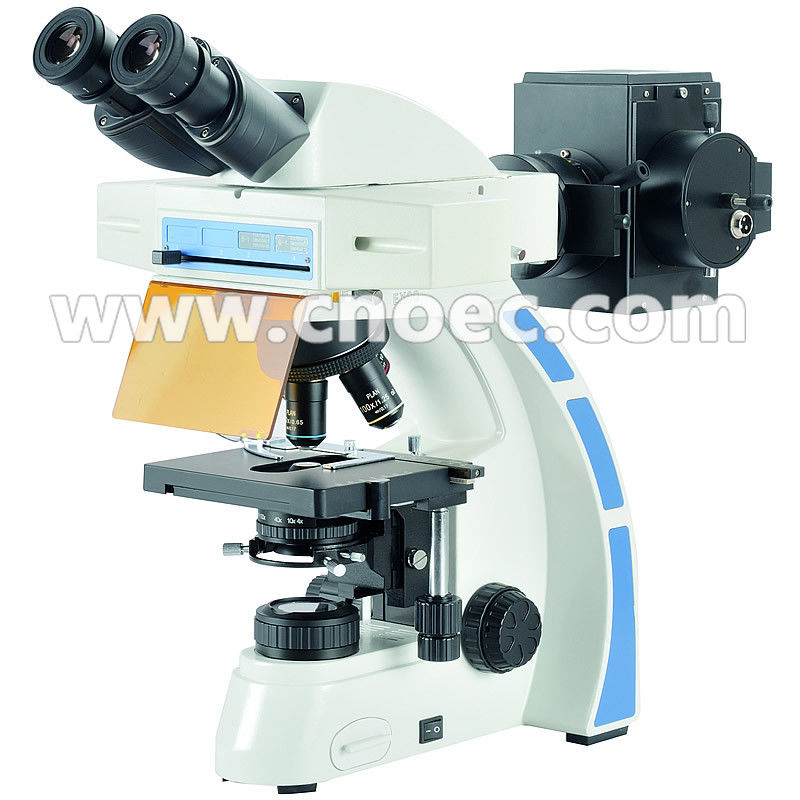

Kohler Reflected Fluorescence Microscope With Handle A16.0907-B

Kohler Reflected Fluorescence Microscope With Handle A16.0907-B

  • High Light

    epi-fluorescence microscope

    ,

    inverted fluorescence microscope

  • Application
    Research, Learning, Laboratory
  • Certification
    CE, Rohs
  • Drawtube
    Binocular, Trinocular
  • Illumination
    Kohler
  • Magnification
    100X - 1000X
  • Theory
    Fluorescence Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.0907-B
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Kohler Reflected Fluorescence Microscope With Handle A16.0907-B



Kohler Reflected Fluorescence Microscope With Handle A16.0907-B



Description:



--Professional Fluorescent Microscope
--Infinity Plan Optical System
--Variety of Illuminator Methods Available
--Sensitive Dimming System
--Safty Handle Design
--Kohler Illumination Condenser





Specifications:


A16.0907-B Fluorescent Microscope

Head

Binocular, 30° Inclined, Interpupillary Distance 50-75mm

Eyepiece

PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree

Objective

Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25

Nosepiece

Backward Quadruple

Focusing

Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation

and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm

Working Stage

Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm

Condenser

Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed

Filter

Blue, Dia.45

Light Source

6V30W Halogen , Intensity Adjustable, Center Fixed, including 6V30W Bulbs 2 pcs

Fluorescent

Reflected Fluorescent Illuminator, 100W Lamp House, Power Unit

Fluorescent Filter B,G

Power

100~240V Wide Range Power Supply

A16.0907-B Fluorescent Microscope Optional Accessories

Head

Trinocular, 30° Inclined, Interpupillary Distance 50-75mm

A53.0907-T30R

Eyepiece

PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree

A51.0904-1022T

Nosepiece

Backward Quintuple

A54.0930-BS5

Fluorescent

Fluorescent Filter UV

A56.0935-XYY

Adapter

C-Mount 1.0x, Focus Adjustable

A55.0925-1

C-Mount 0.5x, Focus Adjustable , for 1/2 CCD

A55.0925-1/2

C-Mount 0.35x, Focus Adjustable, for 1/3 CCD

A55.0925-1/3

Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece

A55.0901-1

Professional Photo C Mount, with Photo Eyepiece

A55.0910
