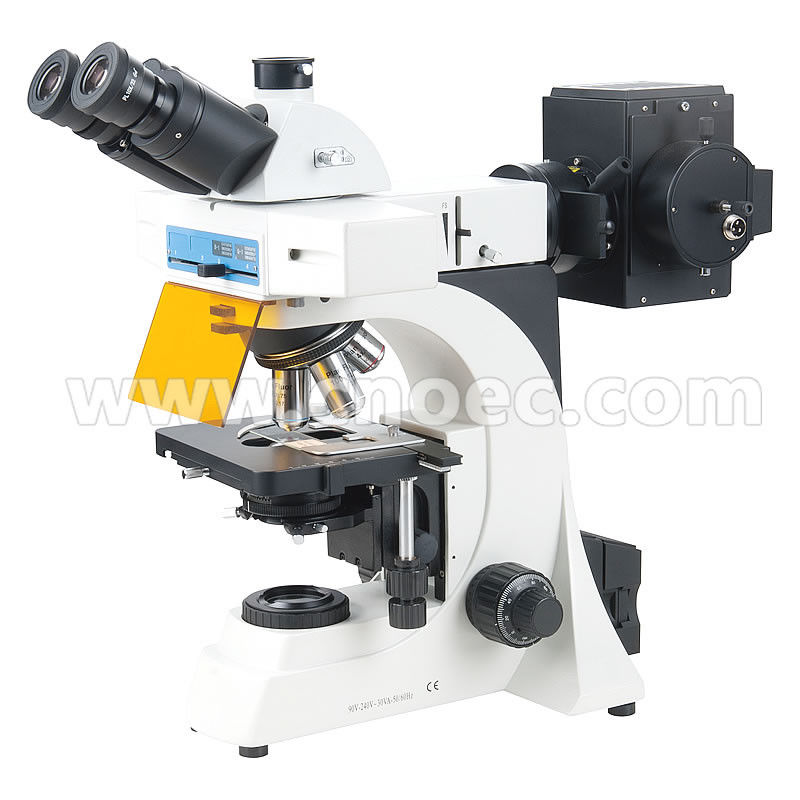

Trinocular Compensation Free Fluorescence Microscope Learning A16.0902

A16.0902 Specification

A

B

Head

Compensation free binocular head,

30 degree inclined (infinity)

o

-

Compensation free trinocular head,

30 degree inclined (infinity)

-

o

Eyepiece

PL10X/22mm high eye-point plan eyepieceeach with eye-cap

Infinity Plan Achromatic Objective

Infinity plan achromatic objective 10X

Infinity plan achromatic objective 210X

Infinity plan achromatic objective 40X

Infinity plan achromatic objective 100X

Nosepiece

Reversed quintuple nosepiece

Focus

Low adjustment coaxial focus system with limit stopper,

moving range: 25mm, precision: 0.002mm

Stage

175*145mm mechanical stage,adjusting for right hand

Condenser

N.A.1.2/0.22 swing achromatic conderser

Illuminator

90V~240V/ 6V 30W halogen bulb,brightness adjustable

Fluorescent Kits

Power box: 100V-240VAC with Indicator Display

100WHBO Ultra Hi-voltage Spherical Mercury Lamp OSRAM

B(Blue)excitation filter system

G(Green)excitation filter system

Optional Accessories

Eyepiece

High eye-point PL10x/22mm with micrometer,

diopter adjustable

A51.0905-1022R

High eye-point PL15x/16mm

A51.0903-1516

Objectvie

Infinity plan   objective 4x

A5F.0931-4

Stage

175*145mm mechanical stage,adjusting for left hand

A54.0941-10

Color Filter

Yellow (Dia:45mm)

A56.0935-XY-FCY

Green(Dia:45mm)

A56.0935-XY-FCG

Blue(Dia:45mm)

A56.0935-XY-FCB

Neutral color filter (Dia:45mm)

A56.0935-XY-FCF

CCD adapter

1x C-Mount,Focus Adjustable

A55.0926-10

0.35x, For 1/3 C-Mount,Focus Adjustable

A55.0926-35

0.50x, For 1/2 C-Mount,Focus Adjustable

A55.0926-50

0.67x, For 2/3 C-Mount,Focus Adjustable

A55.0926-67
