Motorized Digital Forensic Comparison Microscope with High Resolution CCD Camera and LED Illumination for Laboratory Research
-
Highlight
transmitted light microscope
,bullet comparison microscope
-
ApplicationsLaboratory|Research
-
CertificationCE|Rohs
-
DrawtubeBinocular
-
IlluminationLED
-
Magnification2x - 240x
-
TheoryComparison Microscope
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA18.1830
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
Motorized Digital Forensic Comparison Microscope with High Resolution CCD Camera and LED Illumination for Laboratory Research

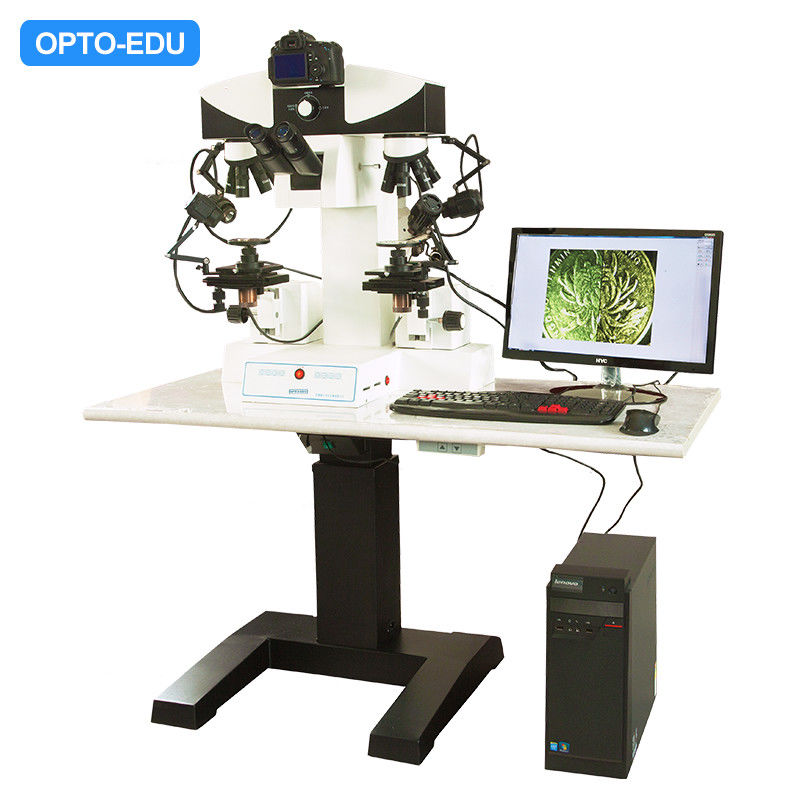

OPYO-EDU 2X / 5X Motorized Digital Forensic Comparison Microscope Binocular A18.1830
The A18.1830 Motorized Digital Forensic Comparison Microscope, featuring a Motorized Working Table, is engineered for forensic science laboratory research. This advanced system enables comparison of bullets, cartridge cases, cutting objects, paper documents, and other forensic evidence. Offering both manual and computer software control, it includes a high-resolution digital color camera for real-time image and video output to a computer. With professional crime image analysis software, this microscope provides forensic scientists with an ideal research tool at a competitive price.
Key Features
- Total Magnification: 2x~240x

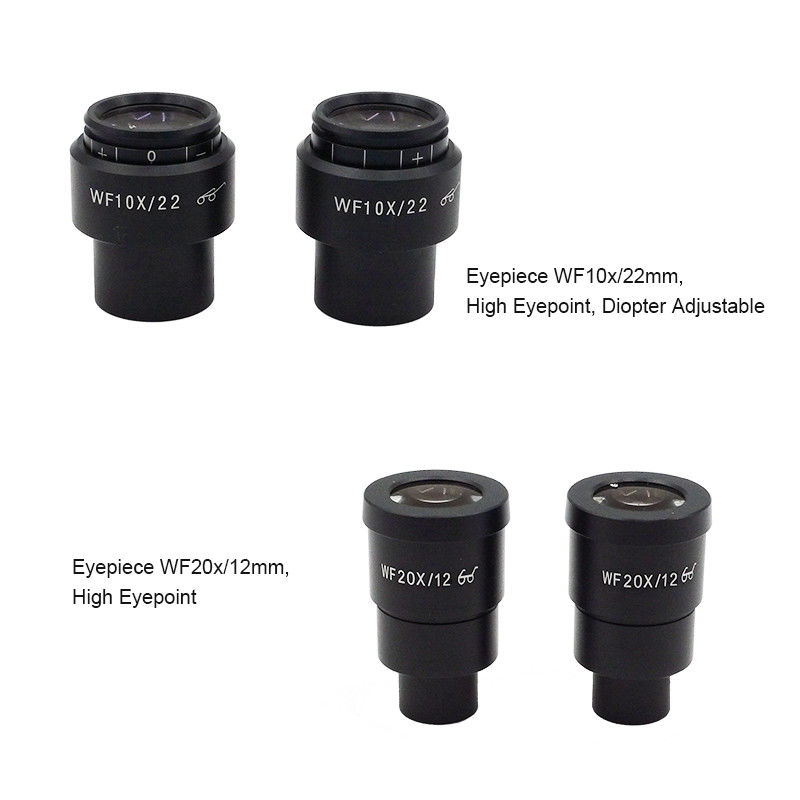

- Eyepieces: WF10x/22mm, WF20x/12mm High Eyepoint
- Nosepiece: 6 Holes Click Stop

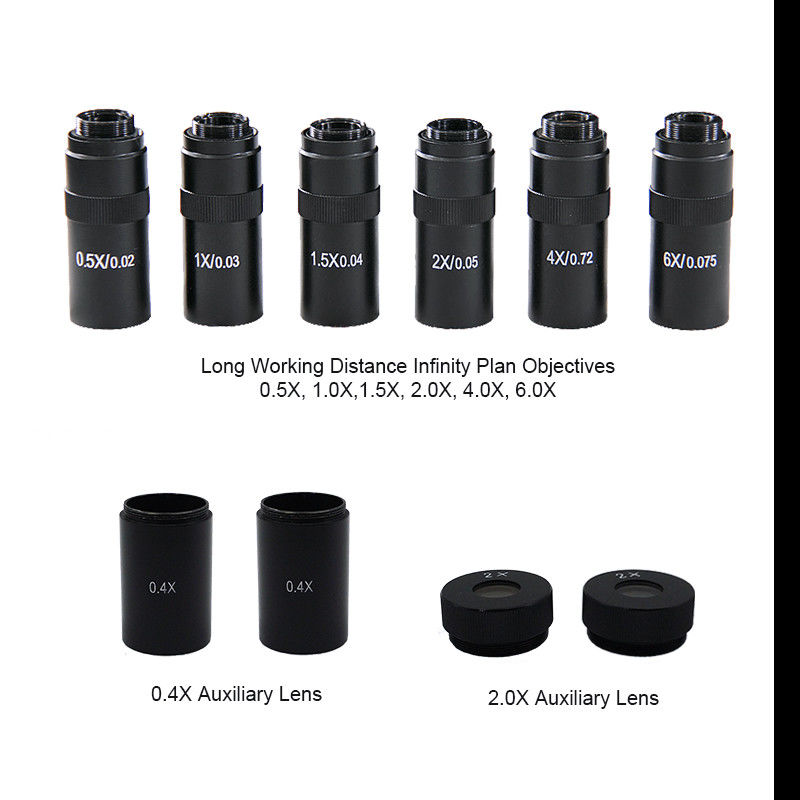

- Objectives: LWD Infinity Plan Achromatic 0.5x, 1x, 1.5x, 2x, 4x, 6x
- Auxiliary Lenses: 0.4x and 2.0x included

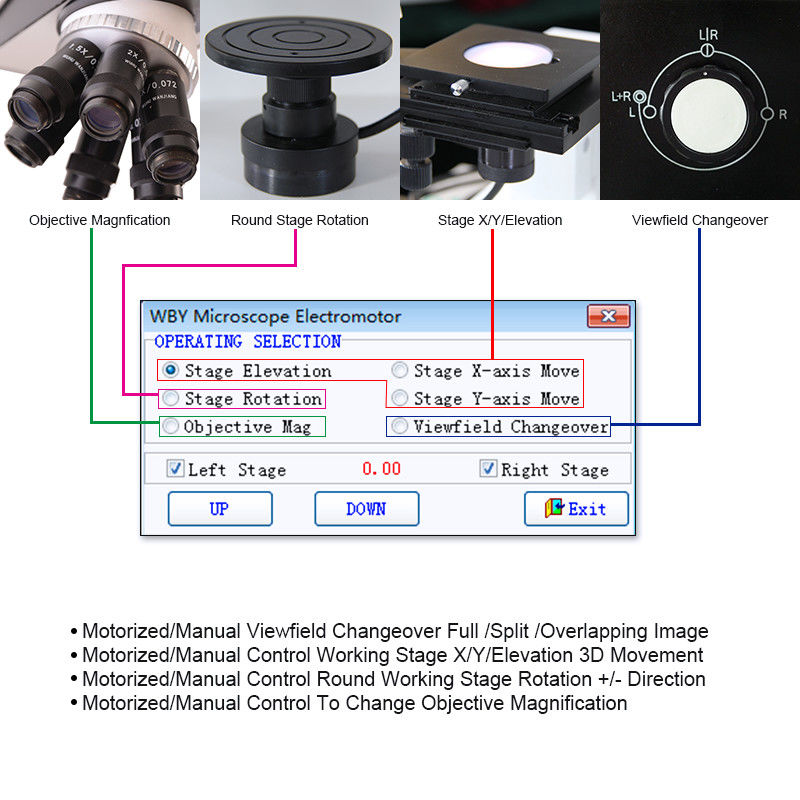

- Comparison Modes: Motorized/Manual control for full left/right, split-image, or overlapping image comparison
- Stage Control: Motorized/Manual X/Y/Z 3D movement and 360° rotation
- Lighting System: 12V50W Halogen and 5W LED Cold Light, both adjustable
- Camera System: Built-in 3.0M High Resolution Color CCD with USB 2.0 output

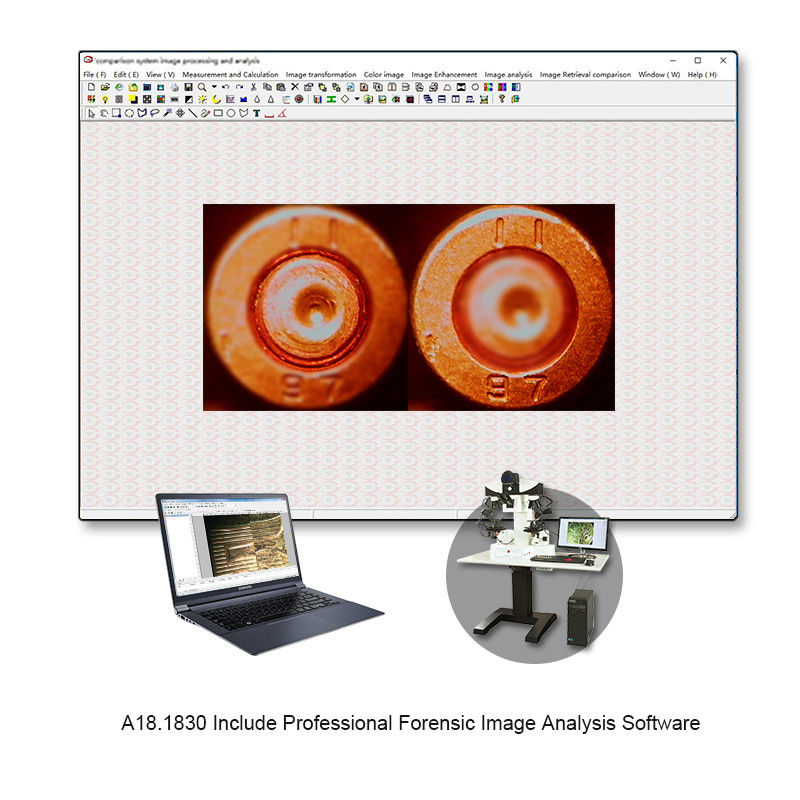

- Software: Professional forensic image analysis software included
- Power: 80~240V Wide Range Voltage
Technical Specifications
| Component | Specification |
|---|---|
| Magnification | 2x~240x |
| Head | 0-45° Titable Binocular Head, Interpupillary Distance 48~75mm, Diopter ±5 Adjustable |
| Eyepieces | WF10x/22mm, WF20x/12mm High Eyepoint |
| Nosepiece | 6 Hole Click Stop |
| Objectives | LWD Infinity Plan Achromatic 0.5x, 1x, 1.5x, 2x, 4x, 6x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |
| Stage | Square Manual Working Stage 90×90mm, Moving Range 54×54×54mm Round Titable Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |

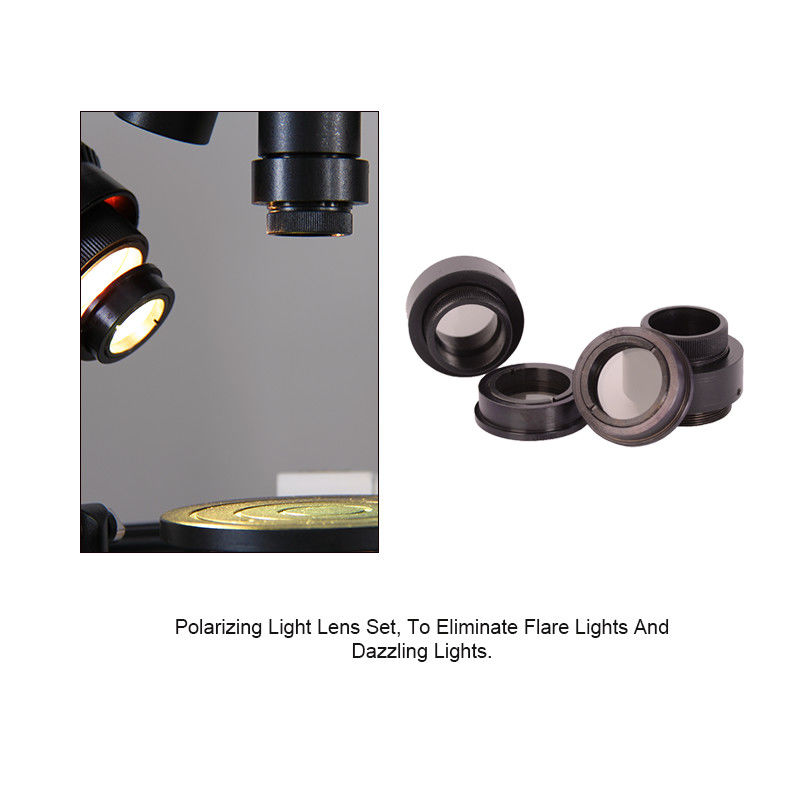

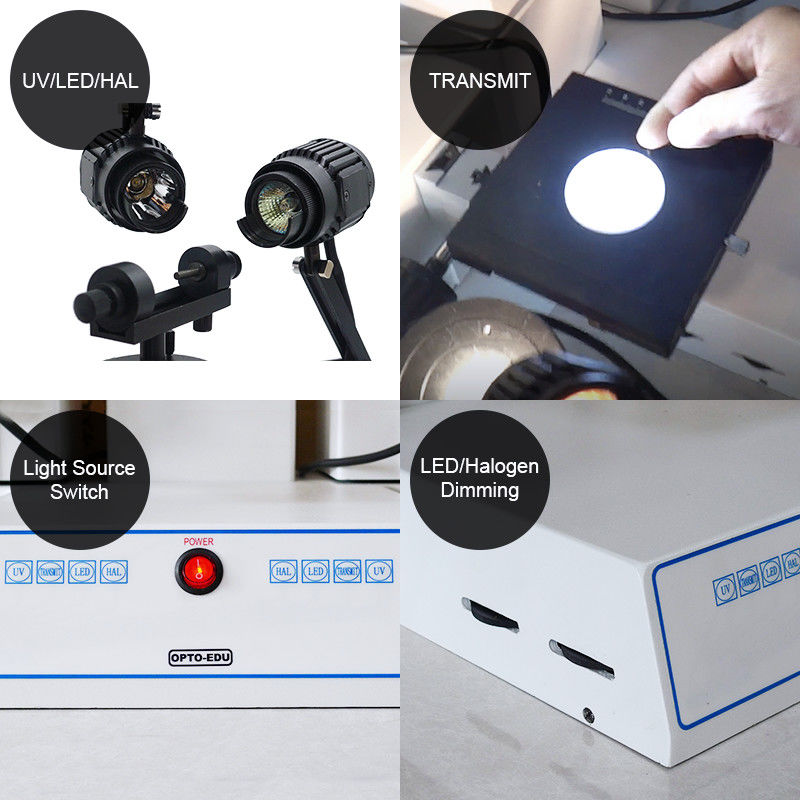

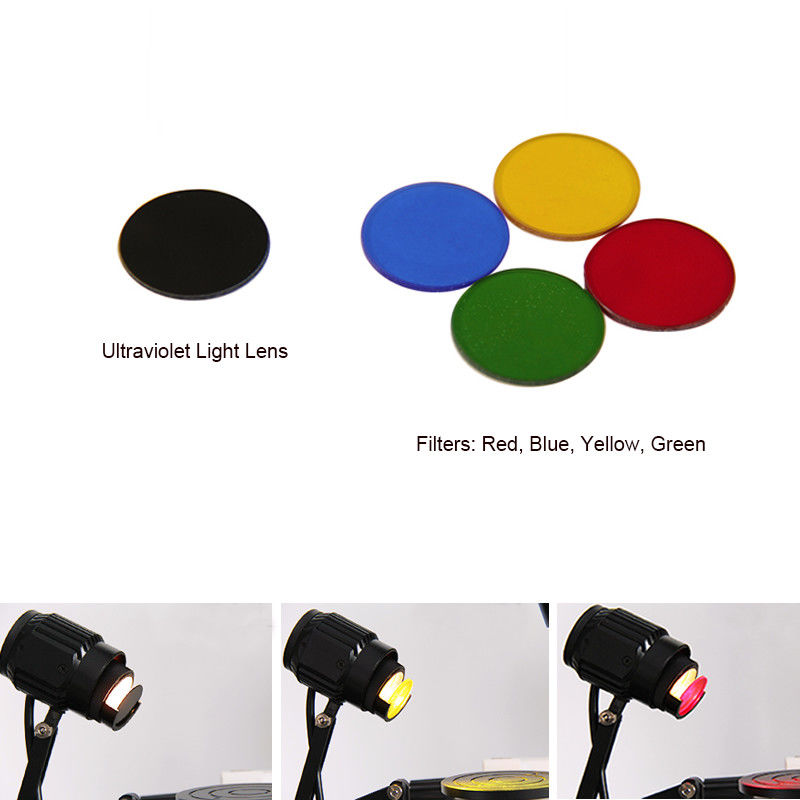

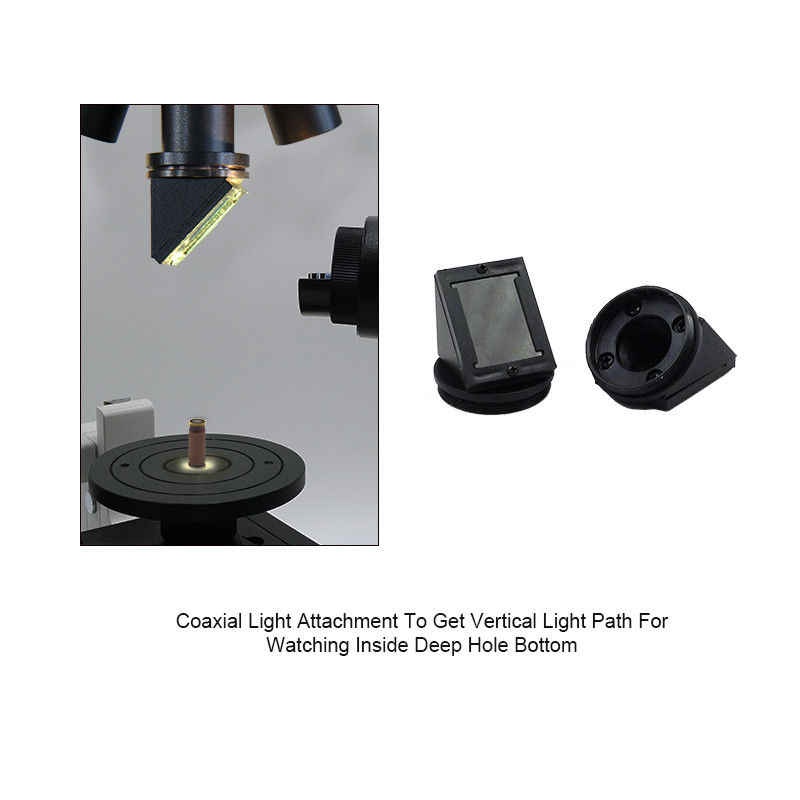

| Light Sources | 12V50W Halogen (2), 5W LED Cold Light (2), Coaxial Light (2), Polarizing Light (2), Transmit Bottom Light, UV Light (2), Color Filters (Red, Blue, Yellow, Green) |
| Camera | 3.0M High Resolution Color CCD, 2048×1536 Pixels, Pixel Size 3.2×3.2μm |

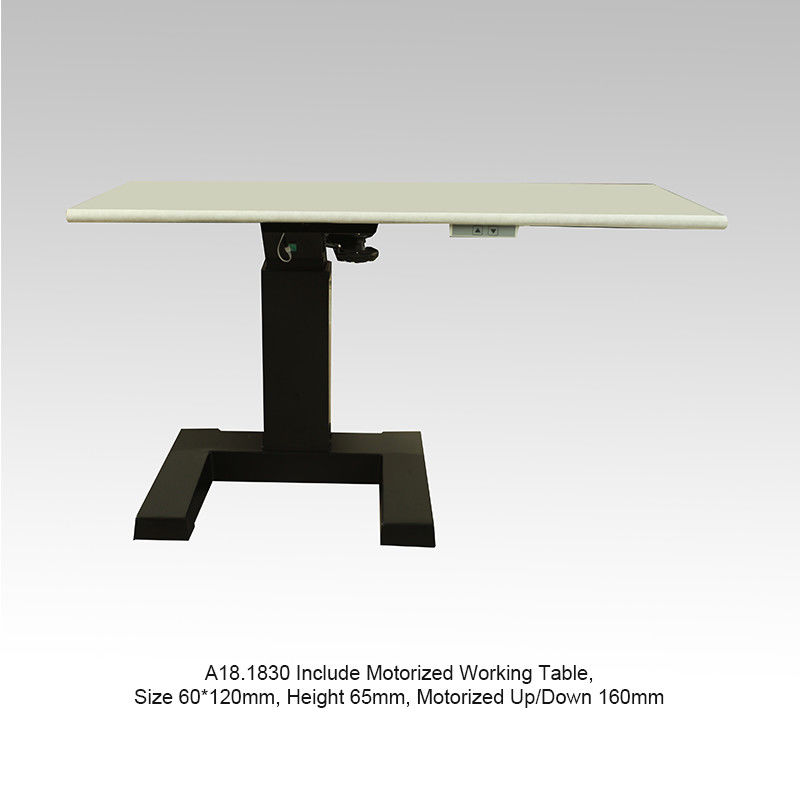

| Working Table | Motorized Working Table included (60×120mm, Height 65mm, Motorized Up/Down 160mm) |
| Dimensions | 40×60×72cm |
Optional Accessories

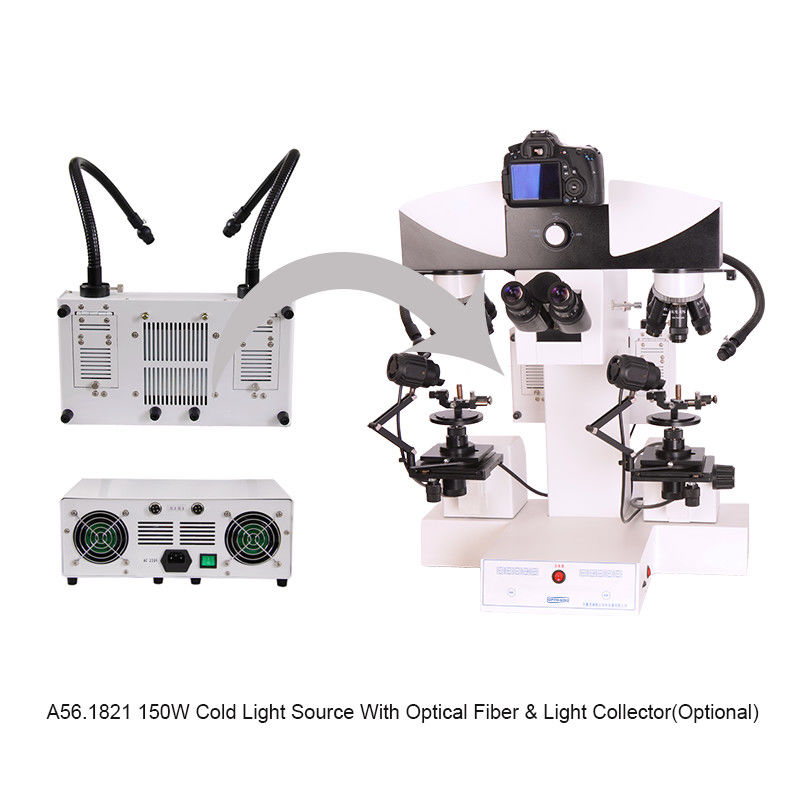

- 150W Cold Light Source with Optical Fiber & Light Collector (A56.1821)

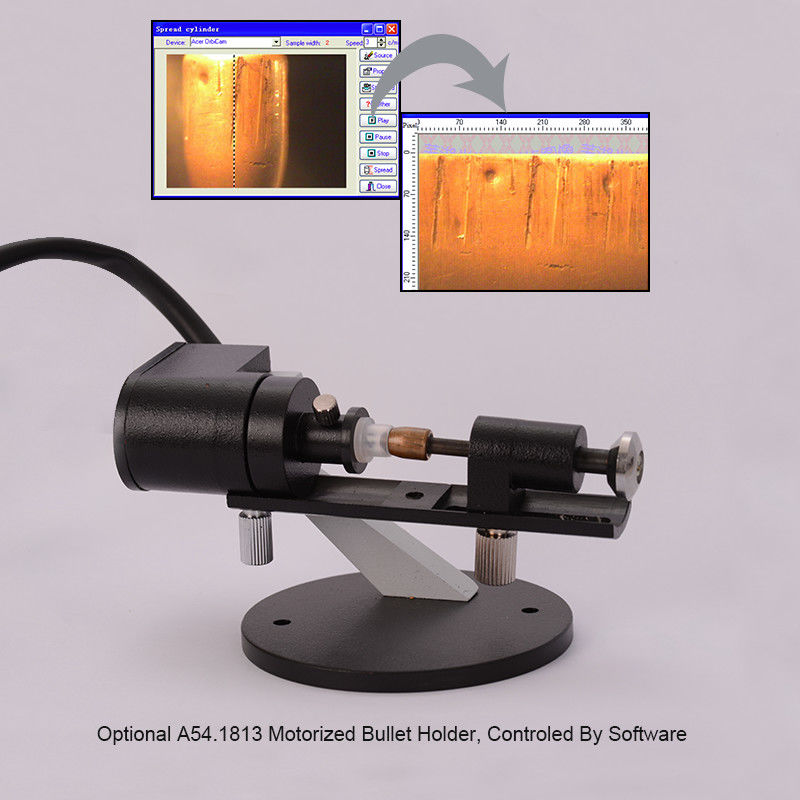

- Motorized Bullet Holder Set (A54.1813)
- Motorized 6 Hole Nosepiece (A54.1814)
