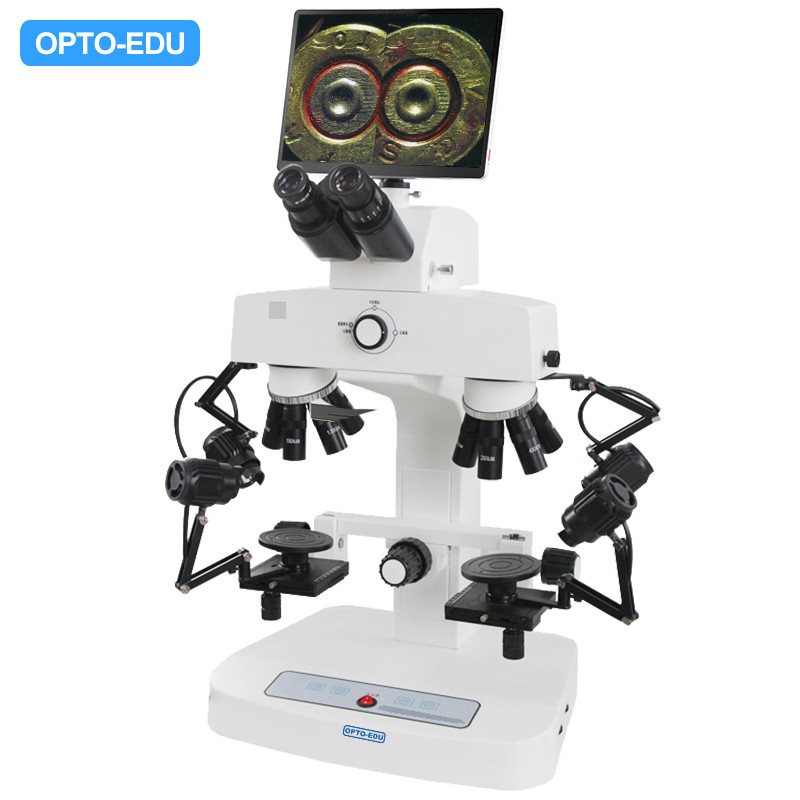

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD

  • High Light

    transmitted light microscope

    ,

    binocular optical microscope

  • Applications
    Student|school|Laboratory|Research
  • Certification
    CE|Rohs
  • Drawtube
    Binocular
  • Illumination
    LED
  • Magnification
    2x~240x
  • Theory
    Comparison Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1828-LCD
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 0
OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 1
OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 2

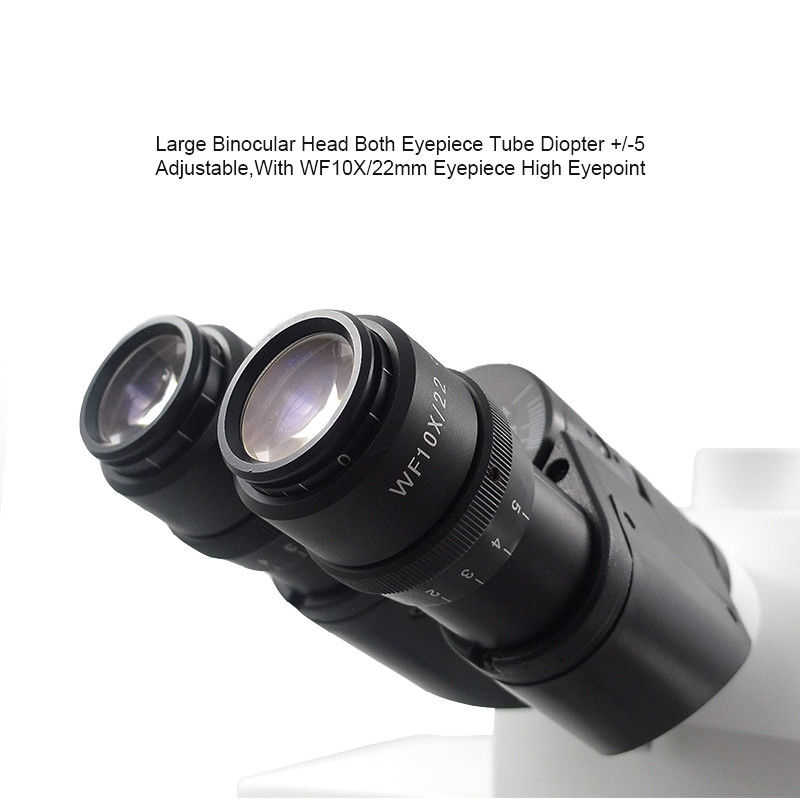

Large Binocular Head

both eyepiece tube diopter+/-5 adjustable, with WF 10X/22mm eyepiece high eyepoint


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 3

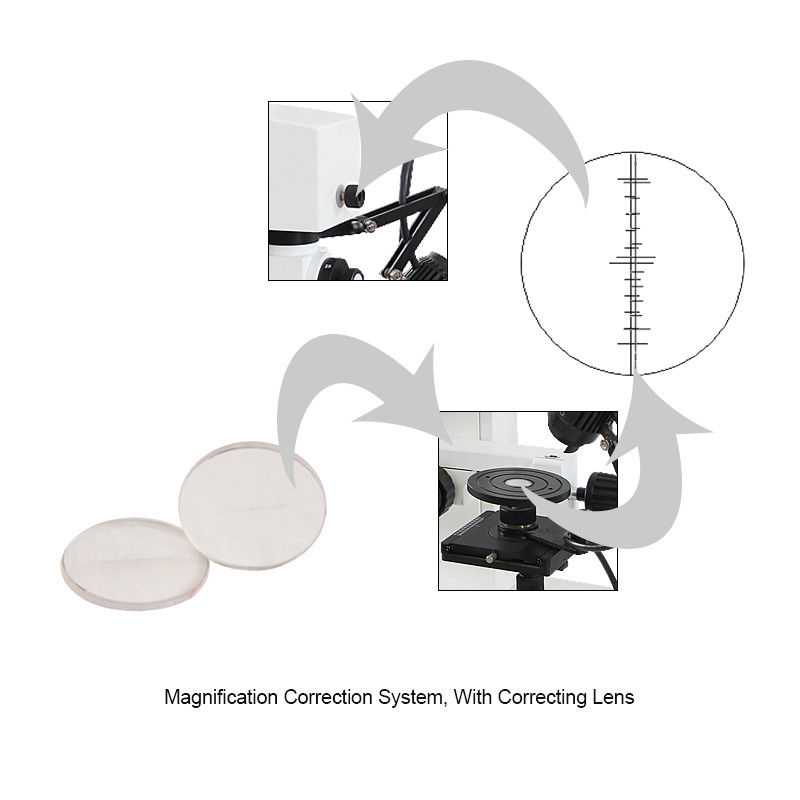

Magnification Correction System, with correcting lens


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 4

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 5

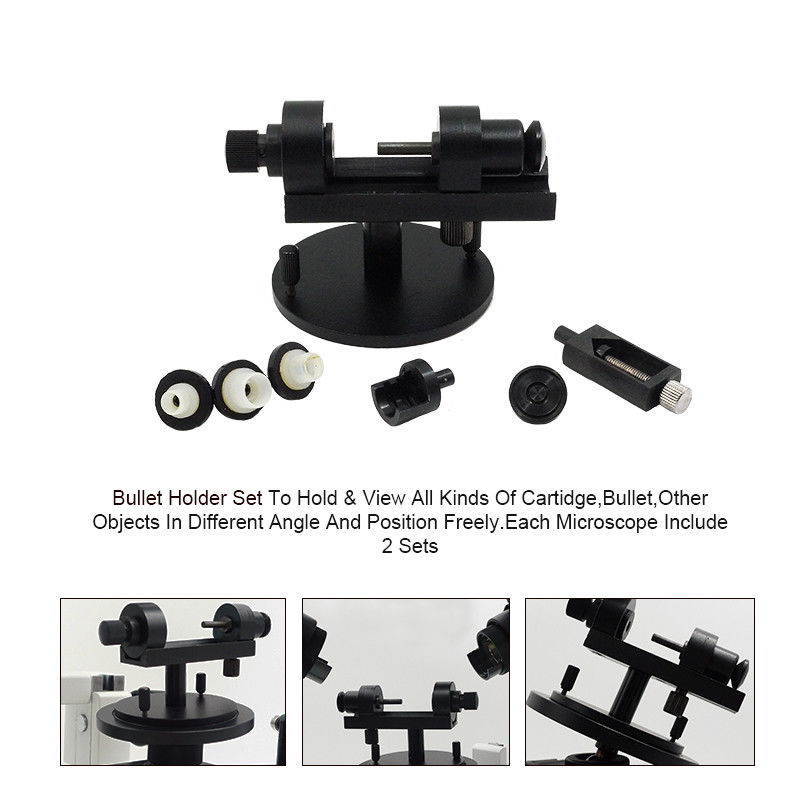

Bullet Holder Set

To hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets.

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 6

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 7

Front View Photo Adapter for digital camera Niko & Olympus; o.5x CCD adapter for digital camera


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 8

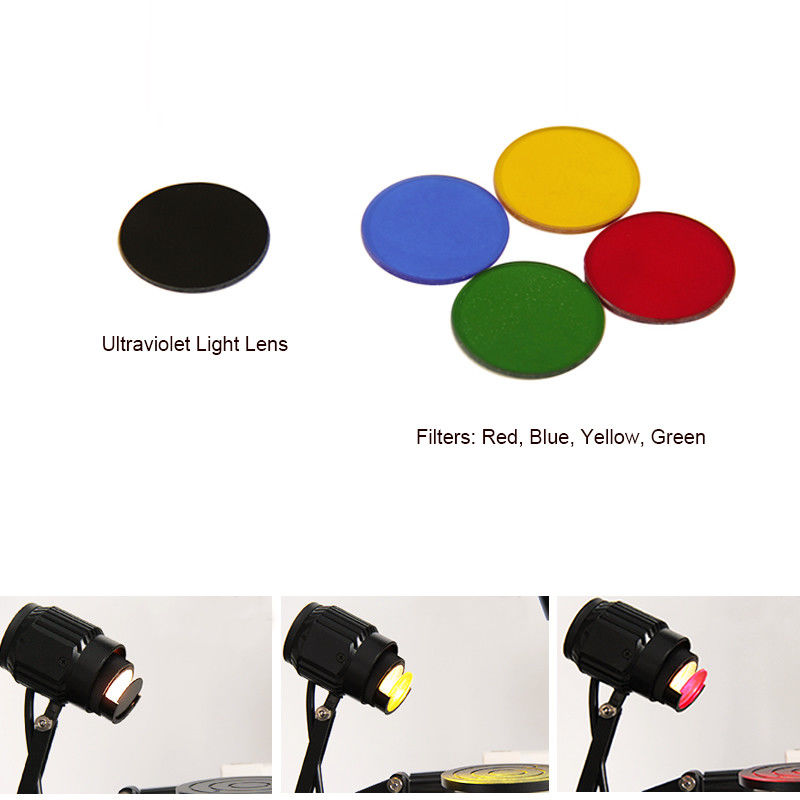

Ultraviolet Light Len & Filters


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 9

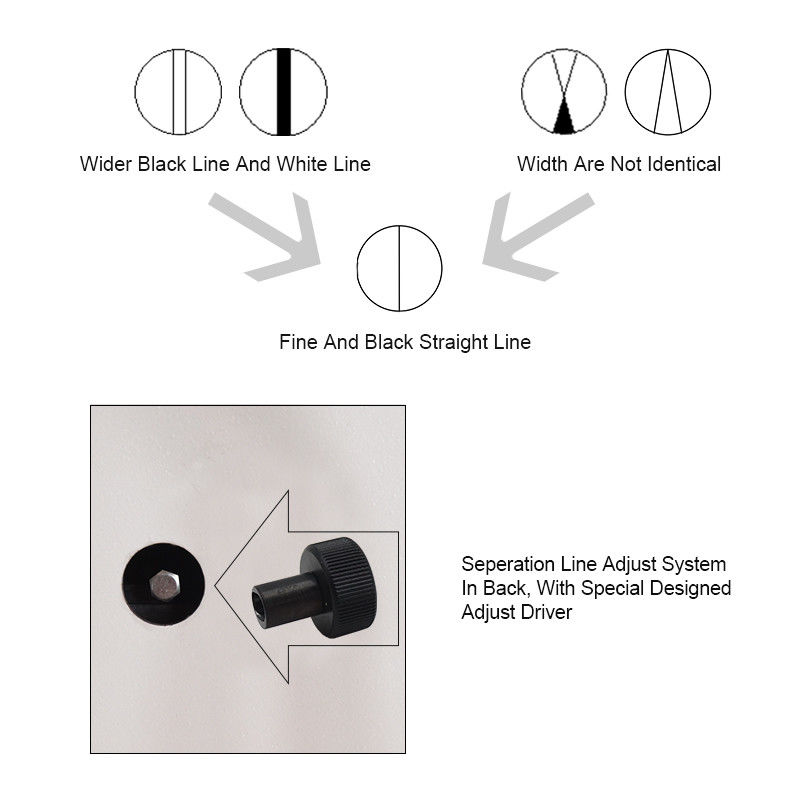

Separation Line Adjust System in Black, with special designed adjust driver


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 10

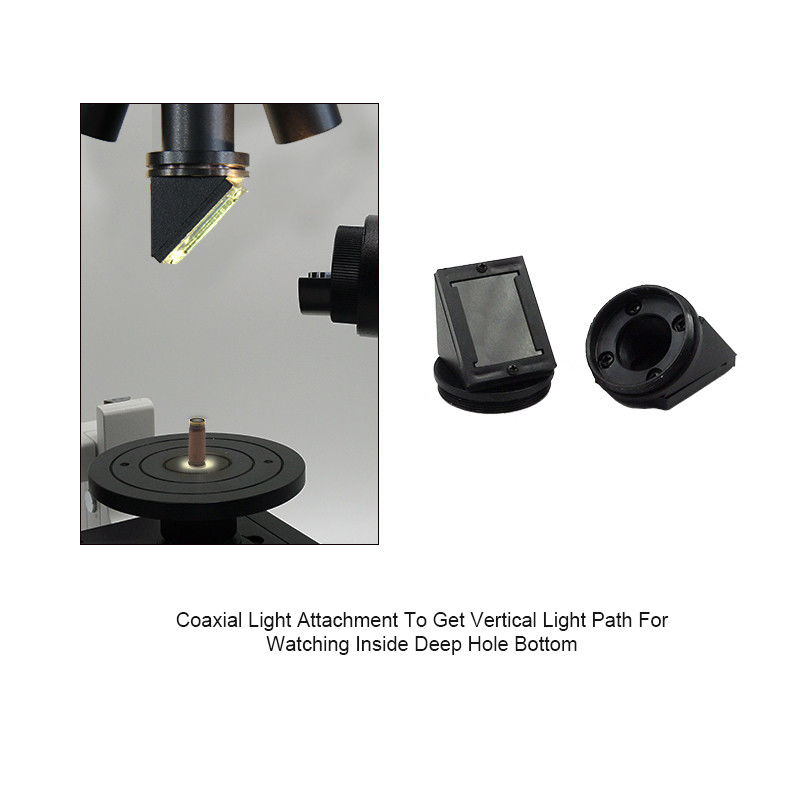

Coaxial Light Attachment

to get vertical light path for watching inside deep hole bottom



OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 11

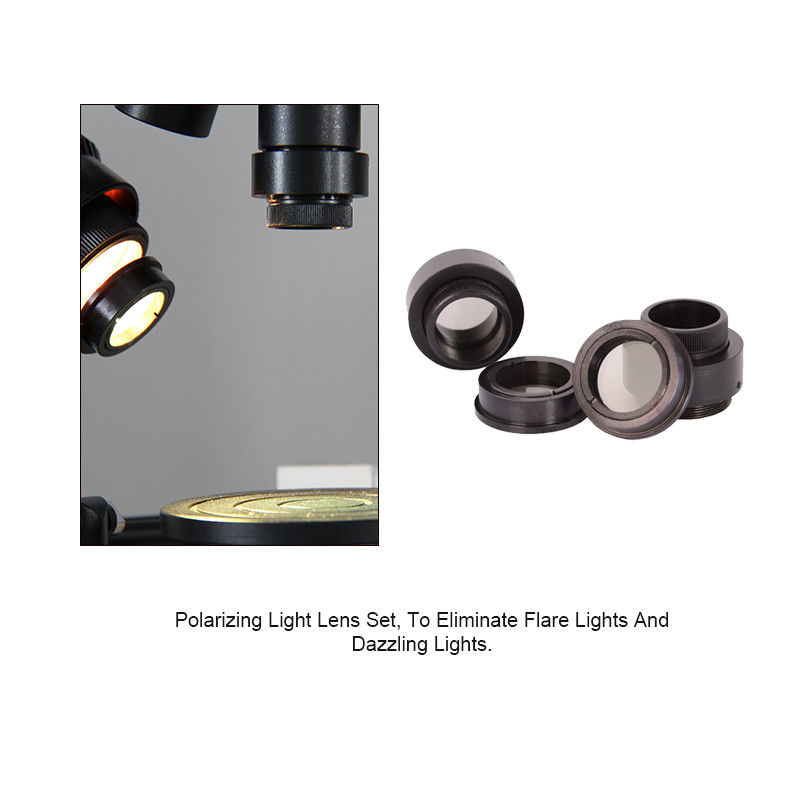

Polarizing Light Lens Set

To eliminate flare lights and dazzling lights


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 12

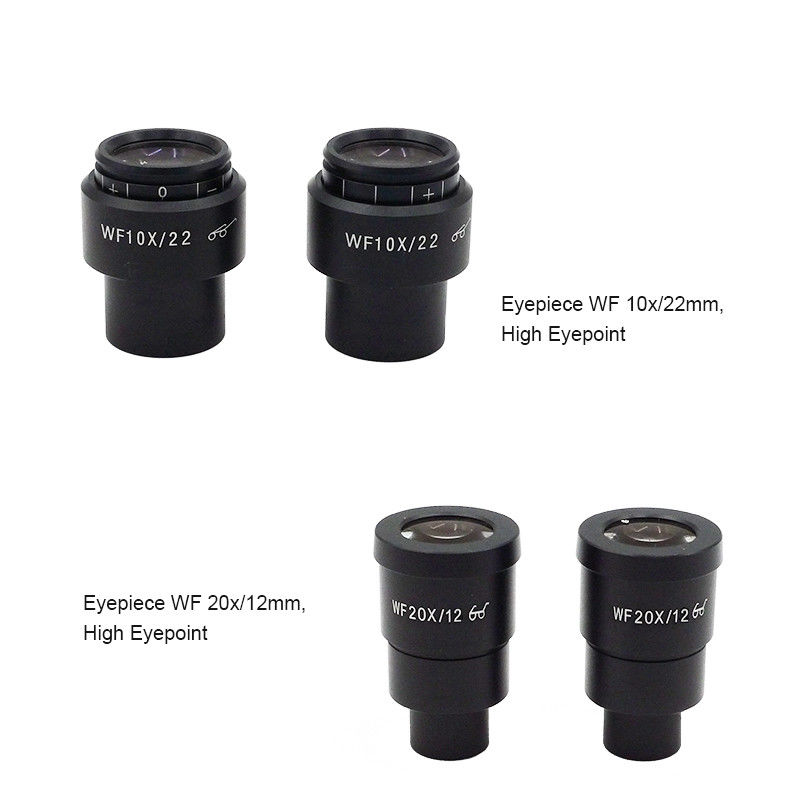

Eyepiece WF 10x/22mm and WF 20x/12mm, high eyepoint, each 2 pcs included


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 13

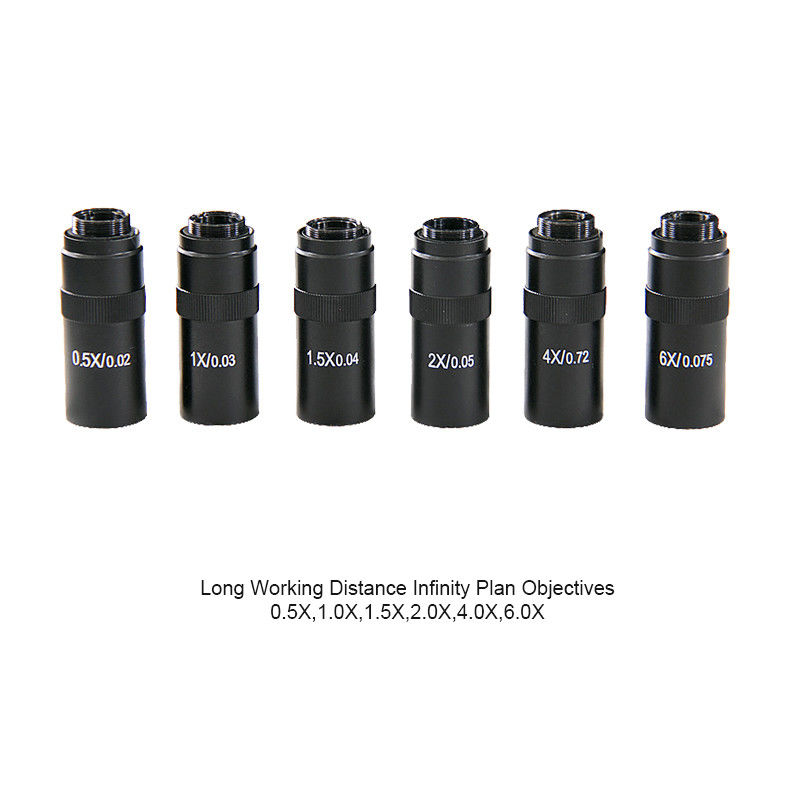

Long Working Distance Infinity Plan Objectives: 0.5x, 1x, 1.5x, 2x, 4x, 6x


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 14

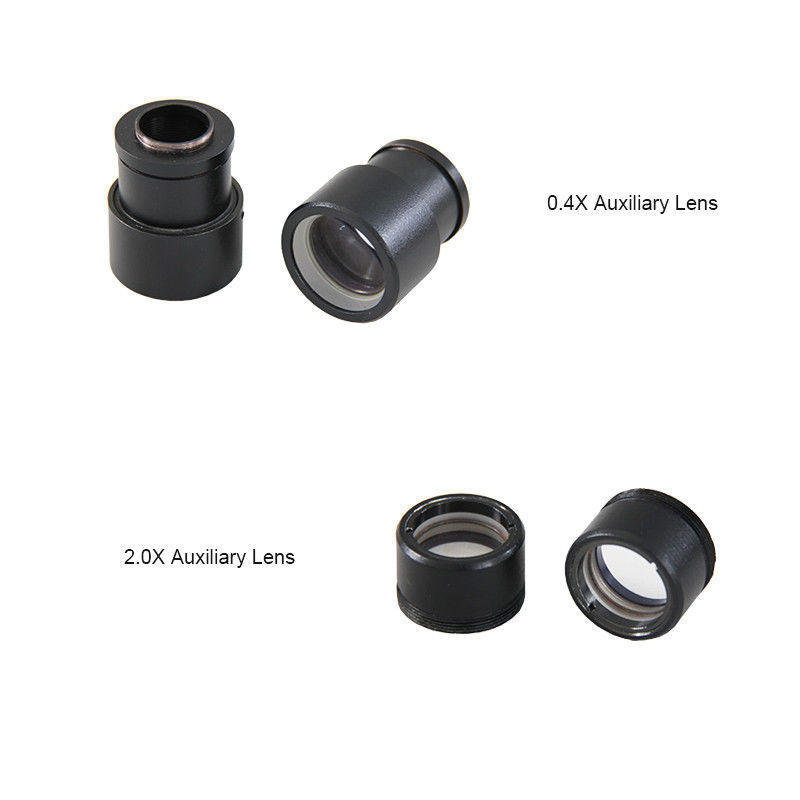

Auxiliary Lens 0.4x and 2x, each 2 pcs included


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 15

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 16

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 17

Opto-Edu has upgraded A18.1828-LCD’s LCD from A59.3520 to A59.3521 in 2024, with Bigger LCD, Higher resolution, Better software at SAME price! Welcome to try the brand new design!


  A59.3520  A59.3521 Upgrade 2022!
LCD 9.7" HD IPS Touch Screen With Backlight 10.5" HD IPS Touch Screen With Backlight
Camera 5.0M Digital Camera 8.0M  4K Digital Camera
Sensor 1/2.5" CMOS 1/1.8" CMOS
Resolution 2048x1536 @15FPS 3840*2158 @30FPS
Pixel 2.2umx2.2um 2.0umx2.0um
Memory 2GB DDR3 / 8GB EMMC 2GB LPDDR4 / 16GB EMMC
Digital Zoom - 16x
Data Output USB2.0*1, For USB Mouse + Keyboard Control USB2.0*1, For USB Mouse + Keyboard Control
USB2.0*1, For USB Disk USB3.0*2, For USB Disk, Support Max 128G
Mini HDMI*1 Sync Output to Monitor HDMI*1 Sync Output to Monitor
- LAN*1
TF Card, Support Max 32G -
Headphone 3.5mm -
Image Format .jpg .jpg
Video Format 1080p 1080p
System Android 5.1 System Android 11 System
90 Languages 90 Languages
Exposure Control Auto/Manual Exposure Control Auto/Manual
White Balance Auto/Manual White Balance Auto/Manual
Support WIFI  Support WIFI
Support Bluetooth Support Bluetooth
Software S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function
Function Direct Enter Microscope View
Size Pad 238x182x12mm, Camera 40x39mm Pad 237x169x10.5mm, Camera 40x39mm
Power DC 12V/2A Power Adaptor, AC 100~240V
Package Packing Box 10x24x29cm, 0.6Kg, 1 set/Box, including: LCD Camera, AC Adapter

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 18

OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 19
OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 20
All Optical Parameter Adjustable Capture Phot & 1080p Video


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 21

Accessories Packed in Strong Aluminum Box


OPTO-EDU 10.5" LCD Pad lcd Forensic Comparison Microscope For School A18.1828-LCD 22

Mag./Viewfield Eyepiece10X Eyepiece20X Photo Adapter Video Adapter Working Distance
Objective
1X 10X/φ21 20X/φ12 1.8X 0.5X 101mm
1.5X 15X/φ15 30X/φ8 2.7X
2X 20X/φ11 40X/φ6 4X
4X 40X/φ6 80X/φ3 7X
6X 60X/φ3.9 120X/φ2 11X
0.5X 5X/φ60 10X/φ24 0.9X 143mm

A18.1828-LCD Forensic Comparison Microscope Specification
LCD Pad 10.5'' LCD Pad Digital Camera, Android System,
8.0 M Pixels, Full Resolution 4k
USB3.0*2, USB2.0*1, HDMl, Gigabit LAN Port
Details see A59.3521
Magnification 2x~240x
Head Bionocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
Eyepiece WF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Nosepiece 6 Hole Click Stop Nosepiece
Objective LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x
Auxiliary Lens 0.4x, 2.0x
Working Distance 101mm
View Field Dia. 2.3~62mm
Magnification Correcting Magnification Correction System, With Correcting Lens
Separation Line Adjusting Seperation Line Adjust System In Back, With Special Designed Adjust Driver
Working Stage Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm

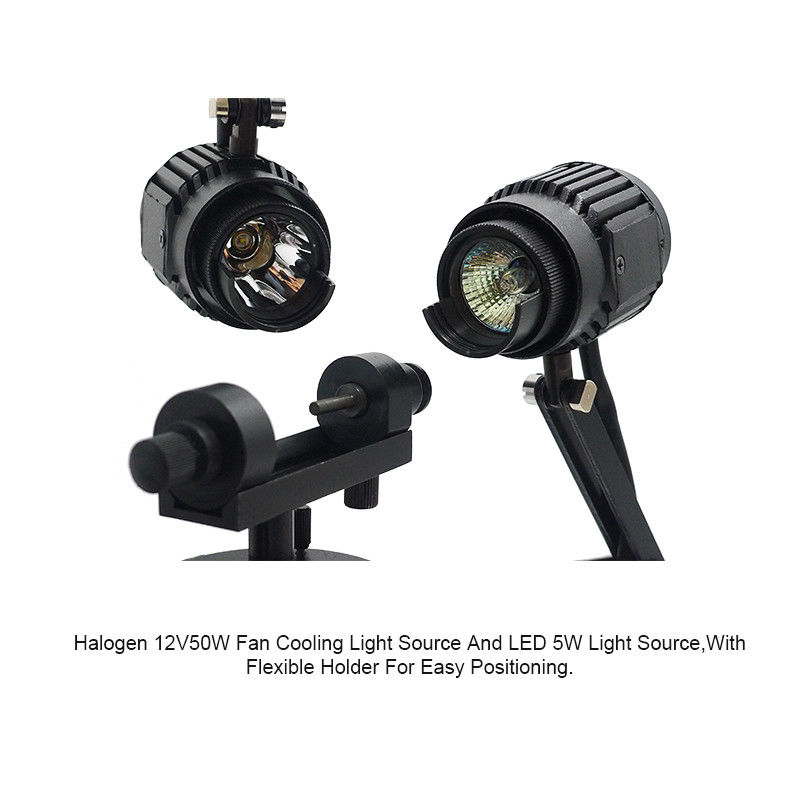

Light Source 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs
Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs
Ultraviolet Light Lens,2pcs
Filters: Red, Blue, Yellow, Green,2pcs Each Color
Adapter 0.5x CCD Adapter For Digital Camera,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
CCD Camera Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm
Power 80~240V Wide Range Voltage
Bullet Holder Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
Dimension Instrument Size 43*34*65cm
Optional Accessories

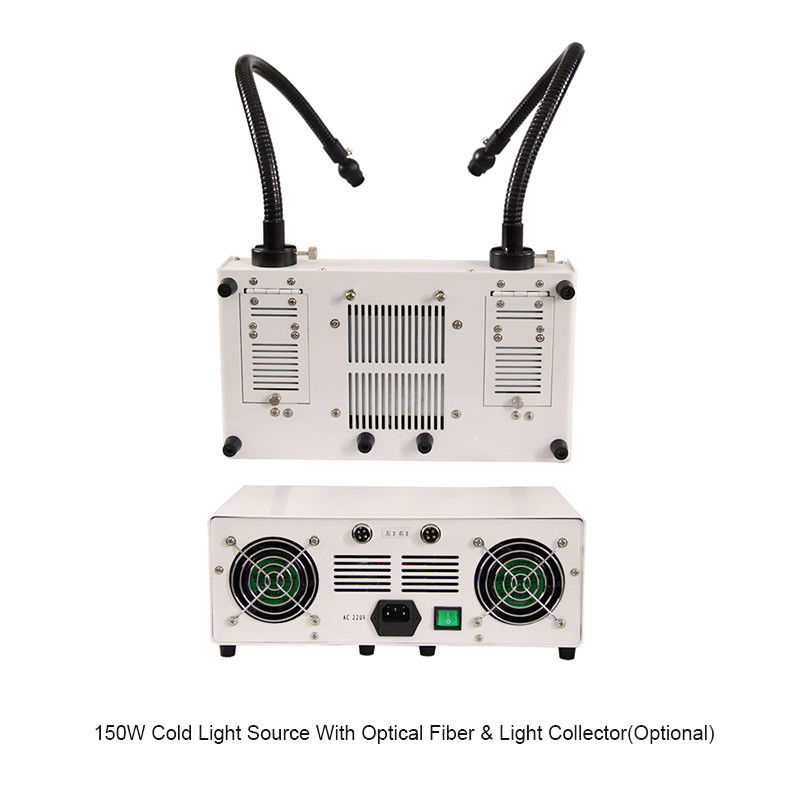

Light Source 150W Cold Light Source, With Optical Fiber & Light Collector A56.1821
Software Professional Forensic Image Analysis Software A30.1821
Bullet Holder Motorized Bullet Holder 1 Set, Used With Software A54.1813
