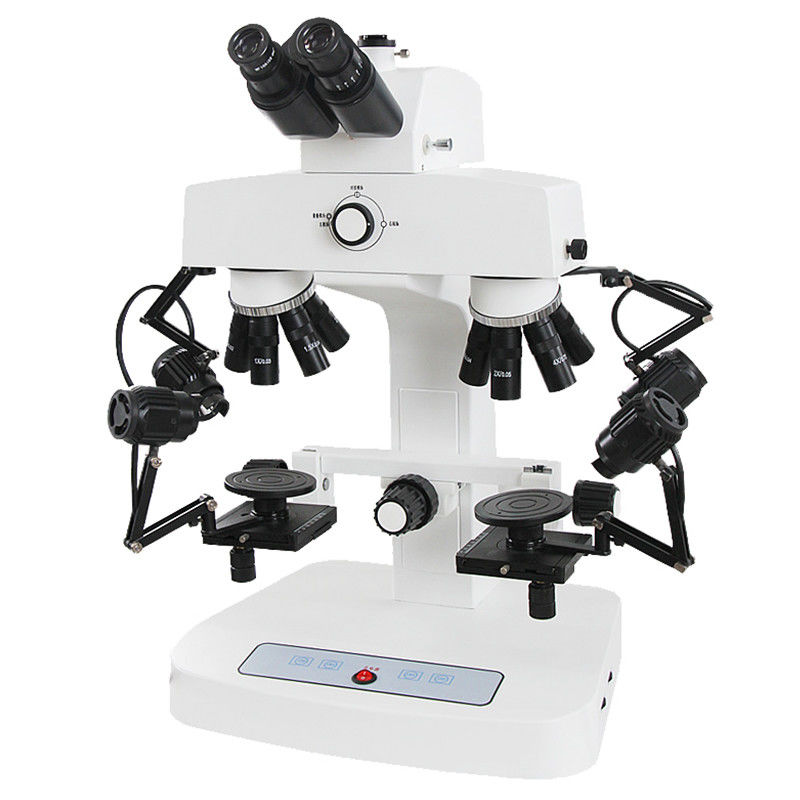

Forensic Comparison Microscope

Forensic Comparison Microscope

  • Highlight

    transmitted light microscope

    ,

    binocular optical microscope

  • Applications
    Laboratory|Research|Educational
  • Certification
    CE|Rohs
  • Drawtube
    Binocular
  • Illumination
    LED
  • Theory
    Comparison Microscope
  • Model Number
    A18.1828
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1828
  • Document
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Forensic Comparison Microscope

Forensic Comparison Microscope 0

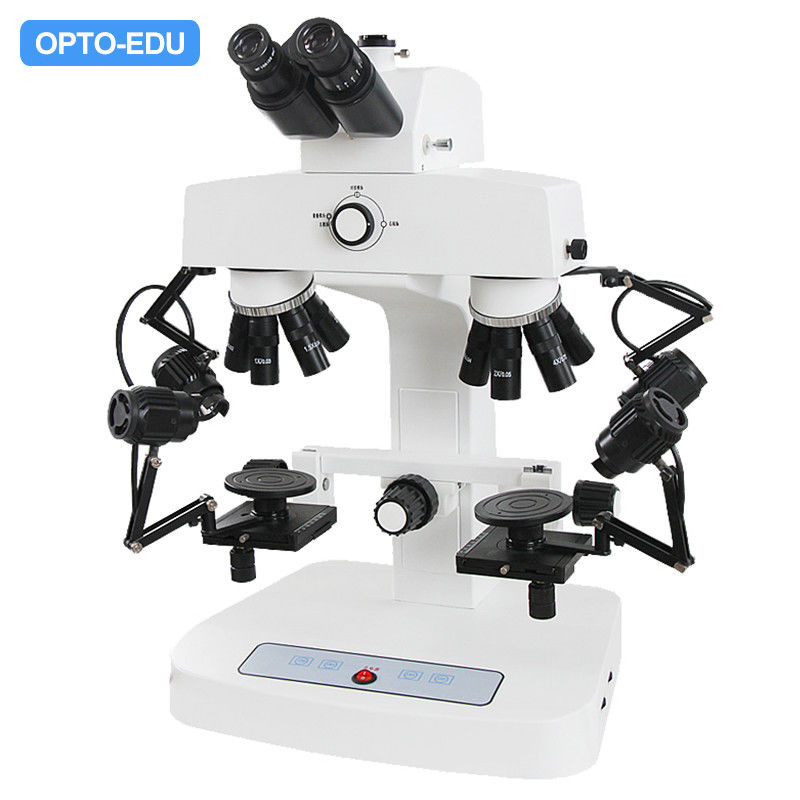

A18.1828 Forensic Comparison Microscope Specification
Magnification2x~240x
HeadBionocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable

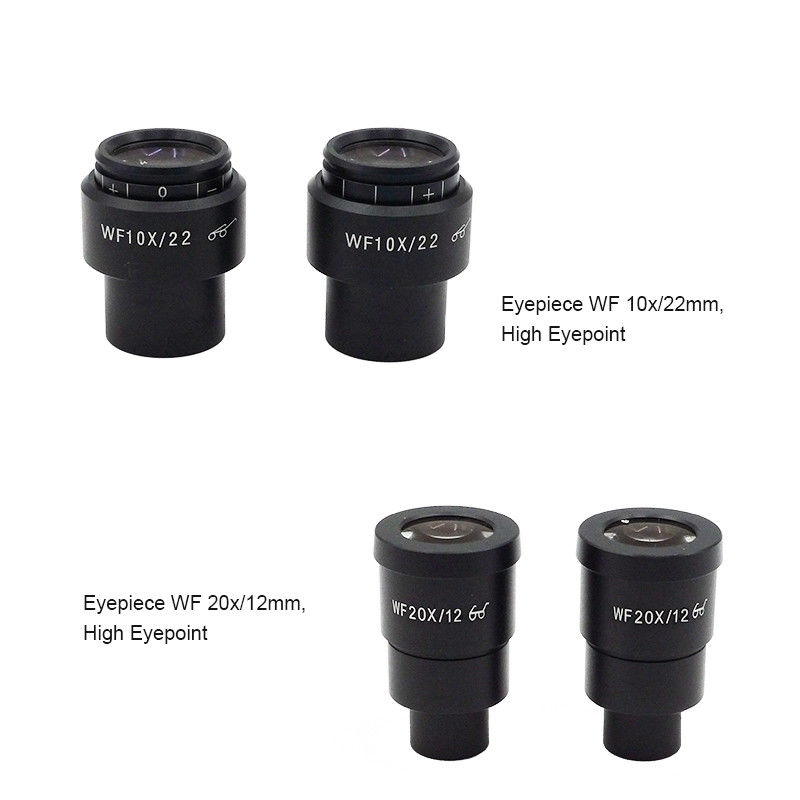

EyepieceWF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Nosepiece6 Hole Click Stop Nosepiece

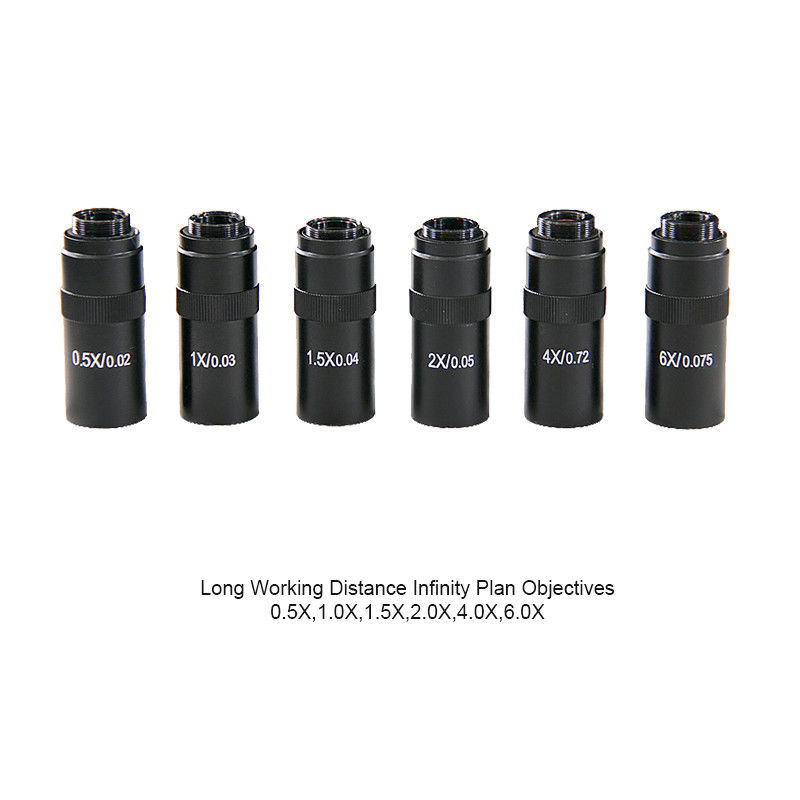

ObjectiveLWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x

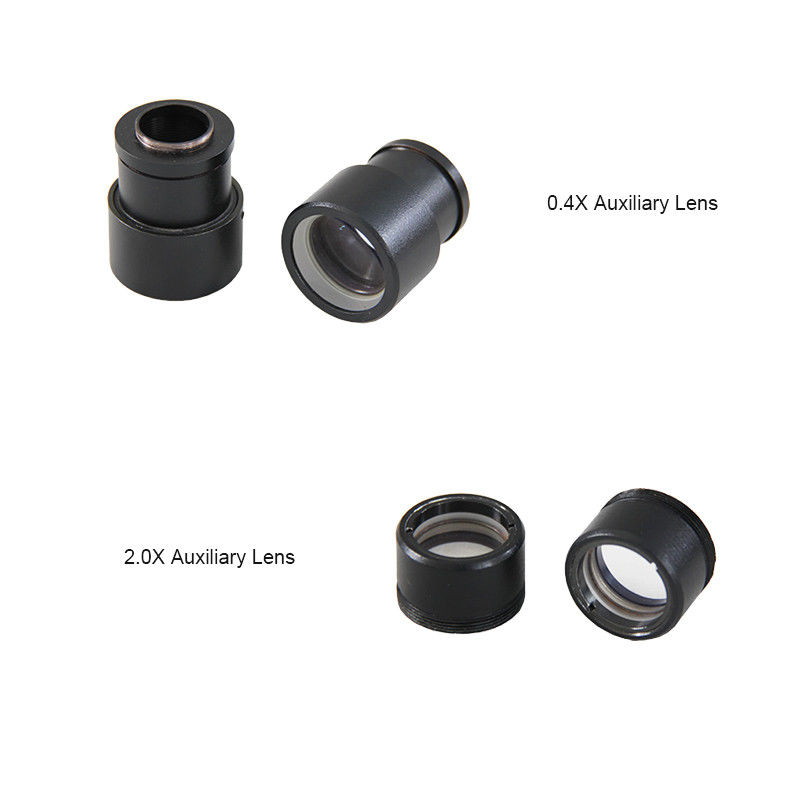

Auxiliary Lens 0.4x, 2.0x
Working Distance101mm
View FieldDia. 2.3~62mm

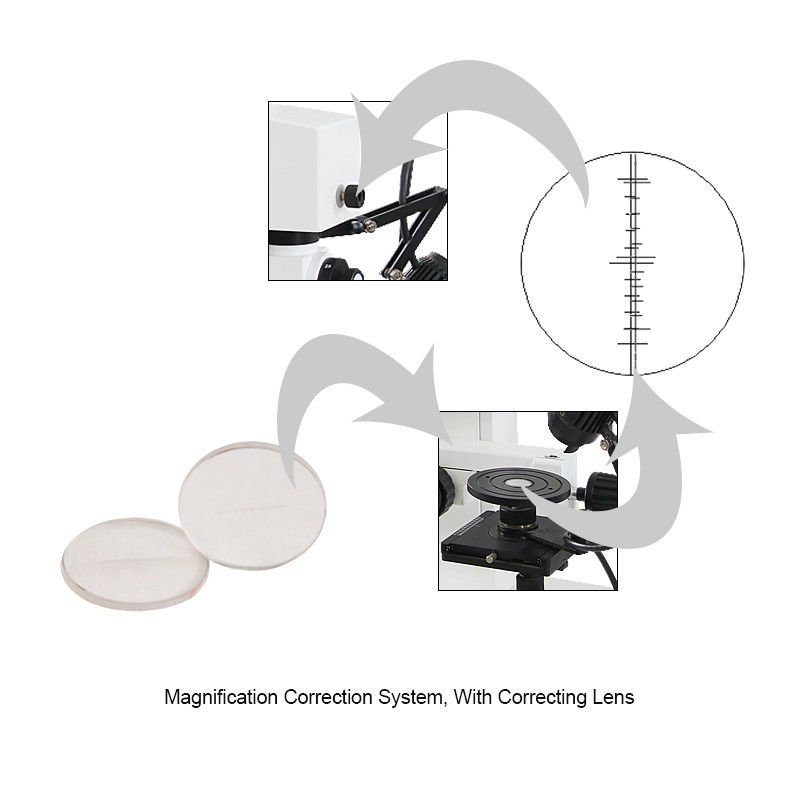

Magnification CorrectingMagnification Correction System, With Correcting Lens

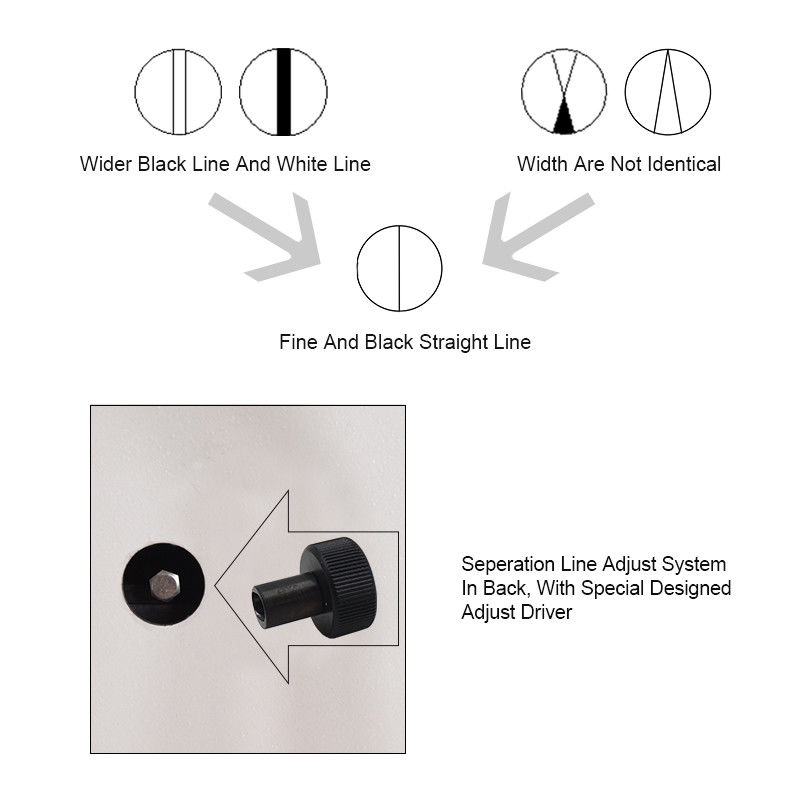

Separation Line AdjustingSeperation Line Adjust System In Back, With Special Designed Adjust Driver
Working StageSquare Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm

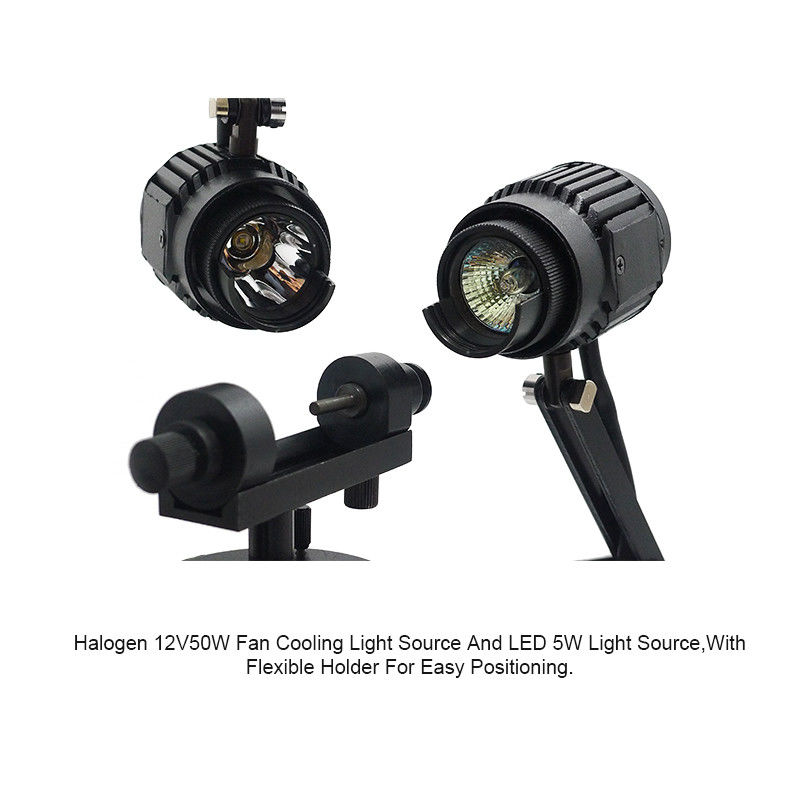

Light Source12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs

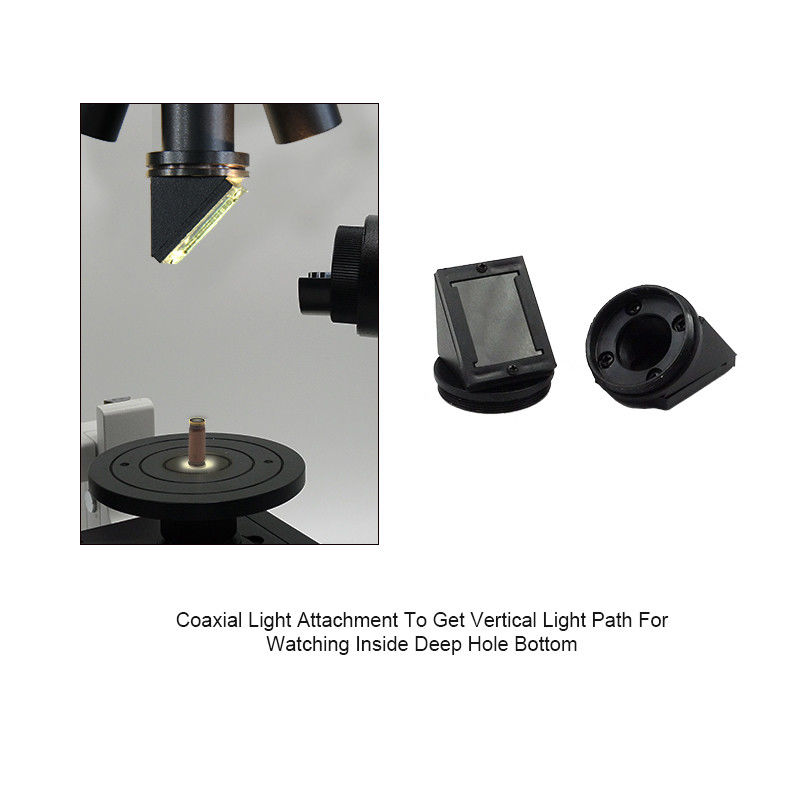

Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs

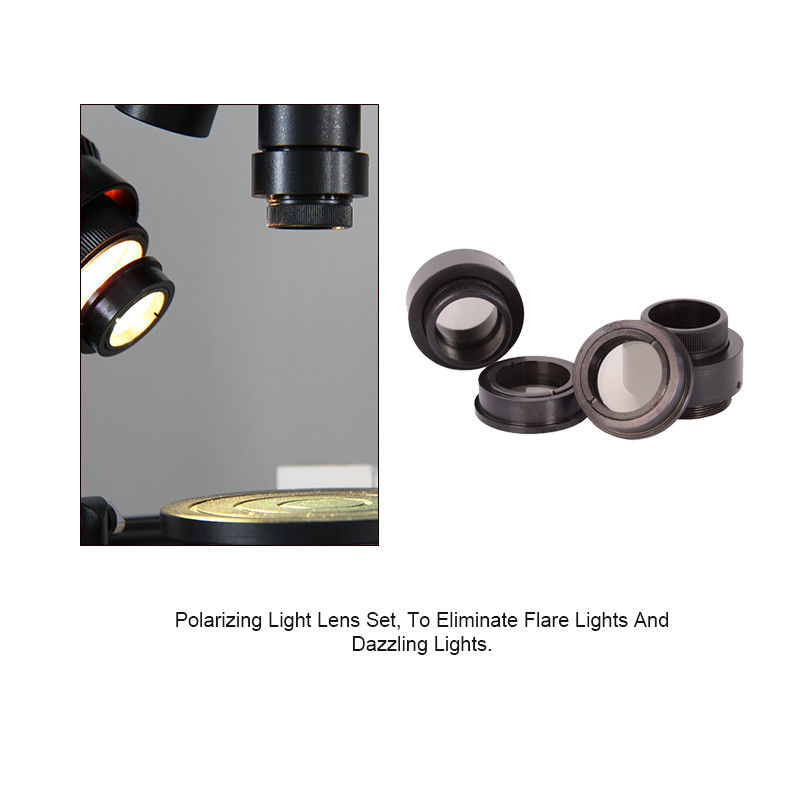

Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs

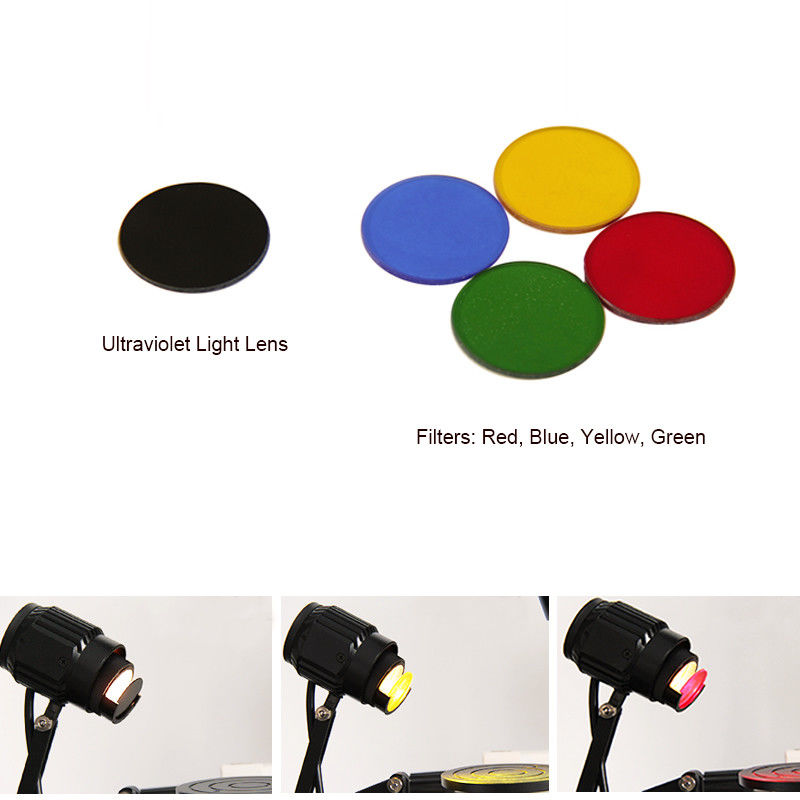

Ultraviolet Light Lens,2pcs
Filters: Red, Blue, Yellow, Green,2pcs Each Color
Adapter0.5x CCD Adapter For Digital Camera,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
CCD Camera3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm
Power80~240V Wide Range Voltage

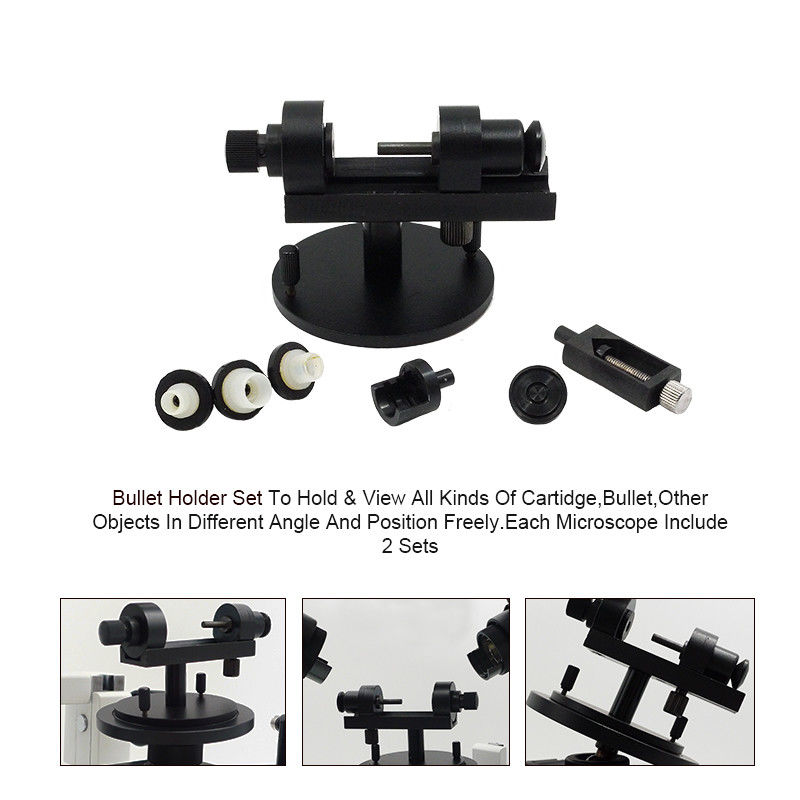

Bullet HolderStandard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
DimensionInstrument Size 43*34*65cm

Optional Accessories

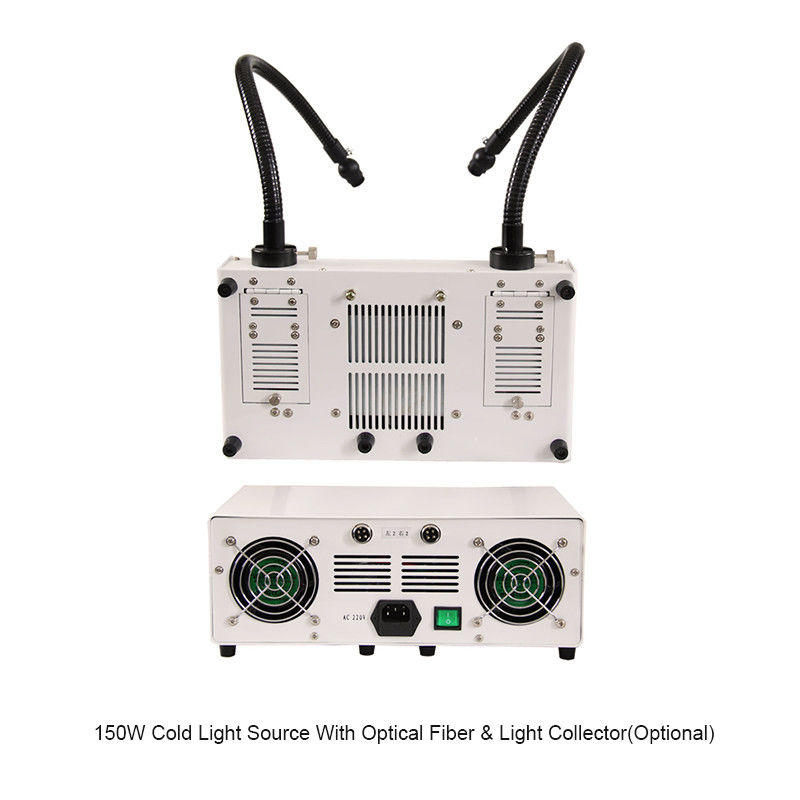

Light Source150W Cold Light Source, With Optical Fiber & Light CollectorA56.1821
SoftwareProfessional forensic image analysis softwareA30.1821
Bullet HolderMotorized Bullet Holder 1 SetA54.1813
Digital Camera9.7'' LCD Pad Digital Camera, Android System,See A18.1828-LCDA59.3520

Forensic Comparison Microscope 1

Forensic Comparison Microscope 2

Forensic Comparison Microscope 3

Forensic Comparison Microscope 4

Forensic Comparison Microscope 5

Forensic Comparison Microscope 6



Mag./ViewfieldEyepiece10XEyepiece20XPhoto AdapterVideo AdapterWorking Distance
Objective
1X10X/φ2120X/φ121.8X0.5X101mm
1.5X15X/φ1530X/φ82.7X
2X20X/φ1140X/φ64X
4X40X/φ680X/φ37X
6X60X/φ3.9120X/φ211X
0.5X5X/φ6010X/φ240.9X143mm

Forensic Comparison Microscope 7

Through optical enlargement, this comparison microscope ,can help the user to observe clearly, by looking into the same eyepiece set, the images in both the right and the left imaging view fields, and compare two or more objects effectively in cutting, joining or overlapping view fields. Due to its powerful magnification, this instrument enables the user to perceive the differences between very small similar objects.
