OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825

  • High Light

    binocular optical microscope

    ,

    bullet comparison microscope

  • Applications
    Student|school
  • Certification
    CE|Rohs
  • Drawtube
    Binocular
  • Illumination
    LED
  • Magnification
    3.2x - 192x
  • Theory
    Comparison Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1825
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 0

A18.1825 Digital Forensic Comparison Microscope Specification
Magnification 3.2x~192x
Head Binocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable

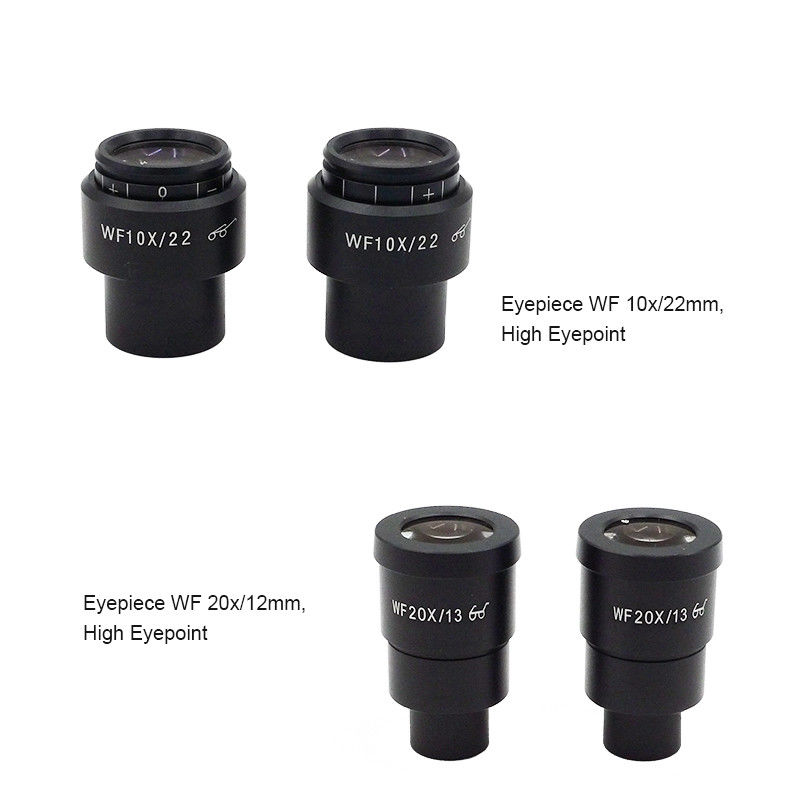

Eyepiece WF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Objective 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
Auxiliary Lens 0.4x, 2.0x
Working Distance 101mm
View Field Dia. 2.3~62mm
Magnification Correcting Magnification Correction System, With Correcting Lens

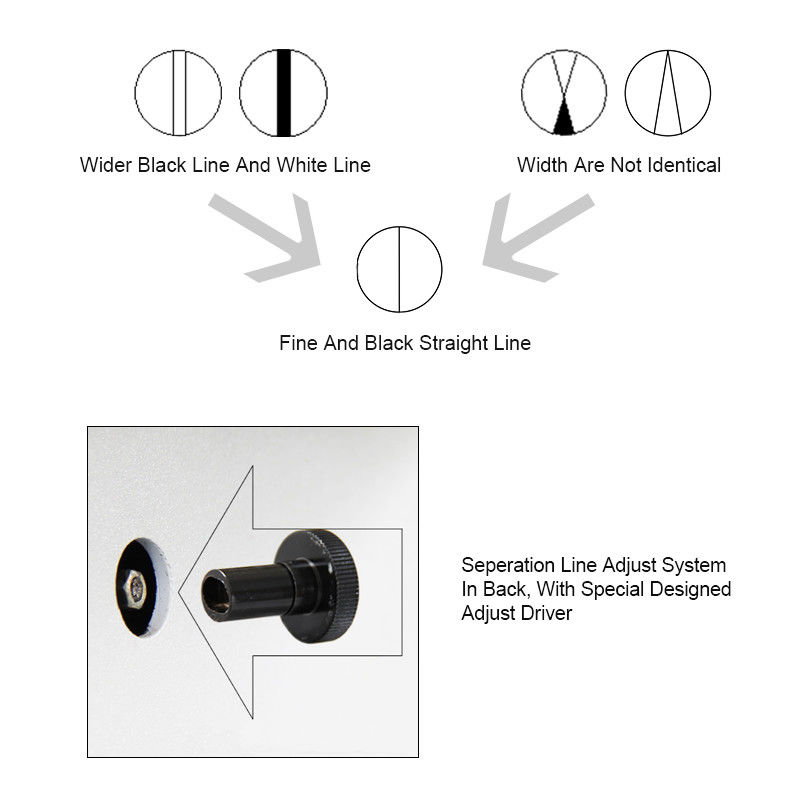

Separation Line Adjusting Separation Line Adjust System In Back, With Special Designed Adjust Driver
Working Stage Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Light Source 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs
Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs
Ultraviolet Light Lens,2pcs
Filters: Red, Blue, Yellow, Green,2pcs Each Color
Adapter 0.5x CCD Adapter For Digital Camera,,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
Power 80~240V Wide Range Voltage
Bullet Holder Standard Bullet Holder 2 Sets
Dimension Instrument Size 37*30*63cm

Optional Accessories
Light Source 150W Cold Light Source, With Optical Fiber & Light Collector A56.1821
Bullet Holder Motorized Bullet Holder 1 Set A54.1813
LCD Pad Digital Camera 9.7'' LCD Pad Digital Camera, Android System,See A18.1825-LCD A59.3520

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 1

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 2

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 3

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 4

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 5

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 6

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 7

Mag./Viewfield Eyepiece10X Eyepiece20X Photo Adapter Video Adapter Working Distance
Objective Bridge Body
0.8X 1.2X 9.6X/φ28 19.2X/φ17 2.5X 0.5X 101mm
1.25X 15X/φ18 19.2X/φ17
2X 24X/φ11 48X/φ7
3.2X 36X/φ7 77X/φ4.5
4.8X 58X/φ4.2 115X/φ2.3
Total Magnification with 0.8x objective, auxiliary lens 0.4x, WF10x eyepiece, magnification = 0.8*0.4*10*1.2=3.8x


OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 8

Through optical enlargement, this comparison microscope ,can help the user to observe clearly, by looking into the same eyepiece set, the images in both the right and the left imaging view fields, and compare two or more objects effectively in cutting, joining or overlapping view fields. Due to its powerful magnification, this instrument enables the user to perceive the differences between very small similar objects.

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 9

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 10

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 11

OPTO-EDU is one of the top professional supplier for microscope from China, we focus in microscope & educational field for more than 20 years. As the top recommended seller for microsocpe on alibaba, we have full types microscopes, including biological microscope, stereo microscope, metallurgical microscope, inverted microscope, fluorescent microscope, polarizing microscope, phase contrast microscope, dark field microscope, multi-viewing microscope, DIC microscope, AFM/STM/SPM microscope, zoom microscope, gem microscope, digital micoscope, LCD microscope, comparison microscope, forensic microscope, and all kinds of microscope accessories.

Our customer comes from more than 104 countries, such as United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, U.A.E., Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile, Brazil, Korea, Thailand, India, Indonsia, Philliphine and so on. We have been working tirelessly to supply China's nice quality production to the world market!

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 12

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 13

OPTO-EDU 3.2x - 192x Binocular LED Bullet Forensic Comparison Microscope A18.1825 14



Description:



A18.1825 Forensic Comparison Microscope, newly developed in 2013, is suitable to be used for forensic science education & school, to give an idea and training to the students what is a comarison microscope and learn how to use it. It is simple but including full comparison system function, and with steady quality at very competitive price!

★ Total Magnification 3.8x~230x
★ Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint
★ 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
★ Auxiliary Lens 0.4x and 2.0x Included
★ Full left/right, split-image or overlapping image comparision
★ Magnification Correcting System, with Correcting Lens
★ Separation Line Adjusting System, with Special Designed Metal Adjust Driver
★ 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
★ 5W LED Cold Light, High Brightness, Brightness Adjustable
★ Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
★ All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
★ Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
★ 80~240V Wide Range Voltage
