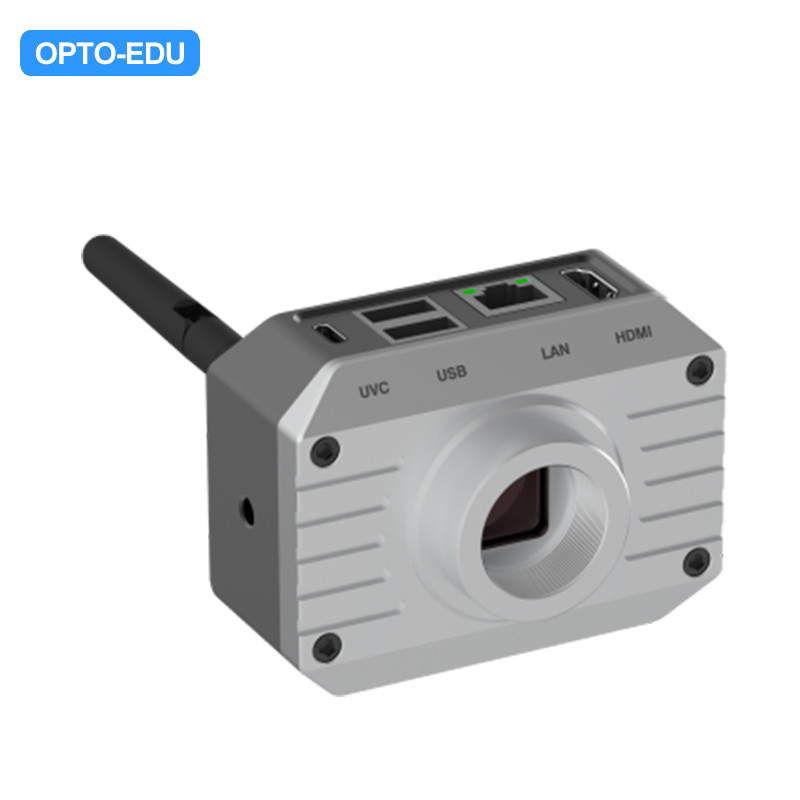

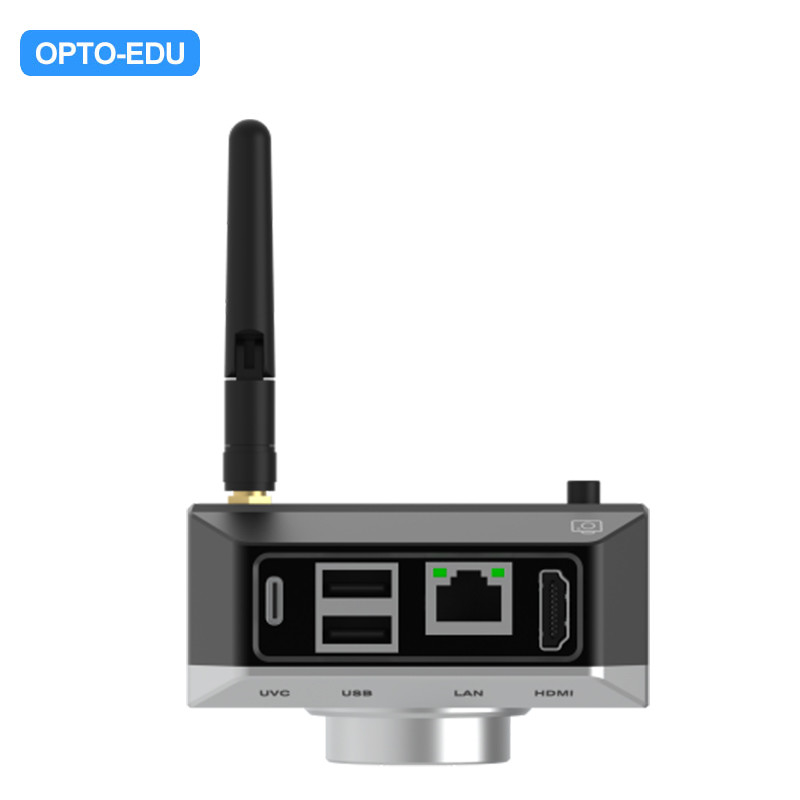

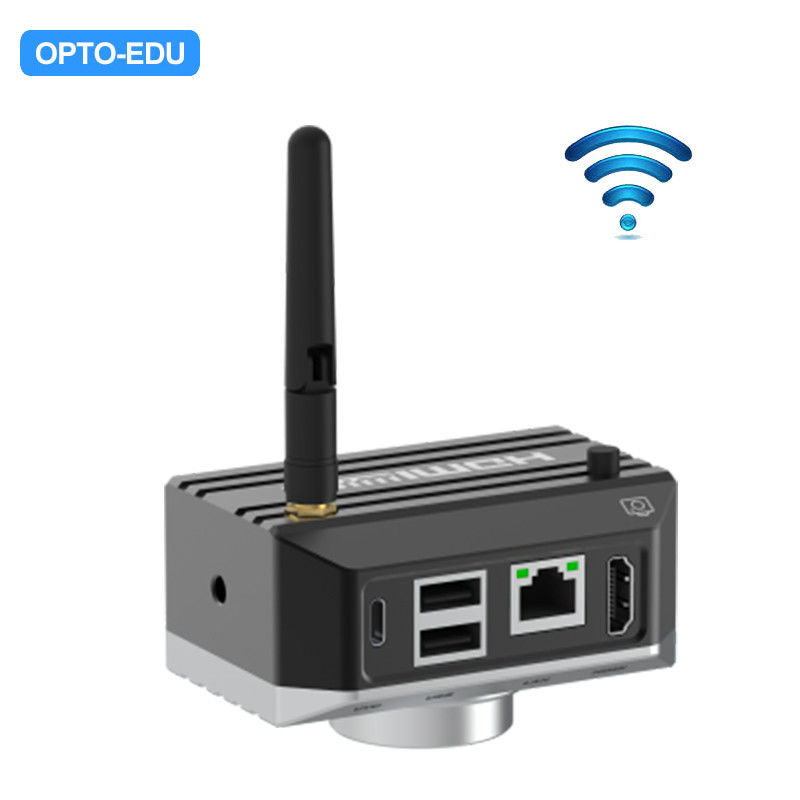

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring

China Opto-Edu (Beijing) Co., Ltd. certification
China Opto-Edu (Beijing) Co., Ltd. certification
We are very happy with the product we purchased. In addition, both the service and the shipping were prompt. Thank you.

—— Aidan Andrews, U.K.

I have been so pleased with my A12.0203 lab microscope, its professional design and optical system is so valuable compare to its competitive price.

—— Luis Guzmán, Germany

I'm Online Chat Now

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring
Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring

Large Image :  Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A59.3508
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Sensor: Sony IMX334, 1/1.8" CMOS Pixel Size: 2.0μm*2.0μm
Resolution: 8.0M FPS: Photo 1920*1080@60FPS, Video 1920*1080@30FPS
Exposure: Exposure Time 0-33MS, Auto/Manual Adjust, Support Target Brightness Setup White Balance: Auto/Manual
Parameter: Set Contrast, Saturation, Gamma, Sharpness, Noise Reduction, Etc Output: WIFI+HDMI+Type-C+WAN
WIFI: WIFI Output Youngwin OS, Support Lo Language: Support Chinese,English,Deutsch, France, Janpanese
High Light:

opto edu usb microscope camera

,

8.0m usb microscope camera

,

8.0m digital microscope camera

  • WIFI+ HDMI + Type C UVC + WAN Image Output Picture & Video
  • 8.0M Full HD Resolution 1920*1080@60FPS For HDMI & USB Output
  • UVC Real Time Image Output To PC With S-Eye Measure Software
  • USB2.0 Mouse Control Menu On HDMI Interface Menu With Measure Function
  • Type C DC5V/2A Power Supply By Adapter or Power Bank

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring 0

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring 1

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring 2

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring 3

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring 4

Wifi OPTO EDU Usb Microscope Camera 8.0m Measuring 5

Items A59.3508 WIFI+HDMI+Type-C+WAN, Digital Camera, 8.0M
Sensor Sony IMX334, 1/1.8" CMOS
Pixel size 2.0μm*2.0μm
Resolution 8.0M
FPS Photo 1920*1080@60FPS, Video 1920*1080@30FPS
Exposure Exposure Time 0-33MS, Auto/Manual Adjust, Support Target Brightness Setup
White Balance Auto/Manual
Parameter Set Contrast, Saturation, Gamma, Sharpness, Noise Reduction, Etc
Output WIFI+HDMI+Type-C+WAN
WIFI WIFI Output Youngwin OS, Support Lo
HDMI Full HD 1080p@60FPS HDMI Output To Monitor, Control By USB2.0 Mouse: Move Mouse To Left & Bottom Edge Of HDMI Screen To Call Up The HDMI MAIN MENU & QUICK MENU, To Capture Photo, Video, Measure, Setting.
USB 1xUSB Connect To Mouse, 1xUSB Connect To U Disk To Store Photo & Video
Type-C Output From Type C Port To PC USB Port, S-Eye Measure Softwer For Win10

S-EYE Measure Software: Length: Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point Line Distance, Line Length Geometry: Radius Circle, Two-point Circle, Three-point Circle, Concentric Circle, Radius Circle, Two-point Circle, Three-point Circle Geometric Area:Polygon, Square Remark: Point Coordinates, Crosshairs, Coordinate Systems, Text Notes
WAN Output To Ethernet
Language Support Chinese,English,Deutsch, France, Janpanese
Power Type C DC 12V/2A
Package Size 85*65*49mm

Weight 0.2Kg
