CE Semi Apo OPTO EDU Inverted Fluorescence Microscope

CE Semi Apo OPTO EDU Inverted Fluorescence Microscope

  • High Light

    semi apo inverted fluorescence microscope

    ,

    OPTO EDU inverted fluorescence microscope

    ,

    CE inverted fluorescence microscope

  • Observation Method
    Bright Field, Fluorescent, Phase Contrast
  • Head
    Trinocular Head 45° Inclined, 360° Rotatable
  • Eyepiece
    High Point Eyepiece, Wide Feld Plan PL10x/22mm, Diopter Adjustable
  • Nosepiece
    Quintuple Nosepiece
  • Objective
    LWD Infinity Plan Fluorescent Objective
  • Focusing
    Coaxial Coarse & Fine Focusing System, With Tension Adjustment Ring
  • Working Stage
    Fixed Working Stage Size 215x250mm
  • Condenser
    LWD Condenser N.A.0.3, Working Distance 72mm, Removeable
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.0912-L
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

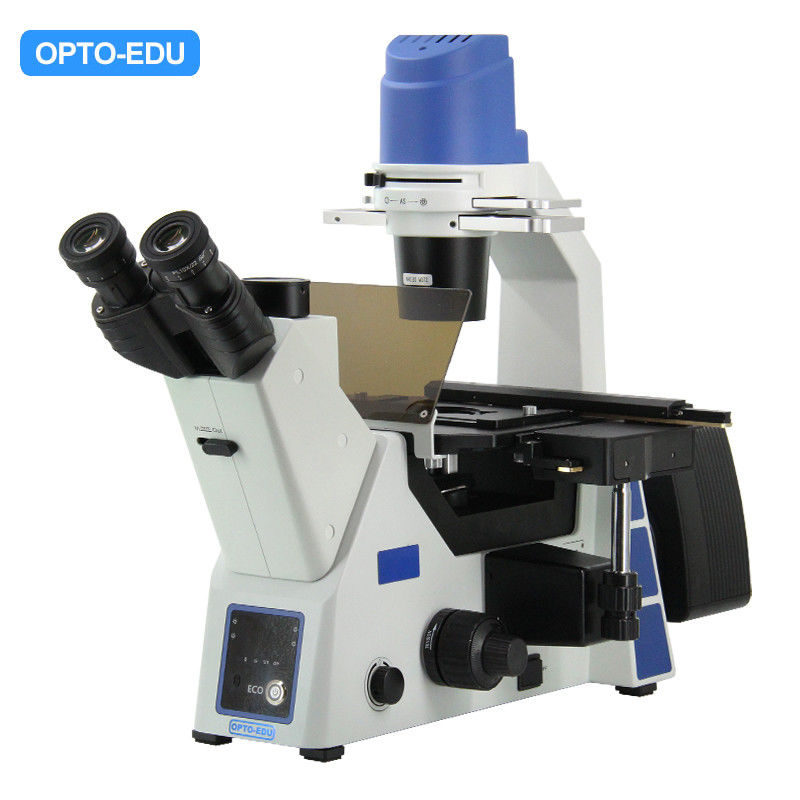

CE Semi Apo OPTO EDU Inverted Fluorescence Microscope

Trinocular, WF10x/22mm, Quintuple, LWD Infinity Plan Fluorescent 4x10x, LWD Infinity Plan Semi-APO 20x40x, Coaxial Focusing, Working Stage 215x250mm, Attachable Stage Moving Range 120x78mm, Glass Plate, Metal Plate, 3 Holders, LWD Condenser N.A.0.3, W.D.78mm, Phase Contrast Slide + Centering Telescope, Transmit 5W LED, Filter LBD, IF550, Reflect Fluroescent LED 3 Bands, Fluroescent Filter B1, G1.

CE Semi Apo OPTO EDU Inverted Fluorescence Microscope 0

CE Semi Apo OPTO EDU Inverted Fluorescence Microscope 1

CE Semi Apo OPTO EDU Inverted Fluorescence Microscope 2

CE Semi Apo OPTO EDU Inverted Fluorescence Microscope 3

A16.0912-L LED Semi-APO Fluorescence Microscope Cata. No.
Observation Method Bright Field, Fluorescent, Phase Contrast
Head Trinocular Head 45° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm, Light Splitting Ratio 100:0/0:100 Switchable
Eyepiece High Point Eyepiece, Wide Feld Plan PL10x/22mm, Diopter Adjustable A51.0904-1022T
High Point Eyepiece, Wide Feld Plan PL10x/22mm, Diopter Adjustable, With Reticle A51.0905-1022R
High Point Eyepiece, Wide Feld Plan PL15x/16mm, Diopter Adjustable A51.0903-1516
Nosepiece Quintuple Nosepiece

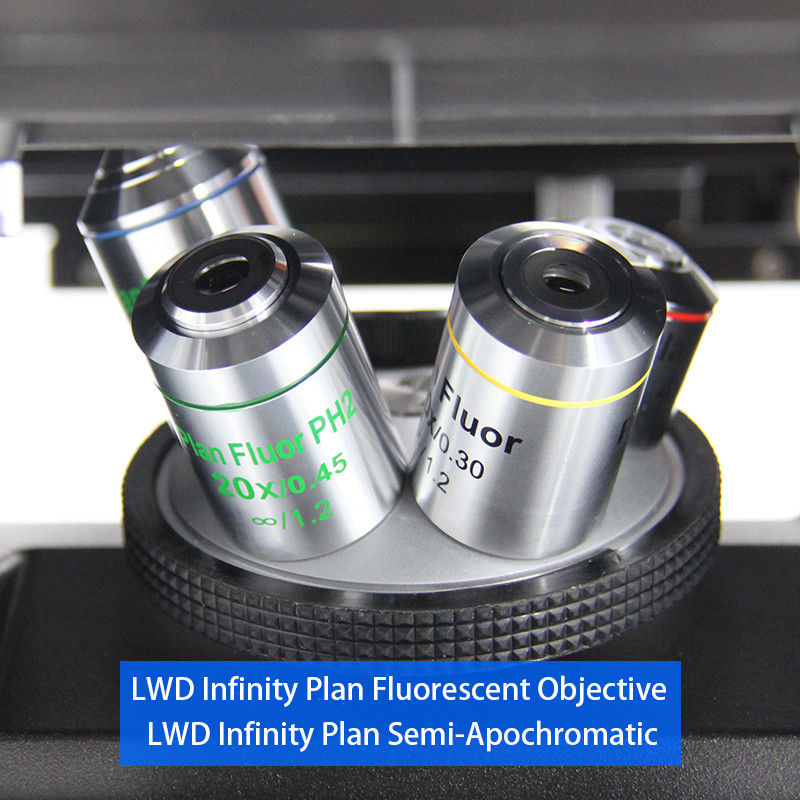

Objective LWD Infinity Plan Fluorescent Objective LWDPL4x/0.13, W.D.18.52mm A5F.0932-4
LWD Infinity Plan Fluorescent Objective LWDPL10x/0.3, W.D.7.11mm A5F.0932-10
LWD Infinity Plan Fluorescent Objective LWDPL20x/0.45, W.D.5.91mm A5F.0932-20
LWD Infinity Plan Fluorescent Objective LWDPL40x/0.65, W.D.1.61mm A5F.0932-40
LWD Infinity Plan Fluorescent Objective LWDPL60X/0.75, W.D.1.04mm A5F.0932-60
LWD Infinity Plan Semi-Apochromatic Phase Contrast Fluorescent Objective LWDPL20x/0.45 W.D.5.91mm A5F.0933-20
LWD Infinity Plan Semi-Apochromatic Phase Contrast Fluorescent Objective LWDPL40x/0.65 W.D.1.61mm A5F.0933-40
Focusing Coaxial Coarse & Fine Focusing System, With Tension Adjustment Ring, Coarse Focusing Range 9mm, Coke-Oriented 6.5mm, 2.5mm Down, Fine Focusing Precision 0.002mm

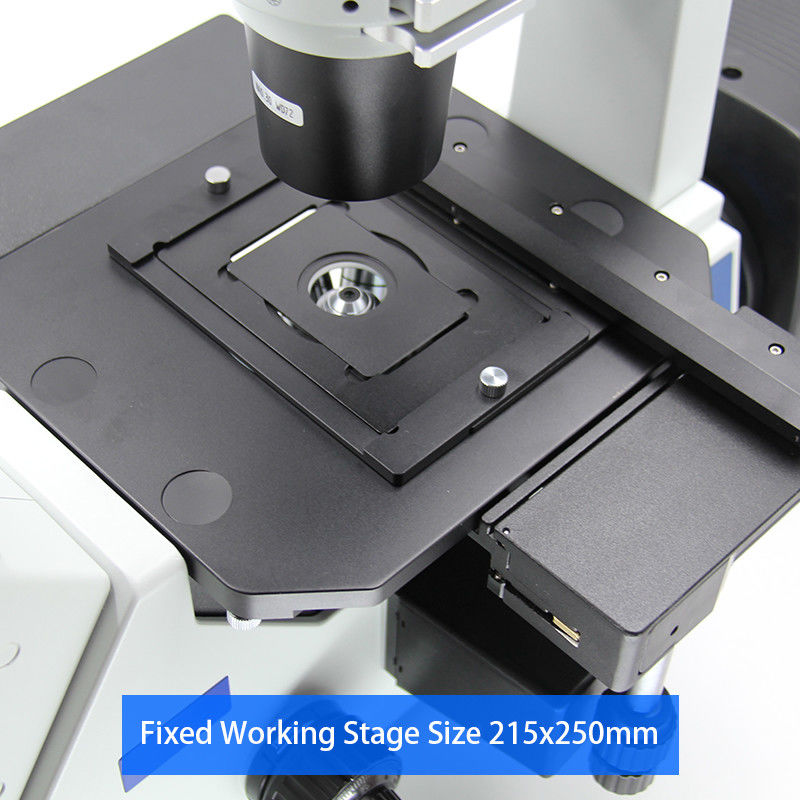

Working Stage Fixed Working Stage Size 215x250mm
Glass Plate
Metal Plate (Kidney Hole)
Mechanical Mobile Ruler, Moving Range 120(X)x78(Y)mm
Stage Extension Plate
Petri Dish Holder Dia.35mm
Slides Holder Dia.54mm, And 26.5x76.5mm
Teraseki Holder Dia.65mm, And 56x81.5mm
Condenser LWD Condenser N.A.0.3, Working Distance 72mm, Removeable
Phase Contrast Centre-Adjustable Phase Contrast Slide Plate, For N.A.0.3, With 2 Handles
Centering Telescop Dia.30mm
Reflect Fluorescent Light Source LED Fluorescent Lamp House, 4 Bands LED Switching By Servo Motor, Built-in LEDs For Fluorescent Filter 385nm, 470nm, And 560nm.

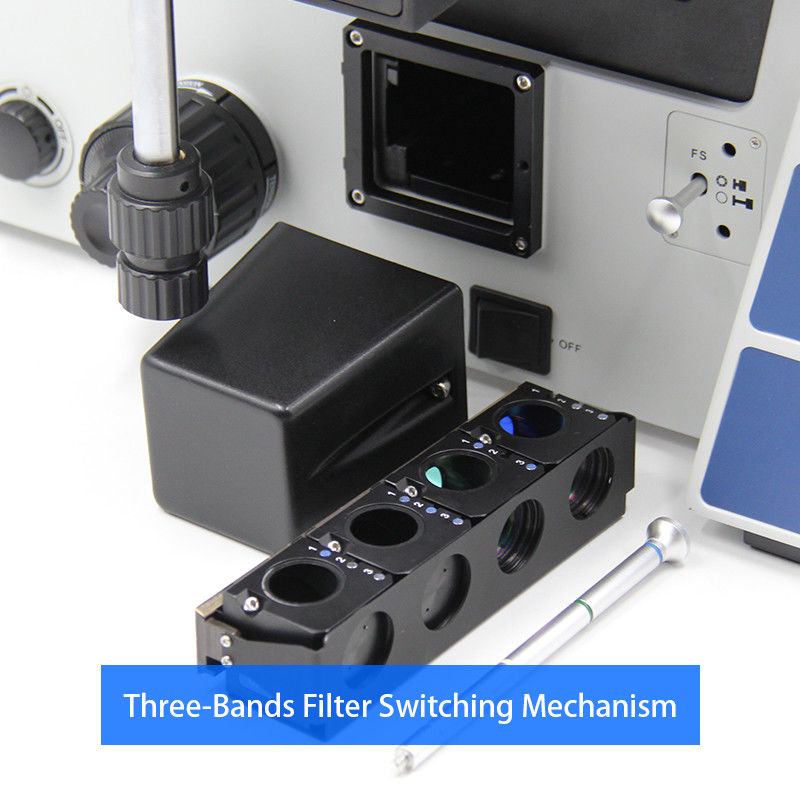

Three-Bands Filter Switching Mechanism, Automatically Switch Filters & LED Light Together And Show Filter Selected On Front Panel.
Fluorescent Filter B1 470nm A5F.0924-B1
Fluorescent Filter G1 560nm A5F.0924-G1
Fluorescent Filter UV1 385nm A5F.0924-UV1

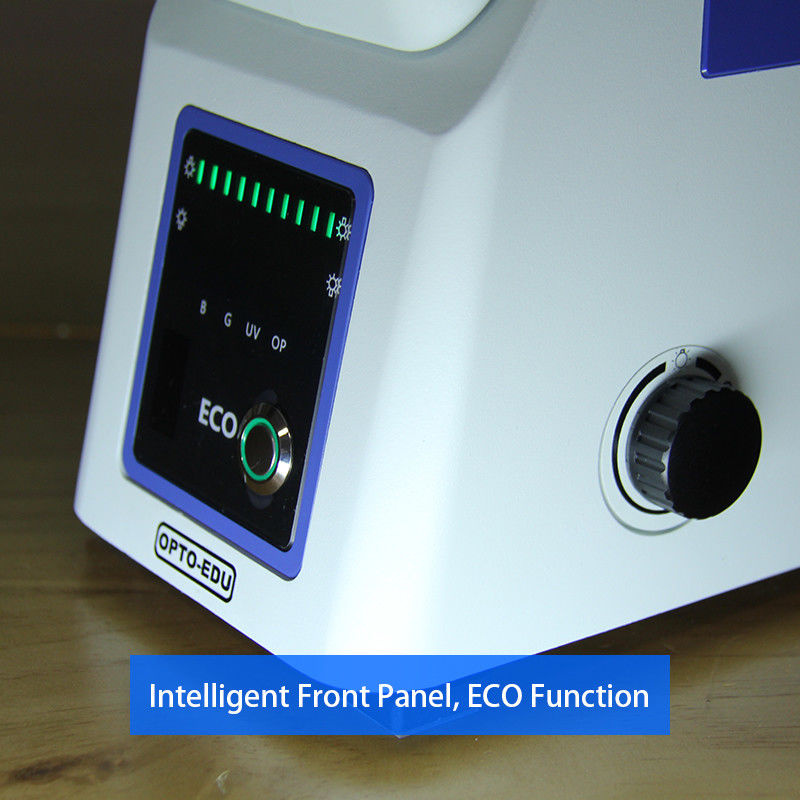

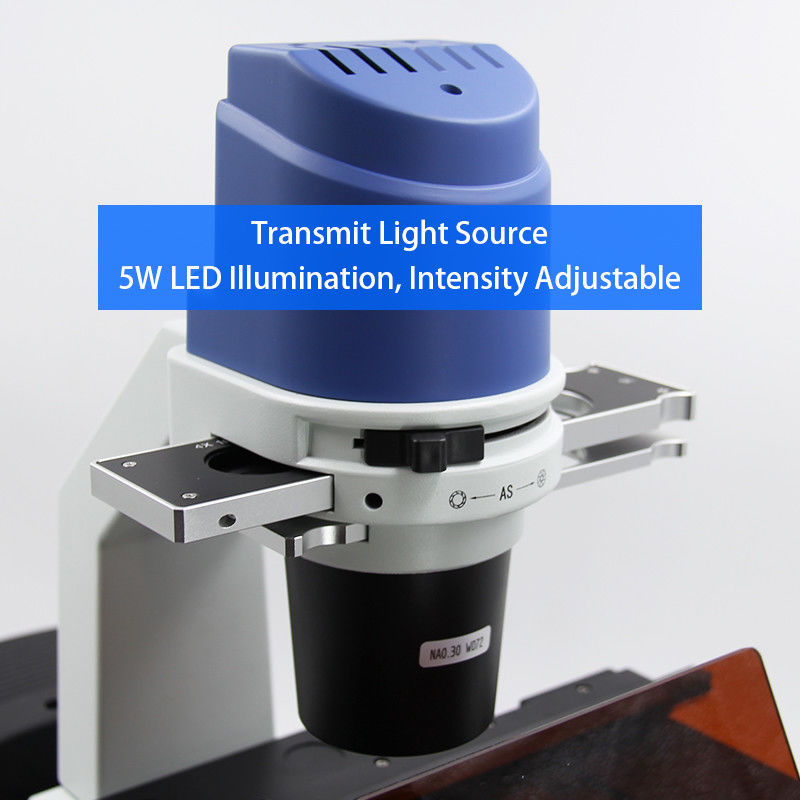

Transmit Light Source 5W LED Illumination, Intensity Adjustable, With Intelligent ECO System And Indicator In Front Panel
LBD Color Temperature Change Filter Dia.45mm
IF550 Green Interference Filter Dia.45mm
Main Body Reflect and Transmit Frame Body
Power Supply External Wide Voltage Transformer, Input 100-240V, Output 12V5A
Adapter C-Mount 0.35x A55.0934-35
C-Mount 0.65x A55.0934-65
C-Mount 0.5x A55.0934-05
C-Mount 1.0x A55.0934-10
Others Spanner
Packing Foam+Carton, 1pc/Carton, 74*67*57cm, G.W.24Kgs
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable
