Digital Comparison Microscope

Get Price Contact Now

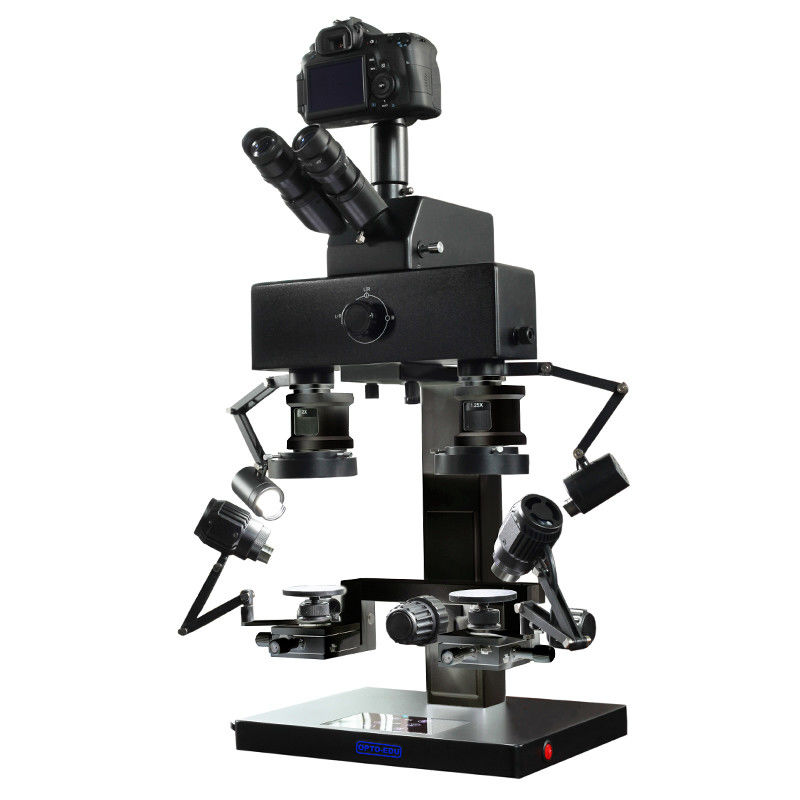

OPTO-EDU A18.1831 3.2~288x Binocular Step Zoom forensic microscope

A18.1831 Comparsion Microscope
Total Magnification	3.2x-288x
Head	Binocular 45° Inclinded, 48-75mm
Eyepiece	WF10X/22mm, WF20X/12mm
Step Zoom Lens	0.8x,1.25x,2x,3.2x,4.8x
Auxiliary Lens	0.4x, 2.0x
View Field	Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Working Stage	Moving Range: X-55mm, Y-55mm, Z-65mm, 0°-45° Inclination Adjustable
	Joint Left/Right Moving Range 62mm, Joint Up/Down Range 80mm
	Round Stage, 360° Rotating
	Bullet Holder 2 Sets
Bridge	Motorized Up/Down
Light Source	5W LED+12V/50W Halogen+108 LEDS Ring Light UV Filter Filter Red/Blue/Yellow/Green
Camera	3.0M Digital Camera, Built-in CCD
Adapter	0.5x C-Mount
Adapter	Photo Adapter For Cannon SLR
Function Panel	Touch Type, User-Friendly Design, Easy To Operate And Accurate
Power	Power Supply 80-240V

Digital Comparison Microscope 0

Digital Comparison Microscope 1

Digital Comparison Microscope 2

Digital Comparison Microscope 3

Tags:

bullet comparison microscope
