3W LED Coaxial Coarse Fine Focusing Fluorescence Microscope CE / Rohs Certification

3W LED Coaxial Coarse Fine Focusing Fluorescence Microscope CE / Rohs Certification

  • High Light

    epi-fluorescence microscope

    ,

    inverted fluorescence microscope

  • Application
    Research|Learning
  • Certification
    CE|Rohs
  • Drawtube
    Binocular|trinocular
  • Illumination
    LED
  • Magnification
    40x - 1000x
  • Theory
    Fluorescence Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.2601
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

3W LED Coaxial Coarse Fine Focusing Fluorescence Microscope CE / Rohs Certification



40-1000X 3W LED Coaxial Coarse & Fine Focusing Fluorescence Microscope





Items A16.2601 Fluorescent Microscope Specification -B2 -T2 -B4 -T4 Cata. No.
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm A53.2621-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, , Light Split Fixed P20:E80 A53.2621-T
Eyepiece WF10X/20mm (High Eyepoint) ●● ●● ●● ●● A51.2602-1020
Nosepiece Quadruple, Backward A54.2610-N734
Quintuple, Backward A54.2610-N735
Infinity E-Plan Objective EPLAN 4x/0.10,W.D.=12.1mm A52.2605-4
EPLAN 10x/0.25,W.D.=4.14mm A52.2605-10
EPLAN 40x/0.65(S),W.D.=0.58mm A52.2605-40
EPLAN 100x/1.25(S, Oil),W.D.=0.19mm A52.2605-100
Infinity Plan
Semi-APO Fluorescent Objective
UplanFLN 4x, N.A.0.16,W.D.=17.151mm A5F.2611-4
UplanFLN 10x, N.A.0.30,W.D.=7.68mm A5F.2611-10
UplanFLN 20x, N.A.0.50,W.D.=1.96mm A5F.2611-20
UplanFLN 40x, N.A.0.75,W.D.=0.78mm A5F.2611-40
UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm A5F.2611-100
Working Stage Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder A54.2601-S04
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder
A54.2601-S12
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down A56.2614-C06b
Illumination 3W-LED Illumination Systems A56.2613-3W
12V/20W Halogen Lamp A56.2650-20W
6V/30W Halogen Lamp A56.2650-30W
Field Diaphragm Upgrade To Kohler Illumnation A56.2615-S
Filter Dia.45mm, Blue A56.2616-45B
Dia.45mm, Green A56.2616-45G
Dia.45mm, Yellow A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective A5D.2610-S
Polarizing Analyzer + Polarizer Set A5P.2601-S
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-S
Fluorescence Unit Upgrade From A12.2601-C/CT Biological Microscope With:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
    A5F.2601-2
Upgrade From A12.2601-C/CT Biological Microscope With:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
    A5F.2601-4
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable         A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm         A55.2610
Mirror Reflecting Mirror & Holder A56.2601
Attachment Wire Winding Device A50.2602-S
Package Carton Size 970×340×440mm, 1 pc / Ctn
Weight Gross Weight: 22 kgs, Net Weight: 18 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories

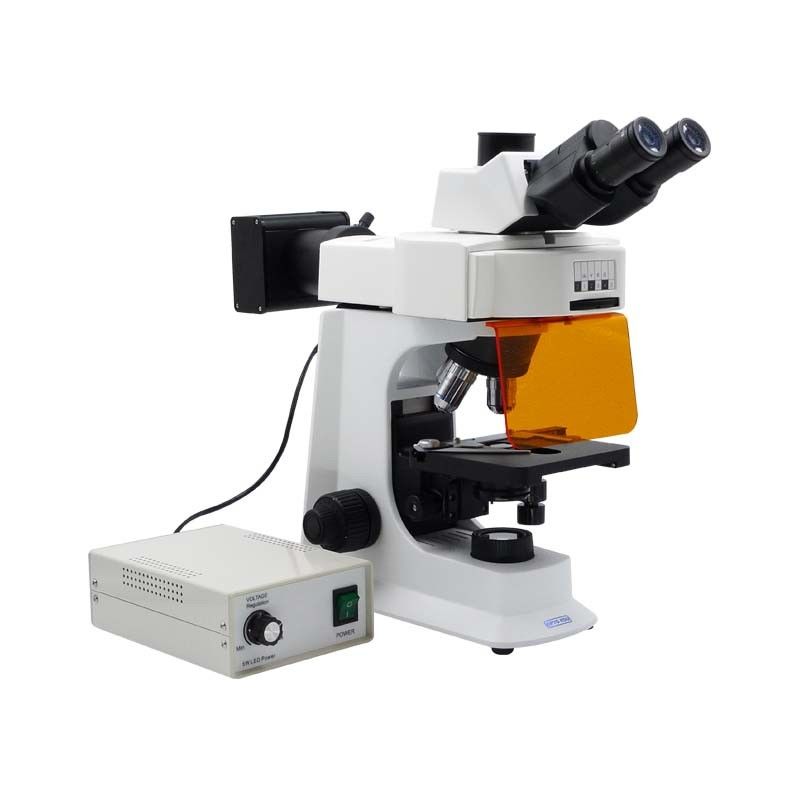

3W LED Coaxial Coarse Fine Focusing Fluorescence Microscope CE / Rohs Certification 0

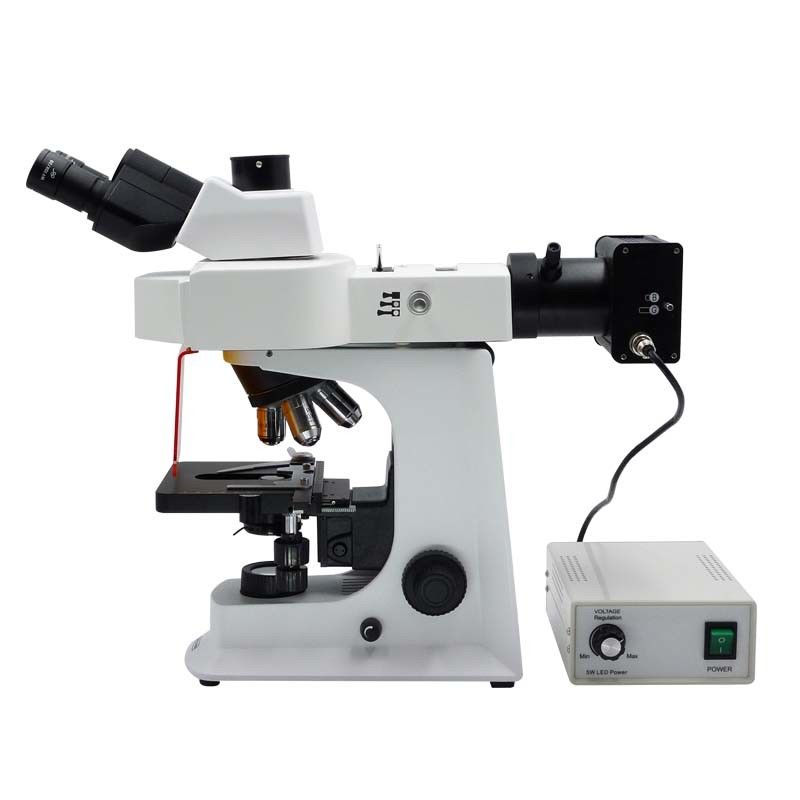

3W LED Coaxial Coarse Fine Focusing Fluorescence Microscope CE / Rohs Certification 1
