A15.2603 Polarizing Light Microscope / Compound Light Microscope Trinocular Illumination

A15.2603 Polarizing Light Microscope / Compound Light Microscope Trinocular Illumination

  • High Light

    student compound microscope

    ,

    highest magnification microscope

  • Head
    Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 20:80.
  • Eyepiece
    WF10x/18mm, 1 Pc, WF10x/18mm, With Micrometer 0.1mm Div., 1 Pc
  • Nosepiece
    Quadruple, Center Adjustable
  • Objective
    4x, 10x, 20x, 40x
  • Stage
    Round Stage, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6'
  • Condenser
    Abbe N.A.1.25, With Iris Diaphragm, Non Stress
  • Focusing
    Coaxial Coarse And Fine Focusing Knob, Coarse Focusing Range 26mm
  • Illumination
    Transmit 6V20W Halogen Lamp
  • Power
    110V~240V Wide Range Voltage Product Display
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A15.2603
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A15.2603 Polarizing Light Microscope / Compound Light Microscope Trinocular Illumination

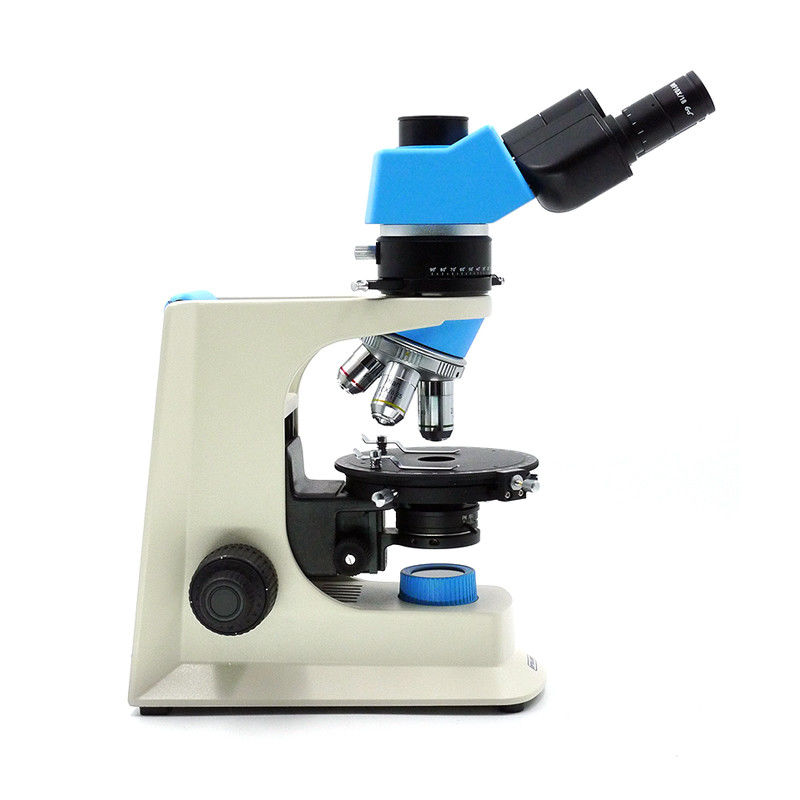

OPTO-EDU A15.2603-B 400X Trinocular Illumination Polarizing Microscope
A15.2603 Polarizing Microscope, with full polarizing function and high quality performance, is the best tools for school and student use.
--Infinity achromatic correction optical system, infinity without stress flat field objective.
--Polarizer unit built-in condenser, with scale, rotatable 360°, can be locked.
--Analyzer unit insert to polarizing media, rotatable 0-90°, can be moved out of optical path.
--Optical compensator: λ slip (first class red), 1/4λ slip.

A15.2603 Polarizing Light Microscope / Compound Light Microscope Trinocular Illumination 0

A15.2603 Polarizing Microscope, with full polarizing function and high quality performance, is the best tools for school and student use.
It is a professional polarizing microscope, also named mineralogical microscope, with advanced multifunction, is necessary for researching double refraction sample. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment, mineral, drug, criminal investigation fields and physic inspection. It is also widely used in academic demonstration and research.




Parameter:

A15.2603 -A -B
Head Binocular Trinocular
Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 20:80.
Eyepiece WF10x/18mm, 1 pc
WF10x/18mm, With Micrometer 0.1mm Div., 1 pc
Nosepiece Quadruple, Center Adjustable
Objective Non-Stress Infinity Plan Objective
4x/0.10
10x/0.25
20x/0.40(S)
40x/0.65(S)
Stage Round stage, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6'
Condenser Abbe N.A.1.25, With Iris Diaphragm, Non Stress
Focusing Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Range 26mm, Fine Focusing Scale 2μm, With Tension Adjustment
Polarizing Polarizer: Unit Built-in Condenser, With Scale, Rotatable 360°, Can Be Locked
Analyzer: Unit Insert to Polarizing Media, Rotatable 0-90°, Can Be Moved Out Of Optical Path
Polarizing Media, Between Head & Body, Including Compensator
--Bertrand Lens, Built-in, Center Adjustable, Can Be Moved Out Of Optical Path
--λ Slip (First Class Red)
--λ/4 Slip
--Quartz Wedge I~IV Class Slip
Illumination Transmit 6V20W Halogen Lamp
Power 110V~240V Wide Range Voltage
Product Display

A15.2603 Polarizing Light Microscope / Compound Light Microscope Trinocular Illumination 1

Non-Stress Infinity Plan Objective 4x,10x,20x,40x Available, 60x, 100x(Optional)

A15.2603 Polarizing Light Microscope / Compound Light Microscope Trinocular Illumination 2

Round Stage Diameter Φ142mm, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked, Center Adjustable. (Newly Updated in 2019)
