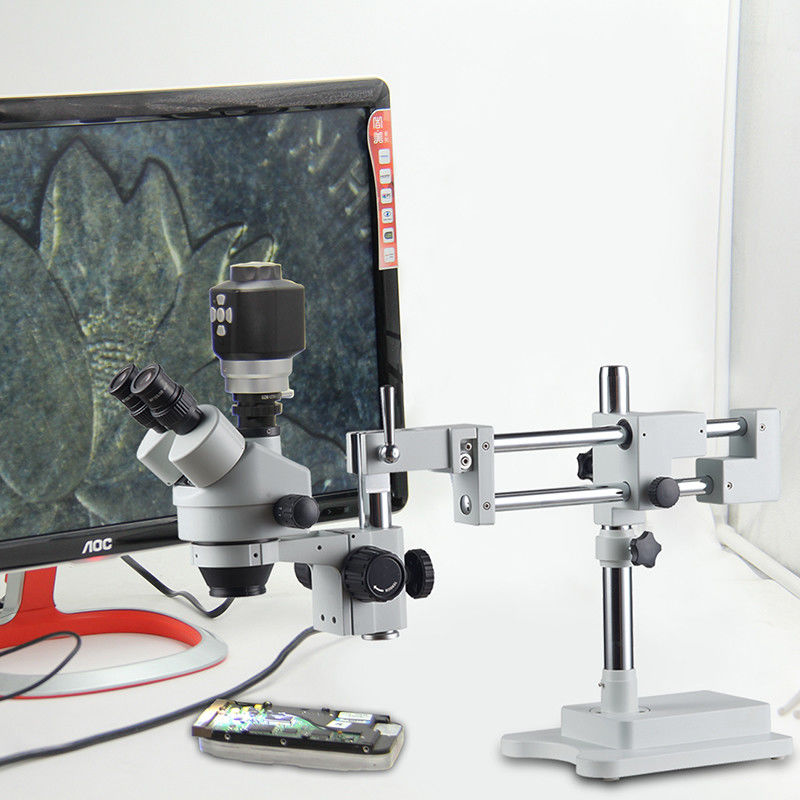

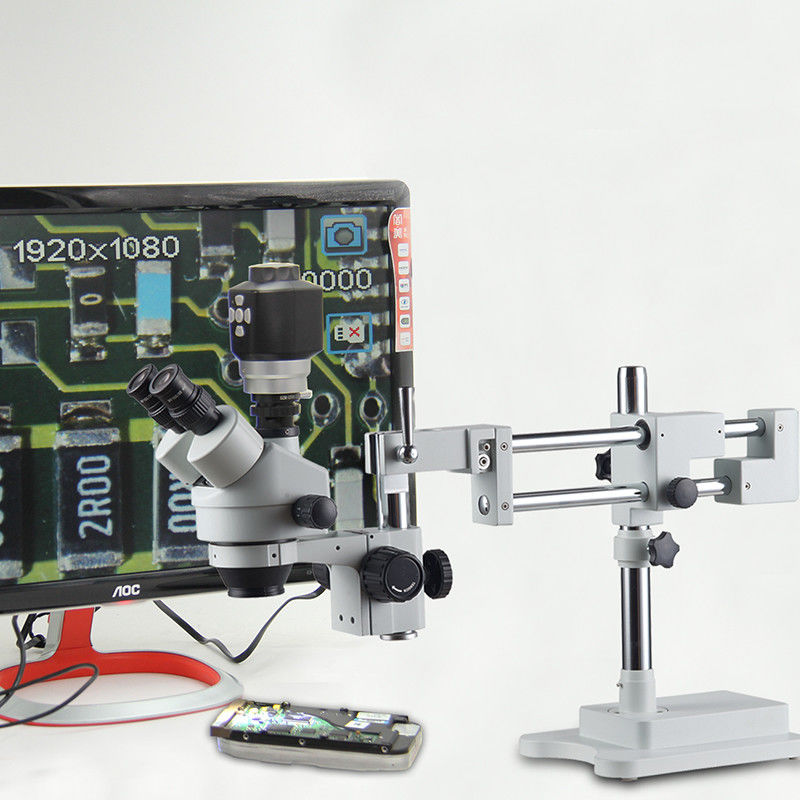

A23.3645-STL2 Zoom Stereo Microscope Specification |
B |
T |

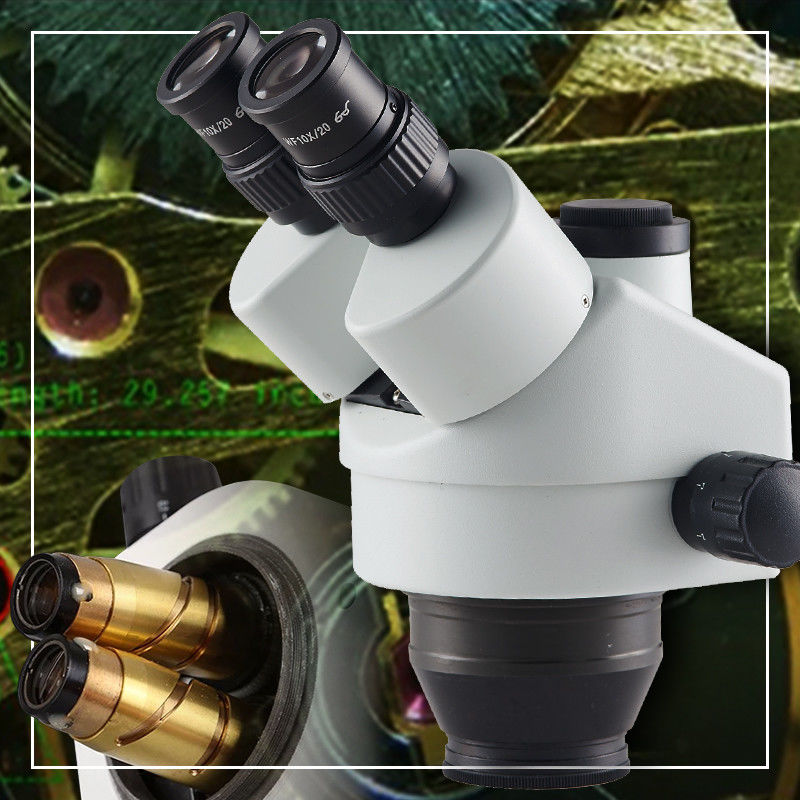

Head |
Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm |
O |
|
Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter |
|
O |
Eyepiece |
WF10x/20mm |
Zoom Lens |
0.7~4.5x |
Zoom Ratio |
1:6.5 |
Magnification |
7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives |
Working Distance |
100mm, With Auxiliary Objectives 30~165mm |
Field Of View |
1~95.2mm |
Stand |
Dual Arm Boom Stand, No Light Source |
Optional Accessories |
Cata.No. |
Head |
Binocular Head + WF10x/20mm |
A53.3645-B |
Trinocular Head + WF10x/20mm |
A53.3645-T |
Eyepiece |
WF10x/20mm, High-eyepoint |
A51.3621-1020 |
WF10x/22mm, High-eyepoint |
A51.3621-1022 |
WF10x/23mm, High-eyepoint |
A51.3621-1023 |
WF15x/15mm, High-eyepoint |
A51.3621-1515 |
WF20x/10mm, High-eyepoint |
A51.3621-2010 |
WF25x/9mm, High-eyepoint |
A51.3621-2509 |
WF30x/8mm, High-eyepoint |
A51.3621-3008 |
WF10x/22mm, High-eyepoint, Diopter Adjustable |
A51.3622-1022 |
WF15x/16mm, High-eyepoint, Diopter Adjustable |
A51.3622-1515 |
WF20x/12mm, High-eyepoint, Diopter Adjustable |
A51.3622-2010 |
WF25x/9mm, High-eyepoint, Diopter Adjustable |
A51.3622-2509 |
WF30x/8mm, High-eyepoint, Diopter Adjustable |
A51.3622-3008 |
Auxiliary Lens |
0.5X,W.D. 165mm |
A52.3621-0.5x |
1.5X,W.D. 45mm |
A52.3621-1.5x |
2.0X,W.D. 30mm |
A52.3621-2.0x |
CCD Adapter |
1.0x, For CTV |
A55.3621-1.0x |
0.50x, For 1/2" CCD |
A55.3621-0.5x |
0.35x, For 1/3" CCD |
A55.3621-0.35x |
0.50x, For 1/2" CCD |
A55.3621-N0.5x |
