Digital CMOS Microscope Eyepiece Camera A59.2211 C Mount Eyepiece USB3.0

Digital CMOS Microscope Eyepiece Camera A59.2211 C Mount Eyepiece USB3.0

  • High Light

    microscope accessory

    ,

    parts of the microscope

    ,

    compound microscope parts

  • Applications
    Microscope
  • Certification
    CE|Rohs
  • Output
    USB3.0
  • Product Name
    Microscope Accessories
  • Resolution
    4096*3288
  • Senser
    CMOS
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.2211
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Digital CMOS Microscope Eyepiece Camera A59.2211 C Mount Eyepiece USB3.0

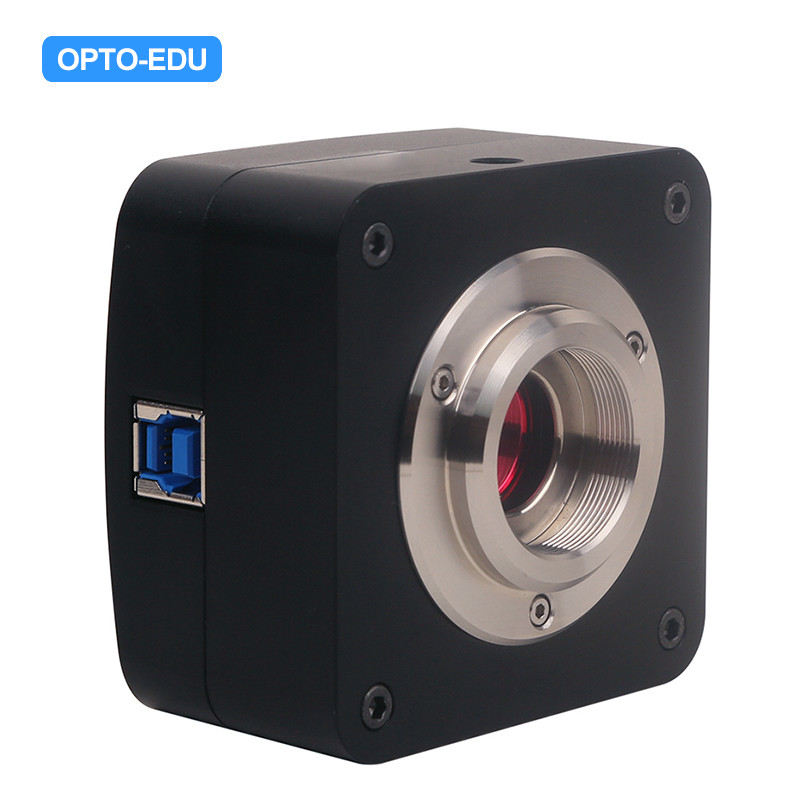

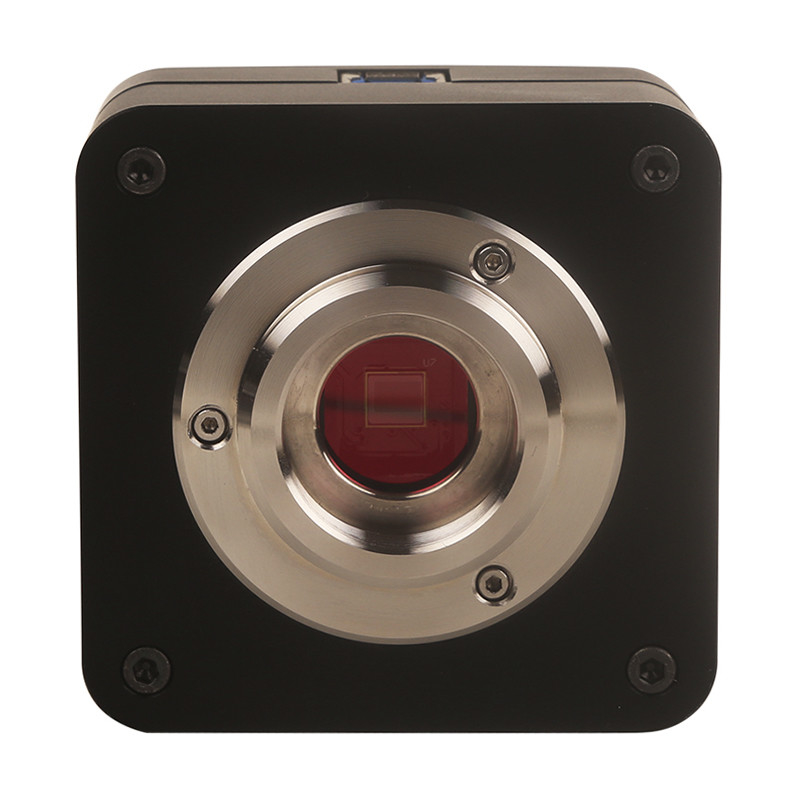

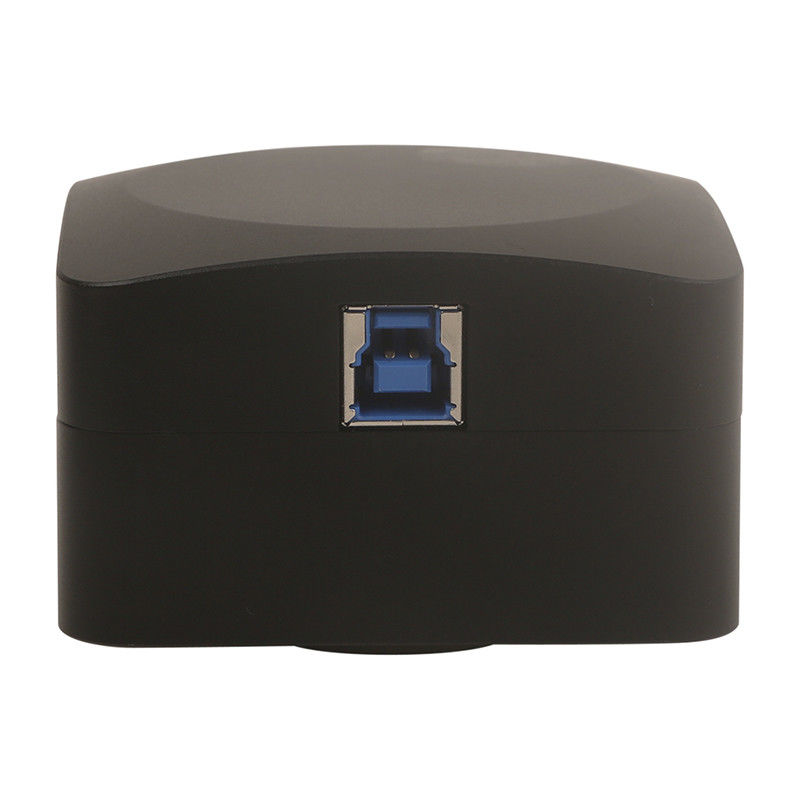

A59.2211 C Mount +Eyepiece USB3.0 Digital CMOS microscope eyepiece Camera





--1/3'' Color Aptina AR0331(Progressive) CMOS Sensor
--3.1 Mega Pixels USB3.0 C-Mount CMOS Camera
--
Square Housing:68 X 68 X 45mm
--
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit)
--
Support OS X (MAC OS X) and Linux
--
Support Native C/C++, C#, Directshow, Twain, Labview
--

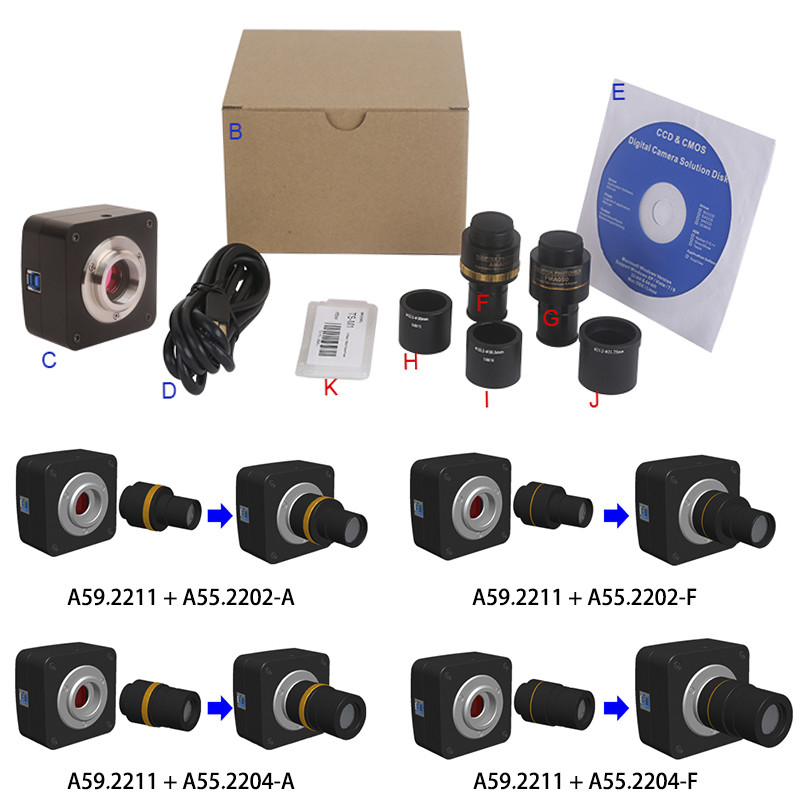

With Microscope and Telescope Camera Adaptor, the C-mount Camera Can Be Extended to
--
Microscope Camera with Fixed Microscope Adaptor
--
Microscope Camera with Adjustable Microscope Adaptor
--
Telescope Camera with Fixed Telescope Adaptor
--
Telescope Camera with Adjustable Telescope Adaptor



Pixel 3.1M 5.1M 8.5M 10M 14M
Senser Size 1/3.0" CMOS 1/2.5" CMOS 1/2.3" CMOS 1/2.2" CMOS 1/2.3" CMOS
Senser Size Diagonal 6.0mm 5.70mm(H) x 4.28mm(V), Diagonal 7.13mm 6.44mm(H) x 4.616mm(V), Diagonal 7.923mm 6.119mm(H) x 4.589mm(V), Diagonal 7.649mm 6.138mm(H) x 4.603mm(V), Diagonal 7.672mm
Senser Aptina AR0330 CMOS Sensor(Color ) Aptina MT9P006 CMOS(Color) Aptina CMOS Special sensor(Color) APTINA MT9J003 CMOS Sensor(Color) Aptina MT9F002 CMOS (Color)
Output USB3.0
Max.Resolution 2048*1536 2560*1922 3328*2548 3584*2748 4096*3288
Pixel Size 2.2 x 2.2μm 2.2 x 2.2μm 1.67 x 1.67μm 1.67 x 1.67μm 1.4 x 1.4μm
Responsivity 2.0v/lux-sec(550nm) 0.76v/lux-sec(550nm) 0.31v/lux-sec(550nm) 0.31v/lux-sec(550nm) 0.724v/lux-sec(550nm)
Video Format
& Frame Rate
2048*1534/27.4fps
1024*770/53.3fps
(Multiple Speed Level)
2560*1922/ 14.5fps
1280*960/39fps
640*480/101fps
3584*2746/8.3fps
1664*1272/27fps
(Multiple Speed Level)
35844*2746/7.2fps
1972*1372/ 25fps
(Multiple Speed Level)
4096*3286/6.2fps
2048*1644/21fps
1024*822/54fps
Dynamic Range 72.4dB 67.74dB 65.2dB 65.2dB 65.3dB
A/D Converter 12-bit Parallel, 8-Bit R.G.B to PC
SN Ratio 39dB 38.5dB 34dB 35.5dB
Binning 1*1, 2*2 1*1, 2*2, 4*4 1*1, 2*2 1*1, 2*2, 4*4
Exposure 0.1~2000ms
ROI Auto & Manual
0.05~2s ROI Auto & Manual 0.1~2s, ROI Auto & Manual 0.38~2000ms, ROI Auto & Manual 0.4~2000ms
ROI Auto & Manual
General Specification
Scan Mode Progressive
Spectral Range 380-650nm (with IR-Filter)
White balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Peak Quantum Efficiency N/A
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API Native C/C++, C#, Directshow, Twain, Labview
Recording System Still Picture and Movie
Cooling System Natural
Operating Environment
Temperature Operating Temp.:-10~50°C
Storage Temperature-20°C~ 60°C
Humidity Operating Humidity:30%~80%RH
Storage Humidity:10~60%RH
Power Supply DC 5V from PC USB port
Software Environment
Operating System Microsoft Windows XP / Vista / 7 (32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17" or Larger
CD-ROM
