A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera

China A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera supplier
A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera supplier A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera supplier A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera supplier

Large Image :  A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A59.2207

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Applications: Microscope Certification: CE|Rohs
Output: USB 2.0 Product Name: Microscope Accessories
Senser: CMOS Compatible: Windows XP/Vista

A59.2207-3.2M Digital Eyepiece USB CCD/CMOS Microscope Digital Eyepiece Camera







--Capturing from 350K to 14M (4384x3288) pixel high quality still images
--Streaming real-time, ultra-fast, full-resolution live video on your PC screen
--High speed USB 2.0, compact design
--Fitting 4 mounting sizes: 23mm, 30mm, 30.5mm, and C-mount
--Advanced editing, processing, and measuring software
--Compatible with Windows XP/Vista/7 (32 & 64 bits)
--CE, UL, FC.. all certificate passed

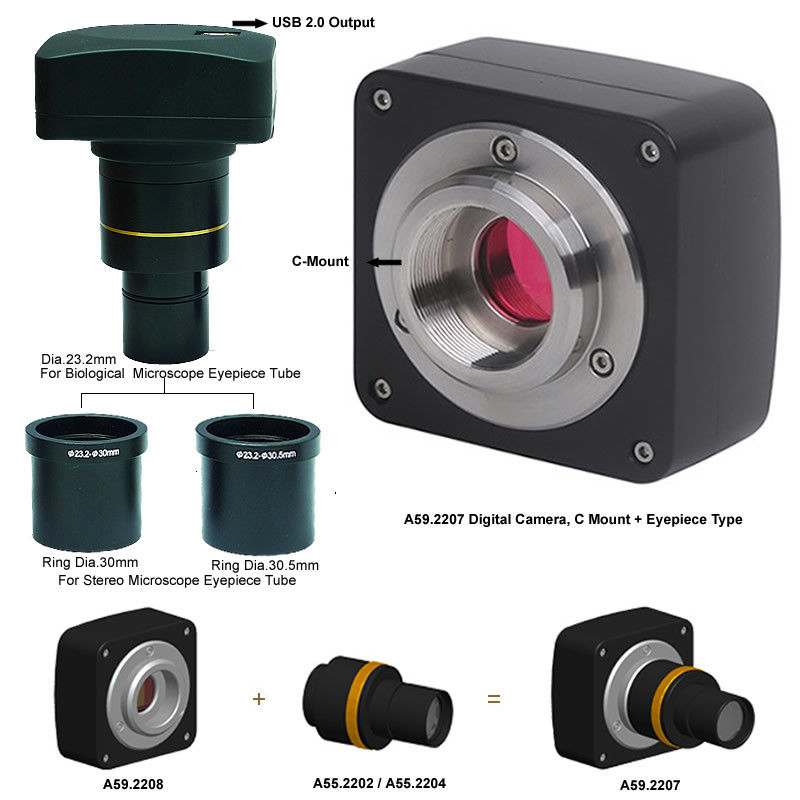

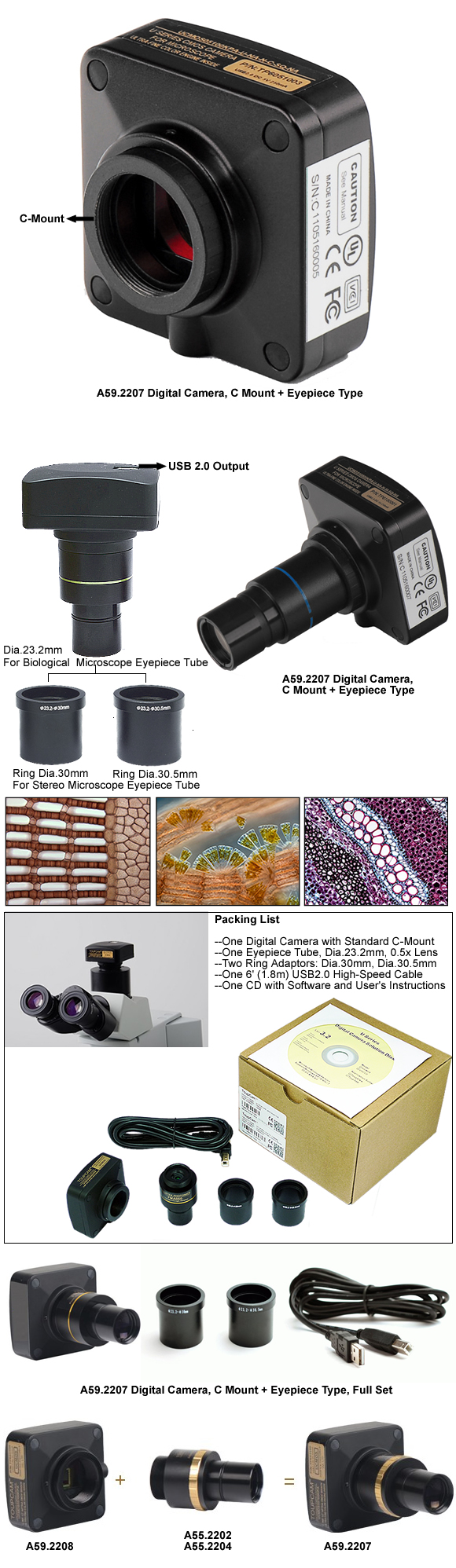

A59.2207 Digital Camera, C Mount + Eyepiece Type

Our latest generation of cameras features upgraded electronics, streamlined software, and a compact design with smaller dimensions and reduced weight.

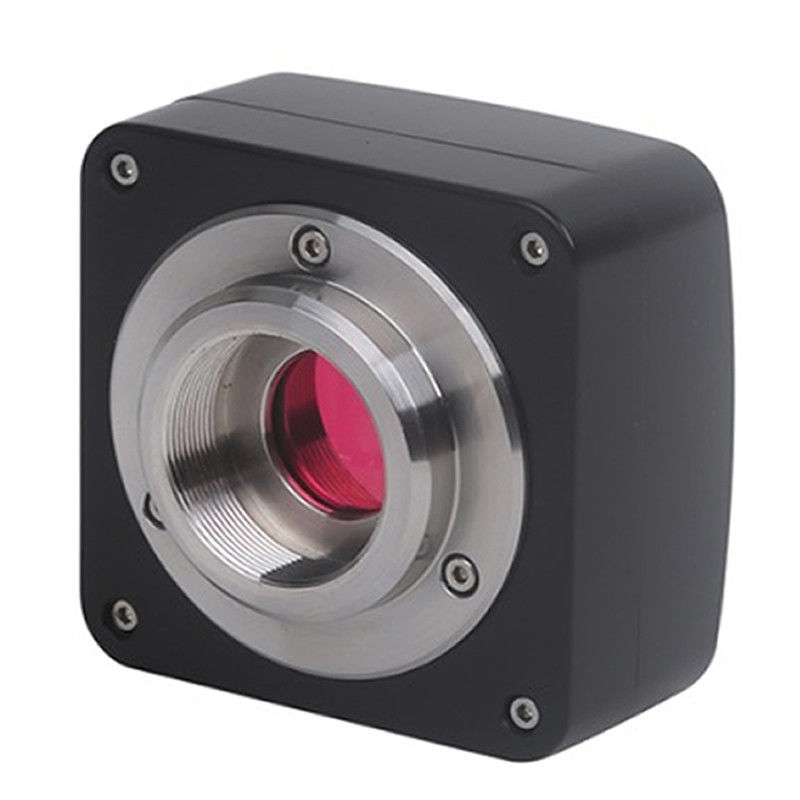

Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm photo port, including microscopes, telescopes, endoscopes, and etc. The camera's optics offers max 4384*3288 pixel resolution, and the included software allows you to capture real-time, high-definition videos and stills without requiring any additional equipment.



The included user-friendly software allows you to make notes, shapes, watermarks, and measurements with ease. You can analyze, present, and share images of samples and specimen by simply plugging one end into your PC's USB 2.0 port, and the other on your microscope's eye-tube or trinocular port.



In addition, the newest generation of camera comes with a preassembled 0.5X reduction lens named as Eyepiece Tube, giving your PC screen the same field of view as your microscope's eyepiece. With the reduction lens in place, your camera tube is 23mm in diameter, making it compatible with pretty much any microscope's eyetube or trinocular port! We also include 2 eyepiece adapters for FREE - 30.0mm and 30.5mm.



With its unique stand alone design, the MU series camera is equipped with CMOS color sensor, and comes with a high-speed USB 2.0 cord, advanced software (Windows XP/Vista/7 compatible), 4 mounting sizes (23mm, 30mm, 30.5mm, and C-mount), and instructions.





Pixel
350K
1.3M
2.0M
3.2M
5.2M
Senser Size
1/4.0" CMOS
1/3.0" CMOS
1/2.3" CMOS
1/2.0" CMOS
1/2.5" CMOS
Senser Size
3.58mm(H) x 2.69mm(V), Diagonal 4.48mm
4.60mm(H) x 3.70mm(V), Diagonal 5.9mm
6.55mm(H) x 4.92mm(V), Diagonal 8.19mm
5.70mm(H) x 4.28mm(V), Diagonal 7.13mm
Senser
Aptina CMOS (Color, Anti-blooming Protection)
Output
USB2.0
Max.Resolution
640*480
1280*1024
1600*1200
2048/*1536
2592*1944
Pixel Size
5.6 x 5.6um
3.6 x 3.6μm
2.8 x 2.8μm
3.2 x 3.2μm
2.2 x 2.2μm
Responsivity
1.9v/lux-sec(550nm)
1.0v/lux-sec(550nm)

1.0v/lux-sec(550nm)
0.53v/lux-sec(550nm)
Video Mode Format & Frame Rate 640*480/30fps
320*240/80fps
1280*1024/15fps
640*512/26fps
320*256/50fps
1600*1200/8fps
800*600/18fps
2048*1536/10fps
1024*768/22fps
680*510/43fps
2592*1944/ 5fps
1280*960/18fps
640*480/60fps
Imaging Area
3.58mm(H) x 2.69mm(V)
4.6mm(H) x 3.7mm(V)
4.73mm(H) x 3.52mm(V)
6.55mm(H) x 4.92mm(V)
5.70mm(H) x 4.28mm(V)
Dynamic Range
60dB
71dB
71dB
61dB
66.5dB
A/D Converter
10-bit Parallel, 8-bit R.G.B to PC
10-bit, 8-Bit R.G.B to PC

10-bit, 8-Bit R.G.B to PC
12-bit, 8-Bit R.G.B to PC
SN Ratio
45dB
44dB

43dB
40.5dB
Binning
1*1, 2*2
1*1, 2*2, 4*4

1*1, 2*2, 3*3
1*1, 2*2, 4*4
Exposure
0.11~192.46ms
0.140~2000ms

0.128~2000ms
0.21~2000ms

Pixel
8.0M
9.0M
10M
14M
Senser Size
1/2.5" CMOS
1/2.3" CMOS
1/2.3" CMOS
1/2.3" CMOS
Senser Size 5.451mm(H) x 4.088mm(V), Diagonal 6.813mm 5.825mm(H) x 4.369mm(V), Diagonal 7.281mm 6.119mm(H) x 4.589mm(V), Diagonal 7.649mm 6.138mm(H) x 4.603mm(V), Diagonal 7.672mm
Senser
Aptina CMOS (Color, Anti-blooming Protection)
Output USB2.0
Max.Resolution 3264*2448 3488*2616 3664*2748 4384*3288
Pixel Size 1.67 x 1.67μm 1.75 x 1.75μm 1.67 x 1.67μm 1.4 x 1.4μm
Responsivity 0.31v/lux-sec(550nm) 0.33v/lux-sec(550nm) 0.31v/lux-sec(550nm) 0.724v/lux-sec(550nm)
Video Mode Format & Frame Rate 3264*2448/1.9fps
1600*1200/8fps
800*600/27fps
3488*2616/2fps
1744*1308/9fps
872*654/27fps
3664*2748/2fps
1832*1374/ 8fps
912*684/27fps
4384*3288/2fps

Imaging Area 5.71mm(H) x 4.28mm(V) 6.10mm(H) x 4.58mm(V) 6.12mm(H) x 4.60mm(V) 6.13mm(H) x 4.60mm(V)
Dynamic Range 65.2dB 62.7dB 65.2dB 65.3dB
A/D Converter 12-bit, 8-Bit R.G.B to PC
SN Ratio 34dB 35.5dB
Binning 1 x 1, 2 x 2, 4 x 4
Exposure 0.38~2000ms 0.4~2000ms

Pixel
C800K
C1.4MA
C1.4MB
C2.0M
C3.2M
Senser Size
1/3.0" CCD
1/2.0" CCD
2/3.0"CCD
1/1.8" CCD
1/1.8" CCD
Senser Size 5.80mm(H) x 4.92mm(V), Diagonal 5.952mm 7.60mm(H) x 6.20mm(V), Diagonal 7.959mm 10.2mm(H) x 8.3mm(V), Diagonal 11mm 8.50mm(H) x 6.80mm(V), Diagonal 8.923mm 8.10mm(H) x 6.64mm(V), Diagonal 8.933mm
Senser
Aptina CCD (Color, Anti-blooming Protection)
Output USB2.0
Max.Resolution 1024*768 1360*1024 1360*1024 1600*1200 2048*1536
Pixel Size 4.65 x 4.65um 4.65 x 4.65μm 6.45 x 6.45μm 4.4 x 4.4μm 3.45 x 3.45μm
Video Mode Format & Frame Rate 1024*768
/16fps
1360*1024
/12fps
1360*1024
/15fps
1600*1200
/10fps
2048*1536
/6fps
Dynamic Range 70dB
G Sensitivity 400mV with 1/30s Accumulation


1240mV with 1/30s Accumulation 420mV with 1/30s Accumulation 455mV with 1/30s Accumulation
A/D Converter 12-bit Parallel, 8-bit R.G.B to PC
SN Ratio 62dB
Binning 1 x 1 1 x 1,1 x 2
Exposure Normal: 0.16~62.00ms
Long Exposure: 62.98ms~4mins



Normal: 0.22~119.37ms
Long Exposure: 119.37ms~4mins




Normal: 0.126~66.695ms
Long Exposure: 66.695ms~4mins




Normal: 0.17~100.00ms
Long Exposure: 100.00ms~4mins




Normal: 0.18~77.81ms @2048 x 1536, 0.18~23.10ms @640 x 480.
Long Exposure: 77.81ms~4mins

General Specification
Scan Mode Progressive
Spectral Range 400-650nm (with IR-Filter) 380-1000nm (w/o IR-Filter)
Exposure Electronic Rolling Snap(ERS),ROI Auto & Manual,
White balance One Push ROI White Balance/ Manual Temp-Tint Adjustment
Driver Interfaces DirectShow , Twain
Operating System Microsoft Windows XP / Vista / 7 (32 & 64 bit)
CPU: Intel Pentium 4, 2.6G or above
RAM: 512 MB
HDD: 10 GB
USB: USB2.0 interface
Operating Temp. -10~60℃
Operating Humidity 30%~80%
Power Supply DC 5V from PC USB port
Package Box 140mmx140mmx80mm, 0.5Kgs
Color Rendering Technique Ultra FineTM Color Engine
Capture Mode Still Picture and Video
Remarks Actual frame rates on your computer depend on the hardware and operating system used

Software Features
Main Functions Viewing live images; Streaming & recording live videos; Capturing & saving still images; Making measurements
Processing -Edits images in a similar manner to PhotoShop
-Captures images, records videos and saves in JPG, TIF, GIF, PSD, WMF, and BMP formats
-Add layers, watermarks, mosaics, tiles
-Adjust color balance, exposure, saturation, contrast, orientation
-Change resolution, histogram, granulation, diffusion
-Transform images via edge detection, digital image warping
Measurement Measures length and angle; rectangular, elliptical and irregular areas; single, parallel and perpendicular lines
Notation Adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors
Calibration Makes measurements in microns, millimeters, centimeters, inches, feet, and etc. at all magnification settings with desired tolerances

Driver Characteristics
White Balance ROI auto white balance/temp-tint manual white balance
Black Level Calibration Adaptive black level calibration
Stuck or Hot Pixel Hardware remove technique
USB Controller Compatibility Automatic detection of adaptation
Interfaces Supported DirectShow/TWAIN
Operating System Microsoft Windows XP / Vista / 7 (32 & 64 bit)

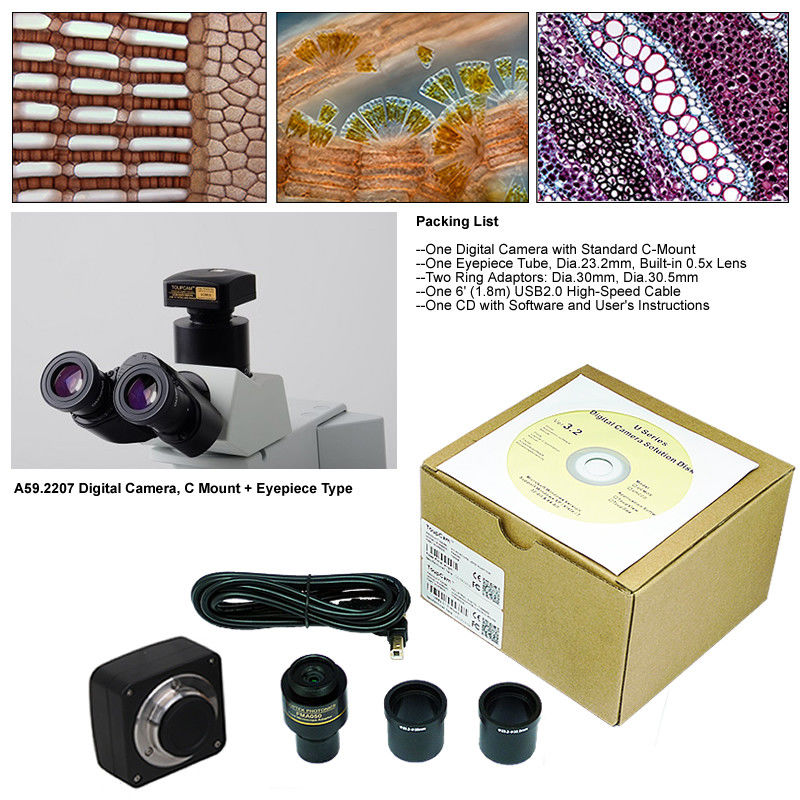

Package List
--One Digital Camera Eyepiece Type
--One Eyepiece Tube, With Built-in 0.5x Reducing Lens
--Two Ring Adaptors: Dia.30mm, Dia.30.5mm
--One 6' (1.8m) USB2.0 High-Speed Cable
--One CD with Software and User's Instructions
