Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens

China Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens supplier
Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens supplier Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens supplier Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens supplier Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens supplier

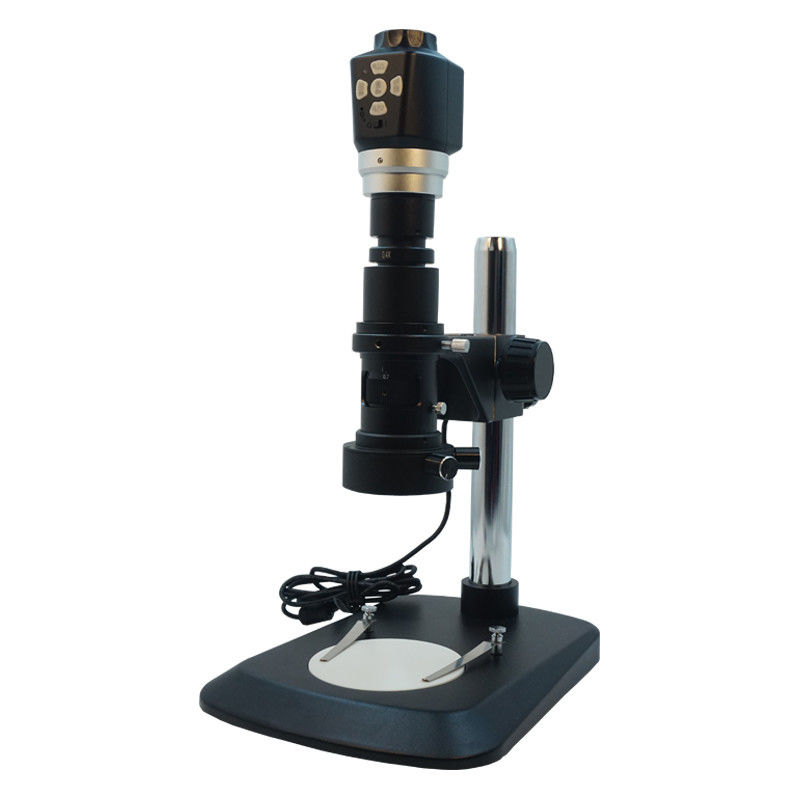

Large Image :  Electronic HDMI USB Digital Microscope Dual Coaxial LED A34.4904-H2 0.7 - 5.0x Zoom Lens

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A34.4904-H2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Resolution: 3.5M Zoom Lens: 0.7-5.0x
Working Stage: Dia.100mm Focusing: Coarse
Light Source: Dual Coaxial LED Power Supply: 90~240V

Dual coaxial LED digital usb microscope





A34.4904-H2 Microscope combines traditional optical microscope with digital imaging system. 3.5 million pixel HD color image sensor and the newest 0.7-5x zoom camera offer the high quality images and displays.

1. Large depth of field, wide field of view, long operation distance and real vertical optical path.
2. Dual output HDMI&USB to support photograph/record and real time storage of SD card image, with USB 3.5M, HDMI 1080p/30fps.
3. Avoid tedious adjustment work and directly change the operation distance through eye-height adjustment ring (eye height effective value BFL: 11.6~36mm) and expand the original magnification ratio of the microscope.
4. Adopt advanced HDR image processing technique under HDMI mode to largely reduce light reflection of the observation object surface.
5. Dual coaxial LED light source--inner fixed coaxial LED light and outer brightness adjustable coaxial LED light.Turning on inner fixed coaxial LED light to observe ordinary objects,and the outer brightness adjustable coaxial LED light for metal objects can eliminate reflective effect.


A34.4904-H2 HDMI/USB Digital Microscope
Hardware Configuration
Output Dual Output : USB 3.5M, HDMI 1080p/30fps
Focus Focusing Knob On Top, Supply Large Distance Manual Focusing Range
Dual Coaxial LED Light Source Inner Fixed Coaxial LED Light, Outer Brightness Adjustable Coaxial LED Light
Image Sensor Aptina AR0330 CMOS Sensor
Scan Mode Scan Line By Line
Maximum Resolution 3.5M, 2304*1536 (3,538,944 Pixels)
Sensor Optical Format 1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
Pixel Size 2.2μm*2.2μm
Dynamic Range 69.5dB
SNR(Signal Noise Ratio) 39dB
Spectral Characteristics 380-650nm
HDMI Output Resolution 1920*1080P60,1920*1080P30,1280*720P60,640*480P60
Video Mode Resolution 1920*1080@30FPS, 1280*720P@30FPS, 800*480@30FPS
Snapshot Mode Resolution 2304*1536 ,2304*1296,1920*1080,1280*720,800*480
Exposure Capability Real-time Auto, Single Auto, Manual Adjustment
White Balance Real-time Auto, Single Auto, Manual Adjustment
Software Interface Direct Show
Capture Modes Picture Resolution:22304*1536,2304*1296,1920*1080,1280*720,800*480 Format:JPG
Video Resolution:1920*1080@30FPS, 1280*720P@30FPS, 800*480@30FPS Format:MOV
Record Route The Local And TF Card(Maximum Support 64G)





Optical Parameters
Optical Magnification 0.7x 1x 2x 3x 4x 5x
Object Distance(mm) 24-252 27-155 81-117 94-111 101-110 103-109
Field Of View(mm) 0.5-10 0.5-0.4.5 0.4-0.6 0.3 0.2 0.1
Resolution(um) 16.78 11.18 8.39 6.10 4.79 4.79
Optical Magnification 0.7-5.0x
Total Magnification 6-365x
Focusing Bracket Adjustment Range(mm) 230mm
Focusing Hand Wheel Height Range(mm) 50mm
Observation Range 29.6*16.6mm~2.1*1.2mm Continuous Adjustment





Software Environment
USB Mode Operation System Microsoft® Windows® XP/ 7 / 8 /8.1/10(32 & 64 Bit)
Computer Configuration CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory : 2G Or More
USB Port: USB2.0 High Speed Port Or Compatible Port
Displayer : Suggest 17 Inches Or Larger
HDMI Mode Displayer: Recommend 16:9 , At Least 1080P Full HD Displayer
Power Supply: DC5.0V Power Adapter, Electronic Current 500mA

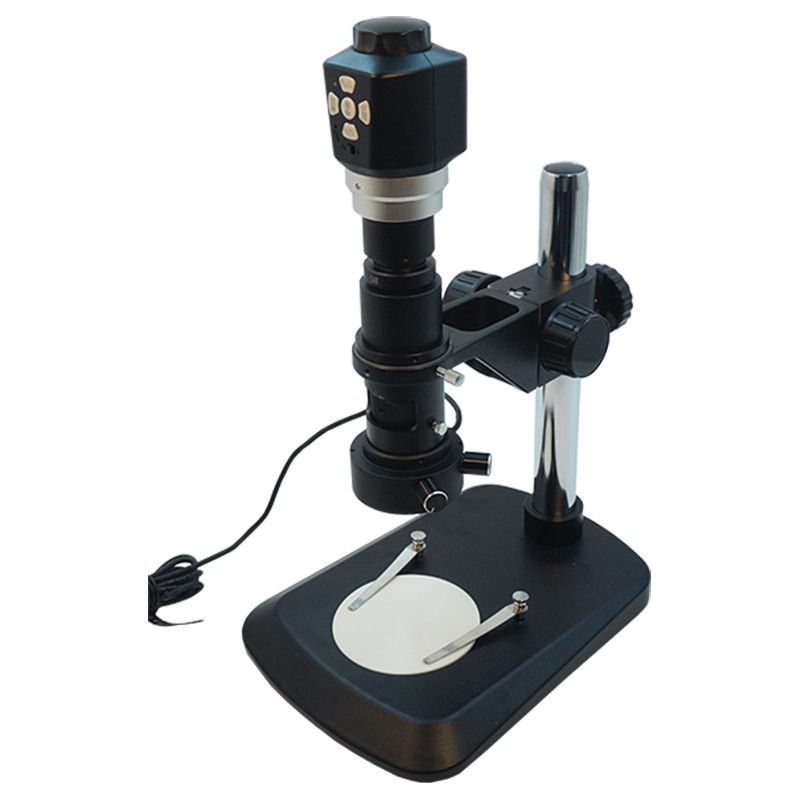

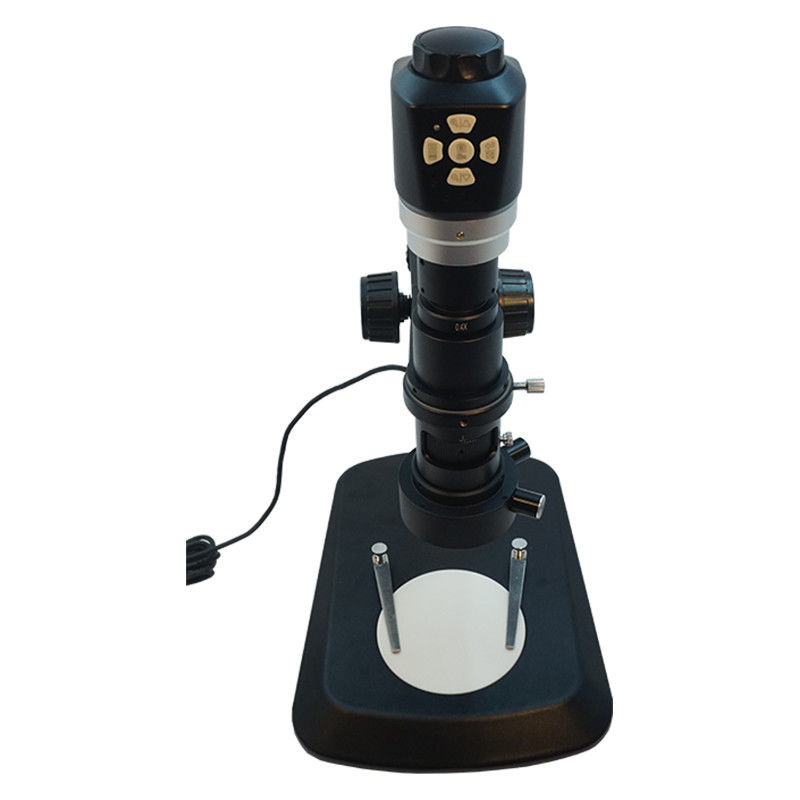

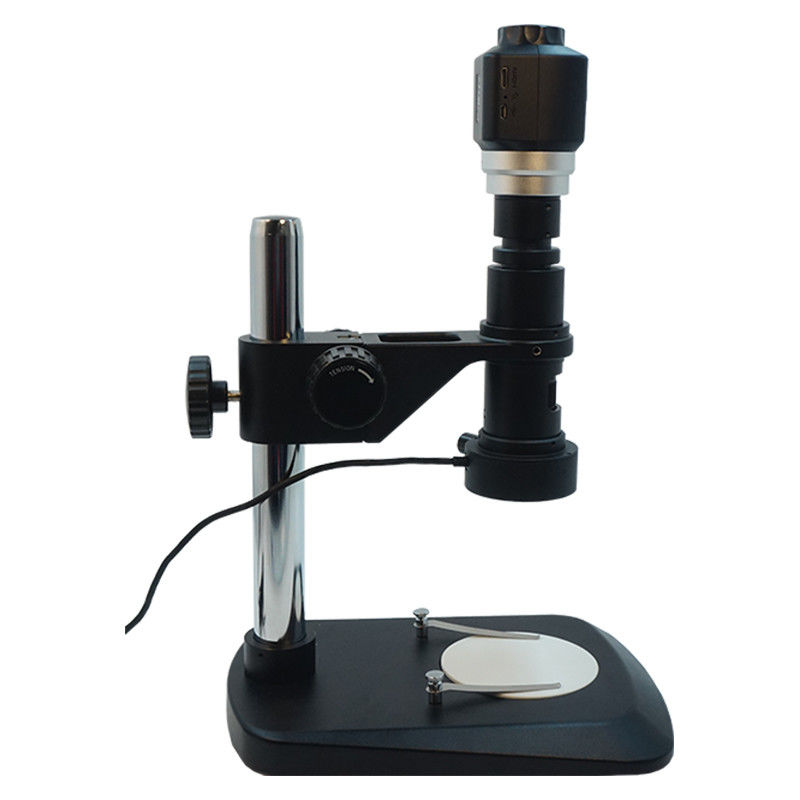

Product Display


Product Details


Related Products






Product Application

Without relying on extra collecting device, Digital Microscope adopts HDMI digital output interface, directly and quickly realizing connecting other devices on product line through HDMI interface to achieve real-time image with high definition and color rendition, which largely improve the flexibility of the microscope observation. Digital Microscope is especially applicable for defect detecting, guide, calibration of Fiber fineness detection,electronic equipment, LCD, LED, etc. Digital Microscope simplifies the monitoring of manufacturing technique, easily reduces workload and raises work efficiency.





Packaging & Shipping


Company Information


OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
