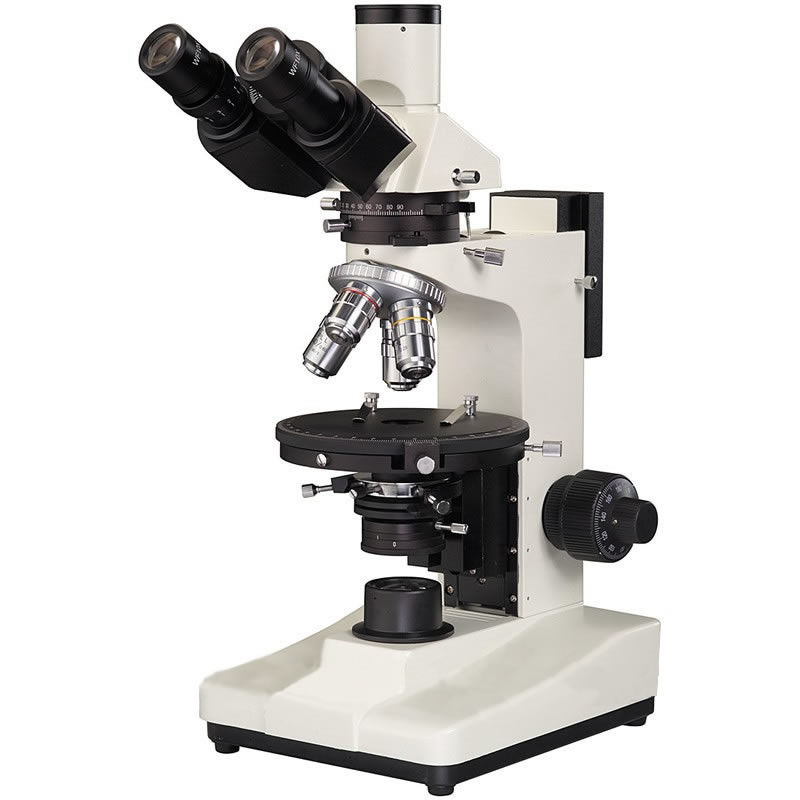

Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm

China Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm supplier
Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm supplier Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm supplier Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm supplier Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm supplier

Large Image :  Trinocular Transmitted / Reflected Polarizing Light Microscope A15.0203 Wide Field WF10x / 18mm

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A15.0203

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: Wide Field WF10x/18mm Nosepiece: Quadruple
Focus System: Coaxial Coarse/fine Focus System, With Tension Adjustable And Limit Stopper, Minimum Division Of Fine Focusing: 0.002mm Stage: Rotatable Stage, Diameter Φ150mm, 360° Graduated (in 1degree Increments), Minimum Retardation Resolution 6' Center Adjustable And With Tightener
Eyepiece Tube: Trinocular Head, Inclination Of 30°,can Send 100% Of The Image Light To Top Photography Port





A15.0203 series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

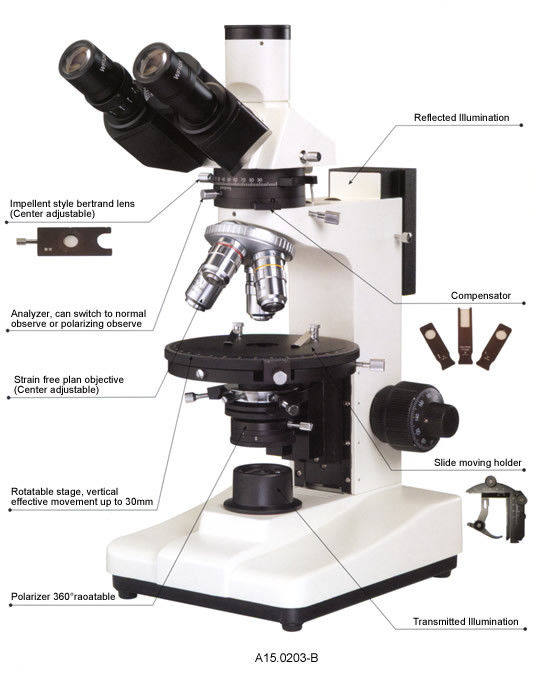

Features
--Transmitted, Reflected, transmitted/reflected illumination can be choosn
--Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
--Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
--Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener Stage vertical effective movement up to 30mm
-Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable




Specification
A15.0203 Polarizing Microscope
Model
A Transmitted
B Transmitted & Reflected
C Reflected
Eyepiece
Wide field WF10x/18mm
Division eyepiece 10x/18mm 0.10mm/div
Objective , Center Adjustable









Strain-free plan achromatic objective (cover glass:0.17mm)
PL 4X/0.10
Strain-free plan achromatic objective
(no cover glass) PL 5X/0.12
Strain-free plan achromatic objective (cover glass:0.17mm)
PL 10X/0.25
Strain-free plan achromatic objective
(no cover glass) PL L 10X/0.25
Strain-free plan achromatic objective(cover glass:0.17mm)
PL 40X/0.65 (spring)
Strain-free plan achromatic objective
(no cover glass) PL L40X/0.60 (spring)
Strain-free plan achromatic objective(cover glass:0.17mm)
PL 60X/0.85 (spring)
Strain-free plan achromatic objective
(no cover glass) PL L 60X/0.75 (spring)
Reflected Illumination

Rotatable Polarizer
6V 20w, halogen lamp, adjustable brightness
Transmitted Iillumination



Polarizer 360° rotatable, have 0,90,180,270 four scale

Collector for halogen lamp illumination

Illumination 6V 20w, halogen lamp, adjustable brightness

Abbe condensor N.A. 1.25, rack & pinion adjustable

Eyepiece Tube
Trinocular head, inclination of 30°,can send 100% of the image light to top photography port
Polarizing Attachment
Built-in analyzer, can switch to normal observe or polarizing observe freely, 90° rotatable with scale, minimum retardation resolution 12'
Bertrand lens, impellent style, center adjustable
λ compensator
λ/4 compensator
Quarts wedge compensator
Nosepiece
Quadruple (Frontward ball bearing inner locating)
Focus System
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.002mm
Stage
Rotatable stage, Diameter Φ150mm, 360° graduated (in 1degree increments), minimum retardation resolution 6' center adjustable and with tightener

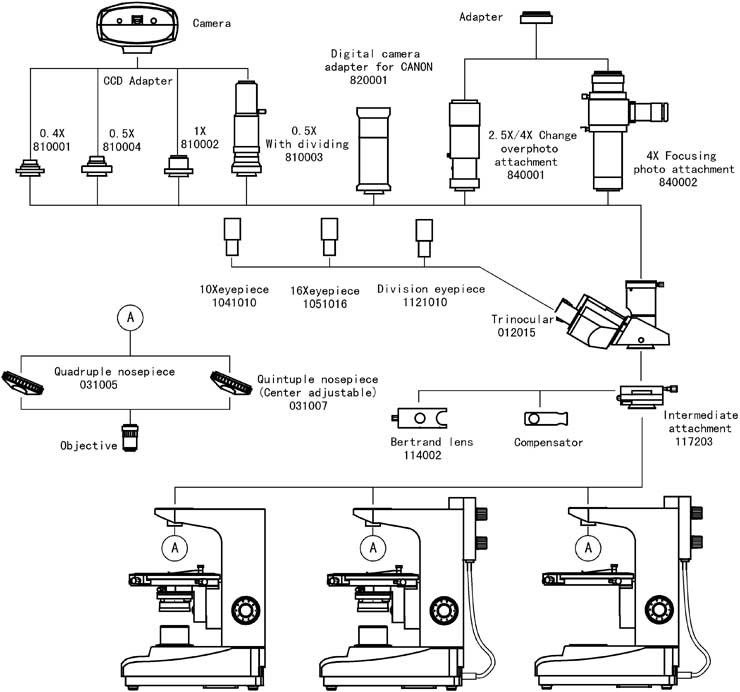

Optional Accessories
Item No.
Eyepiece Wide field WF16X(Φ11mm)
1051016
Objective Strain-free plan achromatic objective(cover glass:0.17mm)
PL 20X/0.40
2810320
Strain-free plan achromatic objective(cover glass:0.17mm)
PL 100X/1.25 (Oil ,spring)
2810311
Strain-free plan achromatic objective(no cover glass)
PL L 20X/0.40
2850320
Strain-free plan achromatic objective(no cover glass)
PL L 50X/0.70
2850350
Strain-free plan achromatic objective(no cover glass)
PL L 80X/0.80
2850380
Strain-free plan achromatic objective (Dry) (no cover glass)
PL L 100X/0.85 (Spring)
2850311
Nosepiece Quadruple (Frontward ball bearing inner locating),adjust the center of objective
031007
Slide Moving Holder Moving range: 30mmX25mm
116202
CCD Adapter 0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo Unit 2.5X/4X Change over photograph adapter with 10X viewing eyepiece
840001
4X Focusing photograph adapter
840002
MD Adapter
840003
PK Adapter
840004
Adapter Digital camera adapter CANON (A610,A620,A630,A640)
820001
