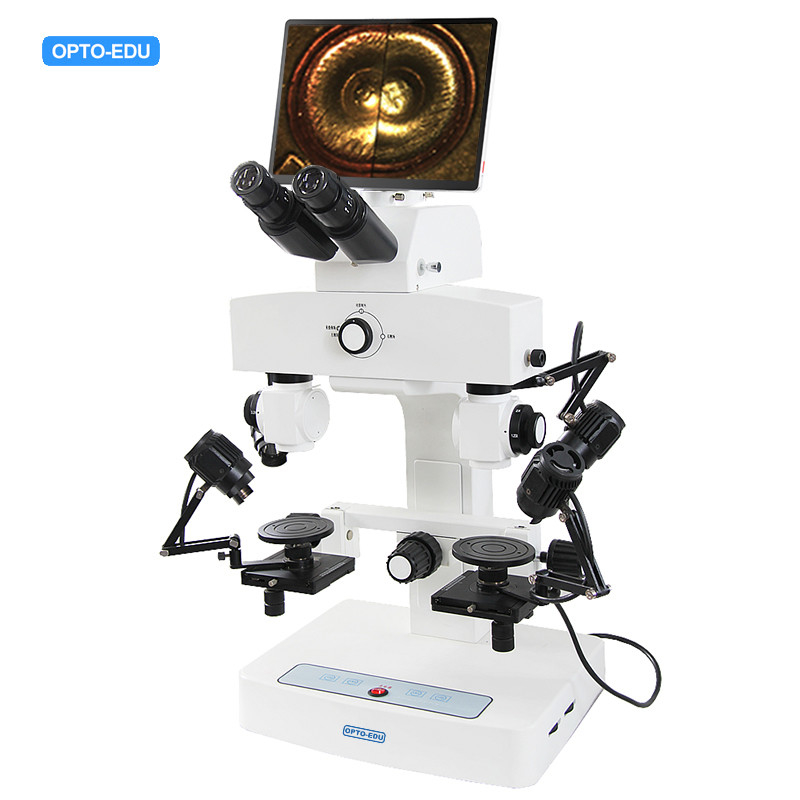

OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5" LCD Camera and 8.0M Resolution
-
Highlight
bullet comparison microscope
,binocular optical microscope
-
Magnification3.2x~230x
-
LCD10.5" LCD Camera
-
Resolution8.0M
-
EyepieceWF10x/22mm, WF20x/22mm, High Eyepoint
-
ObjectivePlan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
-
Viewing ModeFull Left/right, Split-image Or Overlapping Image Comparision
-
Light SourceHalogen, LED, Coaxial, Polarizing, UV, Filters
-
Power100~240W Wide Range
-
PackingPolyfoam + Carton Packing (Standard)
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA18.1825-LCD
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5" LCD Camera and 8.0M Resolution
3.2x - 230x Digital Comparison Microscope 8.0M 10.5" LCD Camera OPTO-EDU A18.1825-LCD
2024 Upgrade Notice:
Opto-Edu has upgraded A18.1825-LCD's LCD from A59.3520 to A59.3521, featuring a bigger 10.5" LCD, higher 8.0M resolution camera, and improved software while maintaining the same price.
Key Features:
- Large binocular head with WF 10X/22mm high eyepoint eyepieces

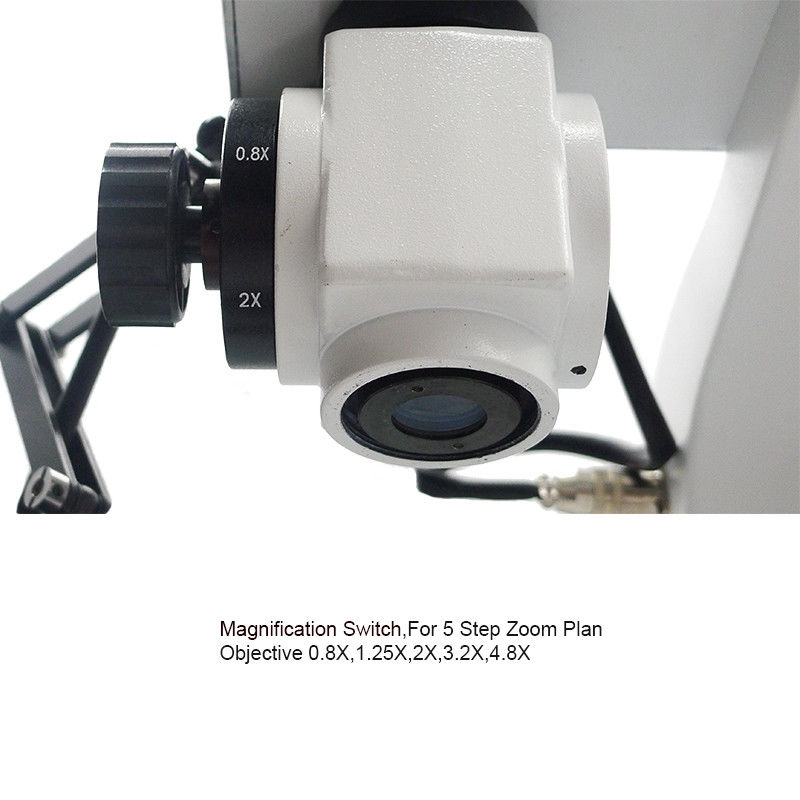

- 5-step zoom plan objective: 0.8x, 1.25x, 2x, 3.2x, 4.8x
- Magnification correction system with correcting lens

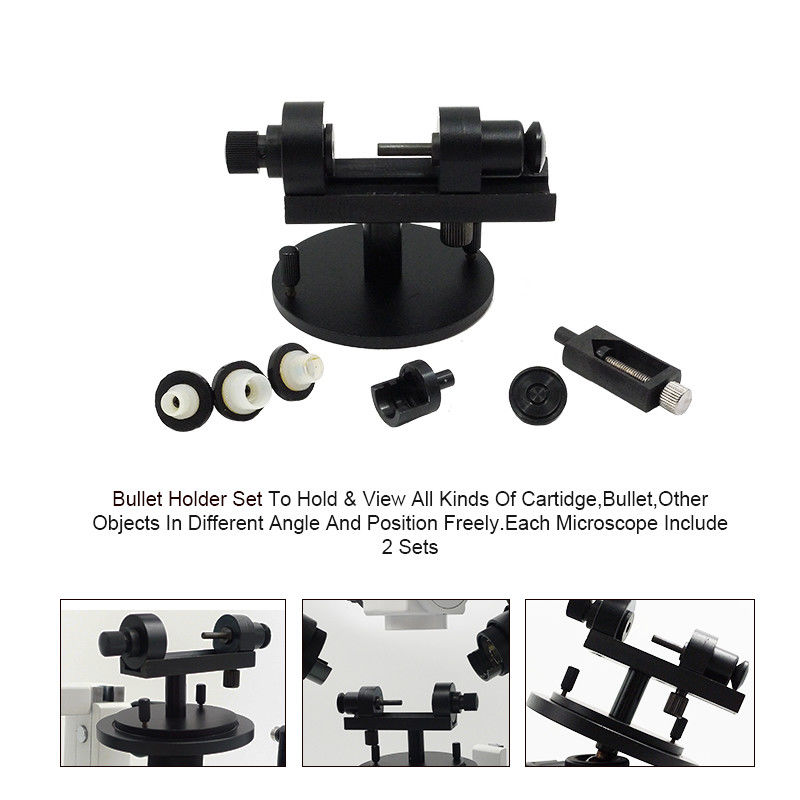

- Bullet holder set included (2 sets) for versatile viewing angles

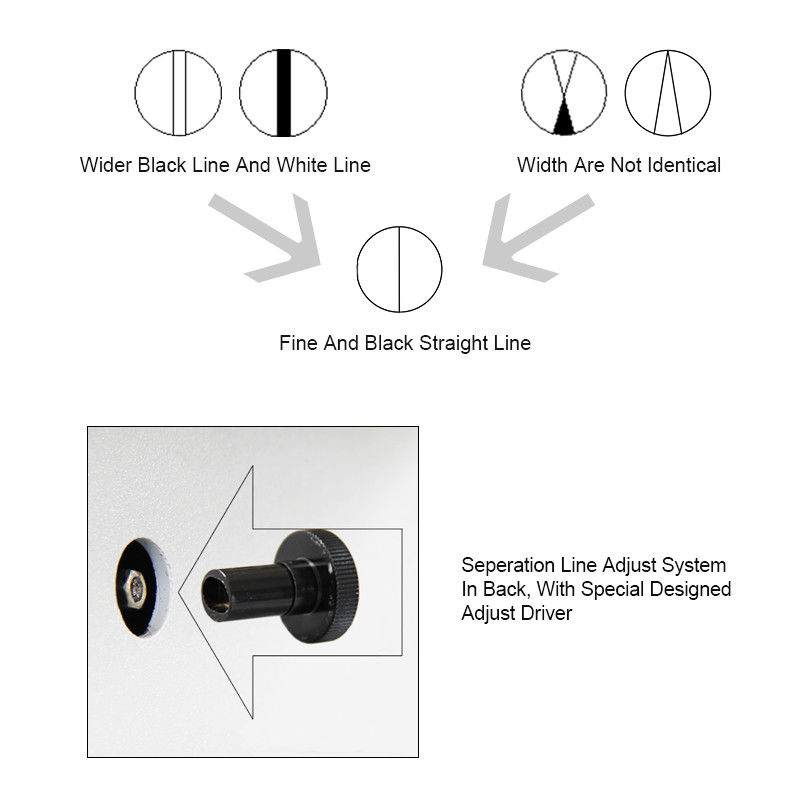

- Separation line adjust system with special designed driver
- Coaxial light attachment for vertical light path observation
- Polarizing light lens set to eliminate flare and dazzling lights
- Includes WF 10x/22mm and WF 20x/12mm eyepieces (2 each)
- Includes auxiliary lens 0.4x and 2x (2 each)
LCD Camera Specifications:
| Feature | A59.3520 | A59.3521 (2024 Upgrade) |
|---|---|---|
| LCD | 9.7" HD IPS Touch Screen | 10.5" HD IPS Touch Screen |
| Camera | 5.0M Digital Camera | 8.0M 4K Digital Camera |
| Resolution | 2048x1536 @15FPS | 3840x2158 @30FPS |
| Memory | 2GB DDR3 / 8GB EMMC | 2GB LPDDR4 / 16GB EMMC |
| System | Android 5.1 | Android 11 |
Technical Specifications:
Magnification Range: 3.8x~230x
Head: Binocular, 30° incline, interpupillary distance 48~75mm
Eyepieces: WF10x/22mm and WF20x/12mm high eyepoint (2 each)
Working Distance: 101mm
View Field: Dia. 2.3~62mm
Light Sources: 12V50W Halogen (2), 5W LED (2), Coaxial, Polarizing, UV
Power: 80~240V wide range voltage
Dimensions: 37×30×63cm
Optional Accessories:
- 150W Cold Light Source with Optical Fiber & Light Collector (A56.1821)
- Professional Forensic Image Analysis Software (A30.1821)
- Motorized Bullet Holder Set for use with software (A54.1813)
