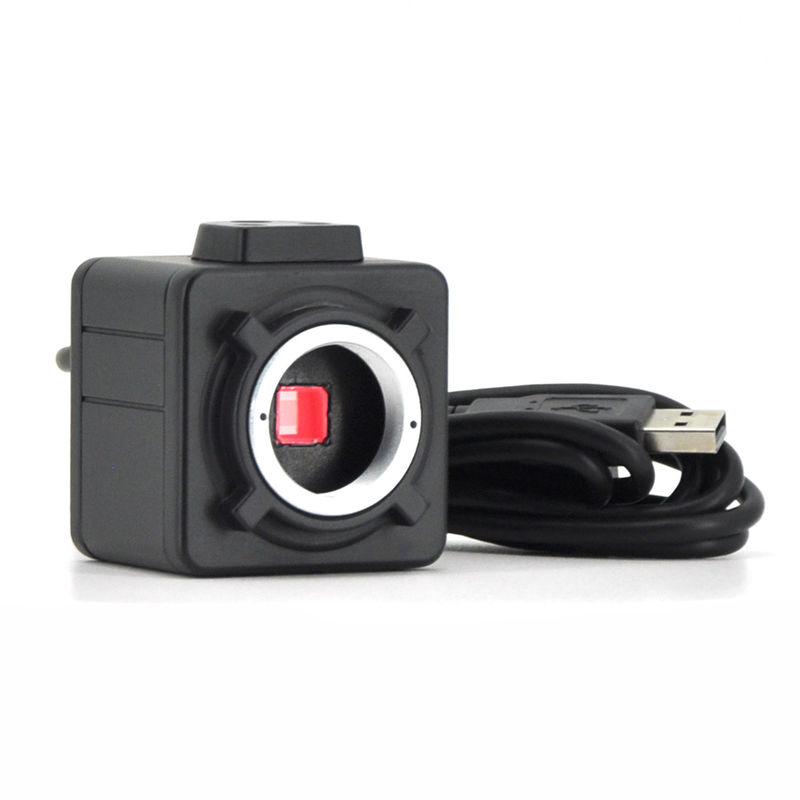

Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB

Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB

  • High Light

    microscope accessory


    parts of the microscope


    compound microscope parts

  • Product Name
    OPTO-EDU A59.4904 720HD 5MP Digital Microscope Ccd Camera With USB
  • Resolution
  • Output
  • Power Supply
    Micro-USB (5V DC)
  • Sensor
    CMOS Sensor
  • Usage
    Microscope C-mount & Eyepiece Tube
  • Size
  • Certificate
    CE, Rohs
  • Warranty
    3 Years
  • Packing
    40 Pcs/carton, 54*38*31cm/13.5Kgs
  • Place of Origin
  • Brand Name
  • Certification
    CE, Rohs
  • Model Number
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB

OPTO-EDU A59.4904 720HD 5MP digital microscope ccd camera with USB

A59.4904 microscope camera (industrial camera) is playing a more and more important role in educational, medical, scientific and research and other fields besides common application in industry. For example, in scientific and research field, it is used to record motion change of objects; in sports field, it is used to analyze athlete’s technical features by high-speed photography and record athlete’s motion locus; in military field, it is used to examine arms performance and analyze ballistic curve.

measurement microscope camera

Camera Parameter


Hardware Configuration
imaging sensor Colorful
scan patterns Scan line by line
The maximum resolution 2592 x 1944(5,038,848 pixels)
Sensor Optical Format 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm x 2.2μm
Dynamic Range 70.1dB
ADC 12-bit, 8-Bit R.G.B to PC
SNR(Signal Noise Ratio) 38.1dB
Spectral Characteristics 380-650nm
Preview modes


15FPS@1920x1080, 1600x1200

40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480

Binning Modes 1 x 1, 2 x 2
Exposure Capability 3.9ms - 320ms, automatic and manual
White Balance automatic and manual
Software Interface DirectShow
Capture modes


Resolution:2592x1944, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480



Resolution:1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480

Format:MJPG format AVI file

Software Environment
Operation system Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit)

Computer Configuration




CPU: equal or more than the second generation Intel core 2.8GHz
memory:2G or more
USB port:USB2.0 high speed port or compatible port
displayer:suggest 17 inches or larger
Operating Environment
operating temperature 0℃~ 40℃
storage temperature -20℃~ 60℃
operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Camera Display

measurement microscope cameraA59_04.jpg

Camera Feature

measurement microscope camera

1.A59.4904 microscope camera makes simultaneous observation for several users come true. MC500 provides shooting, recording and storage function. It can store the observed images into computer, measurement and statistics and raise the usage connotation of traditional optical equipment

2. A59.4904 microscope camera has strong compatibility and can be changed according to different purposes. All microscopes with optical interface of international standard size (for example, caliber 23.2mm microscope) can connect with it. Also, the specially configured 30mm and 30.5mm adapter rings solve your worries. Applicable schemes are offered for your choice.,

3.Another advantage of A59.4904 is that it is a piece of relative independent equipment with more flexibility and operability. It can not only be combined with various microscopes but also with a series of visual machine lens. When you use your visual machine with A59.4904, your machine will become more powerful instantly. A59.4904 will never let your machine leave behind and it can also raise operation rate and reduce your expenditure.

Drawing Display

measurement microscope camera

More Choices

Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB 5

Application & Cases



measurement microscope camera


Packing & Delivery


Packing : Compact Design Box and Strong Master Carton

Shipping Time : 1-5 Days From Stock
