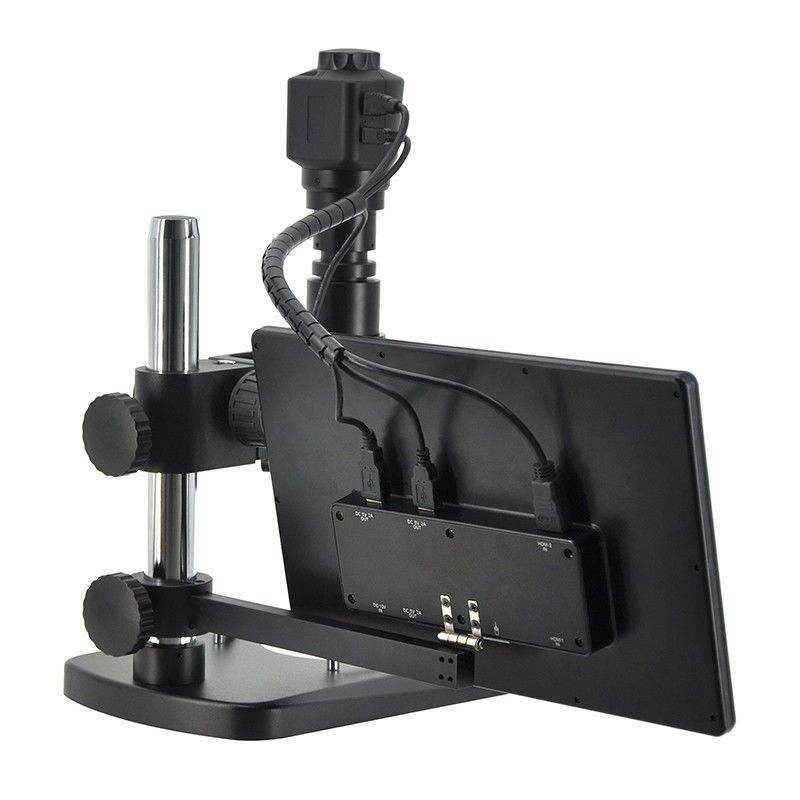

Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X

China Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier
Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X supplier

Large Image :  Mobile Phone Repair Long Arm Digital Microscope 3.5M 1 / 3'' OPTO - EDU A36.4952 8.8X - 480X

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A36.4952

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Resolution: 3.5M 2304*1536 (3,538,944 Pixels) Sensor Optical Format: 1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
A36.4952 HDMI Digital Microscope Hardware Configuration Image Sensor: Aptina AR0330 CMOS Sensor Expose Mode: Rolling Shutter
Pixel Size: 2.2μm*2.2μm Dynamic Range: 69.5dB
SNR(Signal Noise Ratio): 39dB Spectral Charatristics: 380-650nm
Exposure Capability: Real-time Auto, Single Auto, Manual Adjustment White Balance: Real-time Auto, Single Auto, Manual Adjust R G B Separately

OPTO- EDU A36.4952 8.8X ~ 480X Long Arm Video microscope For mobile phone repairing



Product Parameter





A36.4952 HDMI Digital Microscope
Hardware Configuration
Image Sensor Aptina AR0330 CMOS Sensor
Expose Mode Rolling Shutter
Maximum Resolution 3.5M 2304*1536 (3,538,944 Pixels)
Sensor Optical Format 1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
Pixel Size 2.2μm*2.2μm
Dynamic Range 69.5dB
SNR(Signal Noise Ratio) 39dB
Spectral Characteristics 380-650nm
Exposure Capability Real-time auto, Single auto, Manual Adjustment
White Balance Real-time Auto, Single Auto, Manual Adjust R G B separately
Display (preview ) Resolution HDMI:1920*1080i60, 1920*1080P30, 1280*720P60, 640*480P60(Auto fit by monitor )
Record Format

Snapshot

Picture Format: JPG

Resolution:

HDMI: 2304*1536, 2304*1296, 1920*1080, 1280*720, 800*480

Record
Video Format: MOV

Resolution:

HDMI: 1280*720@30FPS, 800*480@30FPS

Record Route HDMI: TF card (Maximum support 64G)
Power Supply Power adapter: Input:AC 100~240V/50~60Hz;DC 12V/5A/60W
Monitor: USB-A-Output:DC5V/2A×3



Lens Specifications
Total Magnification 8.8x~480x (including digital magnification)
Optical Magnification 0.7×~5× Optical Zoom Lens



Optical Resolution(um)



When in 0.7× 16.78um When in 3× 6.10um
When in 1× 11.18um When in 4× 4.79um
When in 2× 8.39um When in 5× 4.79um
Monitor Parameters
Size 12.5
Type a-Si TFT-LCD/IPS
Resolution 1920×1080
Color Display 16.7M
Brightness 300 Nit
Contrast 800:1
Visible Angle 170° horizontal&vertical


Product Display


A36.4952 combined the traditional optical and eletronic video technology , completely solves the disadvantage of the traditional microscope, which is easy to cause human fatigue when observed for a long time.A36.4962 integrates magnification imaging ,monitor and LED lights into one. It is designed for fast and efficient observation of details



1. It has unique manual focus knob on top pf camera helps you to product the sharpest image within the working distance (0mm~232.5mm) when the observation object size changed from small to large. Avoid tedious adjustment work and directly change the working distance through eye-height adjustment ring and expand the original magnification ratio of the microscope .




2. With the factory integrated 3.5MP 1080i 60fps digital camera and HD lens



3. Easy to realize continuous zoom to overall magnification of 8.8X~480X (based on 12.5 monitor)A36_4952_08.jpg





4. A36.4952 is equipped with the external coaxial light, which can uniformly illuminate the surface of the plane and the shiny surface , and enhance the features of marking , recessing or embossing. It can highlight the uneven surface of the object, overcome the interference caused by the reflection of the surface , and improve the microscope reproducibility.A36_4952_10.jpg

5. Outstanding ergonomics design with 360° universal shaft bracket, to hover randomly. It is flexible and easy to use, convenient for operator to view from different angles. Free up the operators head and body , the work efficiency can be improved and fatigue can be reduced effectively .



6. Integrated solution -one device can achieve multiple function of low magnification tasks; Equipped with all-in-one 12.5 monitor, when needed, operator can fine-tune screen angle to look up ( max 90 °) or look down (max 24°)


7.Simple ,easy to use image and video capture software is included as standard to allow you to use it instantly .






Drawing Display


Application




Packing & Delivery
