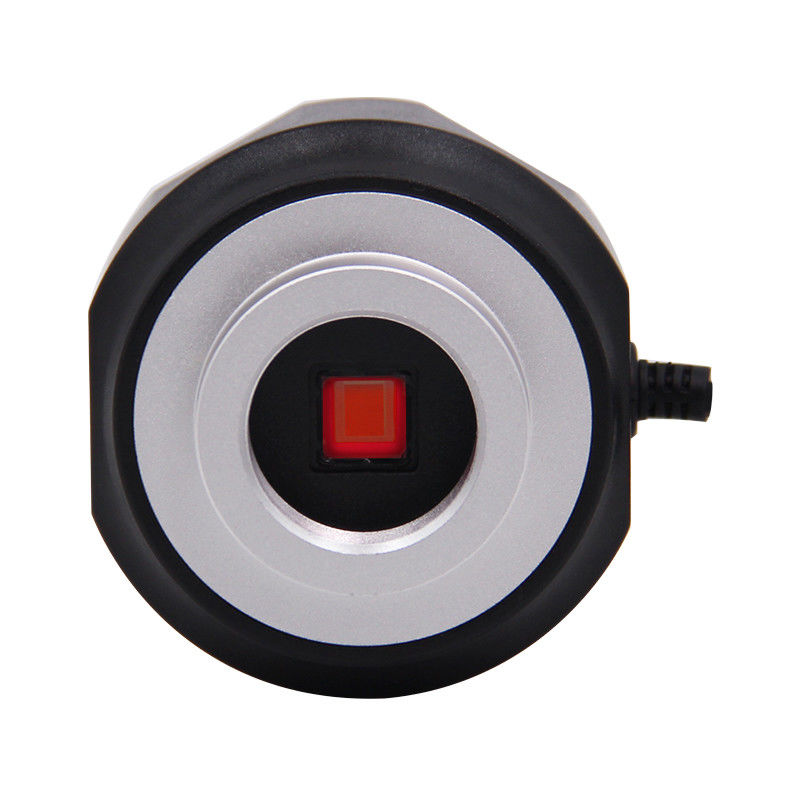

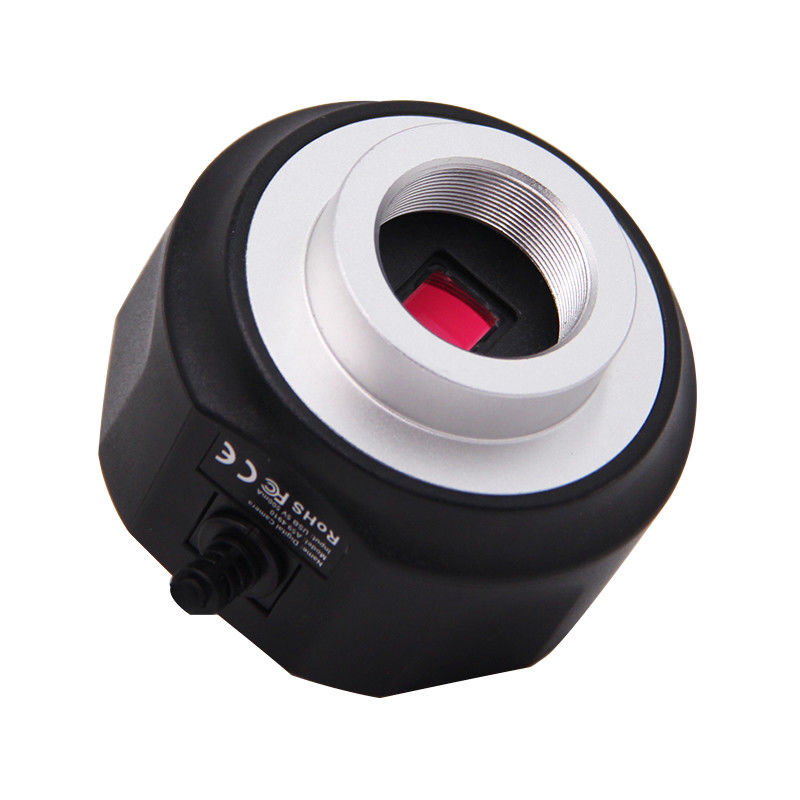

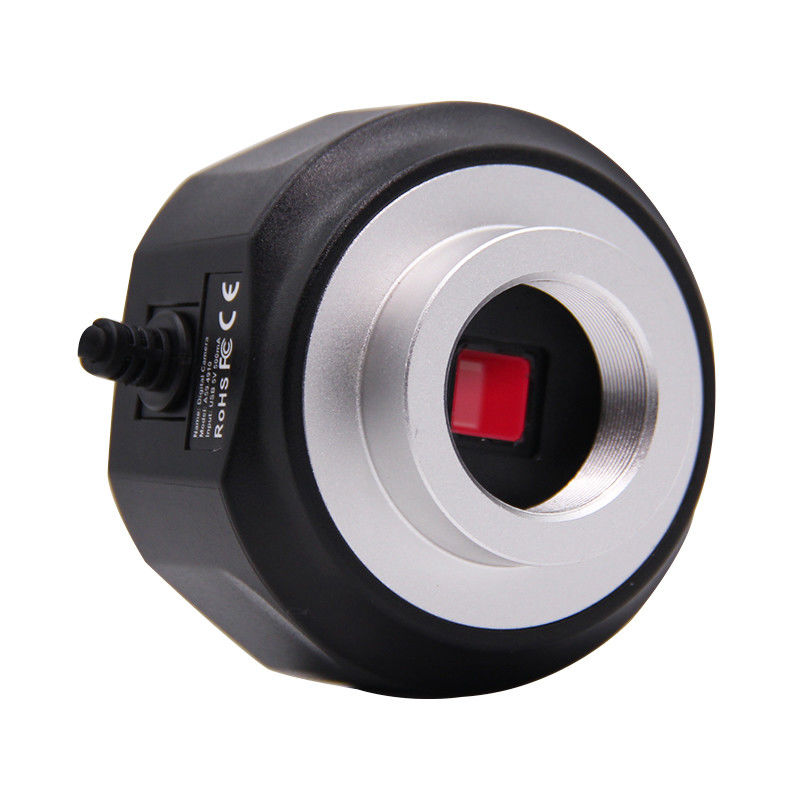

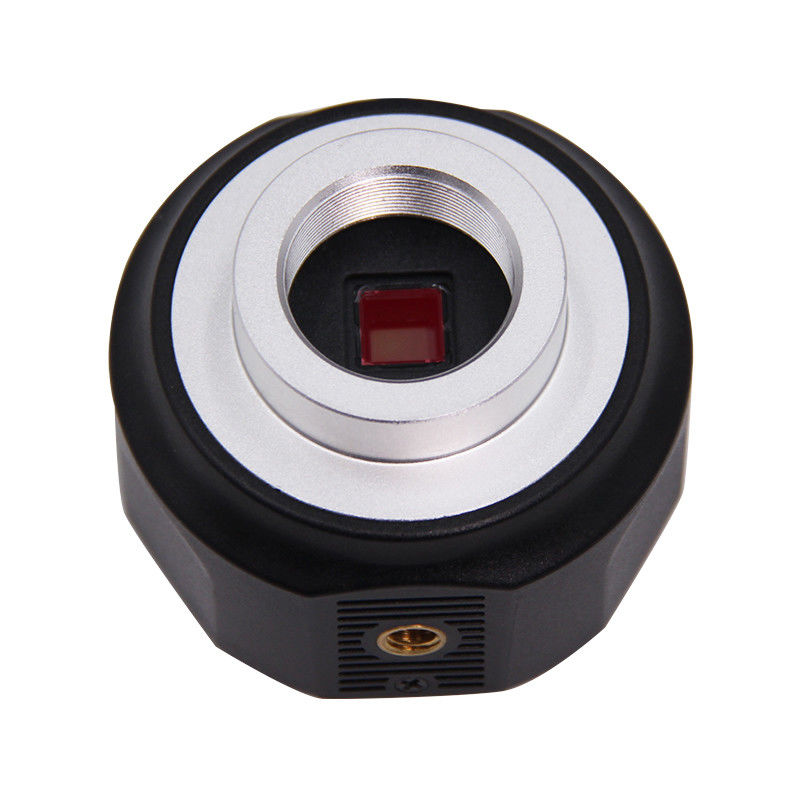

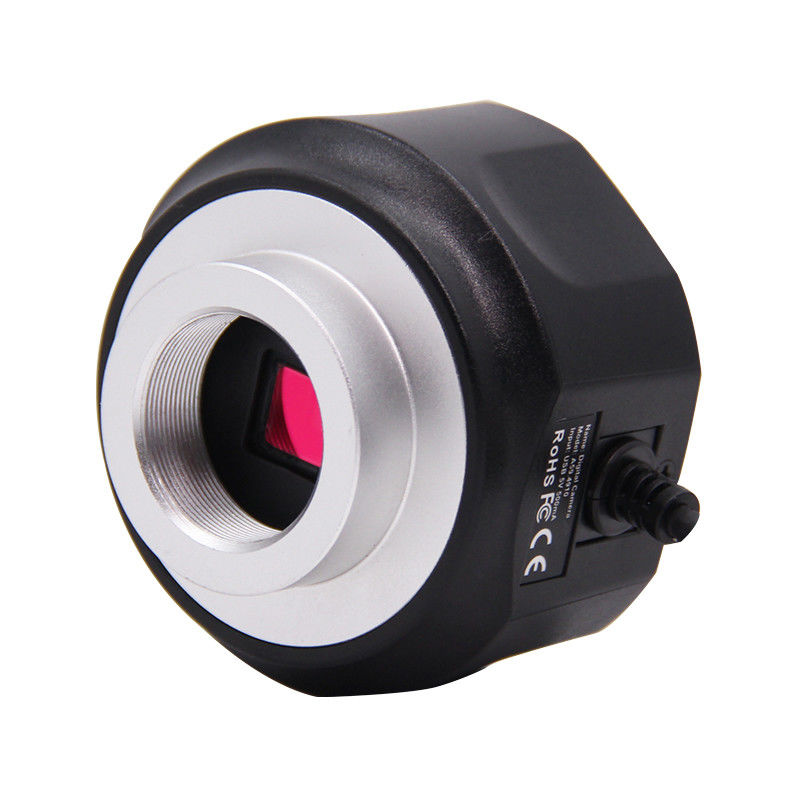

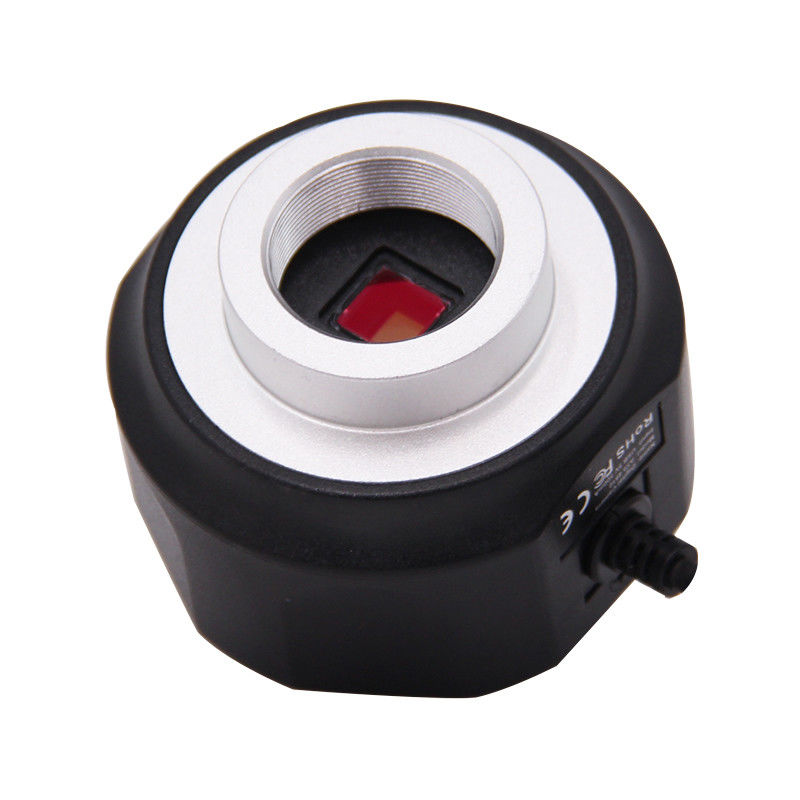

HDMI Digital Eyepiece Microscope Camera A59.4910

HDMI Digital Eyepiece Microscope Camera A59.4910

  • High Light

    microscope accessory

    ,

    parts of the microscope

    ,

    compound microscope parts

  • Resolution
    5.0M
  • Expose
    Rolling Shutter
  • Maximum Resolution
    2592x1944(5,038,848 Pixels)
  • Sensor Optical Format
    1/2.5" (5.70mm(H) X 4.28mm(V), Diagonal 7.13mm)
  • Pixel Size
    2.2μm X 2.2μm(BSI)
  • Dynamic Range
    74.3 DB Linear, More Than 96 DB (Interleaved)
  • SNRmax
    40dB
  • Spectral Charatristics
    380-650nm
  • Exposure Capability
    3.9ms-320ms, Automatic And Manual
  • White Balance
    Automatic And Manual
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.4910
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

HDMI Digital Eyepiece Microscope Camera A59.4910

ccd camera for microscope

OPTO-EDU A59.4910 5mp Digital Eyepiece Camera For Microscope With Electronic Usb



--A closed structure with color filter built-in, preventing dust from CMOS sensor.

--Designed with commonly used tripod mount 1/4-20A for widely use.

--Reliable electrionic double plates design to resolve over heat problem after long working time.

--5V DC power supply from USB port no need additional power adatper.

--3 Years Quality Warranty!



Our Strength

25+ Yeas Professional Experience Know Microscopes Best
150+ Microscope & Accessory Manufacturers From China
200+ Hot Sale & Newest Update Micrscope Model Every Month
720+ Customers From All Over World Keep Rising
1200+ Microscope Models To Creat One-Stop Purchase Platform
OPTO-EDU As Famous Brand For Microscope In China & USA
Top Seller For Microscope on Alibaba Recommand To 99% User
Most Professional Sale Team Supply Best Microscope Solution


Product Parameter





A59.4910 Hardware Configuration
Image Sensor Color
Expose Rolling Shutter
Maximum Resolution 2592x1944(5,038,848 Pixels)
Sensor Optical Format 1/2.5" (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm x 2.2μm(BSI)
Dynamic Range 74.3 dB Linear, More Than 96 dB (Interleaved)
SNRmax 40dB
Spectral Charatristics 380-650nm
Exposure Capability 3.9ms-320ms, Automatic And Manual
White Balance Automatic And Manual
Preview Modes 30FPS @2592X1944,
30FPS @1920X1080
30FPS @800X600, 640X480
Record Format Snapshot
Picture Format: JPG, BMP, PNG, TIFF, PDF
Resolution: 2592x1944, 1920x1080, 800x600, 640x480
Record
Video Format: MJPG Format AVI File
Resolution: 1920x1080, 800x600, 640x480
Softwware Environment
Windows System Demand Microsoft®Windows® XP/7/8/8.1/10 (32&64 Bit)
CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory: 2G Or More
USB Port: USB 2.0 High Speed Port Or Compatible Port
Displayer: Suggest 17 Inches Or Larger
Operating Environment
Operating Temperature 0℃-40℃
Storage Temperature -20℃-60℃
Operating Humidity 30-80%RH
Storage Humidity 10-60%RH
Power Supply Direcct-Current 5V, Supply By USB Port

ccd camera for microscope
Product Display

ccd camera for microscopeA59.4910()6_04.jpgA59.4910()6_05.jpg



Product Feature

ccd camera for microscope





Drawing Display






Application & Cases



A59.4910 Microscope Camera can be connected to any biological microscopes, stereo microscopes, metallographic microscopes, etc. It has advantages of high frame rate, very nice color performance, clear image, convenient storage, widely used in industrial inspection, teaching research, clinical test, material analysis, machine vision, etc.

ccd camera for microscope

Packing & Delivery



Packing : Compact Design Box and Strong Master Carton

Shipping Time : 1-5 Days From Stock

G.W: A59.4910 0.24Kgs/Unit, 11.5Kgs/Carton

A59.4910-M05 0.33Kgs/Unit, 16.0Kgs/Carton
