A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable

A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable

  • High Light

    epi-fluorescence microscope

    ,

    inverted fluorescence microscope

  • Eyepiece
    WF10X/22mm Diopter Adjustable
  • Objectives
    LWD Infinity Plan & LWD Infinity Plan Phase Contrast Objectives
  • Annular Spot
    10x/20x/40x
  • Seidentopf Trinocular Head
    Inclined 45°, Interpupilary Distance: 48-76mm
  • Digital Photography C-mount
    One C-mount For CANON Or NIKON SLR Digital Photography Camera
  • Nosepiece
    Quintuple
  • Mechanical Stage
    Inclued Attached Mechanical Stage
  • Culture Dish Holder
    54mm
  • Condenser
    4-hole Rotating Disc Phase Contrast Condenser
  • Epi Fluorescence Illumination
    Epi Fluorescence Media Unit , Field Diaphragm,Center Adjustable.
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.2605
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

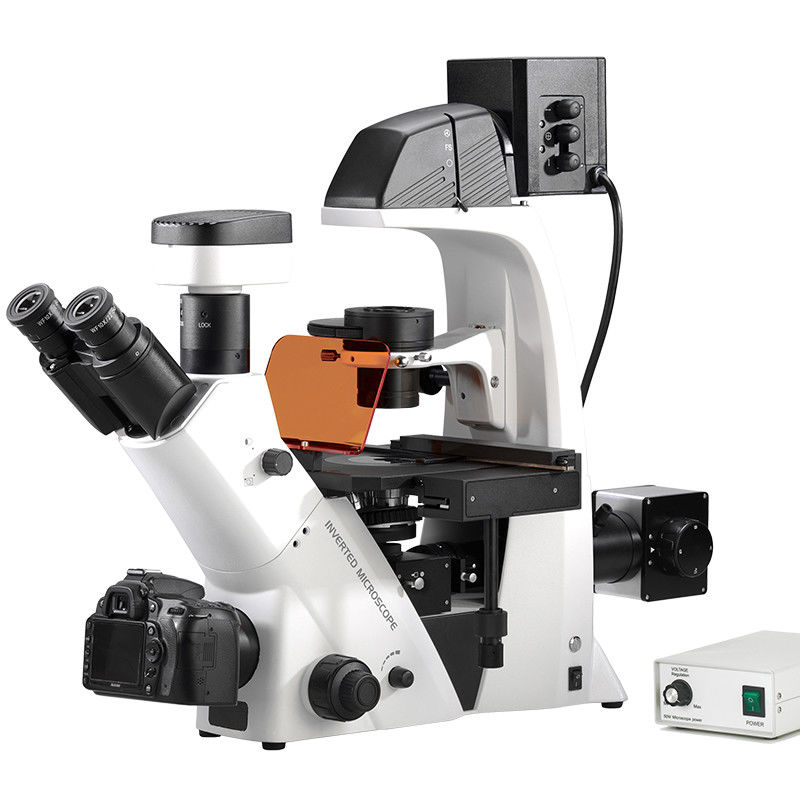

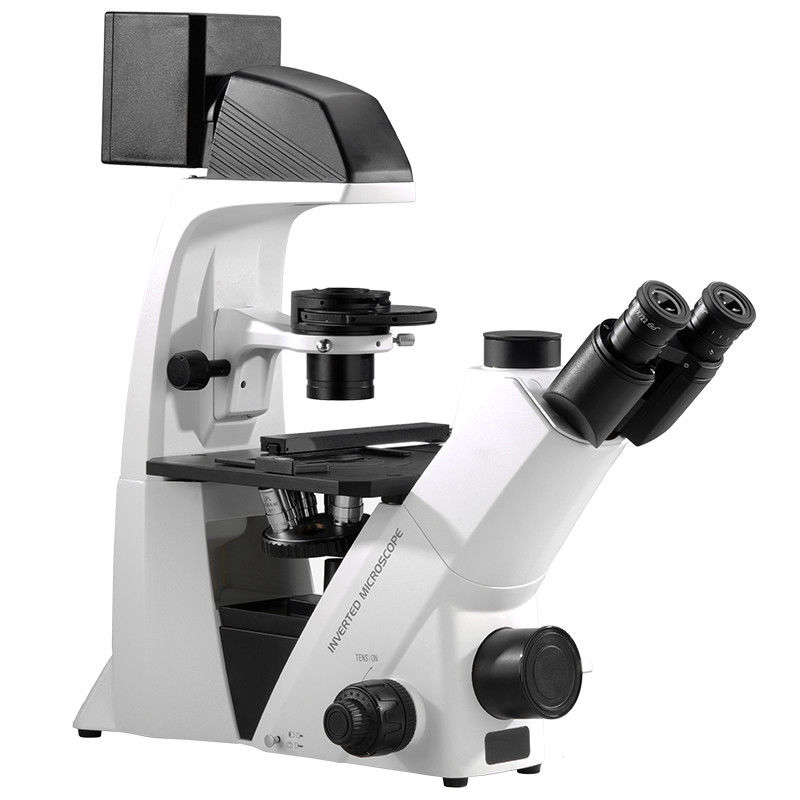

A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable

  • Brand-new development for life science research
  • Both light ports for digital camera and SLR photography, available for observing with digital camera and SLR photography at the same time
  • IOS Infinity optical system, perfect for cell observation and culture

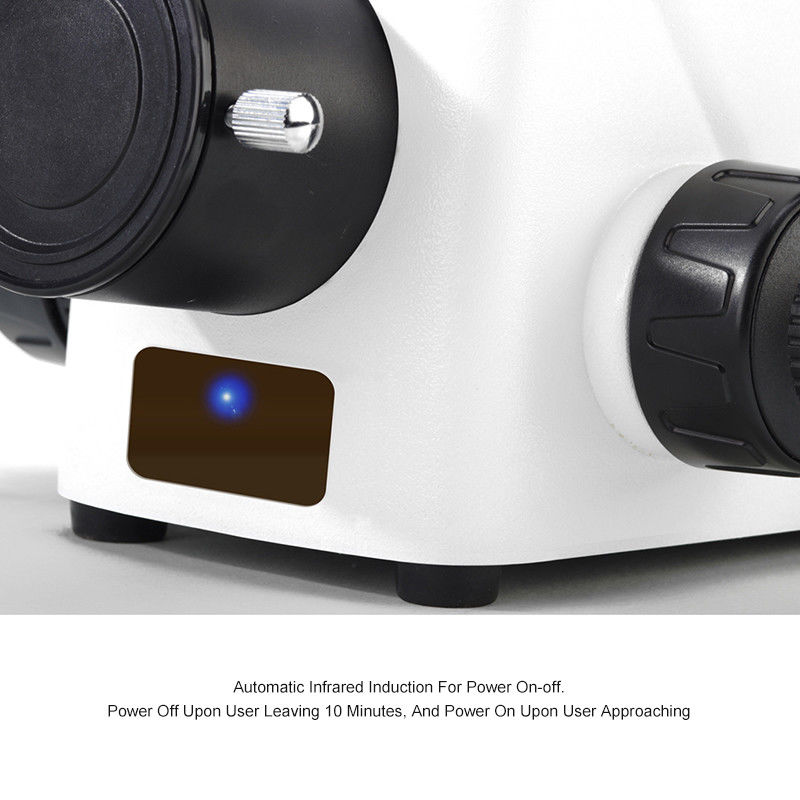

--Automatic infrared induction for power on-off.

Power off upon user leaving 10 minutes, and power on upon user approaching.

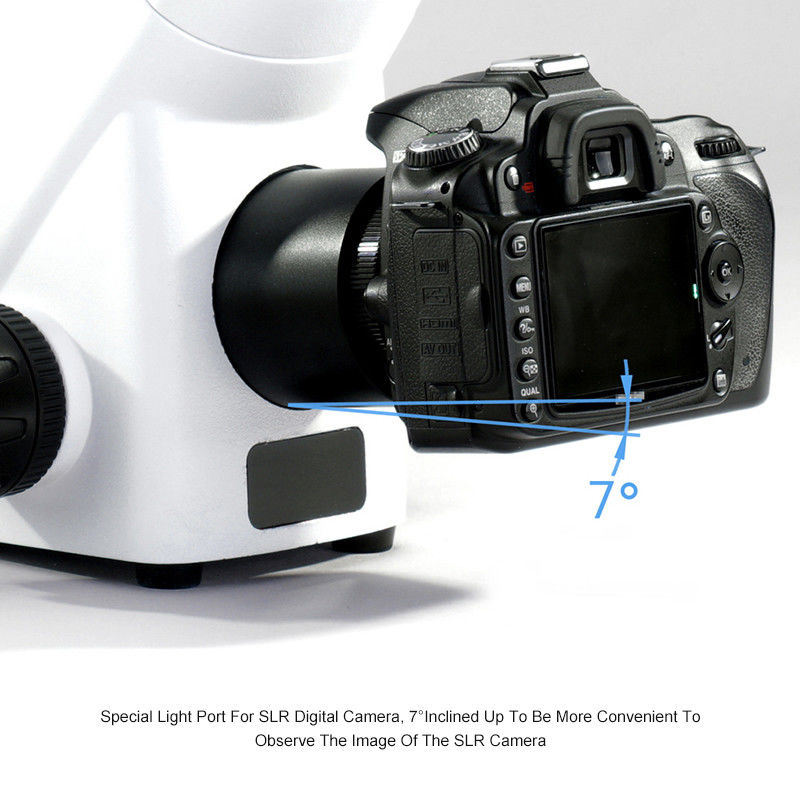

--Special light port for SLR digital camera, 7°inclined up to be more convenient to observe the image of the SLR camera

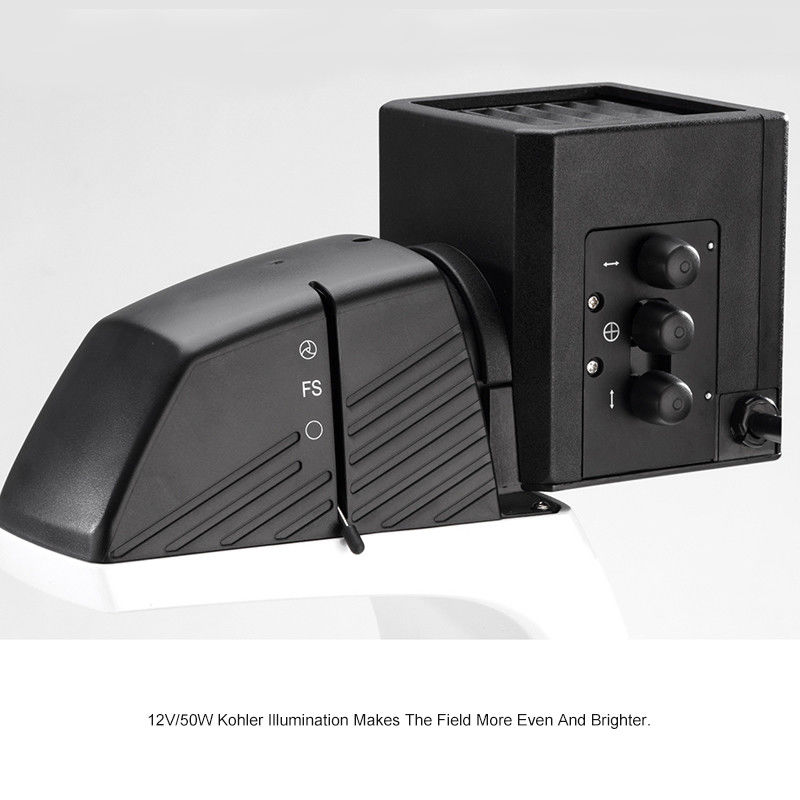

--12V/50W Kohler illumination makes the field more even and brighter.

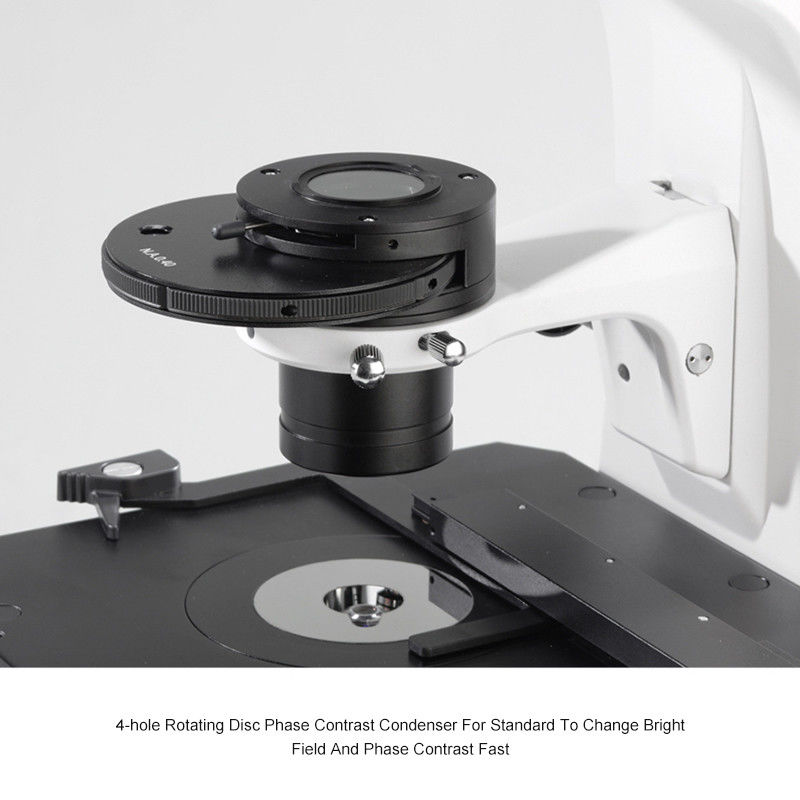

--4-hole rotating disc phase contrast condenser for standard to change bright field and phase contrast fast





A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable 0

A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable 1

A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable 2

A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable 3

A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable 4

A16.2605 Inverted Fluorescent Microscope Specification
Eyepiece WF10X/22mm Diopter Adjustable
Centering Telescope
Objectives LWD Infinity Plan Objectives
LPL 4X/0.11 W.D.=12.1mm

LWD Infinity Plan Phase Contrast Objectives
LPL PhP 10×/0.25 W.D.=8.3mm
LPL PhP 20×/0.40 W.D.=7.2mm
LPL PhP 40×/0.60 W.D.=3.4mm
Annular Spot 10×/20×/ 40×
Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance: 48-76mm
Light Distribution (both): 100: 0 (100% For Eyepiece)
80:20 (80% For Trinocular Head, And 20% For Eyepiece)
Digital Photography C-mount 100% Light For Photography Port
(One C-mount For CANON Or NIKON SLR Digital Photography Camera)
Nosepiece Quintuple
Mechanical Stage Stage Size: X×Y 210×241mm, Round Slide Size:φ110mm,
Attached Mechanical Stage(Available For 96 Holes Plate, Moving Range X×Y:128×80mm.)
Culture Dish Holder 54mm
Condenser 4-hole Rotating Disc Phase Contrast Condenser
N.A.0.4 W.D.45mm
It Can Be Up-down Adjusting
Koehler Illumination 12V/50W Halogen, Input Voltage:100V~240V
Filter Blue
Green
Epi Fluorescence Illumination Epi Fluorescence Media Unit , Field Diaphragm,Center Adjustable.
100W Mercury Lamp
5WLED
B, G, V, UV Fluorescence Filters Can Be Chosen
Digital Mercury Lamp Power Box (For 100W Mercury Or 5WLED) (Input Voltage:100V~240V)

Optional Accessories
LWD Infinity Plan Objectives LPL 10X/0.25 W.D.=8.3mm
LPL 20X/0.40 W.D.=7.2mm
LPL 40X/0.60 W.D.=3.4mm
LWD Infinity Plan Phase Contrast Objectives LPL PhP 4×/0.10 W.D.=9.2mm
Annular Spot
Culture Dish Holder 65mm
35mm
Holder For Blood Cell Counter
Koehler Illumination 5WLED,Input Voltage:100V~240V
Auto Power On-off System Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching
Filter Amber
Grey
C-mount 1×C-Mount (Better For Digital Photograph).
0.5X C-Mount (Focus Adjustable, Better For Digital Camera)
0.75X C-Mount (Focus Adjustable, Better For Digital Camera)
