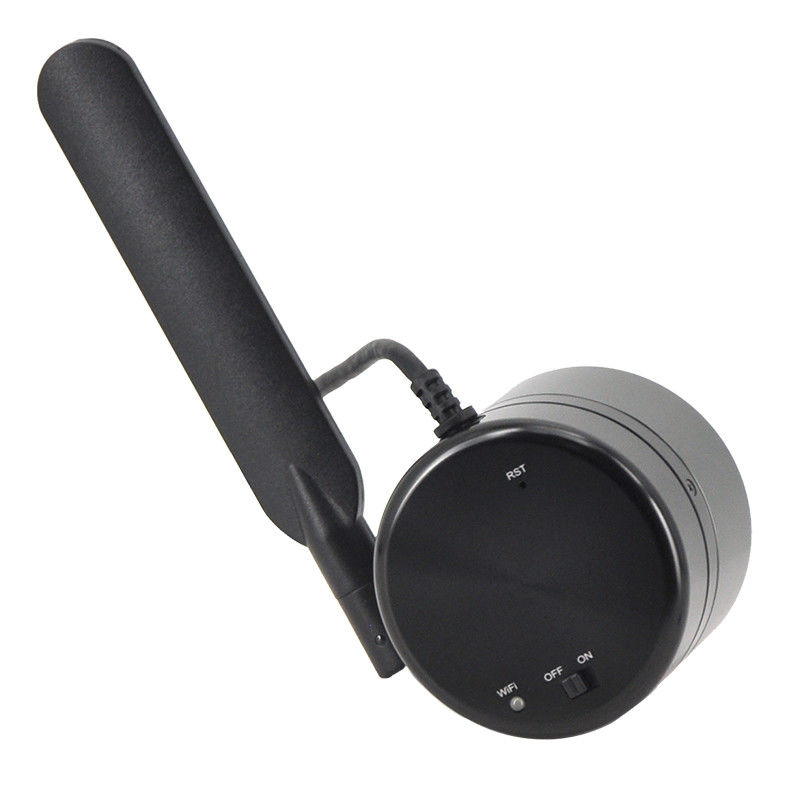

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

China Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930 supplier
Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930 supplier Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930 supplier Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930 supplier Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930 supplier

Large Image :  Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A59.4930

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Product Name: 5G WIFI Digital Camera Resolution: WF10x
Output: USB, WIFI Power Supply: USB
Sensor: CMOS Sensor Usage: Microscope C-mount & Eyepiece Tube
LCD Screen: N/A Certificate: CE, Rohs
Warranty: Warranty Packing: 1000 Pcs/month

Hardware Configuration A59.4930-2.0M A59.4930-5.0M A59.4930-8.0M A59.4930-12.0M
2.0MP 5.0MP 8.0MP 12.0MP
Image Sensor SONY IM×291 CMOS Sensor SONY IM×178 CMOS Sensor SONY IM×274 CMOS Sensor SONY IM×226 CMOS Sensor
Expose Mode Rolling shutter Rolling shutter Rolling shutter Rolling shutter
Maximum Resolution 1920×1080(2,073600 pixels) 2592×1944(5,038,848 pixels) 3840x2160(8,294,400 pixels) 4000×3000
(12,000,000 pixels)
Sensor Optical Format 1/2.8'' 1/1.8'' 1/2.5'' 1/1.7''
Pixel Size 2.9μm x 2.9μm 2.4μm x 2.4μm 1.62μm x 1.62μm 1.85μm x 1.85μm
Dynamic Range 128dB >80dB >80dB >80dB
SNRmax 30dB ≥50dB ≥50dB ≥50dB
Spectral Characteristics 380-650nm
Exposure Capability Real-time auto, Single auto, Manual adjustment
White Balance Real-time auto, Single auto, Manual adjust R G B separately
Record Format Snapshot
Picture Format:JPG
Resolution
1920x1080
Record
Video Format:MOV
Resolution
1920X1080@60FPS,
1280x720@60FPS
Snapshot
Picture Format:JPG
Resolution:2592x1944
Record
Video Format:MOV
Resolution:
2592X1944@30FPS,
2560X1920@30FPS,
2048x1536@30FPS,
1920x1080@30FPS
Snapshot
Picture Format:JPG
Resolution
3840x2160
Record
Video Format:MOV
Resolution:
3840X2160@25FPS,
2592X1944@25FPS,
2048x1536@25FPS
Snapshot
Picture Format:JPG
Resolution
4000X3000
Record
Video Format:MOV
Resolution:
4000X3000@15FPS,
4096X2160@25FPS,
3840x2160@25FPS,
2592x1944@25FPS
Software Environment (Please confirm mobile display device( tablet and cell phone)must support protocol IEEE 802.11n/ac, otherwise they can not display image properly)
Windows System Demand Microsoft®Windows®XP/7/8/8.1/10(32&64 bit)
CPU: Dual-core 3.0GHz or more CPU
Memory: 4G or more
At least 10GB available hard disk space
Wireless network card(support IEEE 802.11n/ac)
iOS System Demand iPhone X/8/8Plus/7/7Plus/6s/6s Plus/6/6 Plus/iPad Pro(12.9-inch 2nd generation)/(12.9-inch 1st generation)/(10.5-inch)/(9.7-inch)/iPad Air 2/iPad mini 4
Android System Demand Android 4.0 or higher
CPU: dual-core 1.7GHz or higher
RAW memory: 1G or more
Storage ROM: suggest 8G or larger
Operating Environment
Operating Temperature 0℃~ 40℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~60%RH
Wireless Parameter/Power Parameter
Standard IEEE 802.11n/ac
Operating Frequency Range 2412---2484MHz &5180---5825MHz
Data Transmission Rate IEEE 802.11n: MCS0-MCS7@ HT 20/2.4GHz band
IEEE 802.11n: MCS0-MCS9@ HT 40/5GHz band
IEEE 802.11n: MCS0-MCS7@ VHT 80/5GHz band
Receiving Sensitivity HT20 MCS7: -71dBm@10% PER(MCS7)/2.4GHz band
VHT80 MCS9:-60dBm@10% PER(MCS9)/5GHz band
HT40 MCS7:-70dBm@10% PER(MCS9)/2.4GHz band
Transmission Powder IEEE802.11ac:13±1.5dBm@HT80 MCS9/5GHz band
IEEE802.11n:16±1.5dBm@HT20/40 MCS0/5GHz band
IEEE802.11n:16±1.5dBm@HT20/40 MCS7/2.4GHz band
The Wireless Work Instructions When there has not WiFi, LED lamp turn off
When WiFi is opened but do not connect, LED is always lighting
When WiFi is connected, LED flashes at the beginning and stay turn off afterward
When WiFi is connected, LED flashes, about once per second, the greater the amountof data the faster it flashes, and it is about 10 times per second

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930

Mini 5G Wifi Build - In Camera , Biological Trinocular Student Microscope A59.4930
