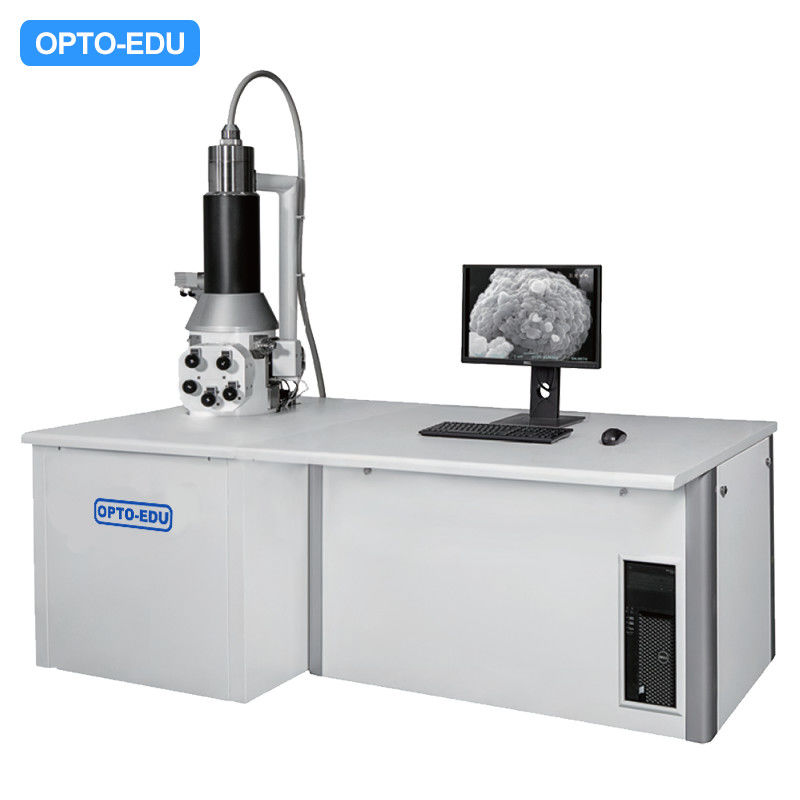

Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun

Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun

  • High Light

    five axes scanning electron microscope lab

    ,

    tungsten heated scanning electron microscope lab

  • Resolution
    4.5nm@30KV(SE); 6nm@30KV(BSE)
  • Magnification
    Negative Magnification: 15x~250000x; Screen Magnification: 30x~500000x
  • Electron Gun
    Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge
  • Accelerating Voltage
    0~30KV
  • Lens System
    Three-level Electromagnetic Lens (Tapered Lens)
  • Specimen Stage
    Five Axes Stage
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A63.7062
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun

♦Afforadable SEM

♦English Operation Panel

♦Full set of automated software

♦Modification Service Available

♦Bestseller SEM

Scanning electron microscopy (sem) is suitable for the observation of the surface topography of metals, ceramics, semiconductors, minerals, biology, polymers, composites and nano-scale one-dimensional, two-dimensional and three-dimensional materials (secondary electron image, backscattered electron image).It can be used to analyze the point, line and surface components of microregion.It is widely used in petroleum, geology, mineral field, electronics, semiconductor field, medicine, biology field, chemical industry, polymer material field, criminal investigation of public security, agriculture, forestry and other fields.



A63.7062 Eco Tungsten Filament SEM
Resolution 4.5nm@30KV(SE); 6nm@30KV(BSE)
Magnification Negative Magnification: 15x~250000x; Screen Magnification: 30x~500000x
Electron Gun Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge
Accelerating Voltage 0~30KV
Lens System Three-level Electromagnetic Lens (Tapered Lens)
Objective Aperture Molybdenum Aperture Adjustable Outside Vacuum System
Specimen Stage Five Axes Stage
Travel Range X(Auto) 0~50mm
Y(Auto) 0~50mm
Z(Manual) 0~25mm
R(Manual) 360º
T(Manual) -5º~90º
Max Specimen Diameter 150mm
Detector High Vacuum Secondary Electron Detector (With Detector Protection)

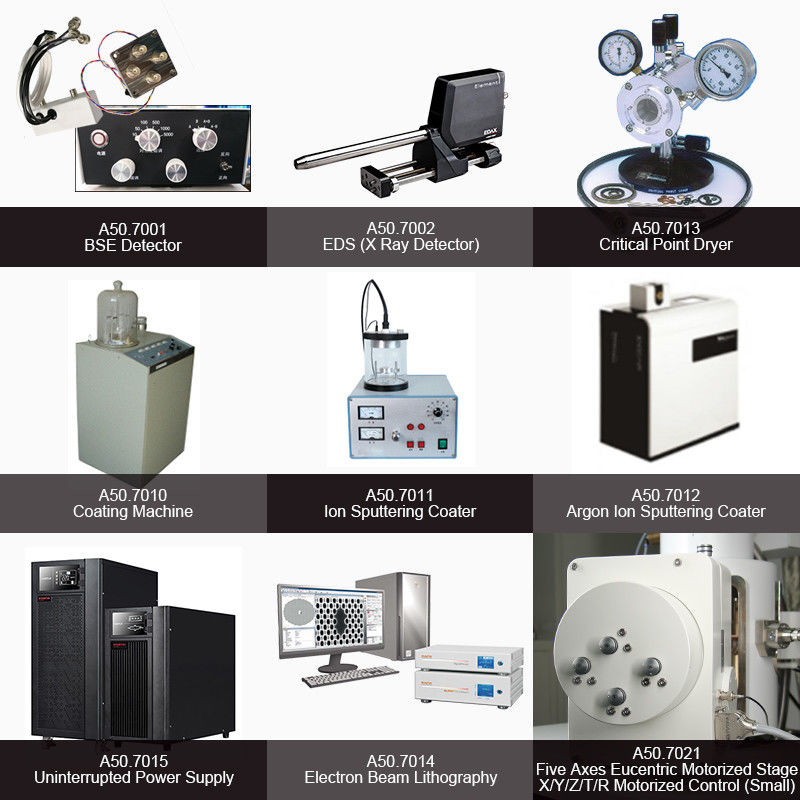

Modification Stage Upgrade;EBL;STM;AFM;Heating Stage;Cryo Stage;Tensile Stage;Micro-nano Manipulator;SEM+Coating Machine;SEM+Laser
Accessories CCD,LaB6,X-Ray Detector(EDS),EBSD,CL,WDS,Coating Machine
Vacuum System Turbo Molecular Pumps;Rotation Pump
Electron Beam Current 10pAt~0.1μA
PC Customized Dell Work Station

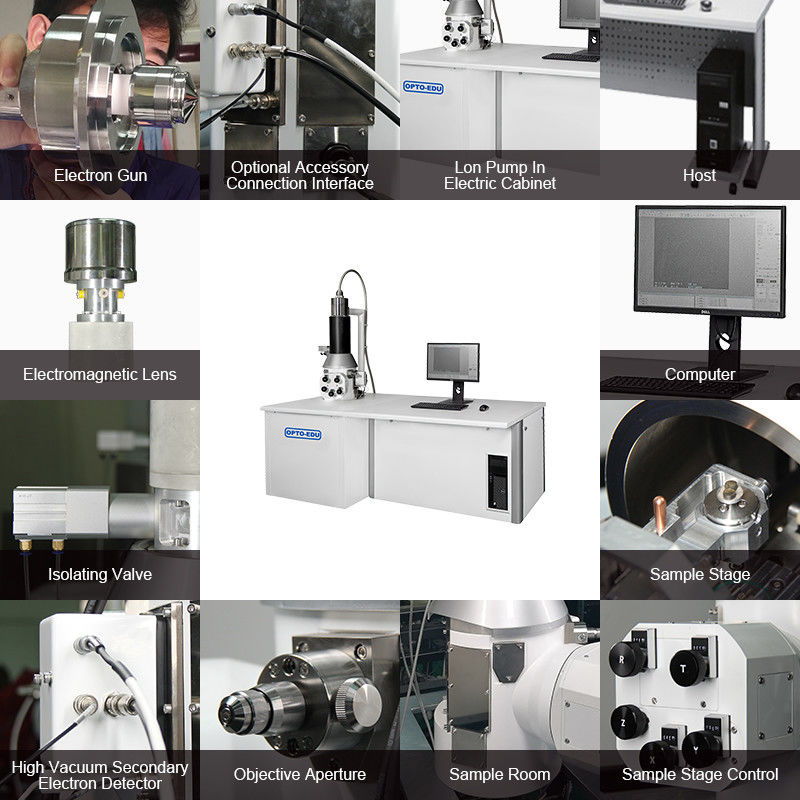

Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge

The Electromagnetic Lens In This Cylinder

Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun 0





The Isolating Valve Ensures That The Upper Vacuum Is Not Affected When The Sample Room Is Opened

Objective Aperture

Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun 1





The Sample To Be Observed Need To Put IN The Sample Room

Five Axes Stage, X/Y Motorized Control (Small)



Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun 2



Consumables
  Name Specification Quantity Unit
1 Centered cartridge filament   5 set
2 Specimen cup (φ13) 10 pcs
3 Specimen cup (φ32) 10 pcs
4 Carbon conductive tape(double side) 6mm 1 pc
5 Vacuum grease   1 Bottle
6 Lint-free cloth   20 pcs
7 Vent-pipe   5 meter
8 Polishing paste   1 set
Tools
  Name Quantity Unit
1 Allen wrench 1 set
2 Clean stick 1 pc
3 Overshot 1 pc
4 Aperture removing tool 1 pc
5 Tweezers 1 pc
6 Screwdriver 2 pcs





High Vacuum Secondary Electron Detector

Optional Accessory Connection Interface

Five Axes Stage Scanning Electron Microscope Lab With Tungsten Heated Electron Gun 3

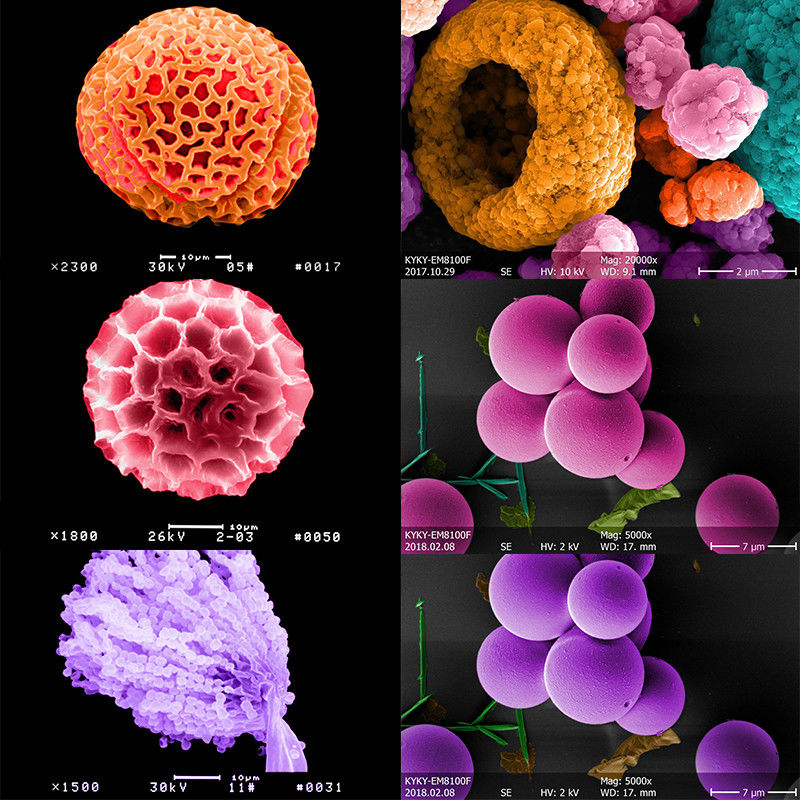

A63.7062 Support Three Window Synchronous, Two Chanel (SE+BSE) With CCD Window; Image Resolution: 4096*4096 Pixels
