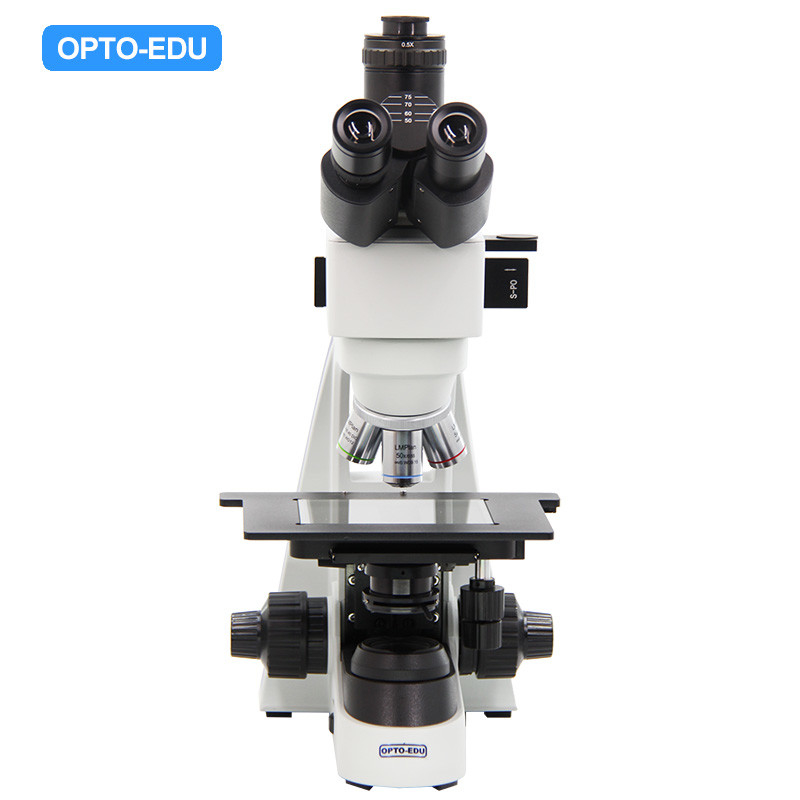

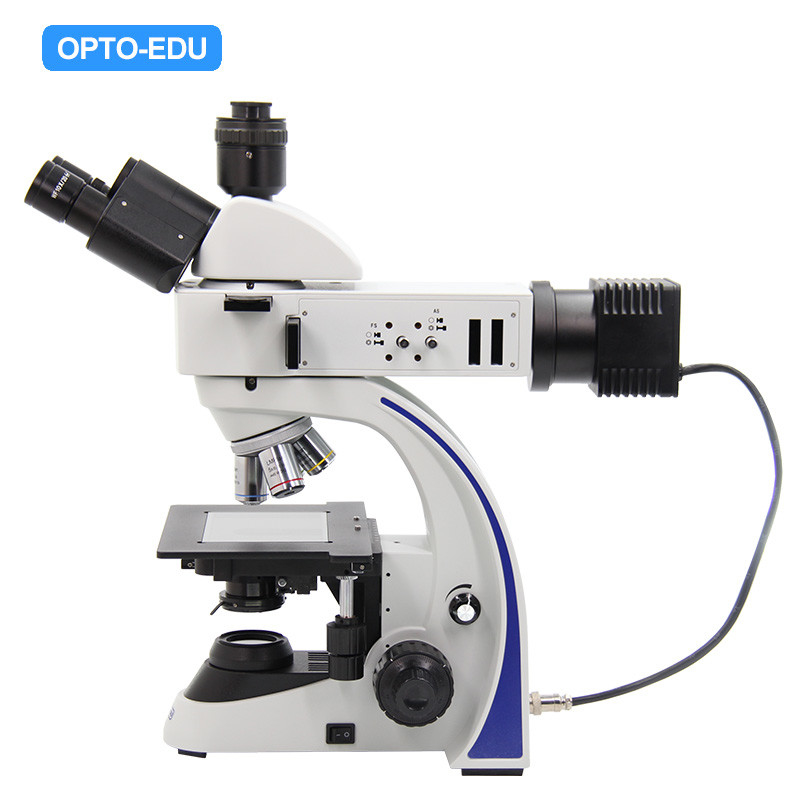

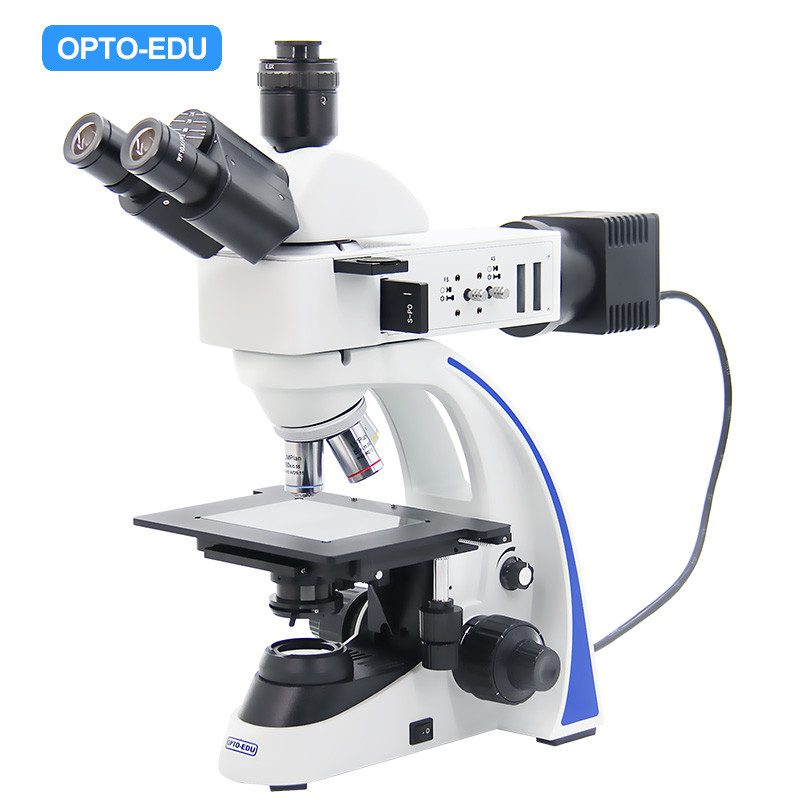

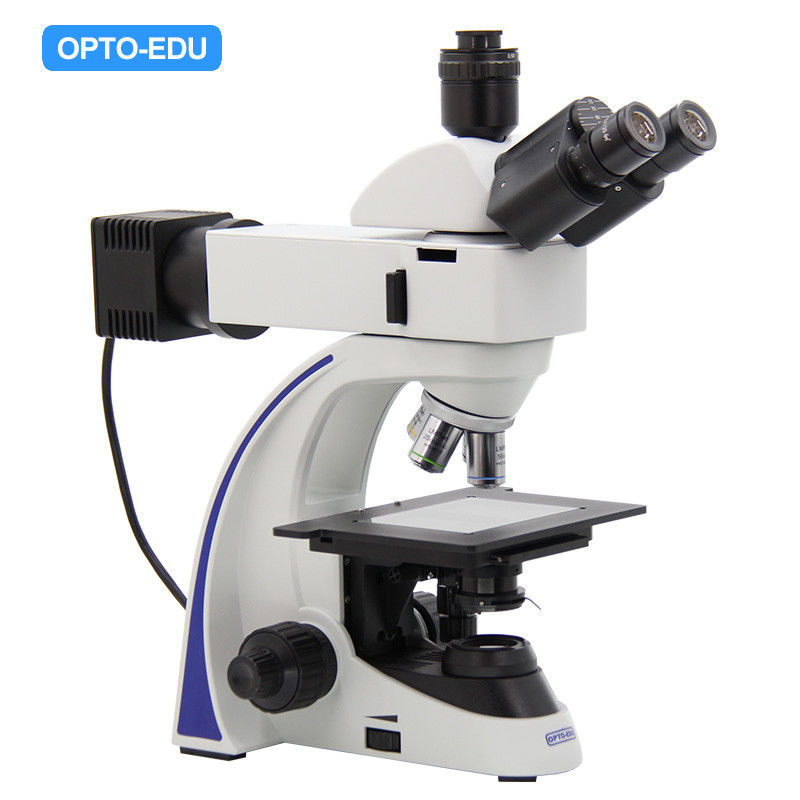

| A13.3601 Metallurgical Microscope, Transmit & Reflect Light | -B | -T | Cata. No. | |
| Optical System | Infinity Color Corrected Optical System | ● | ● | |

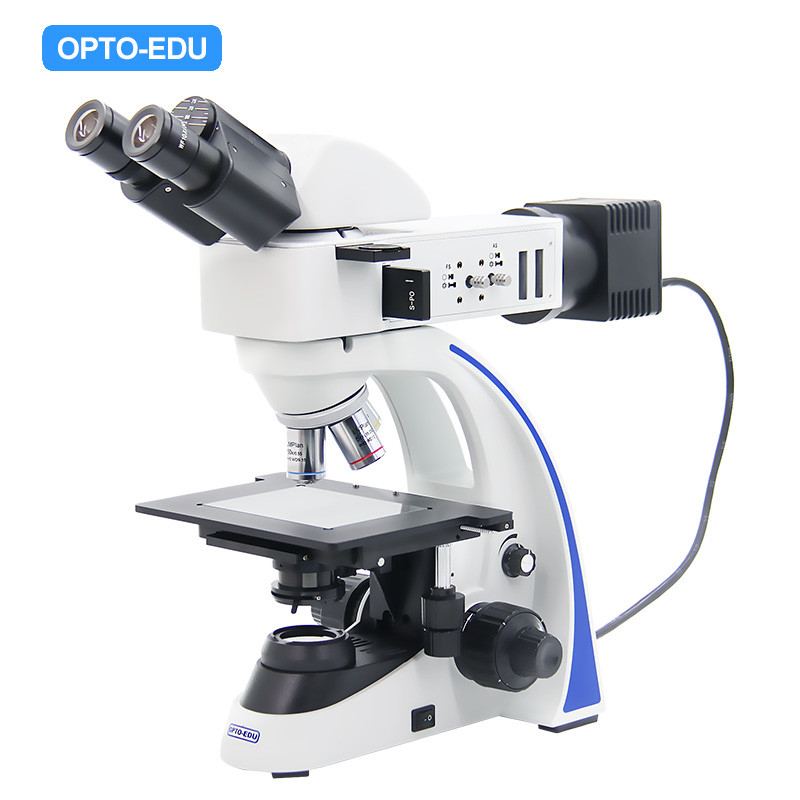

| Viewing Head | Gemel Binocular Head, 30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable | ● | ||
| Gemel Trinocular Head, 30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable, Splitting Ratio R:T=50:50, With 0.5x Focusing C-mount |
● | |||
| Eyepiece | High Eye-point Wide Field Eyepiece WF10x/20mm | ● | ● | |
| Infinity Large Working Distance Plan Achromatic Metallurgical Objective | 5x N.A. 0.15 W.D.12 | ● | ● | A5D.3633-5 |
| 10x N.A. 0.3 W.D.16 | ● | ● | A5D.3633-10 | |
| 20x N.A. 0.4 W.D.12 | ● | ● | A5D.3633-20 | |
| 50x N.A. 0.55 W.D.9.15 | ● | ● | A5D.3633-50 | |
| 100x N.A. 0.8 W.D.2.1 | ○ | ○ | A5D.3633-100 | |
| Nosepiece | Inward Quadruple | ● | ● | |
| Frame | Transmitted & Reflected Frame With Glass Plate, Coaxial Focus System With Tension Adjustment And Up-limited Device, Coarse Range: 23mm, Fine Precision: 0.002mm. | ● | ● | |
| Working Stage | Double Layer Mechanical Stage With X/Y Coaxial Adjustment, Size: 190mmX150mm, Moving Range: 76mmX50mm, Metal Plate For Transmitted Frame; Glass Plate For Transmitted & Reflected Frame. | ● | ● | |
| Reflected Illumination | Reflected Lamp-house With Single 5W LED, Warm White Color. Koehler Illuminator With Center Adjustable Field And Aperture Diaphragm. External Wide-range Adapter, Input Voltage 100V-240V_AC50/60Hz, Output Voltage DC12V2A. | ● | ● | |
| Transmitted Illumination | Single 3W LED, White Color, With N.A.1.25 Abbe Condenser For Transmitted Light, With Center Preset Aperture Iris Diaphragm. | ● | ● | |
| Polarizing | Polariser And Analyzer. Analyzer Is Adjustable With 360° Rotation. | ● | ● | |
| C-Mount | 0.35x, Focus Adjustable | ○ | ○ | A55.3623-35 |
| 0.5x, Focus Adjustable | ● | ● | A55.3623-05 | |
| 1.0x, Focus Adjustable | ○ | ○ | A55.3623-10 | |
