40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604

  • High Light

    highest magnification microscope

    ,

    compound light microscope

  • Application
    Research|Laboratory
  • Certification
    CE|Rohs
  • Drawtube
    Binocular
  • Illumination
    Halogen Lamp
  • Magnification
    40X - 600X
  • Theory
    Polarizing Light Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A15.2604
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604


40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 0

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 1
40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 2
Head & Eyepiece
Monocular Head, Inclined 30°, Rotatable 360°
WF 10X/18mm, With Cross Micrometer 0.1mm

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 3
Analyzer Unit
0-90°, It Can Be Moved Out Of The Optical Path For Single Polarizing Observe
Bertrand Lens
It Can Be Moved Out Of The Optical Path

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 4

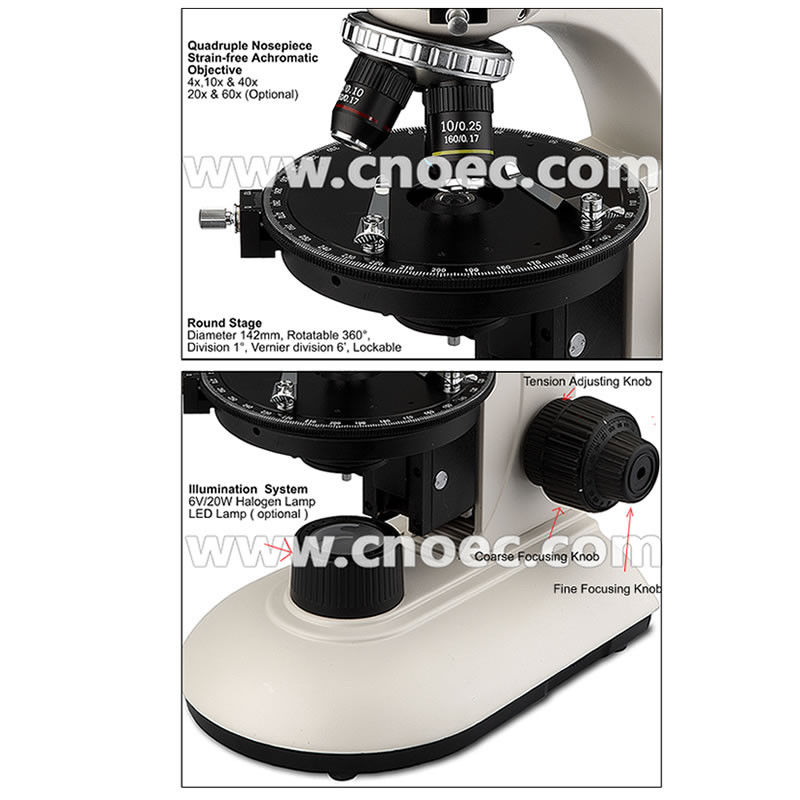

Quadruple Nosepiece

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 5
Working Stage
Round Stage, Diameter 142mm, Rotatable 360°, Division 1°, Vernier division 6, Lockable


40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 6


40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 7
Condenser & Illumination
Abbe N.A. 1.25, 12V/20W Halogen Lamp, With Blue Filter On Light Collector

40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 8
40x - 400x Laboratory Research Polarization Microscope Binocular Halogen Lamp A15.2604 9
5W LED Light Source Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use



Items A15.2604 Polarizing Microscope
Head Monocular Head, Inclined 30°, Rotatable 360°
Eyepiece WF 10X/18mm, With Cross Micrometer 0.1mm
Objective Strain-free Achromatic Objective 4x,10x 40x(S)
Nosepiece Quadruple
Analyzer Unit 0-90°, It Can Be Moved Out Of The Optical Path For Single Polarizing Observe
Bertrand Lens It Can Be Moved Out Of The Optical Path
Polarizing Polarizer Unit Built-in Condenser
Analyzer Unit Insert to Polarizing Media,
Rotatable 0-90°, Can Be Moved Out Of Optical Path
Polarizing Media, Between Head & Body, Including Compensator:
--Bertrand Lens, Can Be Moved Out Of Optical Path
--λ Slip (First Class Red)
--λ/4 Slip
Stage Round, Diameter 142mm, Rotatable 360°, Division 1°, Vernier division 6, Lockable
Condenser Abbe N.A. 1.25
Polarizing Unit Can Be Moved Out Of The Optical Path
Illumination 12V/20W Halogen Lamp, With Blue Filter On Light Collector
Optional Accessory
Eyepiece WF16x/13mm A51.2602-1613
Objective Strain-free Achromatic Objective 20x A5P.2629-20
Strain-free Achromatic Objective 60x A5P.2629-60
Compensator Quartz Wedge I~IV Class A5P.2615-17
Stage Attachable Polarizing Mechanical Stage, Moving Range 40x40mm A5P.2616
Illumination 3W LED Illumination,
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2613-3W
3W LED Illumination (Rechargeable),
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2651-3WR
