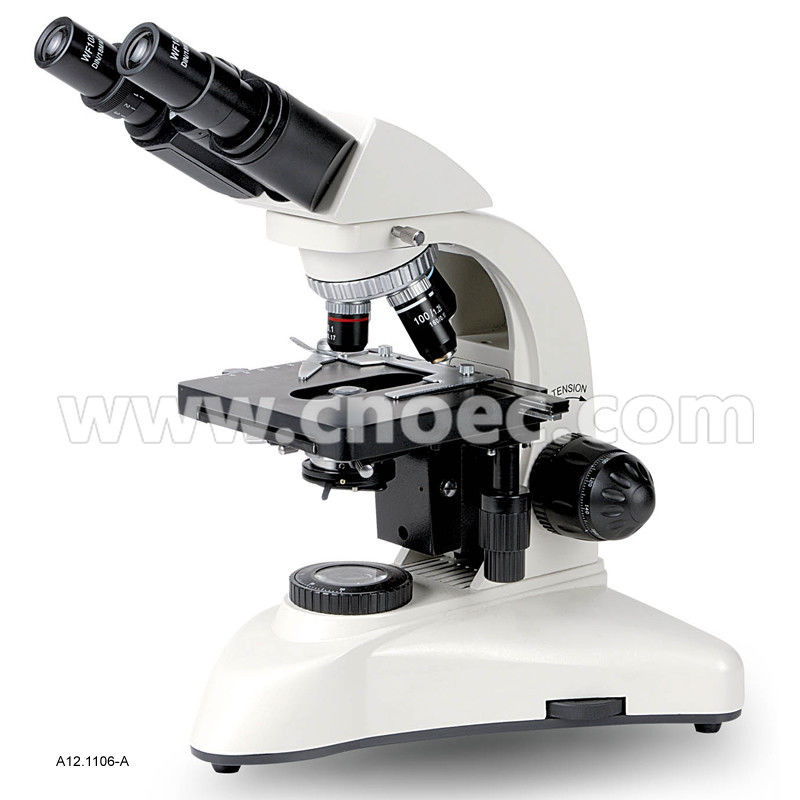

Binocular 40X - 1000X Halogen 6V/20W Biological Microscope A12.1106
| A12.1106 Biological Microscope |
-A |
-B |
| Head |
Compensation Free Binocular,30°inclined,55mm-75mm |
● |
- |
| Compensation FreeTrinocular,30°inclined,55mm-75mm |
- |
● |
| Eyepiece |
WF10X |
● |
● |
| Objective |
Achromatic 4X |
● |
● |
| Achromatic 10X |
● |
● |
| Achromatic 40X, Spring |
● |
● |
| Achromatic 100X, Spring,Oil |
● |
● |
| Nosepiece |
Quadruple Revolving Nosepiece |
● |
● |
| Stage |
Double Layer Mechanical Stage,Size140x140mm,Moving Range:75mmx50mm |
● |
● |
| Focusing |
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm |
● |
● |
| Condenser |
ABBE N.A.1.25Condenser with Iris Diaphragm & Filter |
● |
● |
| Illumination |
High Brightness Kohler Illumination |
● |
● |
| Light Source |
Halogen Bulb 6V/20W AC85V-230V,,Adjustble Brightness |
● |
● |
| Optional Accessories |
| Eyepiece |
WF16X |
| WF20X |
| P16X |
| Objective |
Achromatic 20X |
| Achromatic 60X, Spring |
| Semi-plan Objective 4X |
| Semi-plan Objective 10X |
| Semi-plan Objective 20X |
| Semi-plan Objective 40X(S) |
| Semi-plan Objective 60X(S) |
| Semi-plan Objective 100X(S) |
| Plan Objective 4X |
| Plan Objective 10X |
| Plan Objective 20X |
| Plan Objective 40X(S) |
| Plan Objective 60X(S) |
| Plan Objective 100X(S) |
| Infinity Plan Objective 4X |
| Infinity Plan Objective 10X |
| Infinity Plan Objective 20X |
| Infinity Plan Objective 40X(S) |
| Infinity Plan Objective 60X(S) |
| Infinity Plan Objective 100X(S) |
| Attachment |
Phase Contrast Attachment |
| Dark Field |
Darkfield |
| Photo Adapter |
Photo Adapter |
| CCD Adapter |
0.5x |
| 0.57x |
| 0.75x |
|
|
