A12.0204-A |
A12.0204-B |
Optical System |
Infinity Optical System |
Head |
Trinocular Head, 30° Inclined, Interpupillary Distance 55~75mm, Both Eyepiece Tube Diopter Adjustable +/-5°, 100% Light Pass To Photo Tube
360° Rotatable Head Adaptor For Easy Viewing Height Adjustable |
Eyepiece |
WF10x/22mm Wide Field Eyepiece |
Nosepiece |
Backward Quadruple Nosepiece, Ball Bearing Inner Locating |
Backward Quintuple Nosepiece, Ball Bearing Inner Locating |
Objective |
Infinity Plan Achromatic Objective:
PL4x/0.10, W.D.21mm
PL10x/0.25, W.D. 5.0mm
PL40x/0.65, W.D. 0.66mm (S)
PL100x/1.25, W.D.0.36mm (S,O)
. |
Infinity Plan Achromatic Objective:
PL4x/0.10, W.D.21mm
PL10x/0.25, W.D. 5.0mm
PL20x/0.40, W.D.8.8mm
PL40x/0.65, W.D. 0.66mm (S)
PL100x/1.25, W.D.0.36mm (S,O) |
Working Stage |
Double Layer Mechanical Stage 210*140mm, Moving Range 75*50mm |
Focusing |
Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm |
Condenser |
Abbe Condenser N.A.1.25, Rack & Pinion Height Adjustable |
Filter |
Blue Filter, Ground Glass |
Light Source |
Kohler Illumination, 6V30W Halogen Lamp, Brightness Adjustable, Light Collector With Iris Diaphragm |

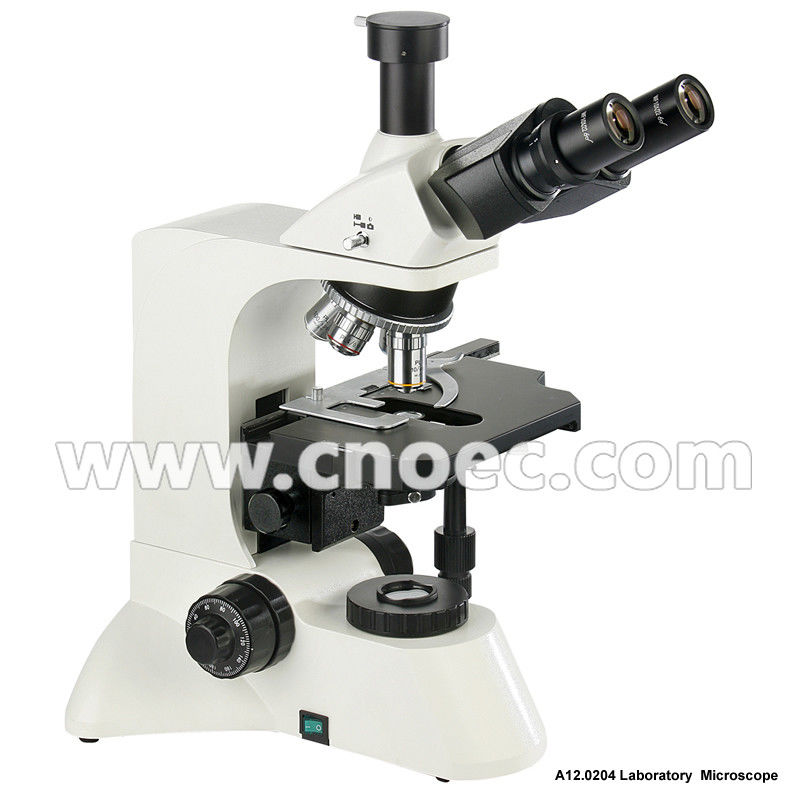

A12.0204 Laboratory Biological Microscope Optional Accessories |
Eyepiece |
Retical Eyepiece, WF10x/22mm, Micrometer Div 0.1mm |
A51.0205-G10B |
Objective |
Infinity Plan Achromatic Objective PL60x/0.85, W.D.0.25mm |
A52.0206-60 |
Filter |
Green Filter |
A56.0209-02 |
Yellow Filter |
A56.0209-03 |
Phase Contrast |
Centering Telescope |
A5C.0212-2 |
Infinity Plan Phase Contrast Objective 10x/0.25 PHP |
A5C.0234-P10 |
Infinity Plan Phase Contrast Objective 20x/0.40 PHP, Spring |
A5C.0234-P20 |
Infinity Plan Phase Contrast Objective 40x/0.65 PHP, Spring |
A5C.0234-P40 |
Infinity Plan Phase Contrast Objective 100x/1.25 PHP, Spring, Oil |
A5C.0234-P100 |
Small Turret Phase Contrast Condenser |
A5C.0210-1 |
Big Turret Phase Contrast Condenser |
A5C.0210-4 |
Flashboard Phase Contrast Condenser With Slides *4 |
A5C.0210-2 |
Pullboard Phase Contrast Condenser With Sildes * 2 |
A5C.0210-3 |
Polarizing |
Simple Polarizing Set
Polarizer, 360° Rotatable, Used On Base Light Collector
Analyizer Slide, Inserted Into Hole On Nosepiece |
A5P.0201-2 |
Dark Field |
Dark Field Condenser, Dry |
A5D.0210-D |
Dark Field Condenser, Immersion |
A5D.0210-I |
Adapter |
CCD Adapter 0.4x |
A55.0202-01 |
CCD Adapter 0.5x |
A55.0202-04 |
CCD Adapter 1.0x |
A55.0202-02 |
CCD Adapter 0.5x With Dividing 0.1mm/Divv |
A55.0202-03 |
Digital SLR Camera Adapter for Canon EF Series |
A55.0204-02 |
|
