40X - 1000X Biological Microscope 12V / 50W Halogen Lamp With CE A12.0202
A12.0202 Laboratory Biological Microscope, newly designed in 2008, equipped with 12V50W Halogen Lamp High Brightness Light Source. It have beautiful sculpt and provide clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
--360° Rotatable Head Adaptor For Easy Viewing Height Adjustable
--Backward Quadruple & Quintpule Nosepiece, Ball Bearing Inner Locating
--Plan Achromatic Objective 4x,10x,20x,40x,60x,100x Available
--Dark Field, Polarizing, Phase Contrast Attachment Optional
--12V50W Halogen Lamp, Brightness Adjustable, External Power Supplier Box
| A12.0202 Laboratory Microscope, 12V50W Halogen Lamp | ||
| Head | Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, 100% Light Pass To Photo Tube | |
| Eyepiece | WF10x/20mm Wide Field Eyepiece | |
| Nosepiece | Backward Quintuple Nosepiece, Ball Bearing Inner Locating | |
| Objective | Plan Achromatic Objective: PL4x/0.10, W.D.21mm PL10x/0.25, W.D. 5.0mm PL20x/0.40, W.D.8.8mm PL40x/0.65, W.D. 0.66mm (S) PL100x/1.25, W.D.0.36mm (S,O) |
|
| Working Stage | Double Layer Mechanical Stage 160*140mm, Moving Range 75*50mm | |
| Focusing | Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm | |
| Condenser | Abbe Condenser N.A.1.25, Rack & Pinion Height Adjustable | |
| Filter | Blue Filter, Frosted Filter | |
| Light Source | Kohler Illumination, 12V50W Halogen Lamp, Brightness Adjustable, External Power Supplier Box, Light Collector With Iris Diaphragm | |

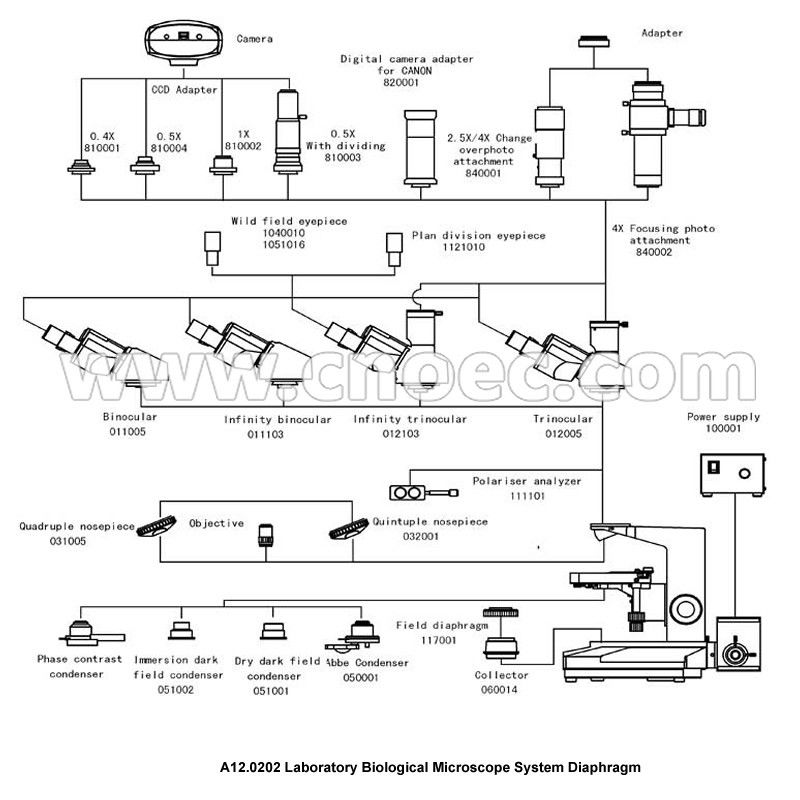

| A12.0202 Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16x/11mm Wide Field Eyepiece | A51.0203-1A |
| Retical Eyepiece, WF10x/20mm, Micrometer Div 0.1mm | A51.0205-10 | |
| Objective | Infinity Plan Achromatic Objective PL60x/0.85, W.D.0.25mm | A52.0206-60 |
| Filter | Green Filter | A56.0209-02 |
| Yellow Filter | A56.0209-03 | |
| Infinity Optical System | Binocular Head, 30° Inclined, For Infinity | A53.0207-3 |
| Trinocular Head, 30° Inclined, For Infinity | A53.0208-3 | |
| Infinity Plan Achromatic 4x/0.10 | A52.0206-4 | |
| Infinity Plan Achromatic 10x/0.25 | A52.0206-10 | |
| Infinity Plan Achromatic 20x/0.40 | A52.0206-20 | |
| Infinity Plan Achromatic 40x/0.60 | A52.0206-40 | |
| Infinity Plan Achromatic 100x/1.25 | A52.0206-100 | |
| Phase Contrast | Centering Telescope | A5C.0212-2 |
| Plan Phase Contrast Objective 10x/0.25 PHP | A5C.0231-P10 | |
| Plan Phase Contrast Objective 20x/0.40 PHP, Spring | A5C.0231-P20 | |
| Plan Phase Contrast Objective 40x/0.65 PHP, Spring | A5C.0231-P40 | |
| Plan Phase Contrast Objective 100x/1.25 PHP, Spring, Oil | A5C.0231-P100 | |
| Infinity Plan Phase Contrast Objective 10x/0.25 PHP | A5C.0234-P10 | |
| Infinity Plan Phase Contrast Objective 20x/0.40 PHP, Spring | A5C.0234-P20 | |
| Infinity Plan Phase Contrast Objective 40x/0.65 PHP, Spring | A5C.0234-P40 | |
| Infinity Plan Phase Contrast Objective 100x/1.25 PHP, Spring, Oil | A5C.0234-P100 | |
| Small Turret Phase Contrast Condenser | A5C.0210-1 | |
| Big Turret Phase Contrast Condenser | A5C.0210-4 | |
| Flashboard Phase Contrast Condenser With Slides *4 | A5C.0210-2 | |
| Pullboard Phase Contrast Condenser With Sildes * 2 | A5C.0210-3 | |
| Polarizing | Simple Polarizing Set Polarizer, 360° Rotatable, Used On Base Light Collector Analyizer Glass, Put Between Head And Body |
A5P.0201-1 |
| Dark Field | Dark Field Condenser, Dry | A5D.0210-D |
| Dark Field Condenser, Immersion | A5D.0210-I | |
| Adapter | CCD Adapter 0.4x | A55.0202-01 |
| CCD Adapter 0.5x | A55.0202-04 | |
| CCD Adapter 1.0x | A55.0202-02 | |
| CCD Adapter 0.5x With Dividing 0.1mm/Divv | A55.0202-03 | |
| Digital SLR Camera Adapter for Canon EF Series | A55.0204-02 | |
Our products are sold all over the world, you can rest assured.
