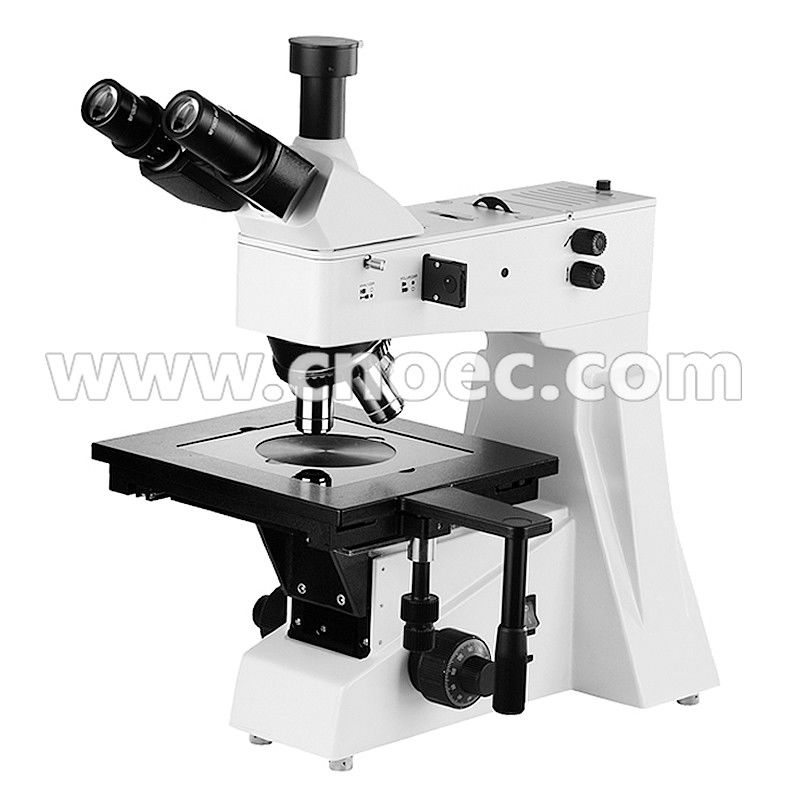

Metallurgical Optical Halogen Lamp Microscope LWD Trinocular BF / DF A13.0214
A13.0214 BD Metallurgical Microscope is suitable to observe many different kinds of object. It is equipped with transmitted illuminator, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. Features
--Bright Field/Dark Field, Polarizing Observation Available
--Excellent UIS optical system can obtain excellent optical performance.
--Compact and steady main frame body is embodiment for the shock resistance.
--The large-mobile range mechanical stage is adapted to observation big size specimen or quick check.
--Modularization function design so that update system expediently
--Ideal ergonomic design is adopted in this unit and have easier operation and wider space
| |
A13.0214
|
A13.0214-BD
|
|
Head
|
Trinocular Head, 30° Inclined, Interpupillary Distance 53~75mm |
|
Eyepiece
|
WF10x/22mm Plan Eyepiece
|
| Nosepiece |
Backward Quintuple Nosepiece, Ball Bearing Inner Locating |
| Objective |
Infinity LWD Plan Achromatic Coverless
PL5x/0.12, W.D.26.1mm
PL10x/0.25, W.D. 20.2mm
PL20x/0.40, W.D.8.8mm
PL50x/0.70, W.D. 3.68mm (S)
PL80x/0.80, W.D.1.28mm (S,O) |
BD Infinity LWD Plan Achromatic Coverless
PL5x/0.12, W.D.9.7mm
PL10x/0.25, W.D. 9.3mm
PL20x/0.40, W.D.7.23mm
PL50x/0.70, W.D. 2.50mm (S)
PL80x/0.80, W.D.1.25mm (S,O) (Optional) |
| Working Stage |
Large Mechanical Stage 280*270mm, Moving Range 204*204mm |
| Focusing |
Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.7um |
| Polarizing |
Polarizer Enable 360° Rotate ANd Switched In/Out
Analyzer Can Be Switched In/Out |
| EPI Illumination System |
Integrated Field Diaphragm, Aperture Diaphragm And (Y,B,G, Ground Glass) Switching Device. |
| 6V30W Halogen Lamp, Brightness Adjustable |
12V50W Halogen Lamp, Brightness Adjustable |
|
A13.0215 DIC BD Metallurgical Microscope Optional Accessories
|
| Eyepiece |
WF10x/22mm Dividing Eyepiece |
A51.0205-G10B |
| Retical Eyepiece, WF10x/20mm, Micrometer Div 0.1mm |
A51.0205-10 |
| Infinity LWD Plan Achromatic Coverless Objective |
PL40x/0.6, W.D.3.98mm |
A5M.0235-40 |
|
PL60x/0.75, W.D.1.22mm
|
A5M.0235-60 |
| PL100x/0.85, W.D.0.4mm, Dry |
A5M.0235-100 |
| BD Infinity LWD Plan Achromatic Coverless Objective |
PL40x/0.6, W.D.3.90mm |
A5M.0237-40 |
|
PL60x/0.75, W.D.1.9mm
|
A5M.0237-60 |
| PL100x/0.85, W.D.0.4mm, Dry |
A5M.0237-100 |
| Working Stage |
Large Mechanical Stage 250*230mm, Moving Range 154*154mm
|
A54.0205-18 |
| Adapter |
CCD Adapter 0.5x |
A55.0202-04 |
| CCD Adapter 1.0x |
A55.0202-02 |
| CCD Adapter 0.5x With Dividing 0.1mm/Divv |
A55.0202-03 |
| Digital SLR Camera Adapter for Canon EF Series |
A55.0204-02 |
|
