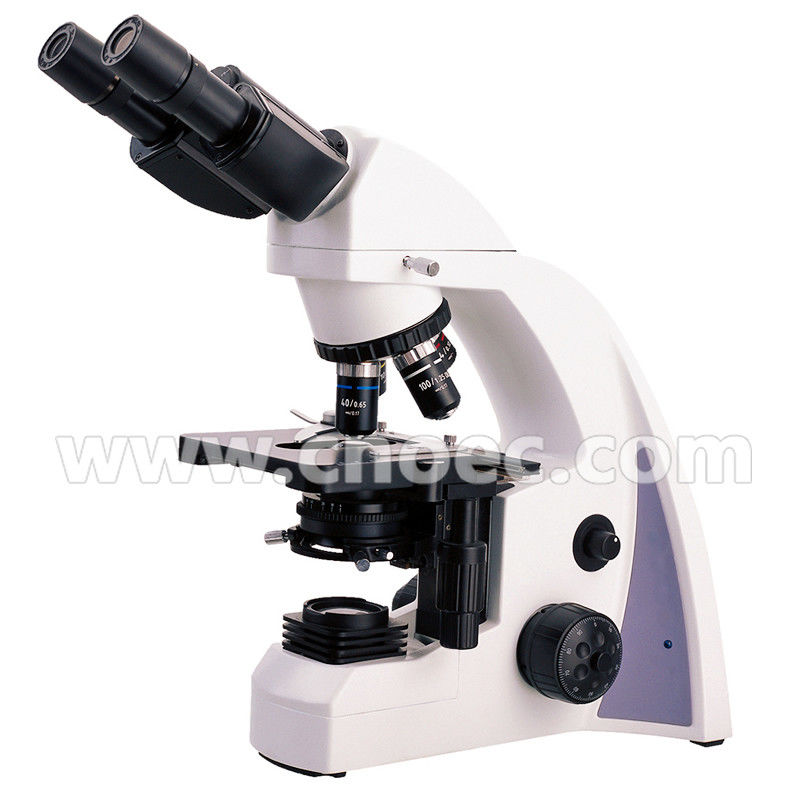

Student Compound Optical Microscope

Student Compound Optical Microscope

  • High Light

    binocular compound microscope

    ,

    wide field microscope

  • Applications
    Student, School, Laboratory
  • Certification
    CE, Rohs
  • Drawtube
    Binocular
  • Illumination
    Halogen Lamp, LED
  • Max Magnification
    1000X
  • Product Name
    Compound Optical Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1018
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Student Compound Optical Microscope



Student Compound Optical Microscope Halogen Lamp Microscopes A12.1018



Specifications:



A12.1018 Biologcial Microscope
Head
Siedentopf trinocular viewing head
Eyepiece
Extra wide field eyepiece EW10x/ 22
Objective
Infinite plan achromatic objective 4x
Infinite plan achromatic objective 10x
Infinite plan achromatic objective 40x
Infinite plan achromatic objective 100x
Nosepiece
Backward quadruple nosepiece
Focusing
Coaxial coarse & fine adjustment, range 24mm, fine division 0.001mm,coarse stroke 37.7mm
Stage
Double Layers Mechanical Stage 185×142/ 75×55mm

Condenser

Swing-out Condenser NA 0.9/ 0.25
Filter
Blue filter
Green filter
Illumination
External Illumination, Aspherical Collector, Halogen Lamp 6V/ 30W
Optional Accessories
Item No.
Head
Seidentopf Binocular Head
A53.1003-7
Objective
Infinity plan achromatic objective 20x
A52.1006-20
Objectives for Dark Field 100x
A5D.1002-3
Nosepiece
Backward sextuple nosepiece
A54.1001-6
Illumination
LED
A56.1004-3
24V/100W Power Supply
A56.1011-800
Photo Attachment

A55.1001
Video Adapter
C Mount 1x
A55.1002-10
C Mount 0.5x
A55.1002-05
Dark Field Attachment
Dark field condenser (Dry) N.A. 0.9
A5D.1010-BD
Dark field condenser (Oil) N.A. 1.25-1.36
A5D.1010-BI
Phase Contrast Attachment
Turret phase contrast set
A5C.1003-A1
Polarization Set

A5P.1003
Epi-fluorescent Attachment FL-800 EPI-fluorescent Attachment A5F.1002
FL-LED EPI-fluorescent Attachment
