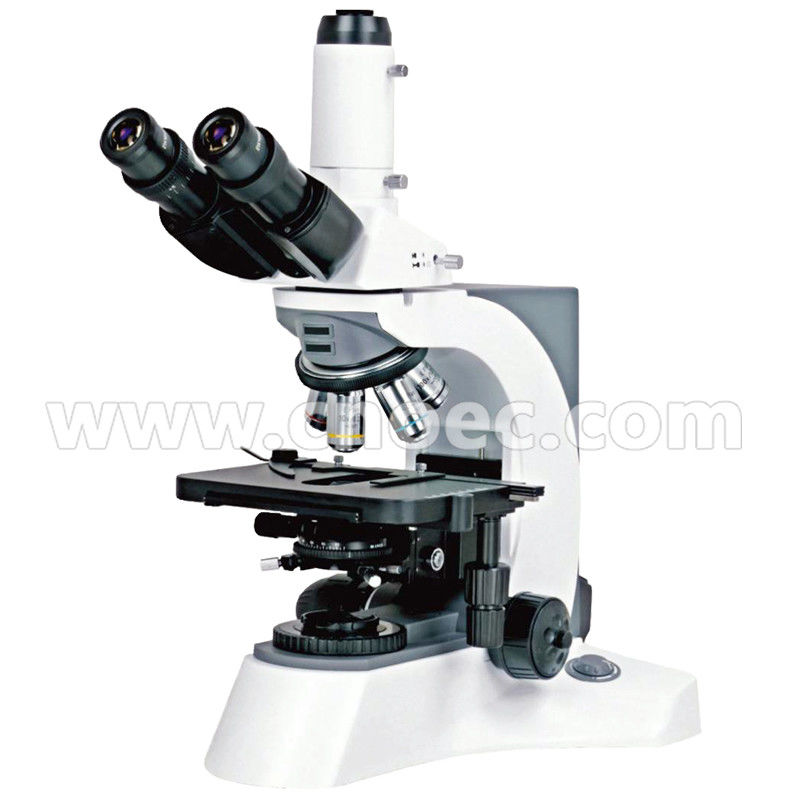

Student Compound Optical Microscope Halogen Lamp Microscopes A12.1018
| Items | A12.1018 Laboratory Biological Microscope | |
| Optical System | Infinity Optical System | |
| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Left Eyetube Diopter Adjustable | |
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Nosepiece | Backward Quintuple Nosepiece | |
| Objective | Infinity Plan Achromatic Objective 4x,10x,40x,100x | |
| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm | |
| Working Stage | Double Layer Mechanical Stage, 185x142mm, Moving Range 55x75mm | |
| Condenser | Swing Condenser N.A.0.9/0.25 | |
| Filter | Green, Blue | |
| Illumination | External Kohler Illumination, Asperical Collector, Halogen Lamp 6V30W, Brightness Adjustable | |
| Note: "●"In Table Is Standard Outfits | ||
| Items | A12.1018 Laboratory Biological Microscope Optional Accessories | |
| Head | Scidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm | A53.1003-7 |
| Tilting Binocular Head 5~35°, Upgrade to A12.1025 | A53.1005-1 | |
| Tilting Trinocular Head 5~35°, Upgrade to A12.1025 | A53.1005-2 | |
| Objective | Infinity Plan Achromatic Objective 20x | A52.1006-20 |
| Infinity Plan Achromatic Objective 60x | A52.1006-60 | |
| Nosepiece | Sextuple Nosepiece | A54.1001-6 |
| Illumination | Halogen Lamp 24V50W | A56.1011-50W |
| Halogen Lamp 24V100W | A56.1011-100W | |
| Adapter | Photo Adapter | A55.1001 |
| C-Mount 1.0x | A55.1002-10 | |
| C-Mount 0.5x | A55.1002-05 | |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1010-D |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | A5D.1010-I | |
| Dark Field Objective, Infinity Plan 100X, ForImmersion Dark Field Observation | A5D.1030-3 | |
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm ForImmersion Dark Field Observation | A5D.1030-4 | |
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | A5C.1003-A1 |
| --Infinity Plan Turret Phase Contrast Condenser | ||
| --Infinity Plan Phase Contrast Objective 4x,10x,40x,100x | ||
| --Centering Telescope 10x | ||
| --Green Filter | ||
| Infinity Achromatic Turret Phase Contrast Set | A5C.1003-A2 | |
| --Infinity Achromatic Turret Phase Contrast Condenser | ||
| --Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x | ||
| --Centering Telescope 10x | ||
| --Green Filter | ||
| Flourescent | EPI-Fluorescent Kit, Upgrade to A16.1028 | A5F.1002-BG |
| --Power Supplier 220V/110V Interchangeable, Digital Display | ||
| --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp | ||
| --Barrier To Resist Ultraviolet Light | ||
| --Fluorescence Free Oil | ||
| --Excitation Filter B/G | ||
| EPI-Fluorescent Kit | A5F.1002-BGVU | |
| --Power Supplier 220V/110V Interchangeable, Digital Display | ||
| --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp | ||
| --Barrier To Resist Ultraviolet Light | ||
| --Fluorescence Free Oil | ||
| --Excitation Filter B/G/V/U | ||
| Polarizing | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490, Upgrade to A16.1029 | A5F.1004-B |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | A5F.1004-G | |
| Polarizing Attachment , Polarizer, Analyzer, Intergrate Device | A5P.1002 | |
