Description:
--Color Aptina CMOS Sensor

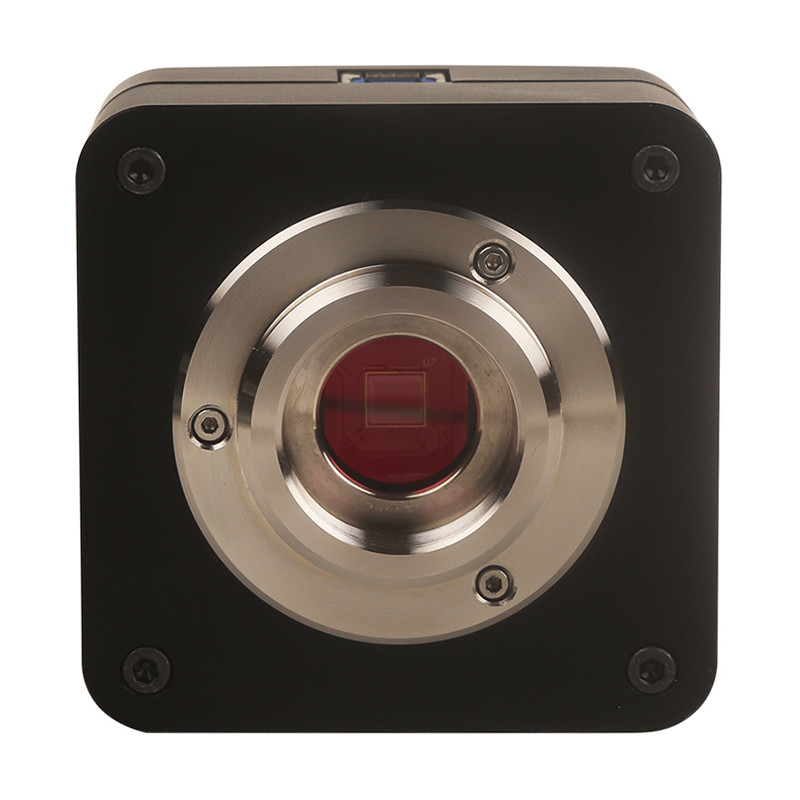

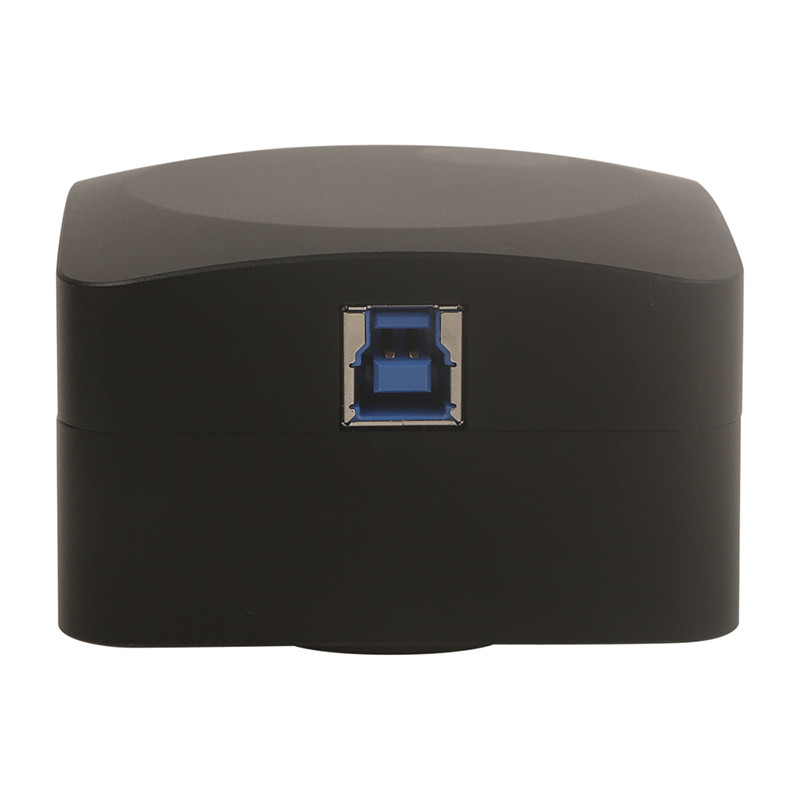

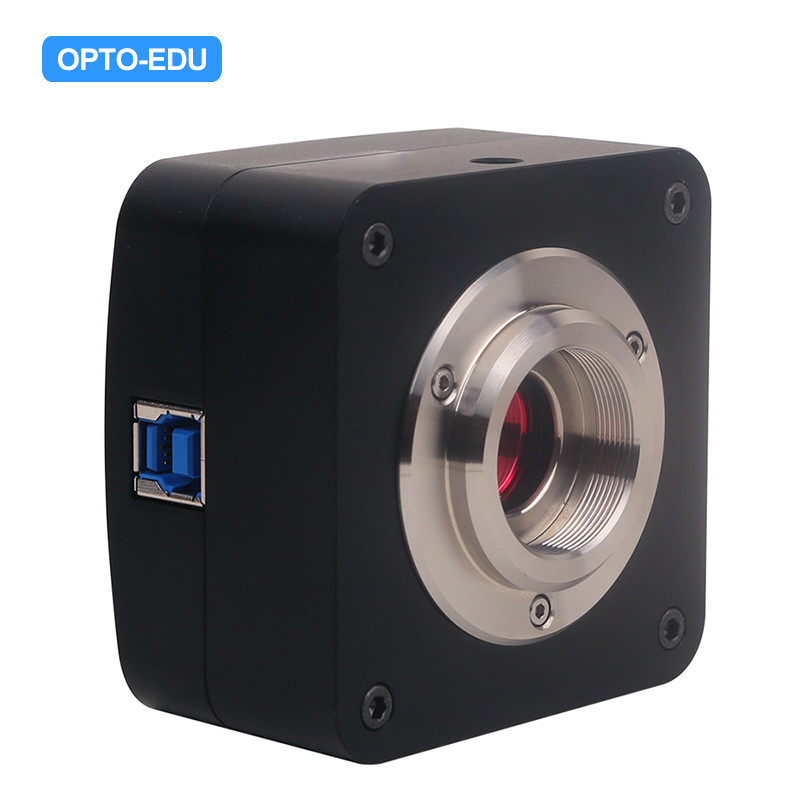

--USB3.0 C-Mount CMOS Camera
--Square Housing:68 X 68 X 45mm
--Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit)
--Support OS X (MAC OS X) and Linux
--Support Native C/C++, C#, Directshow, Twain, Labview
--With Standard C-mount, Eyepiece Tube, And Ring Dia.30mm, Dia.30.5mm
Specifications:
|
Pixel
|
3.1M
|
5.1M
|
8.5M
|
10M
|
14M
|
|
Senser Size |
1/3.0" CMOS
|
1/2.5" CMOS
|
1/2.3" CMOS
|
1/2.2" CMOS
|
1/2.3" CMOS
|
|
Senser Size |
Diagonal 6.0mm
|
5.70mm(H) x 4.28mm(V), Diagonal 7.13mm
|
6.44mm(H) x 4.616mm(V), Diagonal 7.923mm |
6.119mm(H) x 4.589mm(V), Diagonal 7.649mm |
6.138mm(H) x 4.603mm(V), Diagonal 7.672mm |
|
Senser |
CMOS (Color )
Aptina AR0330 |
CMOS (Color )
AptinaMT9P006 |
CMOS (Color )
Aptina Special |
CMOS (Color )
Aptina MT9J003 |
CMOS (Color )
Aptina MT9F002 |
|
Output |
USB3.0
|
|
Max.Resolution |
2048*1536
|
2560*1922
|
3328*2548 |
3584*2748 |
4096*3288 |
|
Pixel Size |
2.2 x 2.2μm
|
2.2 x 2.2μm
|
1.67 x 1.67μm |
1.67 x 1.67μm |
1.4 x 1.4μm |
|
Responsivity |
2.0v/lux-sec(550nm)
|
0.76v/lux-sec(550nm)
|
0.31v/lux-sec(550nm) |
0.31v/lux-sec(550nm) |
0.724v/lux-sec(550nm) |
Video Format
& Frame Rate |
2048*1534/27.4fps
1024*770/53.3fps
(Multiple Speed Level)
|
2560*1922/ 14.5fps
1280*960/39fps
640*480/101fps
|
3584*2746/8.3fps
1664*1272/27fps
(Multiple Speed Level) |
35844*2746/7.2fps
1972*1372/ 25fps
(Multiple Speed Level) |
4096*3286/6.2fps
2048*1644/21fps
1024*822/54fps |
|
Dynamic Range |
72.4dB
|
67.74dB
|
65.2dB |
65.2dB |
65.3dB |
|
A/D Converter |
12-bit Parallel, 8-Bit R.G.B to PC
|
|
SN Ratio |
39dB
|
38.5dB
|
34dB
|
35.5dB |
|
Binning |
1*1, 2*2
|
1*1, 2*2, 4*4
|
1*1, 2*2 |
1*1, 2*2, 4*4 |
|
|
Exposure |
0.1~2000ms
ROI Auto & Manual
|
0.05~2s ROI Auto & Manual
|
0.1~2s, ROI Auto & Manual
|
0.38~2000ms, ROI Auto & Manual |
0.4~2000ms
ROI Auto & Manual |
|
|
General Specification
|
|
Scan Mode |
Progressive |
|
Spectral Range |
380-650nm (with IR-Filter) |
|
White balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
|
Color Rendering Technique |
Ultra Fine Color Engine |
|
Peak Quantum Efficiency |
N/A |
|
Readout Noise |
N/A |
|
Extinction Ratio |
N/A |
|
Smear |
N/A |
|
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System |
Natural |
|
Operating Environment
|
|
Temperature |
Operating Temp.:-10~50℃ |
|
Storage Temperature-20℃~ 60℃ |
|
Humidity |
Operating Humidity:30%~80%RH |
|
Storage Humidity:10~60%RH |
|
Power Supply |
DC 5V from PC USB port |
|
Software Environment
|
|
Operating System |
Microsoft Windows XP / Vista / 7 (32 & 64 bit)
OS X (Mac OS X), Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
USB port: USB2.0 High-speed Port |
|
Display: 17" or Larger |
|
CD-ROM |
|
