3.36x - 336x Forensic Comparison Microscope Digital Camera Microscopes A18.1848-LCD

3.36x - 336x Forensic Comparison Microscope Digital Camera Microscopes A18.1848-LCD

  • High Light

    transmitted light microscope

    ,

    binocular optical microscope

  • Applications
    Student, School, Laboratory, Research
  • Certification
    CE, Rohs
  • Drawtube
    Binocular
  • Illumination
    LED
  • Magnification
    3.36x - 336x
  • Theory
    Comparison Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1848-LCD
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

3.36x - 336x Forensic Comparison Microscope Digital Camera Microscopes A18.1848-LCD



3.36x - 336x Forensic Comparison Microscope Digital Camera Microscopes A18.1848-LCD



Description:

A18.1848-LCD Forensic Comparison Microscope, newly developed in 2013, is suitable to be used for forensic science laboratory research work, or for forensic educautional & school, to give an idea and training to the students what is a comarison microscope and learn how to use it. It is simple but including full comparison system function, and with steady quality at very competitive price!

★ 9.7'' LCD Pad Digital Camera, Android System
★ Total Magnification 3.36x~336x
★ Wide Field Eyepiece WF10x/23mm, WF20x/12mm, High Eyepoint
★ 6 Holes Click Stop Nosepiece
★ LWD Infinity Plan Achromatic Objective 0.6x, 1x, 1.5x, 2.5x, 4x, 6x
★ Auxiliary Lens 0.4x and 2.0x Included

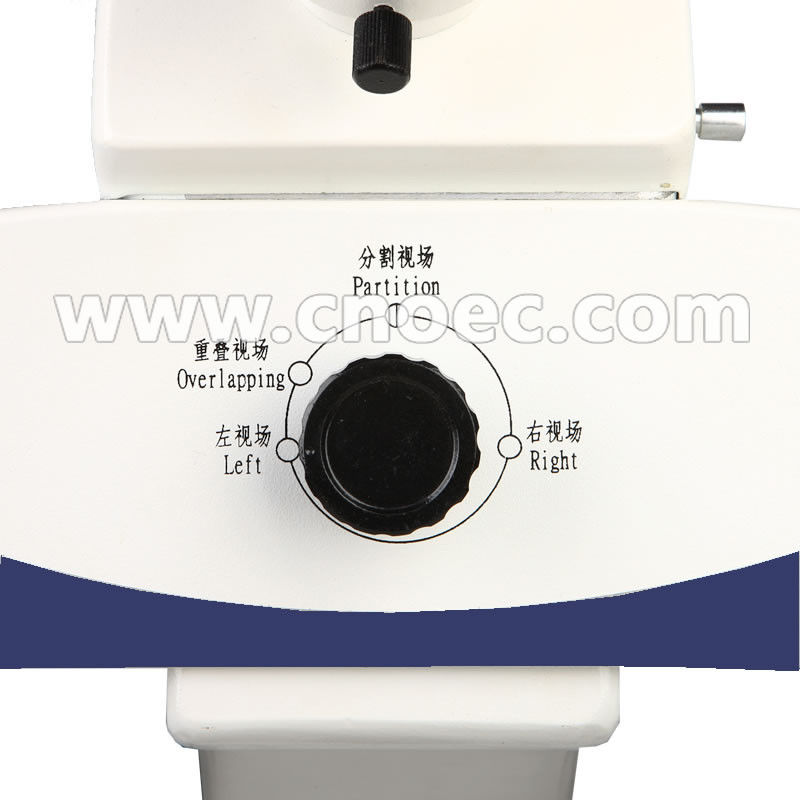

★ Full left/right, split-image or overlapping image comparision
★ Magnification Correcting System, with Correcting Lens
★ Separation Line Adjusting System, with Special Designed Metal Adjust Driver
★ 5W LED Warm & Cold Light, High Brightness, Brightness Adjustable
★ All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
★ Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
★ 80~240V Wide Range Voltage





Specifications:



A18.1848-LCD Forensic Comparison Microscope Specification

LCD Pad

9.7'' LCD Pad Digital Camera, Android System,
5.0 M Pixels, Full Resolution 2592*1936
1* Mini USB2.0, 1*HDMI, 1* Micro-SD Card Slot (Up to 32GB), 1* 3.5mm Standard Stereo Earphone Slot,1* SIM Card Slot
Details see A59.3503

Magnification
3.36x~336x
Head
Bionocular Head, 30° Incline, Interpupilary Distance 50~75mm, Diopter +/-5 Adjustable
Eyepiece
WF10x/23mm, High Eyepoint
WF20x/12mm, High Eyepoint
Nosepiece
6 Hole Click Stop Nosepiece
Objective
LWD Infinity Plan Achromatic Objective 0.6x, 1x, 1.5x, 2.5x, 4x, 6x
Auxiliary Lens 0.4x, 2.0x
Working Distance
100mm
View Field
Dia. 1.0~90mm
Magnification Correcting
Magnification Correction System, with Correcting Lens
Separation Line Adjusting
Seperation Line Adjust System in Back, with Special Designed Adjust Driver
Working Stage
Square Manual Working Stage 100*100mm, Moving Range 80*80*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 0~150mm
Light Source

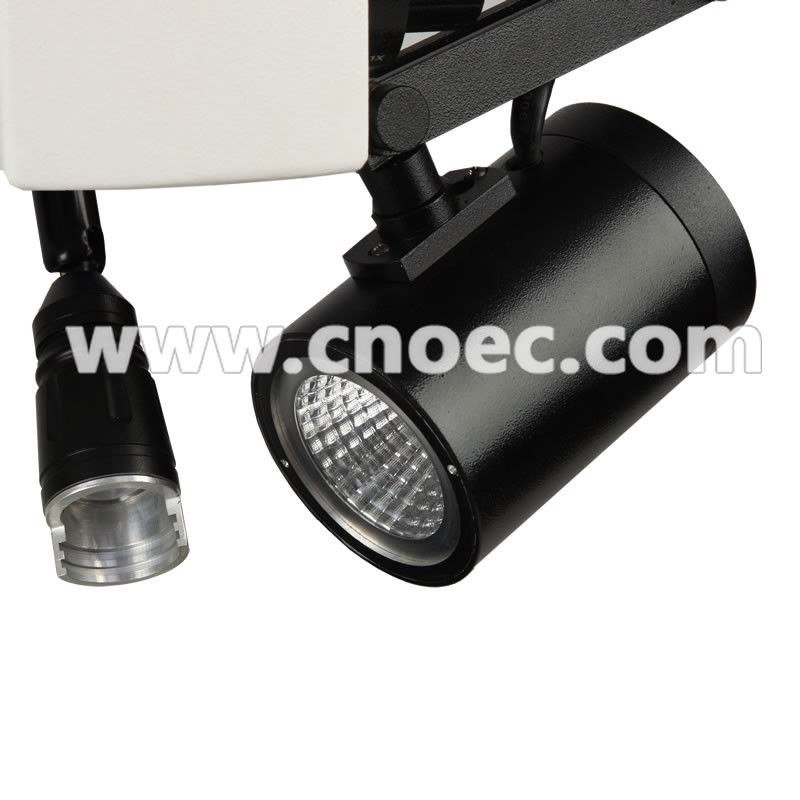

5W LED Warm Light, High Brightness, Brightness Adjustable
5W LED Cold Light, High Brightness, Brightness Adjustable
Coaxial Light Lens, to observe in deep hole, or smooth object surface
Polarizing Light Lens, to eliminate flare lights and dazzling lights;
Transmit Bottom Light
Ultraviolet Light Lens
Filters: Red, Blue, Yellow, Green
Adapter
CCD Adapter
Photo Adapter for SLR Digital Camera
CCD Camera
Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,
Power
80~240V Wide Range Voltage
Dimension
Instrument Size 38*31*85cm
Optional Accessories
Item No.
Software Professional forensic image analysis software A30.1821
