OPTO-EDU 10.5" LCD Pad Forensic Comparison Microscope with 2x~240x Magnification and 4K Resolution for Laboratory and Research
-
Highlight
transmitted light microscope
,binocular optical microscope
-
ApplicationsStudent|school|Laboratory|Research
-
CertificationCE|Rohs
-
DrawtubeBinocular
-
IlluminationLED
-
Magnification2x~240x
-
TheoryComparison Microscope
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA18.1828-LCD
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU 10.5" LCD Pad Forensic Comparison Microscope with 2x~240x Magnification and 4K Resolution for Laboratory and Research

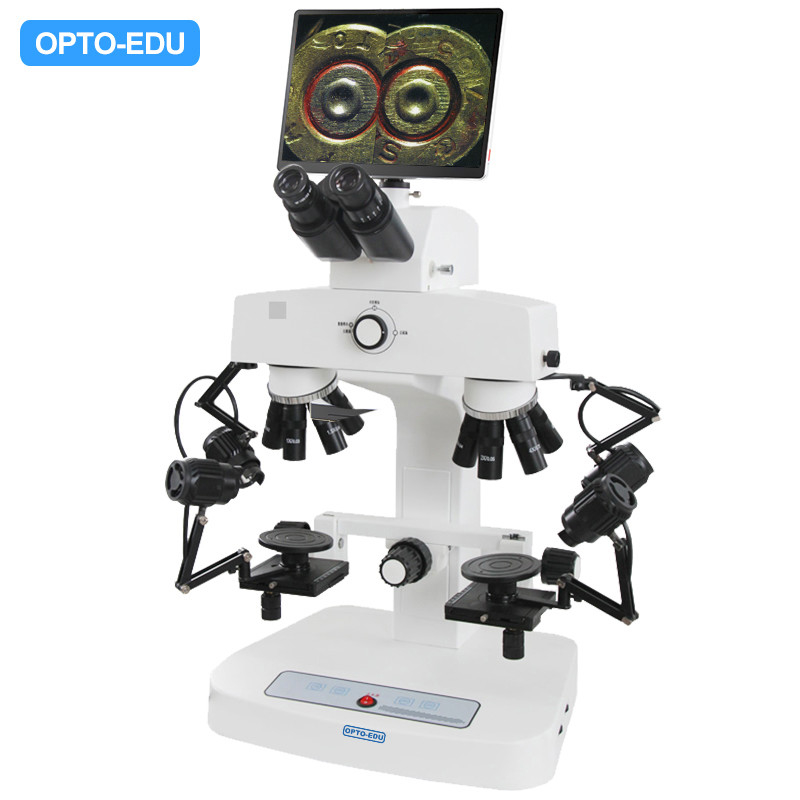

OPTO-EDU 10.5" LCD Pad Forensic Comparison Microscope (A18.1828-LCD)
2024 Upgrade Notice: Opto-Edu has upgraded the A18.1828-LCD's LCD from A59.3520 to A59.3521, featuring a larger 10.5" display, higher resolution, and improved software at the same price.
Key Features

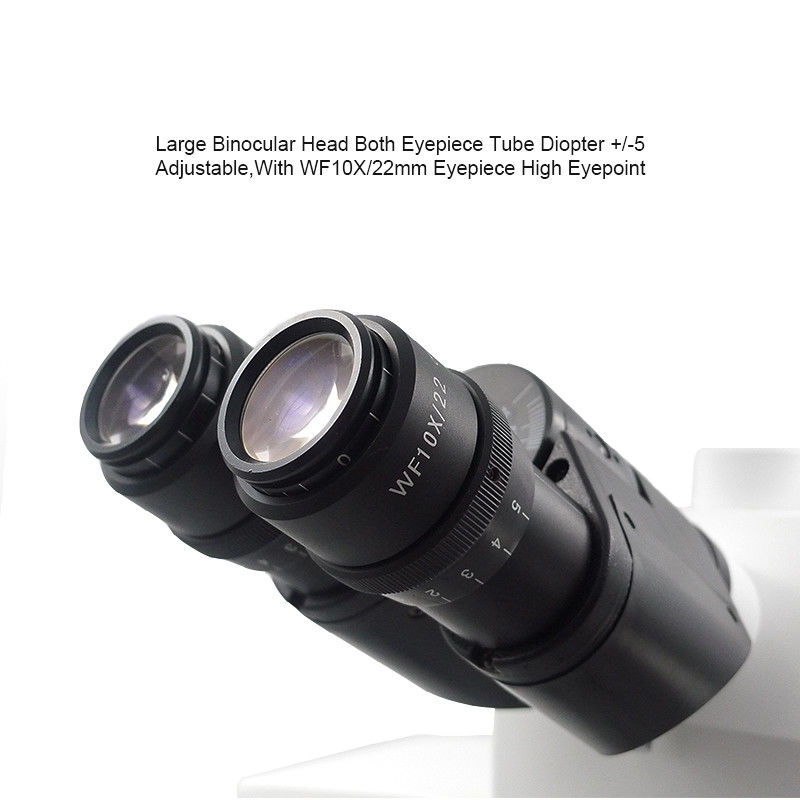

Large Binocular Head
Both eyepiece tubes feature diopter adjustment (±5) and include WF 10X/22mm high eyepoint eyepieces.

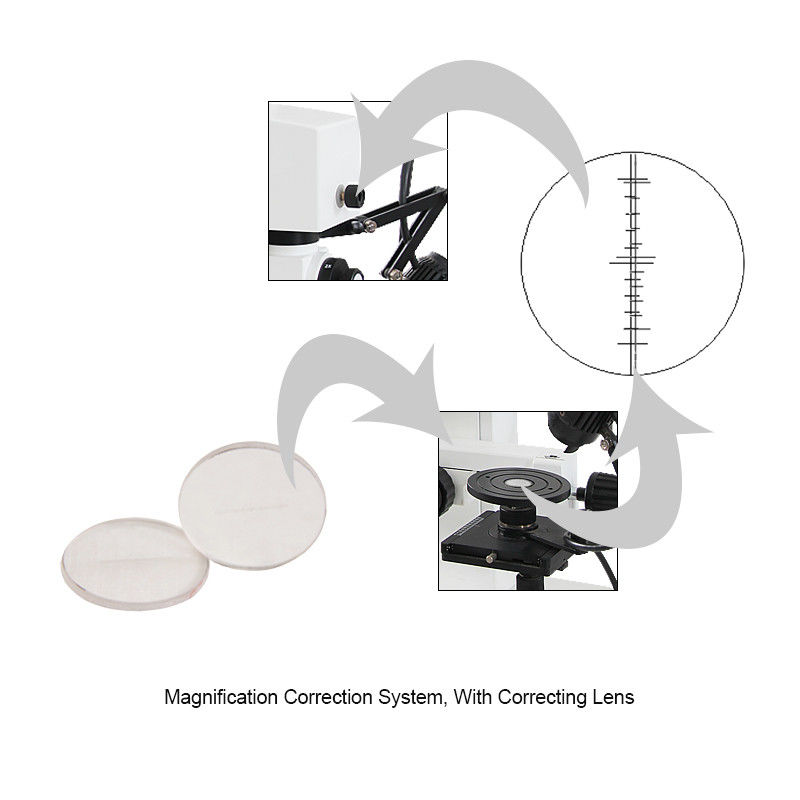

Magnification Correction System
Includes correcting lens for precise magnification adjustments.

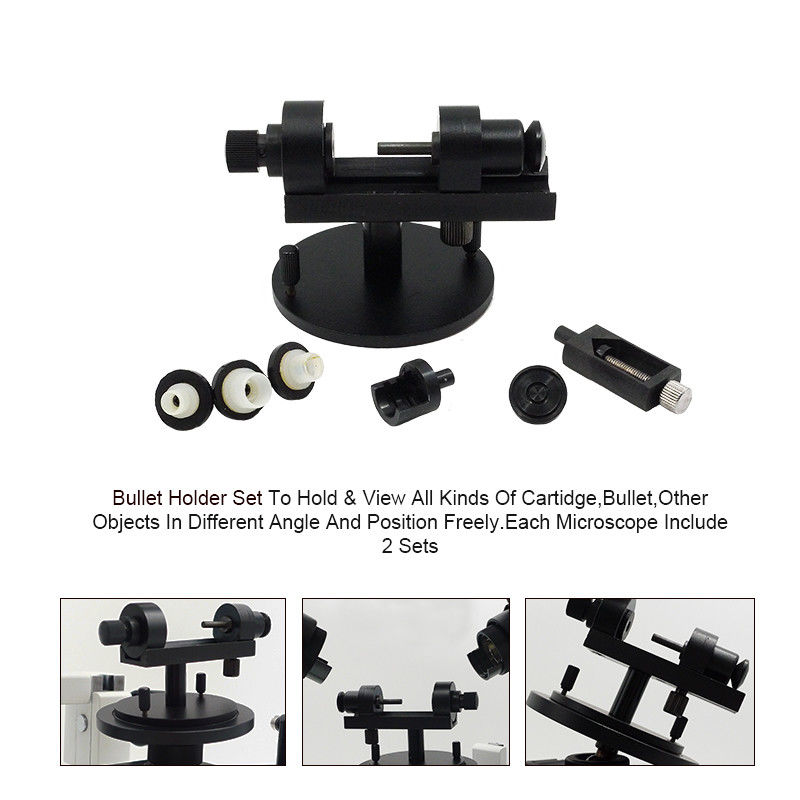

Bullet Holder Set
Holds and views all kinds of cartridges, bullets, and other objects from different angles and positions. Each microscope includes 2 sets.

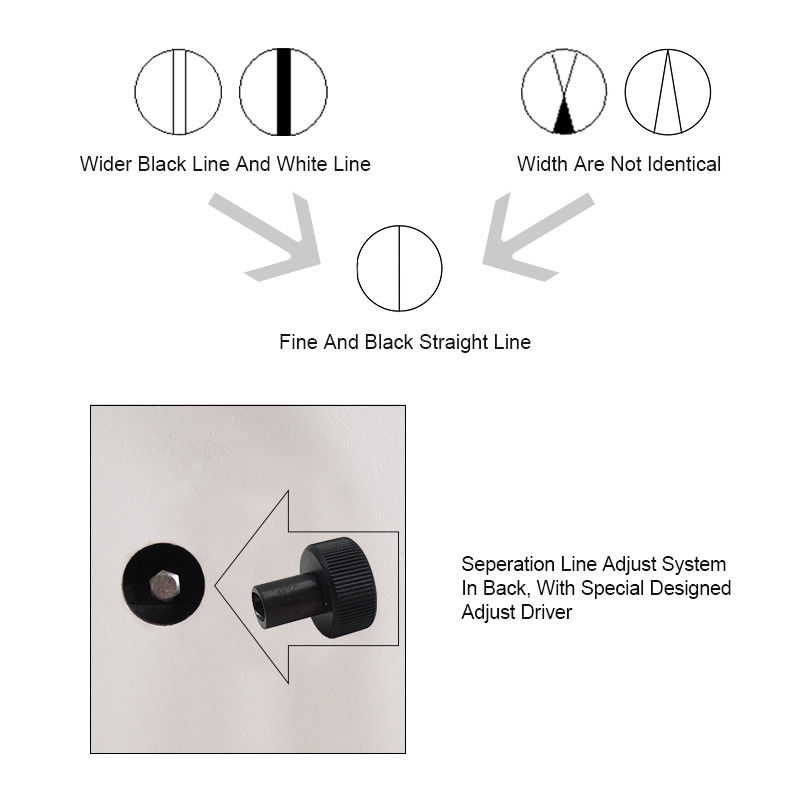

Separation Line Adjust System
Black system with specially designed adjustment driver for precise alignment.

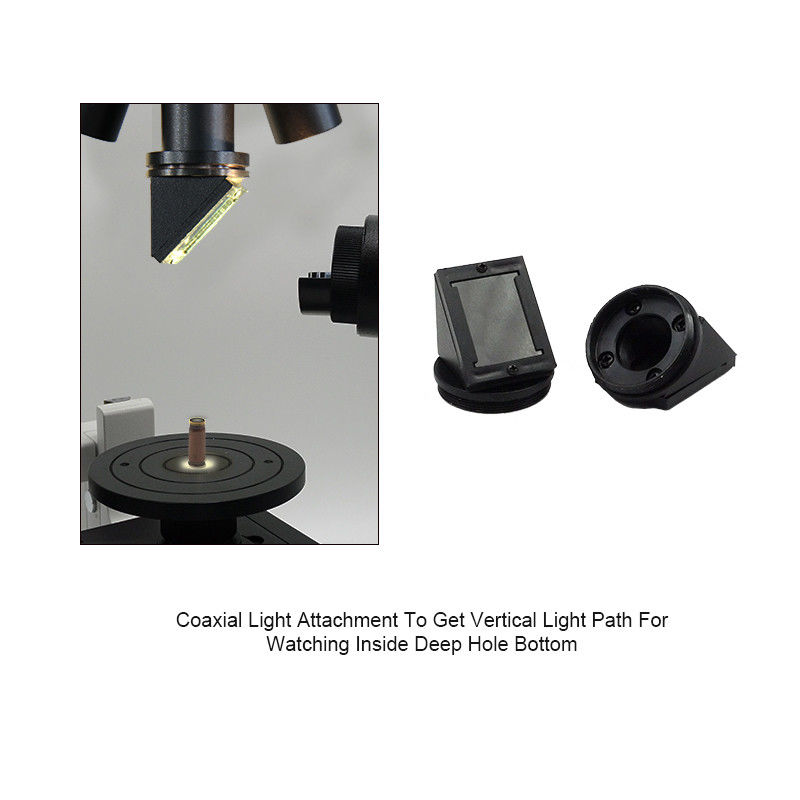

Coaxial Light Attachment
Provides vertical light path for viewing inside deep holes and examining bottom surfaces.

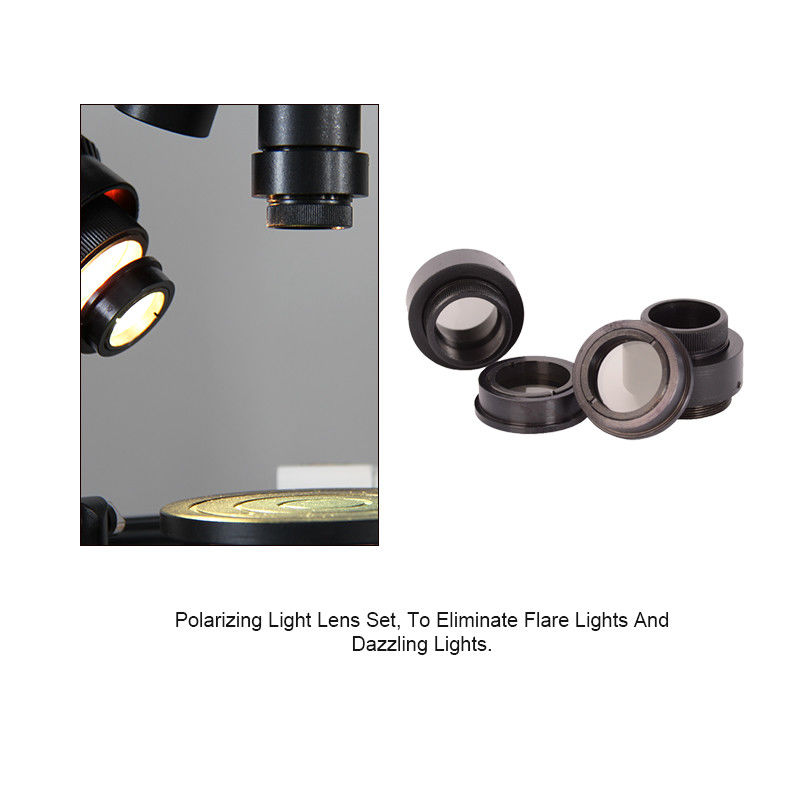

Polarizing Light Lens Set
Eliminates flare and dazzling lights for clearer observation.
Technical Specifications
LCD Pad System (A59.3521)
| Feature | Specification |
|---|---|
| Display | 10.5" HD IPS Touch Screen with Backlight |
| Camera | 8.0M 4K Digital Camera (1/1.8" CMOS sensor) |
| Resolution | 3840×2158 @30FPS |
| Memory | 2GB LPDDR4 / 16GB EMMC |
| Connectivity | USB3.0×2, USB2.0×1, HDMI, Gigabit LAN |
| System | Android 11 with 90 language support |
| Software | S-Eye Software with marking, measuring, and analysis functions |
Optical System
| Component | Specification |
|---|---|
| Magnification Range | 2x~240x |
| Head | Binocular, 30° incline, interpupillary distance 48~75mm |

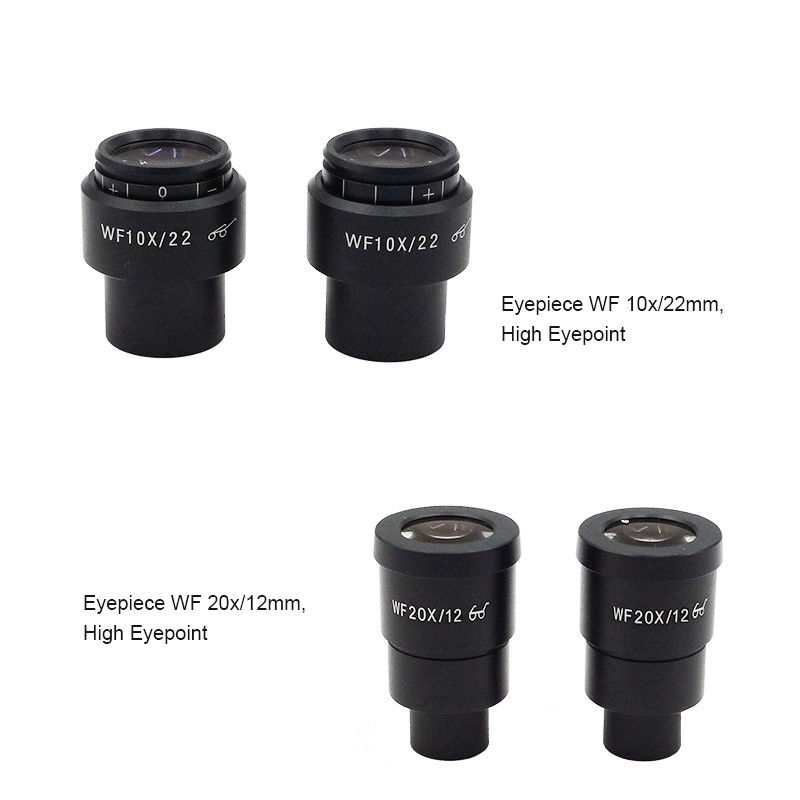

| Eyepieces | WF10x/22mm and WF20x/12mm, high eyepoint (2 each) |

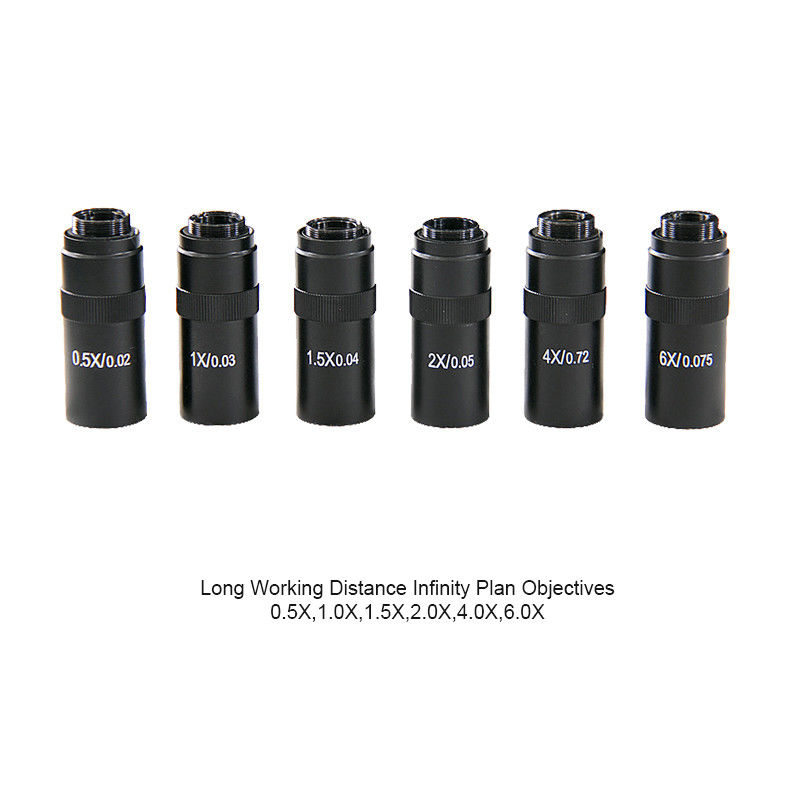

| Objectives | LWD Infinity Plan Achromatic: 0.5x, 1x, 1.5x, 2x, 4x, 6x |

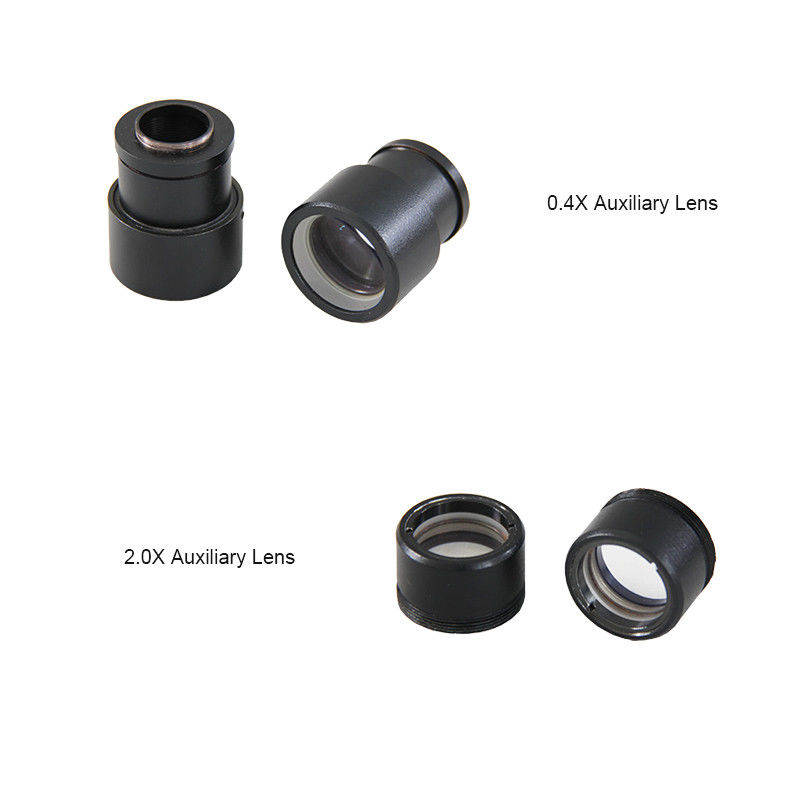

| Auxiliary Lenses | 0.4x and 2.0x (2 each) |
| Working Distance | 101mm (143mm with 0.5x objective) |
Lighting System

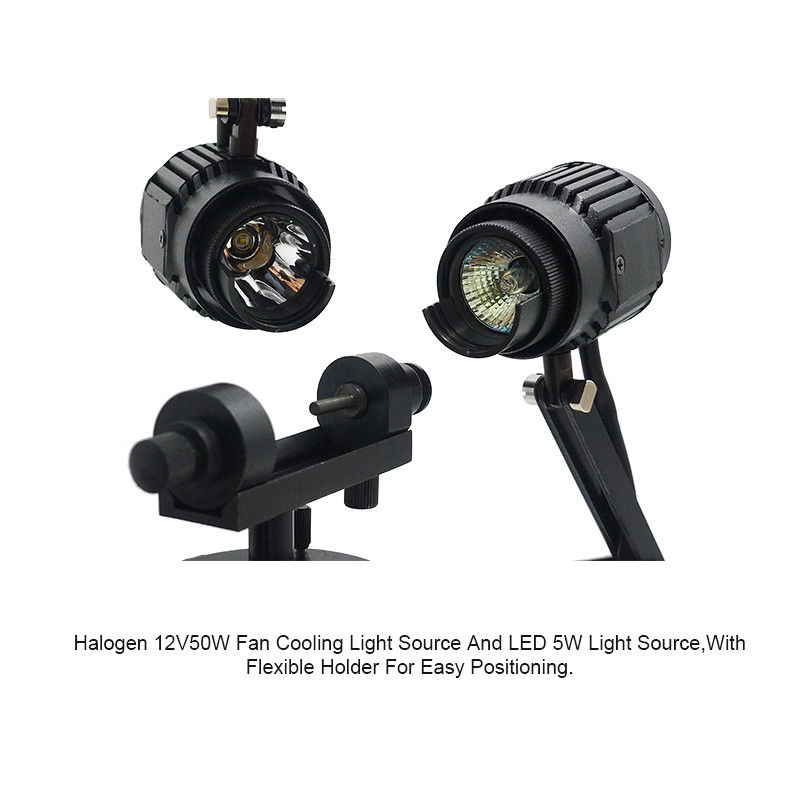

- 12V50W fan-cooled halogen light (2 pcs, brightness adjustable)
- 5W LED cold light (2 pcs, brightness adjustable)
- Coaxial light lens (2 pcs)
- Polarizing light lens (2 pcs)

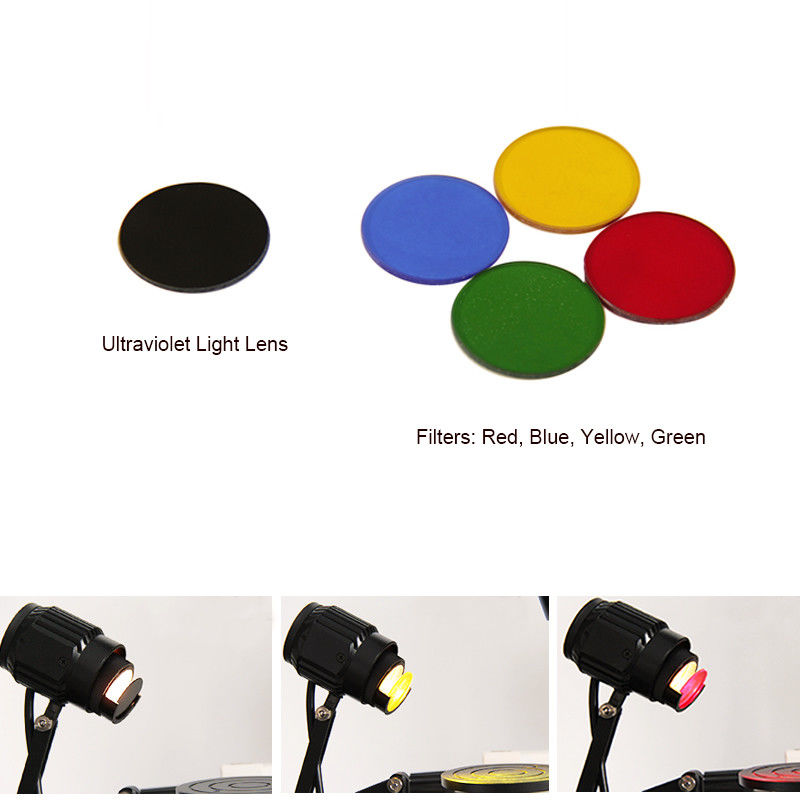

- Ultraviolet light lens (2 pcs)
- Color filters: Red, Blue, Yellow, Green (2 each)
Stage System
- Square manual working stage: 90×90mm, moving range 54×54×54mm
- Round tiltable working stage: Ø90mm, 0-45° inclined, 360° rotatable
Included Accessories
- Bullet holder set (2 sets)
- 0.5x CCD adapter for digital camera

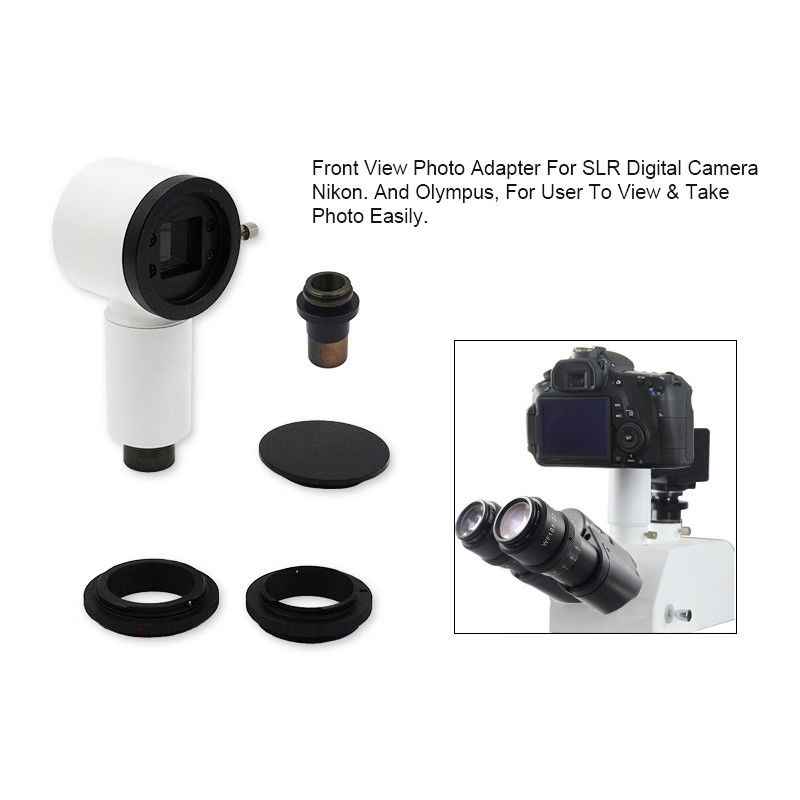

- Front view photo adapter 2.5X for SLR cameras
- Built-in 3.0M high resolution color CCD camera
- All accessories packed in strong aluminum box
Optional Accessories

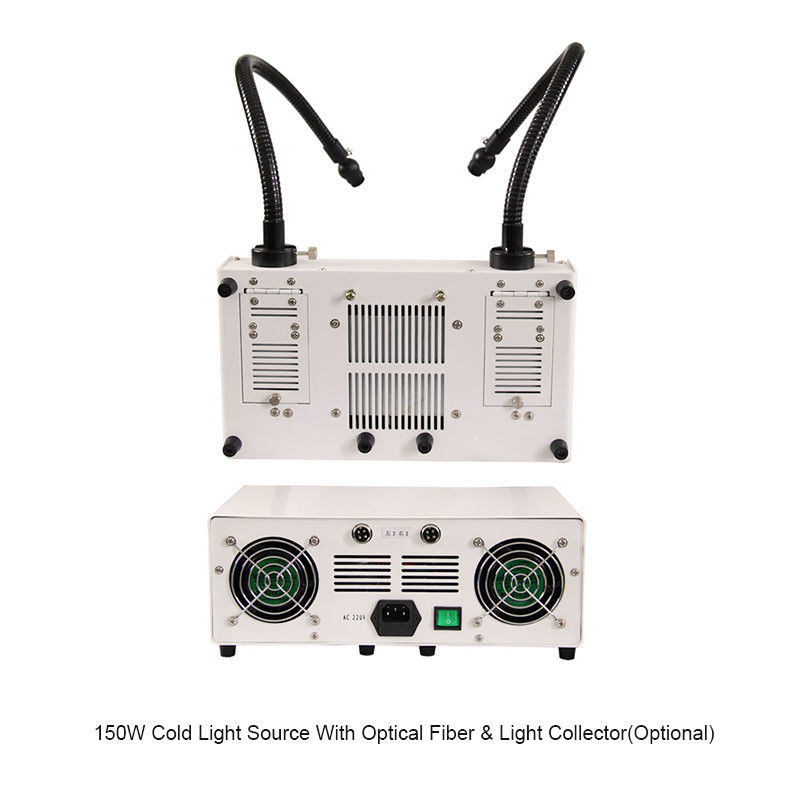

- 150W cold light source with optical fiber & light collector (A56.1821)
- Professional forensic image analysis software (A30.1821)
- Motorized bullet holder set for use with software (A54.1813)
