Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203

Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203

Products - Inverted Optical Microscope
  • Highlight

    inverted biological microscope

    ,

    inverted light microscope

  • Applications
    Laboratory|Research
  • Certification
    CE|Rohs
  • Drawtube
    Binocular
  • Max Magnification
    400X
  • Product Name
    Inverted Optical Microscope
  • Theory
    Inverted Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A14.0203
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203

  • Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203
  • Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203
  • Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203
  • Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203
  • Infinity Objective Inverted Optical Microscope Phase Contrast Microscope Bright Field A14.0203
Get Price Contact Now

Infinity Bright Field Objective Inverted Optical Microscope Phase Contrast Microscope  A14.0203

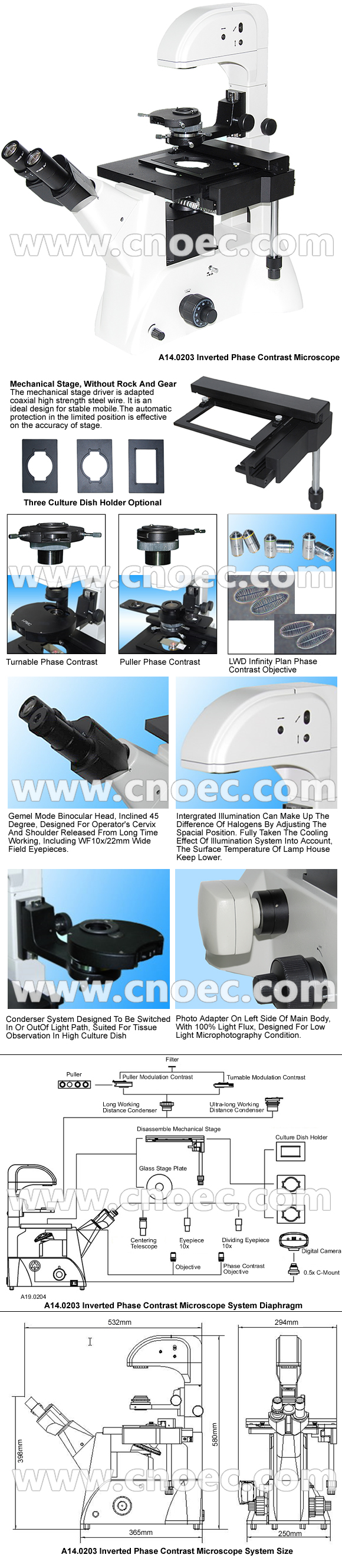

A14.0203 Inverted Phase Contrast Microscope, Newly Designed in 2014.

Equipped with excellent Unversal Infinity System, including long working distance plan achromatic objective, and wide field plan eyepieces. Compact and steady main fram body is embodiment for the shock resistance. Conderser system designed to be switched in or out of light path, suited for tissue observation in high culture dish. This is ideal optical instrument for micro observation in celltissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue. It can be used in scientific research, universities, medical treatment, epidemic prevention, agriculture etc.

--Infinity Optical System
--Phase Contrast, Bright Field Observation
--Two Mode Phase Contrast, Turnable Type and Puller Type Condenser Optional
--Three Culture Dish Holder For Different Size Culture Dish
--Photo Adapter On Left Side Of Main Body, 100% Light Pass For Low Light Photography Condition




A14.0203 Inverted Phase Contrast Microscope
Magnification Total 100~400x
System Infinity Optical System
Head Trinocular Head, 45° Inclined, Interpupillary Distance 53~75mm
Eyepiece

WF10x/22mm Wide Field, Eyepiece Tube Dia. 30mm
Centering Telescope Eyepiece 10x
Nosepiece Quintuple
Objective LWD Infinity Plan Bright Field Objective
10x/0.25, W.D.4.3, Cover Glass Thickness 1.2mm
20x/0.40, W.D.8.0, Cover Glass Thickness 1.2mm
40x/0.60, W.D.3.5 , Cover Glass Thickness 1.2mm
LWD Infinity Plan Phase Contrast Objective
10x/0.25, W.D.4.3, Cover Glass Thickness 1.2mm
Working Stage Mechanical Stage 227*208mm, Glass Round Stage Dia. 118mm, Moving Range 77*134.5mm, Moving Stage Detachable
Culture Dish Holder 1, 86mm (W)*129.5 (L), For Circular Culture Dish Dia.87.5mm
Culture Dish Holder 2, 34mm (W)*77.5 (L), For Circular Culture Dish Dia.68.5mm
Culture Dish Holder 3, 57mm (W)*82mm (L)
Focusing Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
Condenser Long Working Distance 55mm, Turnable Type, For Phase Contrast View
Light Source Kohler Illumination, 6V30W Halogen Lamp, Brightness Adjustable
Optional Accessories
Condenser Long Working Distance 55mm, Puller Type, For Phase Contrast View A5C.0210-24
Objective LWD Infinity Plan Phase Contrast Objective
20x/0.40, W.D.8.0, Cover Glass Thickness 1.2mm A5C.0235-20
40x/0.60, W.D.3.5 , Cover Glass Thickness 1.2mm A5C.0235-40
Adapter CCD Adapter 0.5x A55.0202-04
Digital SLR Camera Adapter for Canon EF Series A55.0204-02
