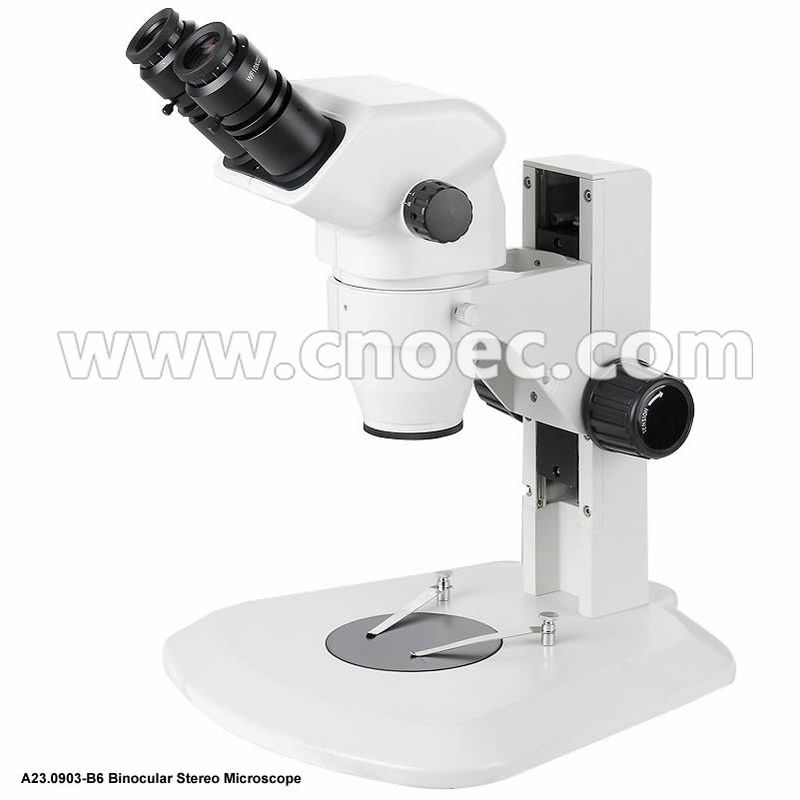

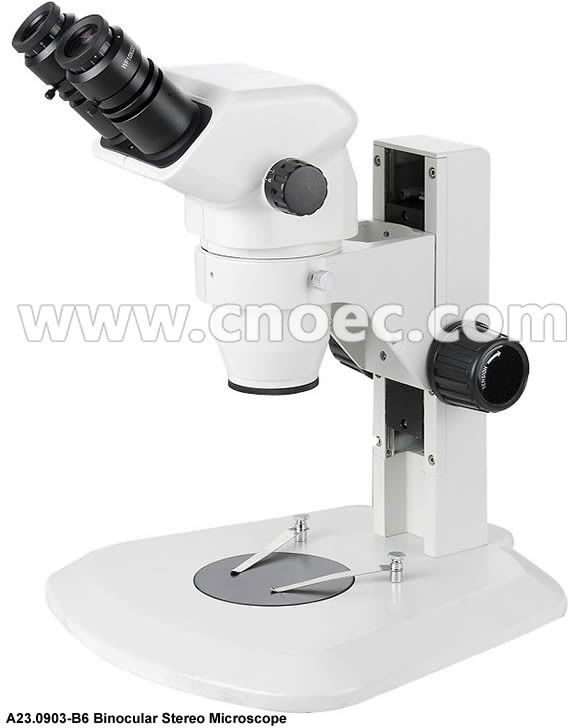

Binocular Head Zoom Stereo Optical Microscope White For Clinic A23.0903-B6

Binocular Head Zoom Stereo Optical Microscope White For Clinic A23.0903-B6

  • High Light

    stereo dissecting microscope

    ,

    stereo binocular microscopes

  • Magnification
    6.7-45x
  • Applications
    Jewelry, Medical, Clinic
  • Certification
    CE, Rohs
  • Drawtube
    Binocular
  • Product Name
    Stereo Zoom Microscope
  • Theory
    Stereo Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.0903-B6
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Binocular Head Zoom Stereo Optical Microscope White For Clinic A23.0903-B6



Binocular Zoom Stereo Optical Microscope White For Clinic A23.0903-B6



Description:



--0.67~4.5x Zoom Lens, with WF10x/22mm Eyepiece,
--Total Optical Magnification 6.7~45x
--Big Fan Track Stand, No Light Source
--Fully Coated Optical System, Sharp & Clear Image





Specifications:



A23.0903-B6 Zoom Stereo Microscope, 0.67x-4.5x Specification

Head

Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable,

 Interpupillary Adjustment 54~75mm

Zoom Range

0.67~4.5x

Zoom Ratio

1:6.5

Eyepiece

WF10x/22mm, Both with Eye-cup

Magnification

6.7~45x, Up to 2~225x with Auxiliary Lens

Working Distance

100mm, With Standard 1x Lens. Up to 26~287mm With Auxiliary Lens

Stand

Big Fan Track Stand B6, With Focusing Knob, Focusing Range 50mm

Illumination

No Light Source

A23.0903-B6 Zoom Stereo Microscope, 0.67x-4.5x Optional Accessories



Eyepiece

WF15x/15mm

A51.0923-15

WF20x/10mm

A51.0923-20

WF25x/9mm

A51.0923-25

Auxiliary Lens

0.3x, W.D. 287mm

A52.0928-03

0.4x, W.D. 217mm

A52.0928-04

0.5x, W.D. 177mm

A52.0928-05

0.75x, W.D. 117mm

A52.0928-75

1.5x, W.D. 47mm

A52.0928-15

2.0x, W.D. 26mm

A52.0928-20



Binocular Head Zoom Stereo Optical Microscope White For Clinic A23.0903-B6 0Binocular Head Zoom Stereo Optical Microscope White For Clinic A23.0903-B6 1
