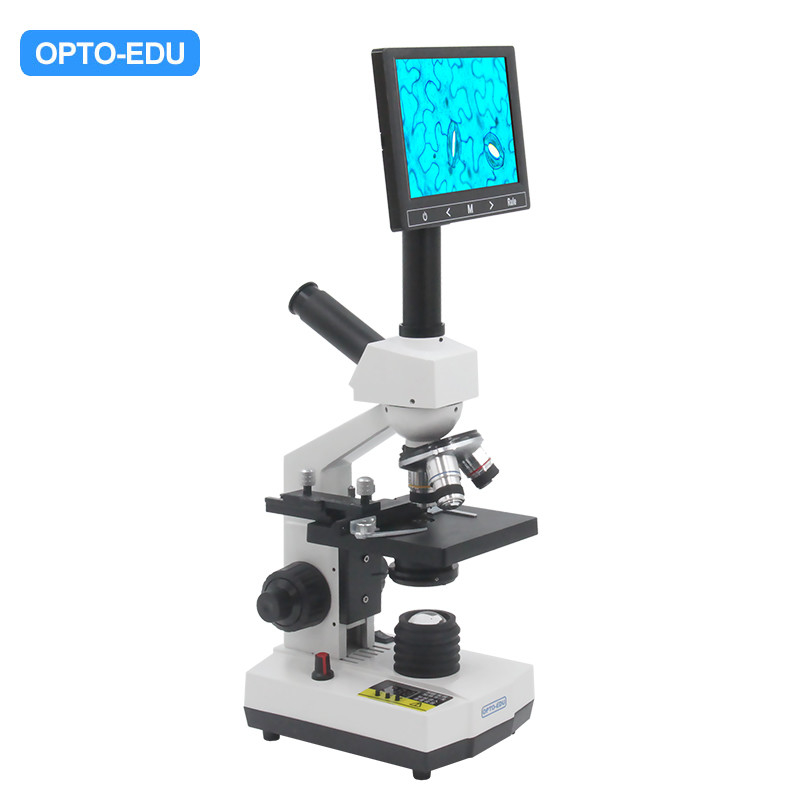

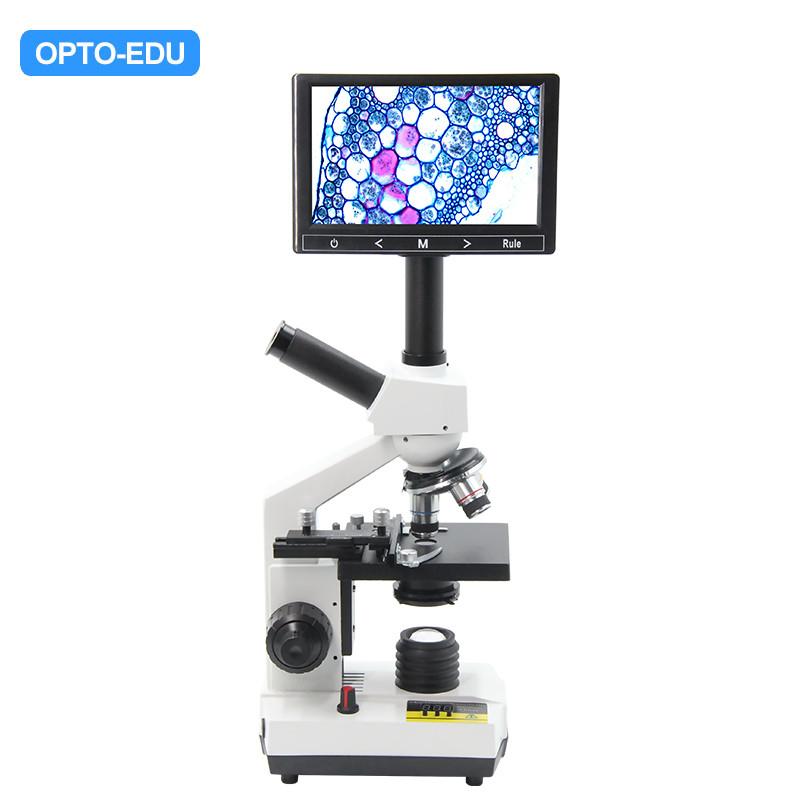

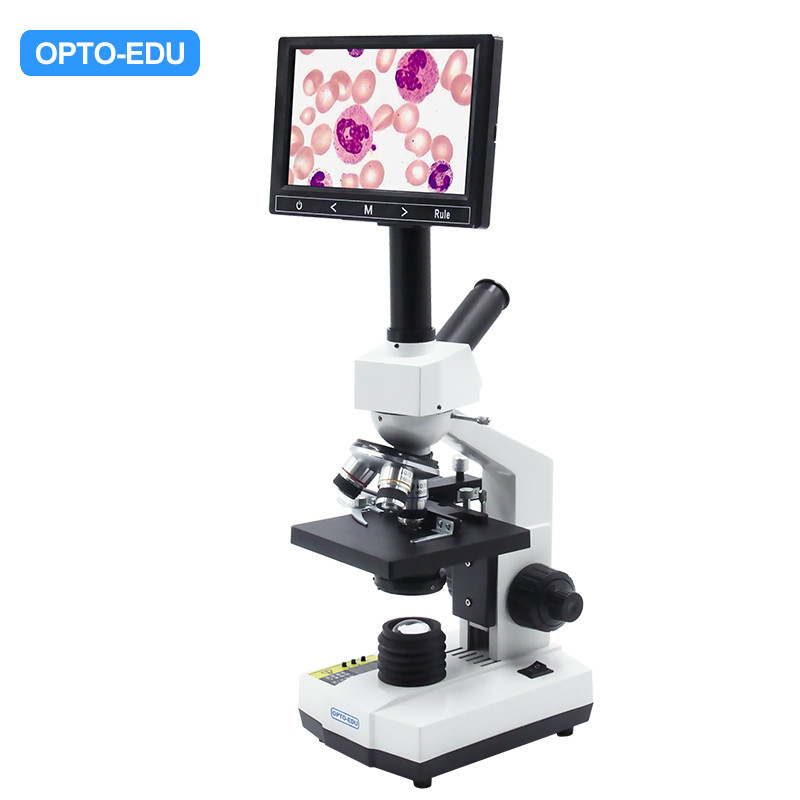

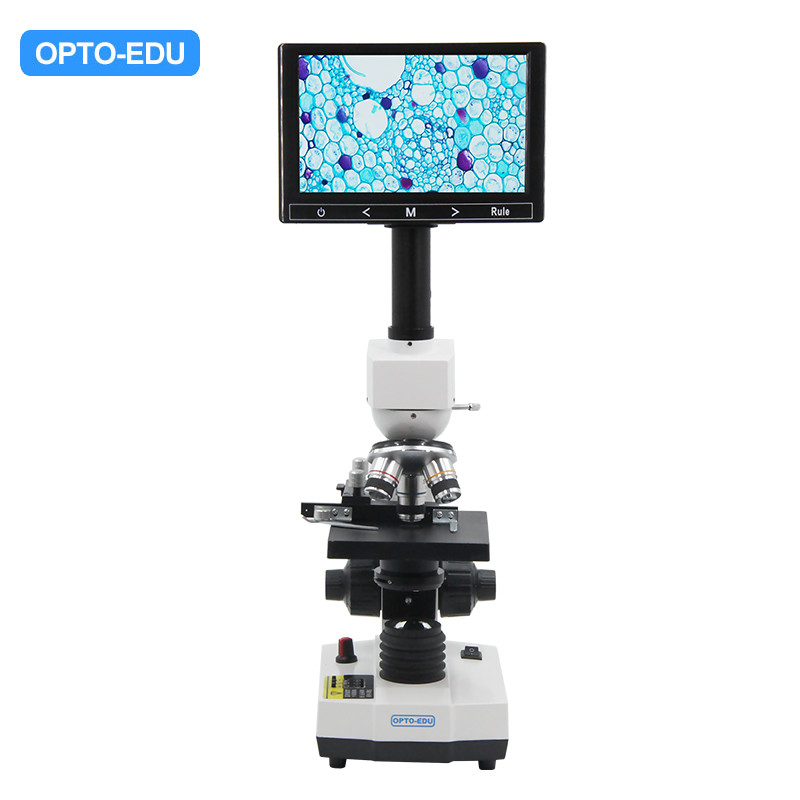

A33.5100 7" LCD Heating Stage Biological Microscope |
LCD & Digital Camera |
LCD |
1/2.75" CMOS |
Sensor |
1/2.75" CMOS |
Resolution |
2.0M 1920x1080p, With 0.3x C-Mount |
Pixel Size |
2.8x2.8um |
Frame Rate |
30 fps |
Output |
USB 2.0, Output to LCD, PC or Mobile Phone |
Power |
DC5V/2A, Power Port 3.5/1.35 DC |
Storage |
Micro SD Card Slot, Support Class 10 Max 32G |
LCD Menu |
One Key Switch Image From Main Camera & Hand-held Camera |
One Key Take Photo, Video, Record, Save to SD Card |
Set Color, Contrast, White Balance Auto/Manual Adjust |
Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video |
Set Date, Time |
Choose Language: Chinese, Tranditional Chinese, English, Japanese, France, Germany, Korea, Russia, Italy, Portuguese, Spanish, Arabic |
Playback Photo, Video |
PC Software |
CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language Chinese, English, Russia, Ukrian |
Microscope |
Head |
Teaching Head, 45°+90° Inclined, 360° Rotatable |
Eyepiece |
WF10x, WF16x |
Nosepiece |
Triple Nosepiece, Ball Bearing Inner Locating |
Objective |
Achromatic 4x,10x,40x(s) |

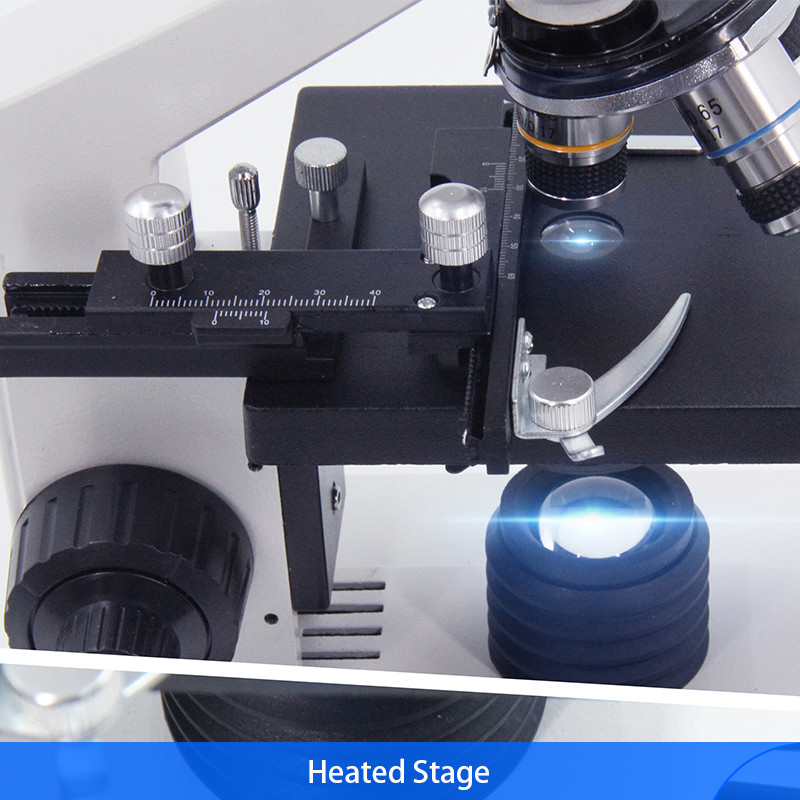

Working Stage |
Heated Stage 37℃-38℃, Size 115mmx125mm, Moving 60mmx30mm |
Focusing |
Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm |
Condenser |
Abbe Condenser With Iris Diaphragm |

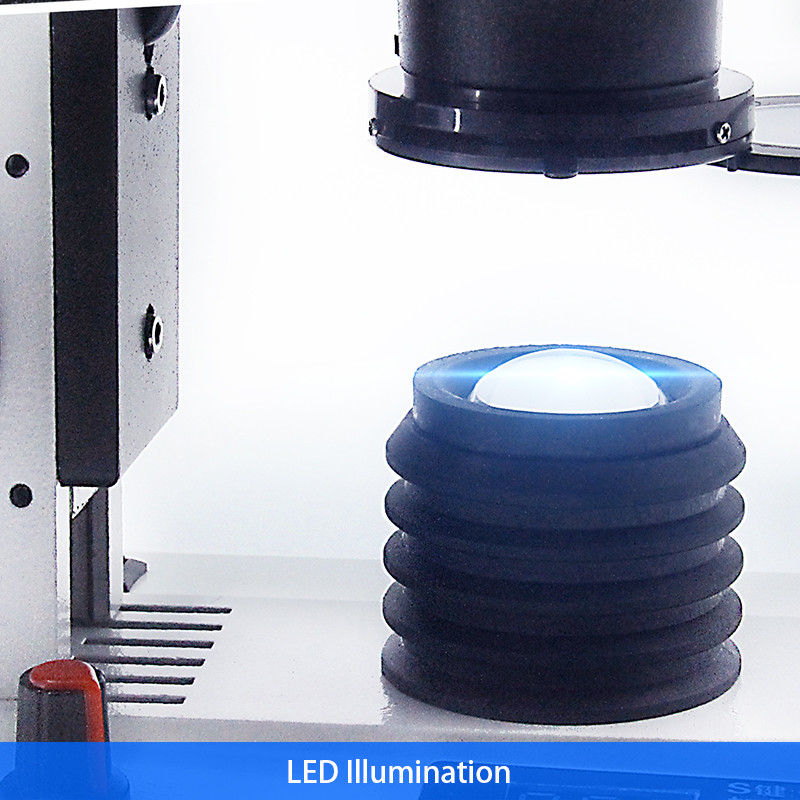

Light Source |
LED, Brightness Adjustable, Powered By 5V DC Adapter |

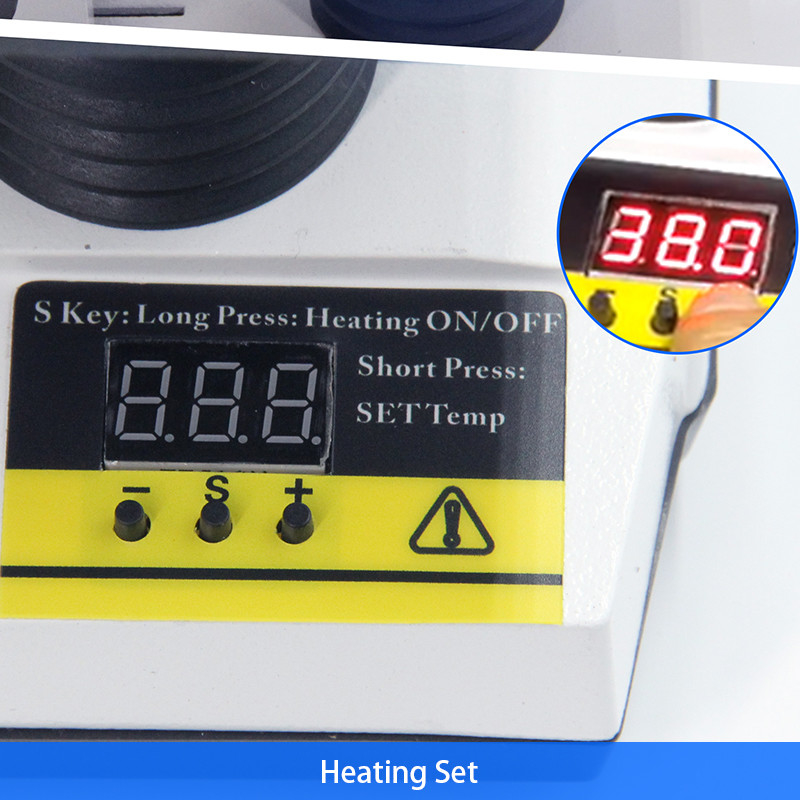

Heating Set |
S Key:
Long Press: On/Off
Short Press: Set Temp. |
Accessory |
Prepared Slide 10pcs in Box,
Experiment Kit,
Mobile Phone Connector
Power Adapter
Power Cord
USB Cable
Software CD |
Packing |
Aluminium Box + Master Carton |
