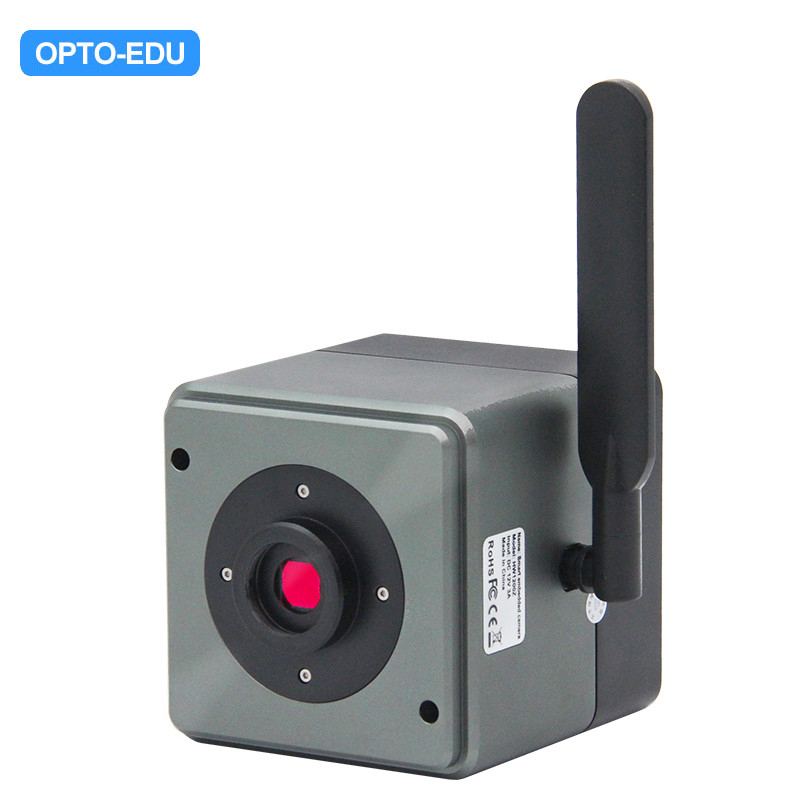

A59.4974 4K 5G WIFI+HDMI+USB Disk Digital Camera, 12.0M, C-Mount, HDMI Measuring
Advantages
--12M 4K HDMI+5G WIFI+USB Disk High Speed 30Fps Digital Camera
--No Need Computer, HDMI Interface With Built-in Operation Measure System & Office For Report Creat Directly
--Built-in 32G Memory + USB 3.0 To USB Disk Storage, Control By USB 2.0 Mouse & Keyboard
--5G WIFI Image Output System Perfectly Compatible With Three Main Systems of Windows, iOS And Android.
--Built-in 10+ Viewing Mode Perfectly Support Biological/Stereo/BF/DF/PL/PH/FL/DIC Etc.
All-in-One No Need Computer HDMI+WIFI Camera
--Perfectly compatible with three mainstream systems of Windows, iOS and Android.
--Built-in deeply customized operating system. It comes with imaging APP,when starting up , it will connect with
microscopic live image instantly and automatically.
--32GB RAM ,support USB3.0 flash disk to export picture, video data.
--4K HDMI output to monitor, TV, projector.
--The USB2.0 ports can connect to mouse,keyboard, convenient for measurement and text input.
--Allow to use mobile phone or tablet to scan the dedicated QR code for wireless point-to-point connection to share live
imaging. |
| A59.4974 4K 5G WIFI+HDMI+USB Disk Digital Camera, 12.0M, C-Mount, HDMI Measuring |
| Output |
4K HDMI Output, With Built-in Software
5G WIFI Output, App Software
USB 3.0 Output to USB Disk |
| Physical Pixel |
12.0MP |
| Sensor Model |
Sony IMX412 CMOS |
| Exposure Mode |
Roller Shutter Exposure |
| Highest Resolution |
8K, 4000x 3000 (12.000.000) |
| Sensor Size |
1/2.3” |
| Pixel Size |
1.55μm×1.55μm |
| Spectral Response |
380-650nm, For Fluorescent, Dark Field Image |
| Exposure |
Automatic And Manual |
| White Balance |
Real-time Auto, Manual Adjustment |
| Record Format |
Snapshot
Format:JPG
Resolution: 4000×3000,3840×2160
Record
Format:MP4 file
Resolution:1920×1080@60FPS |
| Power Consumption |
DC 12V 3A |
| HDMI Output Resolution |
Auto-adaptive Display, Up To 3840x2160P30 |
| Supporting Protocol |
5G WiFi IEEE 802.11ac |
| Working Frequency |
5.180-5.825GHz |
| Storage |
Built-in 32G Memory, USB 3.0 to USB Disk |
| HDMI |
4K HDMI Output, With Built-in Operation Measure System & Office For Report Creat Directly |
| WIFI |
5G WIFI Image Output System Perfectly Compatible With Three Main Systems of Windows, iOS And Android |
| USB3.0 |
Output To USB Disk |
| USB2.0 |
Connect To Mouse & Keyboard To Control HDMI Interface Software |
