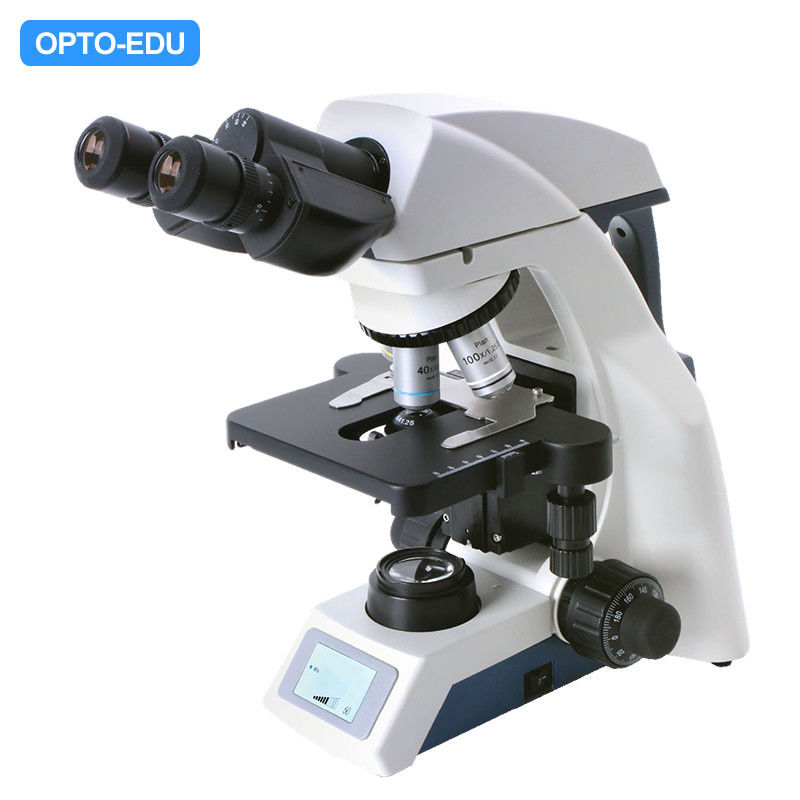

Binocular & Trinocular, WF10x/20, Coded Quintuple, Infinity Semi-Plan 4x10x40x100x, Mechanical Stage 150x140/75x52mm, Abbe Condenser N.A.1.25, Coaxial Coarse & Fine Focusing, 3W LED, Green Filter, LCD Screen Base
| A12.1037, A12.1038 Laboratory Microscope | A12.1037 | A12.1038 | |||
| -B | -T | -B | -T | ||
| Optical System | Infinity Optical System | ● | ● | ● | ● |
| Observation Method | Bright Field | ● | ● | ● | ● |
| Dark Field | ○ | ○ | ○ | ○ | |
| Phase Contrast | ○ | ○ | ○ | ○ | |
| Epi-Fluorscence | ○ | ○ | ○ | ○ | |
| Polarizing | ○ | ○ | ○ | ○ | |
| Head | Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm, Eyepiece Tube Dia.23.2mm | ● | ● | ||
| Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, Eyepiece Tube Dia.23.2mm, Light Split Switchable E0:P100/E100:P0 |
● | ● | |||
| WIFI Digital Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm, Eyepiece Tube Dia.23.2mm 5.0M Digital Camera Built-in, WIFI Transmission Rate 1680p, Support Android, IOS, Windows, Stand-Alone Use, Online Interactives Access. |
○ | ○ | ○ | ○ | |
| Eyepiece | EW10x/20mm, Diopter Adjustable, Dia.23.2mm | ● | ● | ● | ● |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | ● | ● | - | - |
| Coded Quintuple Nosepiece, Dovetail Interface | - | - | ● | ● | |

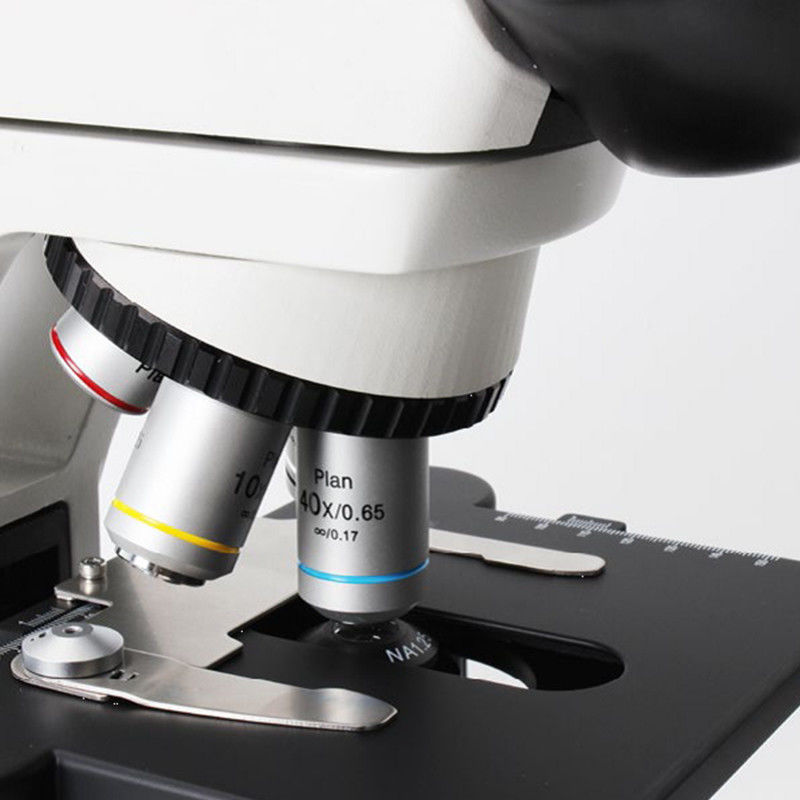

| Infinity S-Plan Achromatic Objective |
4x/0.10, W.D.28mm | ● | ● | ● | ● |
| 10x/0.25, W.D.5.8mm | ● | ● | ● | ● | |
| 40x/0.65(S), W.D.0.43mm | ● | ● | ● | ● | |
| 100x/1.25(S.Oil), W.D.0.13mm | ● | ● | ● | ● | |
| Infinity Plan Achromatic Objective |
4x/0.10, W.D.28.0mm | ○ | ○ | ○ | ○ |
| 10x/0.25, W.D.10mm | ○ | ○ | ○ | ○ | |
| 40x/0.65(S), W.D.0.7mm | ○ | ○ | ○ | ○ | |
| 100x/1.25(S.Oil), W.D.0.18mm | ○ | ○ | ○ | ○ | |
| Focusing | Coaxial Coarse and Fine Focusing Knob, Left Hand Has Height Limit Function, Right Hand Has Coarse Motion Adjustment Function .Coarse Stroke 37.7mm per Rotation, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
● | ● | ● | ● |
| Working Stage | Double Layers Mechanical Stage 150x140mm, Moving Range 75x52mm | ● | ● | ● | ● |
| Condenser | Abbe Condenser N.A.1.25 | ● | ● | ● | ● |
| Illumination | 3W LED Illumination, Brightness Adjustable, Green Filter | ● | ● | ● | ● |
| Kohler Illumination | ○ | ○ | ○ | ○ | |
| LCD Screen Magnification, Brightness, Color Temperature | - | - | ● | ● | |
| Dark Field | Dark Field Condenser, Dry | ○ | ○ | ○ | ○ |
| Dark Field Condenser, Oil | ○ | ○ | ○ | ○ | |
| Phase Contrast | Phase Slider For 10x-40x | ○ | ○ | ○ | ○ |
| Phase Slider For 100x | ○ | ○ | ○ | ○ | |
| Fluorescence | LED Fluorescent Illumination | ○ | ○ | ○ | ○ |
| Mercury Fluorescent Illumination | ○ | ○ | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | ○ | ○ | ○ | ○ |
| 0.5x C-Mount | ○ | ○ | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | ● | ● |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank, Out Door Freely | ○ | ○ | ○ | ○ | |
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | - | - | ● | ● |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | ● | ● |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable | |||||
