Binocular & Trinocular, WF10x/20, Quadruple, Infinity Plan 4x10x40x100x, Mechanical Stage, Abbe 1.25, Coaxial Coarse&Fine, 12V20W
Items | A12.1010 Laboratory Biological Microscope | B | T |

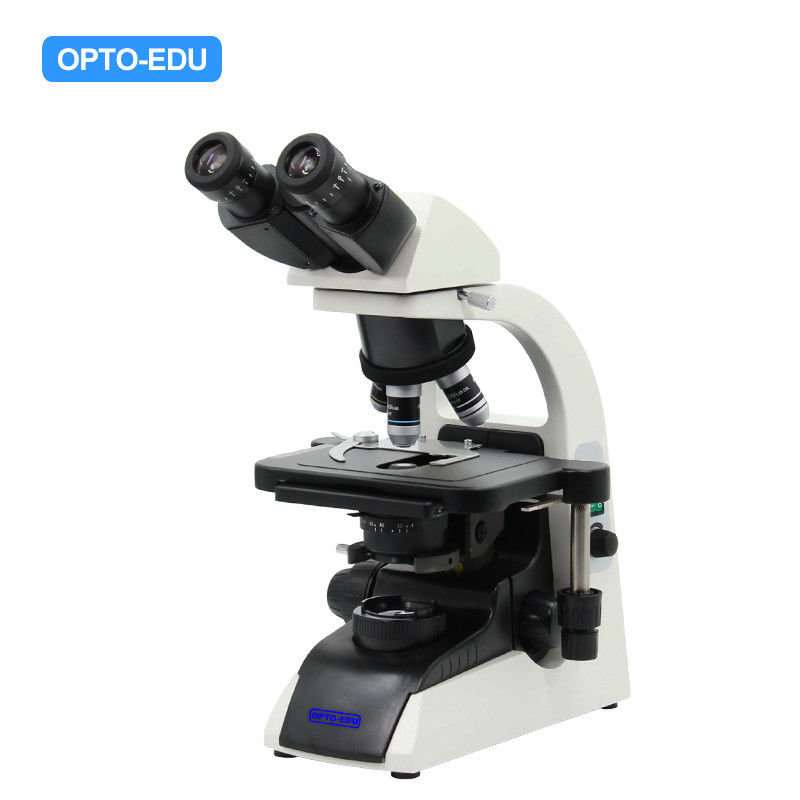

Head | Seidentopf Binocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm | ● | |

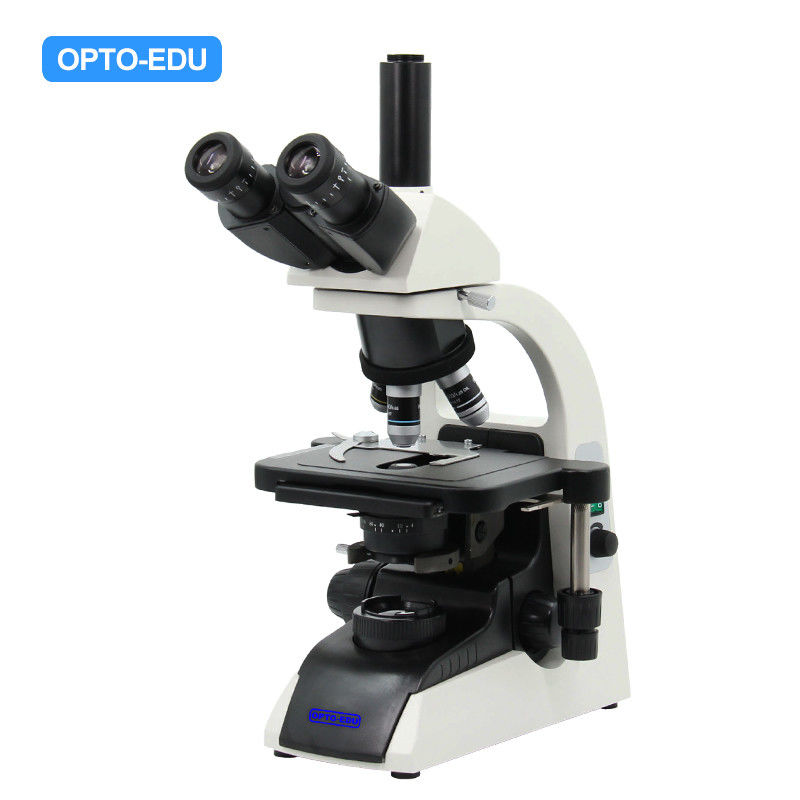

Seidentopf Trinocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm | ● | ||
Eyepiece | Wide Field WF10x/20mm, Eyepiece Tube Dia.30mm, 2 pcs | ● | ● |
Nosepiece | Backward Quadruple Nosepiece | ● | ● |
Optical System | Infinity Optical System | ● | ● |
Objective | Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65(S),100x/1.25(S,Oil) | ● | ● |
Magification | 40x-1000x | ● | ● |
Stage | Double Layer Mechnical Stage, 216x150mm, Moving range 54x78mm, Double Slide Holder, Low PositionX/Y Coaxial Control Knob, With Travel Guide To Aviod Scratch | ● | ● |
Focusing | Low Position Coaxial Coarse & Fine Focusing. | ● | ● |
Fine Focusing Scale 0.002mm, Moving Range 25mm, With Safety Stop | ● | ● | |
Condenser | N.A.1.25 Abbe Condense, Iris Diaphargm,With Filter Holder,Up/Down Range 25mm, Center Adjustable,With Filter Holder | ● | ● |
Filter | Green | ● | ● |
Light Source | Halogen Lamp 12V/20W, Brightness Adjustable | ● | ● |
Note: "●"In Table Is Standard Outfits | |||
Items | A12.1010 Laboratory Biological Microscope Optional Accessories | ||
Eyepiece | Wide Field WF15x/16mm, Eyepiece Tube Dia.30mm | A51.1002-15B | |
Wide Field WF20x/12mm, Eyepiece Tube Dia.30mm | A51.1002-20B | ||
Objective | Infinity Plan Achromatic 20x | A52.1008-20 | |
Infinity Plan Achromatic 60x | A52.1008-60 | ||
Nosepiece | Backward Quintuple Nosepiece | A54.1001-5 | |
Illumination | Kohler Illmination | A56.1005-5 | |
Adapter | Photo Adapter | A55.1008 | |
C-Mount 0.4x | A55.1009-04 | ||
C-Mount 0.5x | A55.1009-05 | ||
Dark Field | Dark Field Condense, Dry | A5D.1012-D | |
Dark Field Condense, Immersion | A5D.1012-I | ||
Polarizing | Simple Polarizing Kit | A5P.1005 | |
Phase Contrast | Phase Contrast Set | A5C.1006 | |
Fluorescent | EPI-Fluorescent Kit | A5F.1005 |
