HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS

  • High Light

    opto edu microscope accessories

    ,

    hdmi microscope accessories

  • Sensor
    Sony 1/2"color CMOS
  • Resolution
    1080P(1920×1080)
  • Pixel Size
    3.75μm×3.75μm
  • Shutter Mode
    Rolling
  • Scanning Method
    Progressive Scanning
  • Frame Rate
    60fps(Normal),30fps(WDR)
  • Gain
    Automatic / Manual
  • Exposure Time
    Automatic: 0.1ms-16.6ms, Manual: 0.0001s-1s
  • White Balance
    Automatic/manual/area
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.3820
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS



OPTO-EDU A59.3820 3D Super EDF Auto-Focus Measuring HDMI Digital Camera Sony 1/2"color CMOS



Easy to Use

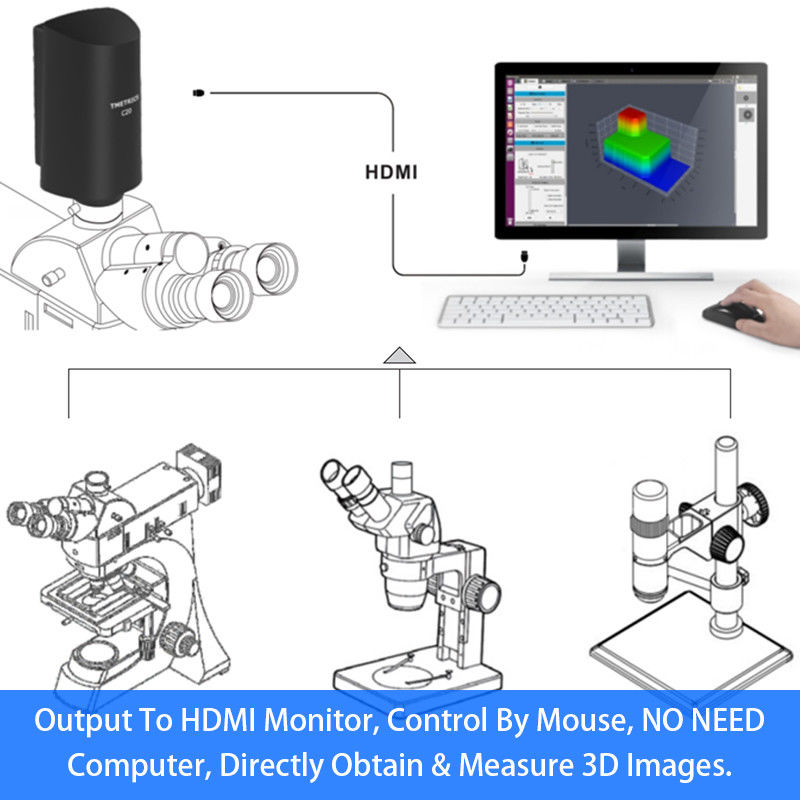

Output to HDMI monitor, control by mouse, NO NEED computer, directly obtain & measure 3D images.

Wide Usage
Standard C Mount, can be used with different microscopes such as metallurgical, stereo, mono tube, etc

Auto-Focus Measurement
Under the 10X objective lens, the accuracy of 2D and 3D measurement can reach 2 micrometers.



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 0



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 1



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 2
A58.3520 microscopic 3D imaging camera has the characteristics of high integration and flexible application,
no other modification is required, it can be directly used with a microscope. The operation is simple, all functions can be completed
by the mouse. Performance guarantee for integrated linkage: The built-in intelligent heterogeneous computer host can directly perform
a large number of calculations instead of a computer, with fast operation speed and stable operation; Real-time ultra-depth of field
and 3D modeling algorithm can help the microscopy system to realize the three-dimensional observation and measurement analysis
of the whole body; automatic edge recognition algorithmIt can also further improve the efficiency of microscopic observation and batch work.
HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 3

Intellegent Built-in Computer With Software & Friendly User Interface

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 4

Ultra-depth observation, observe all feature points on the same plane
Open the software “Shooting-Advanced Imaging -EDF & 3D" function module, click to confirm the upper and lower
focal position to be observed in the image, click "EDF", A59.3820 can automatically Expand Depth of Field,
obtain a full-frame in-focus screen, and observe all the feature points on the same picture

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 5

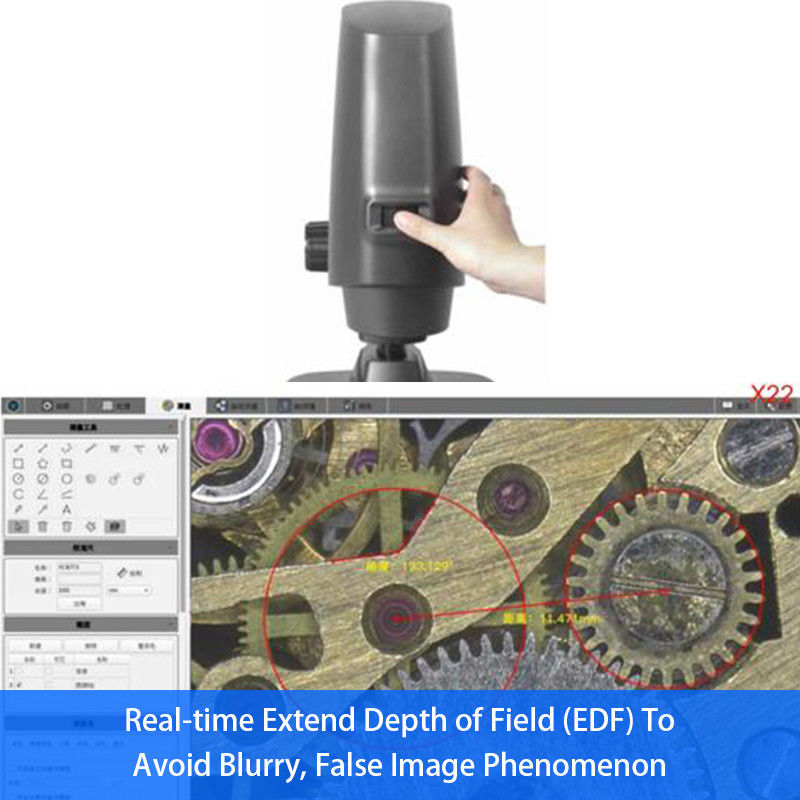

Real-time Extend Depth of Field (EDF) To Avoid Blurry, False Image Phenomenon
Based on the three-dimensional system carried on different platformsWhen the depth of field is expanded, it is easy to
produce a degree deviationThe amount, rotation, and focus are unevenelephant. A59.3820 intelligent computing linkage performance canTo
help solve the above problems, with a microscopeLens, you can also get a clear and correct full frameFocus screen.

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 6

Real-time Wide Dynamic Range (WDR) Effectively Eliminating Strong Reflection Light
The strong reflection light from the surface is easy to cause details loss of information and affects judgment. A59.3820 WDR mode
calculates multiple differentLuminance map data, able to create exposurePerfect images with clear light and dark details

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 7

Sample Cases Upgrade Observation And Analysis Capabilities of Your Microscope
Open the software “Shooting-Advanced Imaging-EDF & 3D" function module, click to confirm the upper and lower focal position to be
observed in the image, click "3D", A59.3820 can automatically complete the creation of 3D models, supports
two display modes, real or false color, and can be rotated 360 degrees for observation.

HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 8



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 9



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 10



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 11



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 12



HDMI Digital Camera Microscope Accessories Sony 1/2" Color CMOS 13

Model A59.3820  3D Super EDF Auto-Focus HDMI Digital Camera
Camera Features Sensor Sony 1/2"color CMOS
Resolution 1080P(1920×1080)
Pixel size 3.75μm×3.75μm
Shutter mode Rolling
Scanning method Progressive scanning
Frame rate 60fps(Normal),30fps(WDR)
Gain Automatic / Manual
Exposure time Automatic: 0.1ms-16.6ms, manual: 0.0001s-1s
White balance Automatic/manual/area
Image storage TIFF/JPEG
Video format AVI/MP4(1080P)
Advanced Features
(Embedded)
3D noise reduction Support
WDR  Support
Real-time EDF Support
Edge enhancement Support
Gamma correction (contrast) Support
Color enhancement Support
Flat field correction Support
Effect mode Normal/Negative/Relief/Grayscale
3D display and
measurement
Online calibration Support
3D display Pseudo-color/real scene display, grid lines, 360°rotation
3D histogram Support
3D profile measurement Height difference, curvature, area, roughness
3D surface measurement Step height, volume, surface roughness
Z range (depth of field) 23000μm
3D measurement accuracy (10X) ±2μm
3D repeatability (10X) ±1μm
3D measurement report Support, editable template
2D measurement 2D calibration ruler Support
2D manual measurement Point-point, point-line, line-line,Parallel, perpendicular,
Counter polygon, circle, arc, concentric circle, circle-circle, ang
2D measurement accuracy (10X) ±2μm
2D repeatability (10X) ±2μm
2D measurement report Support
Input Mouse input USB mouse
Keyboard input USB keyboard
Interface Optics Standard C-Mount
Video HDMI 2.0
Internet connection Fast Ethernet
USB USB2.0 x 3, USB3.0 x1
Others Storage capacity Built-in 32G Emmc
Power supply 12V 8A
Weight 2.5kg
Appearance size (WxHxD) 87cm*181cm*103cm
Working environment 5-40 (temperature), 45%-85% (humidity)
