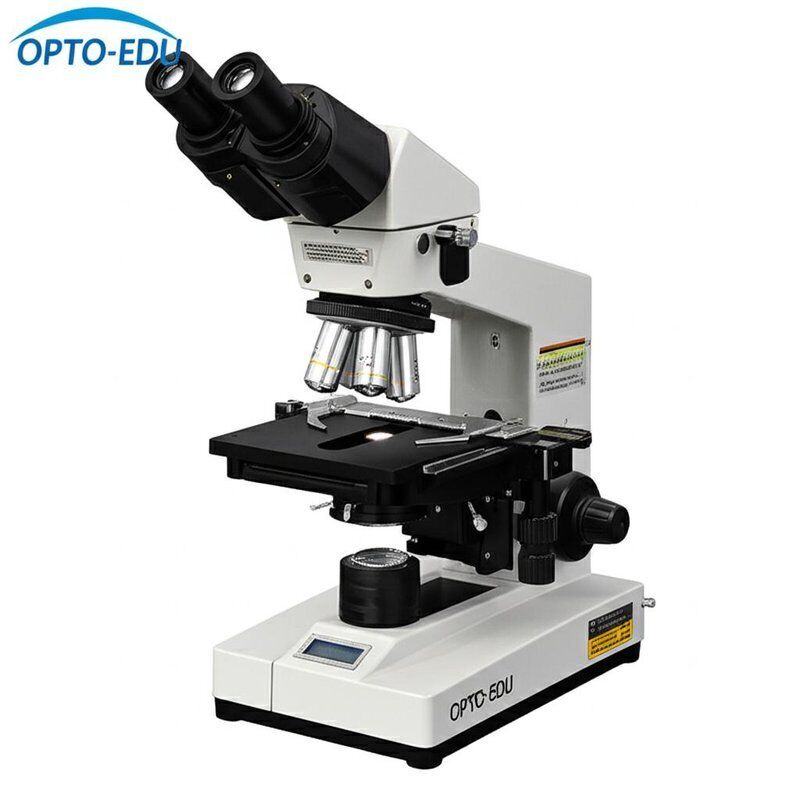

OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO

OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO

Large Image :  OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A15.1091-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Main Body: BH Manual Body + Halogen Illumination. Head: Ergo Tilting Trinocular Head, Inclination 0°~35°
Eyepiece: SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm Nosepiece: Manual Nosepiece, Quintuple, Backward, Center Adjustable
Working Stage: High-precision Pre-Adjusted Revolving Round Stage Condenser: Swing-Out Condenser NA0.9/0.25
High Light:

opto edu plm polarized light microscopy

,

opto edu polarized light microscopy

,

12v plm polarized light microscopy

  • Research Level Polarizing Microscope, Manual, Transmit/Reflect, Semi-APO
  • Extra Wide Eyepiece EW10x/25mm Dia.30mm Diopter Adjustable With Lock Pin
  • Quintuple Nosepiece Center Adjustable, NIS60 Infinity Plan Strainless Semi-APO PL5x10x20x50x100x
  • Round Stage Dia.190mm, With Attachable Moving Stage Range 30x30mm
  • Transmit ECO Kohler Illumination 12V100W Halogen, Reflect 12V100W Halogen

OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 0
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 1
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 2
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 3
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 4
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 5
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 6
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 7
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 8
OPTO-EDU A15.1091-T plm polarized light microscopy Manual Transmit 12V 100W Halogen Semi APO ECO 9

A15.1091 Series Polarizing Microscope A15.1091 Cata.No.
-T -TR -R
Optical System NIS60 Infinite Optical System
Observation Method Bright Field
Dark Field,
Polarizing
Phase Contrast
Flourescent
DIC
Main Body BH Manual Body + Halogen Illumination. A54.1090-BH
BL Manual Body + LED Illumination. A54.1090-BL
ATH Semi-Auto Body + Halogen Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust
A54.1090-ATH
ATL Semi-Auto Body + LED Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust
A54.1090-ATL
Head Seidentopf Binocular Head, Inclined 30°,
Interpupillary Distance 47-78mm
A53.1090-B
Seidentopf Trinocular Head, Inclined 30°,
Interpupillary Distance 47-78mm,
3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100
A53.1090-T
Ergo Tilting Trinocular Head, Inclination 0°~35°,
Interpupillary Distance 47-78mm,
3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100
A53.1090-TT
Eyepiece SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1025
SW10x/25mm, With Scale Cross, With Locating Pin, For Polarizing A51.1090-1025S
SW10x/25mm, With Cross Hair, With Locating Pin, For Polarizing A51.1090-1025C
SW10x/25mm, With Grid Plate, With Locating Pin, For Polarizing A51.1090-1025G
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1022
EW12.5x/16mm, High Eyepoint A51.1090-12516
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1516
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-2012
Nosepiece Manual Nosepiece, Quintuple, Backward, Center Adjustable A54.1091-5M
With Slot For Polarizing Compensator Slider Or DIC Slider
Protect Cover For Nosepiece Holes A54.1091-C
NIS60
Strain-Free
Semi-APO

Infinity Plan
Objective
5x/0.15, W.D.20mm, Semi-APO, PL, No Cover Glass A5P.1091-5
10x/0.3, W.D.11mm, Semi-APO, PL, No Cover Glass A5P.1091-10
20x/0.45, W.D.3.0mm, Semi-APO, PL, No Cover Glass A5P.1091-20
50x/0.8, W.D.1.0mm, Semi-APO, PL, No Cover Glass A5P.1091-50
100x/0.9, W.D.1.0mm, Semi-APO, PL, No Cover Glass A5P.1091-100
Working Stage High-precision Pre-Adjusted Revolving Round Stage, Diameter 190mm, Center Adjustable, 360° Scale, Minium Division 1° , Minium Reading 6´ by Means of Vernier Scale, 45° Click Stop Knob. A54.1094
Attachable Moving Stage, Moving Range 30x30mm A54.1094-R
Condenser Swing-Out Condenser NA0.9/0.25 A56.1091-S
Focusing Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ
Polarizing Unit & Compensator Bertrand Lens Intermediate Unit, With Slot For Compensator Slide A5P.1090-CB
λ Compensator Slide A5P.1090-Cλ
λ1/4 Compensator Slide A5P.1090-C1/4λ
Quartz Wedge Slide A5P.1090-CQ
Blank Slide A5P.1090-BS
Transmit
Light Source
Transmit Kohler Illumination, Brightness Adjustable,
12V100W Halogen, External Lamp House

ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy
- A56.1090-12V100W
Polarizing For Transmit Light Protective Glass - A5P.1090-G
Transmit Polarizer, Swing Out - A5P.1090-TP
Transmit Analyzer Slide - A5P.1090-TA
Filter For Transmit Light Filter Holder On Base, Can Hold 3 Filters - A56.1092-H
Filter LBD - A56.1092-LBD
Filter Green - A56.1092-G
Filter Yellow - A56.1092-Y
Filter ND6 - A56.1092-ND6
Filter ND25 - A56.1092-ND25
Reflect
Light Source
Reflect Epi Polarizing Illuminator, Turret Disc With 6 Positions For Filter Block, Kohler Illumination - A5P.1090
12V100W Halogen Lamp Housing - A5P.1090-100W
BF1 View Block - A5P.1090-B1
BF2 View Block - A5P.1090-B2
Polarizing For Reflect Light Circularly Polarized Light Block - A5P.1090-CP
Reflect Polarizer Slide - A5P.1090-RP
Reflect Analyzer Slide, 360º Dial Rotate, Minimum Scale Reading 0.1º - A5P.1090-RA
Blank Slide - A5P.1090-E
Filter For
Reflect Light
Filter Blue - A56.1093-B
Filter Green - A56.1093-G
Filter Yellow - A56.1093-Y
Filter Forested - A56.1093-F
Adapter Eyepiece Adapter Dia.23.2mm A55.1090-E
C-Mount 1.0x A55.1090-10
C-Mount 0.5x A55.1090-05
Other Accessories Working Stage Holder Bracket A54.1096
Adapter To Adjust Eye Position A54.1096-A1
Adapter To Lower The Stage Position 1" A54.1096-A2
Immersion Oil A50.1090-01
Allen Wrench A50.1090-02
Power Cord A50.1090-03
Short Eye Cover, For Eyepiece A50.1090-04
Long Eye Cover, For Eyepiece A50.1090-05
Eyepiece Micrometer, Cross A50.1090-06
Adapter Ring To Install Eyepiece Micrometer A50.1090-07
USB Cable A50.1090-08
Note:""In Table Is Standard Outfits,"" Is Optional Accessories "-" Is Unavailable
