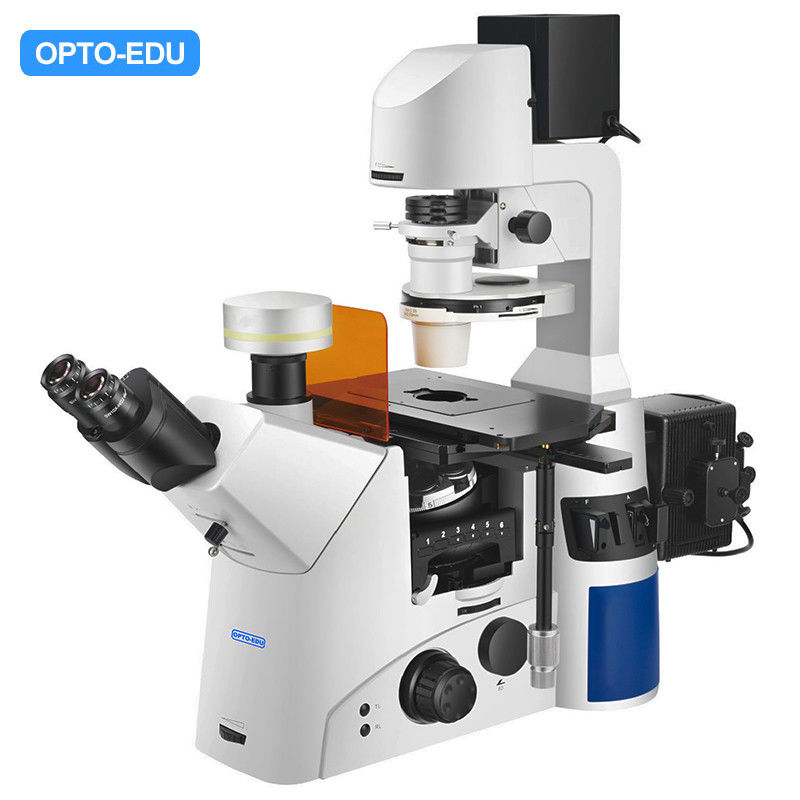

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO

  • High Light

    Fluorescent Opto Edu Microscope

    ,

    Inverted Opto Edu Microscope

    ,

    inverted fluorescent microscope opto edu

  • Eyepiece
    SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm
  • Nosepiece
    Manual Sextuple Nosepiece, With DIC Slot
  • Objective
    "N-iPLFN PH Infinity Plan Semi-APO Phase Contrast Objective"
  • Focusing
    Coaxial Coarse & Fine Focusing, Focusing Range 9mm
  • Working Stage
    Three Layer Mechnical Stage, Moving Range 130x85mm
  • Condenser
    Long Working Distance Turret Condenser, N.A.0.55
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.1096
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO

Research Level Inverted Fluorescent Microscope For BF/PH/FL/DIC
Trinocular Head With Built-in Bertrand Lens SW10x/22mm Eyepiece
Infintiy Plan Sem-APO Phase Contrast Objective 10x20x40x
LWD Condensor N.A.0.55 W.D.26mm, With 6 Holes Phase Contrast Disc
Transmit 12V100 Halogen & Reflect 100W Mercury Fluorescent Light With 3 of B,G,UV,V Filters

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 0

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 1

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 2

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 3
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 4


Transmit/Reflect Illumination Switch Knob

The illumination control knobs to switch transmit / epi-fluorescent reflect illumination are located on the right side of main body, for easy operation

Medial Changeable Lens

With built-in turret structure, 1x and 1.5x lens can be changed accordingly

4.3“ LCD Information Touch Screen (A16.1097) In Front of Main Body, For Easy Watch & Control in The Dark Working Condition.

--Show Objectives In Use In Nosepiece

--Show Cubes In Use In Multi Function Turret

--Brightness Memorize & Restore Function

--Touch To Adjust Brightness

--Touch To Set The System

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 5

Trinocular Head With Built-in Bertrand Lens

The built-in bertrand lens can observe the pupil of the objective lens when moving into the light path, and act as a centering telescope



Flexible Transmit Illuminator

With retroverted Illuminator, thereby ensuring large space for operation and sample exchange



Long Working Distance Turret Condenser

LWD turret structure, with 6 positions for phase contrast annulus, DIC annulus, & bright field view, meets various test needs. condenser N.A.0.55, W.D.26mm




A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 6

Camera Adapter At Both Sides & Trinocular Head

The optical path output selection dial can distribute the optical images to different ports, providing expansion space for more optical image applications

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 7
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 8

Simple And Fast Operation, Iris Slider

Reflective field diaphragm, aperture diaphragm and filter plate, three different types of diaphragm sliders show the versatility of A16.1090 in in vivo cell research. When the aperture diaphragm and the fluorescence filter insert are used together, the fluorescence intensity can be adjusted to the most ideal according to the selected fluorescence module and objective lens




A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 9

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 10

Fluorescent Turret

Fluorescence excitation module turntable type: easier and more flexible

It adopts multifunctional six-station turntable structure: it can be easily taken out from the host, and it is convenient to replace various fluorescence excitation modules

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 11
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 12
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 13
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 14
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 15
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 16

Bright Field Observation

Unique infinity optical system, combined with semi-apochromatic fluorescent objective lens, effectively eliminates field curvature, chromatic aberration, spherical aberration, coma and other imaging problems, the image is brighter, all magnifications can achieve higher super-resolution and flat type

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 17

Phase Contrast Observation

Phase contrast is an optical contrast technology that uses a phase contrast objective lens and a condenser ring. The high-efficiency halogen lamp can provide a bright light source and obtain clear images even at high magnification

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 18
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 19
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 20
A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 21

A16.1096 Inverted Fluorescent Opto Edu Microscope N-iPLFN PH Infinity Plan Semi-APO 22

Research Level Inverted Biological Microscope A14.1096 A14.1097 A16.1096 A16.1097 A16.1098 Cata.No.
Optical System NIS60 Infinite Optical System, Semi-APO
Observation Method Bright Field
Dark Field - -
Phase Contrast
Polarizing
Flourescent
DIC
LCD Screen 4.3" LCD Information Touch Screen In Front of Main Body, For Easy Use in Dark Working Condition.
--Show Objectives In Use In Nosepiece
--Show Cubes In Use In Multi Function Turret
--Brightness Memorize & Restore Function
--Touch To Adjust Brightness
--Touch To Set The System
- -
Head Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 47-78mm, Ligth Split Switch E100:P0/E20:P80/E0:P100, With Built-in Bertrand Lens Which Can Be Used As Centering Telescope
Eyepiece SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1025
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1022
EW12.5x/17.5mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-12516
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1516
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-2012
Media Lens Built-in Media Lens Turret 1.0x, 1.5x, Under Nosepiece -
Built-in Media Lens Turret 1.0x, 1.5x. CF, Under Nosepiece - - - -
Nosepiece Manual Sextuple Nosepiece, With DIC Slot - - -
Coded Manual Sextuple Nosepiece, With DIC Slot - - -
Motorized Coded Manual Sextuple Nosepiece, With DIC Slot,
With Objective Protection Function When Switch The Objectives
- - - -
N-iPLFN PH
Infinity Plan Semi-APO
Phase Contrast Objective
4x/0.13, W.D.16.5mm, No Cover Glass A5C.1098-4
10x/0.30, W.D.7.4mm, Cover Glass 1.2mm A5C.1098-10
20x/0.45, W.D.7.5-8.8mm, Cover Glass 0-2mm,
With Built-in Correct Ring
A5C.1098-20
40x/0.6, W.D.3-4.4mm, Cover Glass 0-2mm,
With Built-in Correct Ring
A5C.1098-40
60x/0.75, W.D.1.8-2.6mm, Cover Glass 0.1-1.3mm,
With Built-in Correct Ring
A5C.1098-60
Focusing Coaxial Coarse & Fine Focusing, Focusing Range 9mm (Up 7mm, Down 2mm), Coarse Stroke 2mm, Fine Stroke 0.2mm -
Motorized Z Axies (Optical Grating Type) Focusing System, Focusing Range 9mm (Up 7mm, Down 2mm), Focusing Resloution 0.02um With Optical Grating, Movement Repeat Positioning Accuracy +/-0.1um, Prevent Stage Fall Down Function - - - -
Working Stage Three Layer Mechnical Stage, Moving Range 130x85mm, Flexible Knob, Available For Different Size Small Stage Mounted on Top Layer - A54.1098
Motorized X/Y Axies (Optical Grating Type) Mechnical Stage, Size 325x144mm, Moving Range 130x100mm, Max Speed 10mm/s, Resloution 0.1um, Repeat Accuracy +/-0.5um,
Available For Different Size Small Stage Mounted on Top Layer, With Separate Communication/Main Control Box & Stick
- - - - A54.1098-M
Dia.38mm Holder For Slide & Petri Dish A54.1098-38
Dia.54mm Holder For Petri Dish A54.1098-54
96 Holes Plate Holder A54.1098-96
Terasaki Holder A54.1098-TH
Universal Holder A54.1098-UH
Condenser Long Working Distance Turret Condenser, N.A.0.55, W.D.26mm,
With 6 Positions For Phase Contrast Annulus, DIC Annulus, And Bright Field View
- A56.1098
Motorized Long Working Distance Turret Condenser, N.A.0.55, W.D.26mm, With 6 Positions For Phase Contrast Annulus, DIC Annulus, And Bright Field View - - - - A56.1098-M
Multi Function Turret Multi Function Turret Under Nosepiece, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods - -
Coded Multi Function Turret Under Nosepiece, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods - - - -
Motorized Coded Multi Function Turret Under Nosepiece, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods - - - -
Dark Field Dark Field Block, Put In Multi Function Turret, For Reflect Light Source A5D.1098
Polarizing For Transmit Light Polarizer Filter On LWD Turret Condenser A5P.1098-P
Analyzer Slide, Insert Into Slot On Nosepiece, 360° Rotatable A5P.1098-A
Polarizing For Reflect Light Polarizer Light Block, Put In Multi Function Turret A5P.1098-PL
Circularly Polarized Light Block, Put In Multi Function Turret A5P.1098-CP
Phase Contrast Phase Contrast Annulus 10x/20x, Put In Turret Condenser A5C.1096-1020
Phase Contrast Annulus 40x, Put In Turret Condenser A5C.1096-40
Phase Contrast Annulus 60x, Put In Turret Condenser A5C.1096-60
DIC DIC Annulus 10x, Put In LWD Turret Condenser A5C.1097-A10
DIC Annulus 20x, Put In LWD Turret Condenser A5C.1097-A20
DIC Annulus 40x, Put In LWD Turret Condenser A5C.1097-A40
DIC Annulus 60x, Put In LWD Turret Condenser A5C.1097-A60
DIC Slider 10x, Insert Into Slot On Nosepiece A5C.1097-S10
DIC Slider 20x, Insert Into Slot On Nosepiece A5C.1097-S20
DIC Slider 40x, Insert Into Slot On Nosepiece A5C.1097-S40
DIC Slider 60x, Insert Into Slot On Nosepiece A5C.1097-S60
Illumniation Transmit/Reflect Illumnation Switch Knob, On Right Side Of Main Body, Press To Switch Transmit And Reflect Switch Light Quickly
Transmit
Light Source
12V100W Halogen Kohler Illumination, Brightness Adjustable,
Flexible Illuminator Body Can Retrovert From Optical Path For Large Space of Operation And Sample Exchange
A56.1095-12V100W
10W S-LED Kohler Illumination, Brightness Adjustable A56.1095-10WLED
Reflect
Light Source
Large Filter Holder Slide With 3 Holes A56.1095-LS
Field Diaphram Slide, Center Adjustable, A56.1095-FS
Small Empty Slide A56.1095-ES
Aperture Diaphragm Slide A56.1095-AS
Neutral Filter A56.1095-NE
Reflect Fluorescent Light Source Reflect 100W Osram Mercury HBO Fluorescent Light House
Intelligent Power Supply Control Box
With Barrier To Stop/Recover Fluorescent Illumination Quickly
A5F.1095-100W
10W S-LED Fluorescent Light, 4 Color Bands, Brightness Adjustable By Control Box A5F.1095-10WLED
75W Metal Halide Light Source, Life Time 2000 Hours A5F.1095-75WM
Fluorescent Filter B Block, Put In Multi Function Turret A5F.1095-B
Fluorescent Filter G Block, Put In Multi Function Turret A5F.1095-G
Fluorescent Filter U Block, Put In Multi Function Turret A5F.1095-U
Fluorescent Filter V Block, Put In Multi Function Turret A5F.1095-V
Metallurgical Upgrade To A13.1090 Inverted Metallurgical Microscope A13.1090
Adapter 3 Camera Ports, On Both Side Of Main Body And Head, Turret Switch Between:
--Trinocular Port Switch E100:P0/E20:P80/E0:P100
--Left Port C-Mount 1.0x E0:P100
--Right Port C-Mount 1.0x E20:P80

C-Mount 0.4x A55.1095-04
C-Mount 0.5x A55.1095-05
C-Mount 1.0x A55.1095-10
Software NOMIS Basic Image Processiing Software A30.1090
Note:""In Table Is Standard Outfits,"" Is Optional Accessories "-" Is Unavailable
