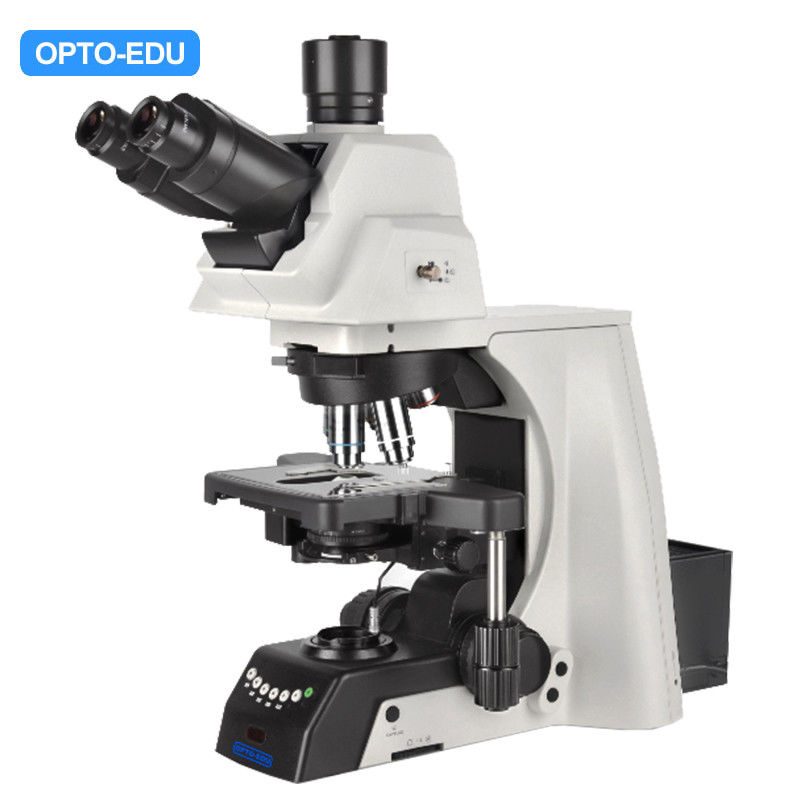

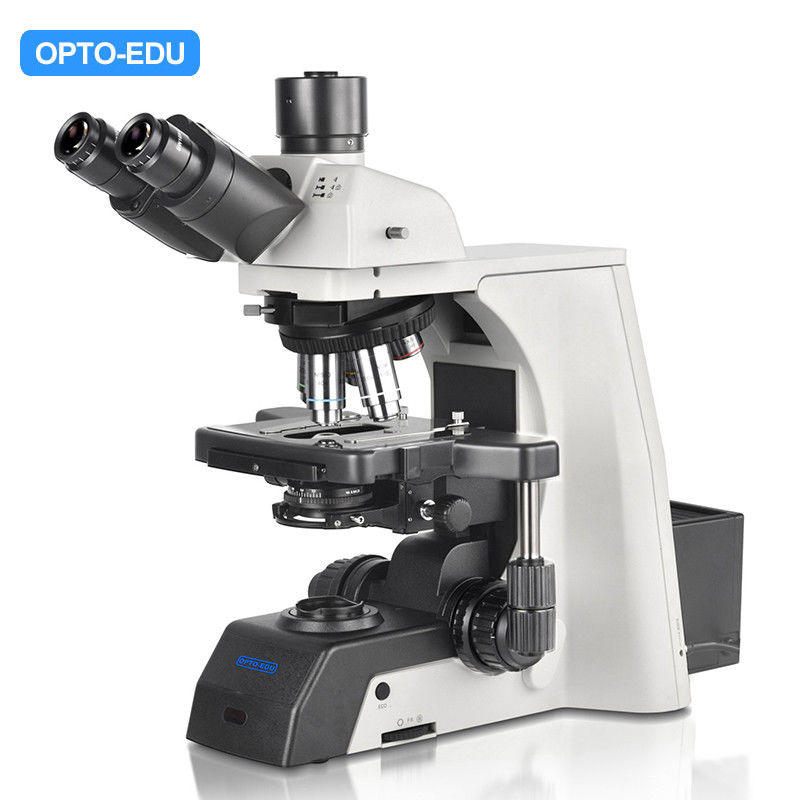

OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope

OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope

  • High Light

    opto edu science lab microscope

    ,

    25mm science lab microscope

    ,

    25mm opto edu microscope

  • Observation Method
    Bright Field
  • Main Body
    BH Manual Body + Halogen Illumination.
  • Head
    Seidentopf Trinocular Head, Inclined 30°
  • Eyepiece
    SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm
  • Nosepiece
    Manual Nosepiece, Sextuple, Backward
  • Objective
    N-PLN Infinity Plan Objective
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1091-H
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope

  • Research Level Laboratory Microscope For BF/DF/PH/PL/FL/DIC
  • Extra Wide Eyepiece EW10x/25mm Dia.30mm Diopter Adjustable
  • 6 Holes Nosepiece With Infinity Plan Objective 4x10x20x40x100x

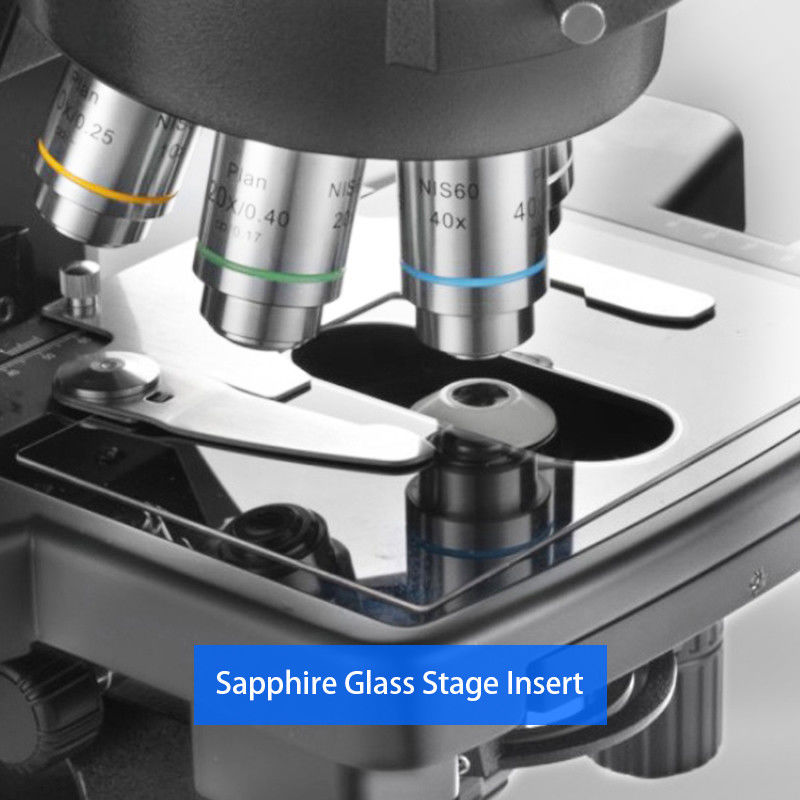

  • Rackless Working Stage With Gorilla Glass 190x152mm Moving Range 78x54mm
  • ECO Function Kohler Illumination 24V100W Halogen Or 3W SLED Optional

OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 0
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 1
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 2
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 3
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 4
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 5
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 6
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 7
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 8
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 9
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 10
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 11
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 12
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 13
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 14
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 15
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 16
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 17
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 18
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 19
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 20
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 21
OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 22

OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 23

OPTO-EDU A12.1091-H Manual Research 25mm Science Lab Microscope 24

  A12.1095 is newly designed Full Auto Morotrized Research Level Scientific Laboratory Microscope, equipped with electric platform, auto focus, electric objective conversion, touch screen controller and powerful imaging software; Through the precise connection between the parts, the functions of microscope observation, image acquisition and image processing are realized, and the repetitive operation is reduced. In addition, it can restore the microscope settings and parameter settings of the last operation, and improve the stability and accuracy of microscope imaging. Microscope operation can be so fast and efficient.
Full Auto Motorized Research Level Scientific Laboratory Microscope A12.1091 A12.1093 A12.1095 Cata.No.
Optical System NIS60 Infinity Optical System
Observation Method Bright Field
Dark Field
Polarizing
Phase Contrast
Flourescent
DIC
Main Body A12.1091-H Manual Body + Halogen Illumination.     A54.1090-BH
A12.1091-L Manual Body + LED Illumination.     A54.1090-BL
A12.1093-H Semi-Auto Body + Halogen Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust
    A54.1090-ATH
A12.1093-L Semi-Auto Body + LED Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust
    A54.1090-ATL
A12.1095 Full Auto Body + LED Illumination.
Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen

Head Seidentopf Binocular Head, Inclined 30°,
Interpupillary Distance 47-78mm
A53.1090-B
Seidentopf Trinocular Head, Inclined 30°,
Interpupillary Distance 47-78mm,
3 Level Light Split Switch E100:P0/E20:P80/E0:P100
A53.1090-T
Ergo Tilting Trinocular Head, Inclination 0°~35°,
Interpupillary Distance 47-78mm,
3 Level Light Split Switch E100:P0/E20:P80/E0:P100
A53.1090-TT
Eyepiece SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm ●● ●● ●● A51.1090-1025
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1022
EW12.5x/16mm, High Eyepoint A51.1090-12516
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-1516
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm A51.1090-2012
Nosepiece Manual Nosepiece, Quintuple, Backward, Center Adjustable A54.1091-5M
Manual Nosepiece, Sextuple, Backward     A54.1091-6M
Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust     A54.1091-6C
Auto Coded Nosepiece, Sextuple, Backward,
Motorized Switch Objectives, Controled By:
1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly
2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them
A54.1091-6A
With Slot For Polarizing Compensator Slider Or DIC Slider
Protect Cover For Nosepiece Holes A54.1091-C
NIS60
N-PLN
Infinity Plan Objective
2x/0.06, W.D.7.5mm, Cover Glass 0.17mm A52.1090-2
4x/0.10, W.D.30mm, Cover Glass 0.17mm A52.1090-4
10x/0.25, W.D.10.2mm, Cover Glass 0.17mm A52.1090-10
20x/0.40, W.D.12mm, Cover Glass 0.17mm A52.1090-20
40x/0.65, W.D.0.7mm, Cover Glass 0.17mm A52.1090-40
50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm A52.1090-50
60x/0.8, W.D.0.3mm, Cover Glass 0.17mm A52.1090-60
100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm A52.1090-100
NIS60 APO Infinity Plan 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm A52.1091-20
100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm A52.1091-100
Working Stage Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Left Handle   A54.1092-GL
Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Right Handle   A54.1092-GR
Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Left Handle   A54.1092-SL
Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Right Handle   A54.1092-SR
Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw -
Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick,
--Travel Range X:125mm, Y:75mmm,
--Minimum Step 0.1um
--Re-Position Accurate +/-1.5um
--Max Speed 25mm/s
--Size: 275x239x44.5mm
--Soft Stop, Mechanical Stop, Opto-Electro Switch Stop
--Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um
--Z Axis Max Speed 10r/s
--3D Control Stick, 4 Speeds
--Connection By USB2.0 & RS232
--Communication Speed 9600 bits
A54.1095-A
Z Axis Upgrade With Optical Grating Ruler A54.1095-B
Condenser Swing-Out Condenser NA0.9/0.25     A56.1091-S

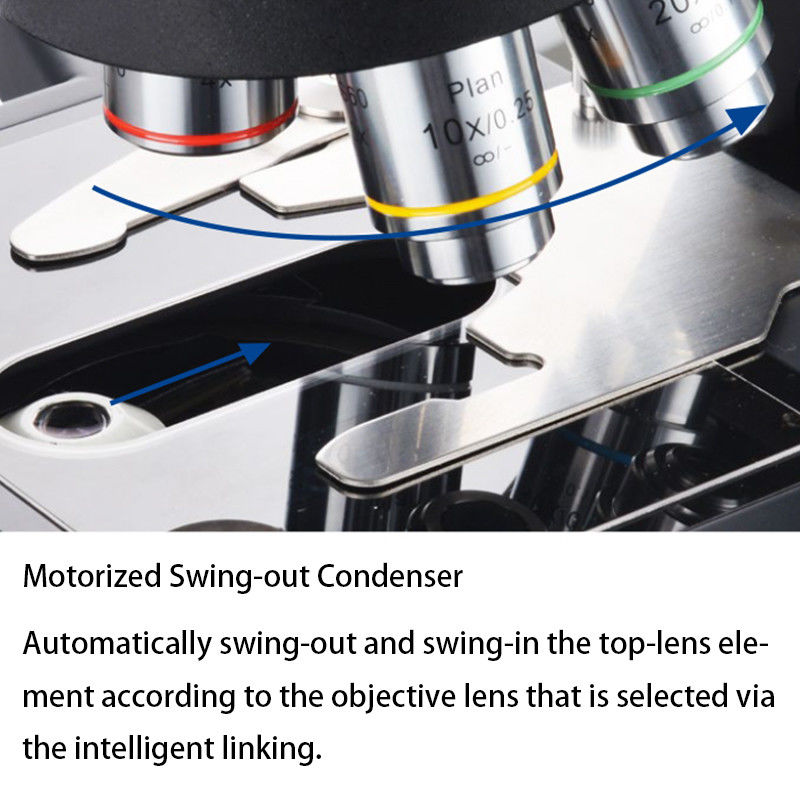

Auto Swing-Out Condenser NA0.9/0.25   - A56.1091-A
Focusing Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ
Light Source Transmit Kohler Illumination, Brightness Adjustable,
12V100W Halogen, External Lamp House
For A12.1091-H, A12.1093-H
  A56.1090-12V100W
Transmit Kohler Illumination, Brightness Adjustable,
3W S-LED, Built-in Main Body
For A12.1091-L, A12.1093-L
    A56.1090-3WLED
ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy A56.1090-ECO
Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected
(To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time)
A56.1090-AB
Filter For Transmit Light Filter Holder On Base, Can Hold 3 Filters A56.1092-H
Filter LBD A56.1092-LBD
Filter Green A56.1092-G
Filter Yellow A56.1092-Y
Filter ND6 A56.1092-ND6
Filter ND25 A56.1092-ND25
Adapter Eyepiece Adapter Dia.23.2mm A55.1090-E
C-Mount 1.0x A55.1090-1.0x
C-Mount 0.5x A55.1090-0.5x
Software NOMIS Basic Image Processiing Software A30.1090
Dark Field Dark Field Condenser, N.A. 0.7~0.9, Dry A5D.1090-D
Dark Field Condenser, N.A. 1.25~1.36, Immersion A5D.1090-I
Dark Field Objective, Infinity Plan 100X,
For Immersion Dark Field Observation
A5D.1030-3
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm,
For Immersion Dark Field Observation
A5D.1030-4
Polarizing Polarizer For Transmit Light Source, Swing-Out, On Collector A5P.1091-BP
Analyzer For Transmit Light, Slide With Quartz Wedge Compensator A5P.1091-BA
Upgrade To A15.1091 Professional Polarizing Microscope   A15.1091
Phase Contrast Turret Phase Contrast Condenser, Center Adjustable A5C.1090
Centering Telescope 10x A5C.1092
Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 A5C.1091-10
Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 A5C.1091-20
Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 A5C.1091-40
Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) A5C.1091-100
DIC Polarizer For Transmit Light Source A5P.1090-TP
Turret DIC Condenser A5C.1095
DIC Slide 10x, Used With Semi-APO Fluorescent Objective A5C.1095-10
DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective A5C.1095-2040
DIC Slide 100x, Used With Semi-APO Fluorescent Objective A5C.1095-100
DIC Slide With Analyzer 10x-20x A5C.1095-1020P
DIC Slide With Analyzer 40x-100x A5C.1095-40100P
NIS60 N-PLFN
Semi-APO
Fluorescent
Objective
For DIC
4x/0.13, W.D.16.5, Cover Glass 0.17mm A5F.1091-4
10x/0.3, W.D.8.1, Cover Glass 0.17mm A5F.1091-10
20x/0.5, W.D.2.1, Cover Glass 0.17mm A5F.1091-20
40x/0.75, W.D.0.7, Cover Glass 0.17mm A5F.1091-40
100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil A5F.1091-100
Fluorescent Upgrade To A16.1093, A16.1095 Fluorescent Microscope - A16.1093, A16.1095
Other Accessories Working Stage Holder Bracket A54.1096
Adapter To Adjust Eye Position A54.1096-A1
Adapter To Lower The Stage Position 1" A54.1096-A2
Immersion Oil A50.1090-01
Allen Wrench A50.1090-02
Power Cord A50.1090-03
Short Eye Cover, For Eyepiece A50.1090-04
Long Eye Cover, For Eyepiece A50.1090-05
Eyepiece Micrometer, Cross A50.1090-06
Adapter Ring To Install Eyepiece Micrometer A50.1090-07
USB Cable A50.1090-08
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable
