OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad

  • High Light

    OPTO-EDU Portable Lcd Microscope

    ,

    5.0M Portable Lcd Microscope

    ,

    9.7 inch lcd digital usb microscope

  • LCD
    9.7" HD IPS Touch Screen With Backlight
  • Camera
    5.0M 1/2.5" CMOS Digital Camera
  • Resolution
    2048x1536 @15FPS
  • Pixel
    2.2umx2.2um
  • Data Storage
    TF Card Or Built-in Memory
  • Data Output
    USB2.0, HDMI, TF Card
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A33.1502
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad

9.7" LCD Touch Screen Digital Microscope, 5.0M, Android Pad

  • 9.7" LCD Touch Screen Pad, With Android System + Measuring Software
  • High Eyepoint Wide Field Eyepiece WF10x/20mm Dia.30mm
  • Achromatic HC 4x,10x,40x100x Objective, Upgradeable To Infinity
  • Double Layer Mechanical Stage 143*132mm, Upgradeable To 216x150mm

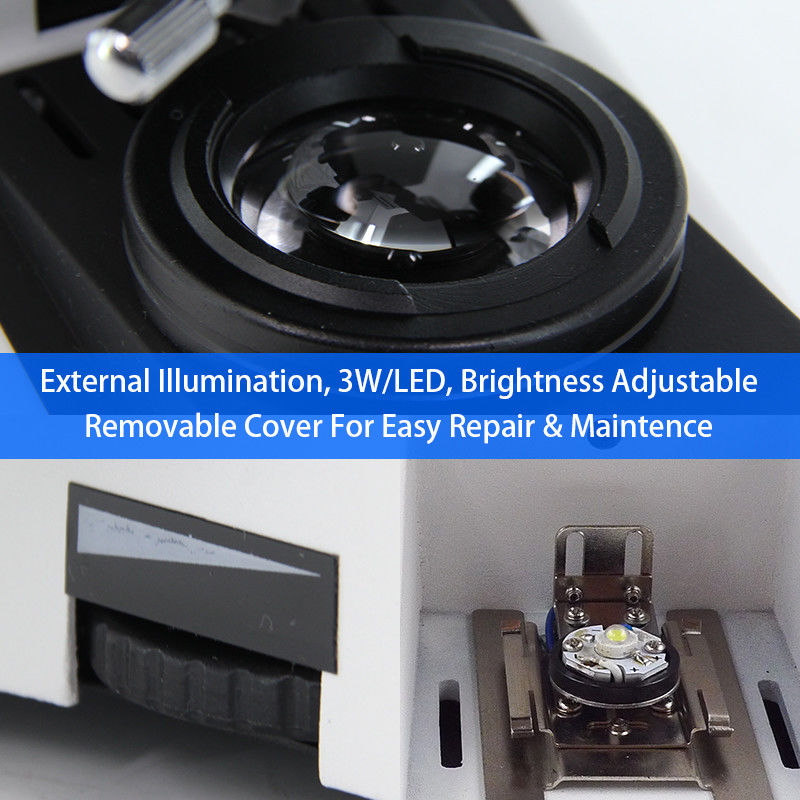

  • 3W LED Kohler Illumination With Removable Light House For Easy Maintainence
  • Laboratory Biological Microscope Optional Accessories
    Eyepiece WF16X/F.N.15mm A51.1502-16
    WF20X/F.N.12mm A51.1502-20
    Nosepiece Backward Quintuple Nosepiece A54.1502-5
    Dark Field Dark Field Condenser, Dry, N.A.1.25 A5D.1502-D
    Dark Field Condenser, Immersion, N.A.1.25~1.36 A5D.1502-I
    Polarizing Polarizer & Analyzer A5P.1501
    Phase Contrast Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x
    Infinity Plan Phase Contrast Objective 10x,20x,40x,100x
    Centering Telescope 10x
    Optional For B, T Only
    A5C.1501
    Adapter Eyepiece Tube Adapter A55.1502-E
    C-Mount 1.0x A55.1502-10

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 0

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 1

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 2

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 3

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 4

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 5

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 6

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 7

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 8

OPTO-EDU A33.1502 9.7" 5.0M Portable Lcd Microscope With Android Pad 9

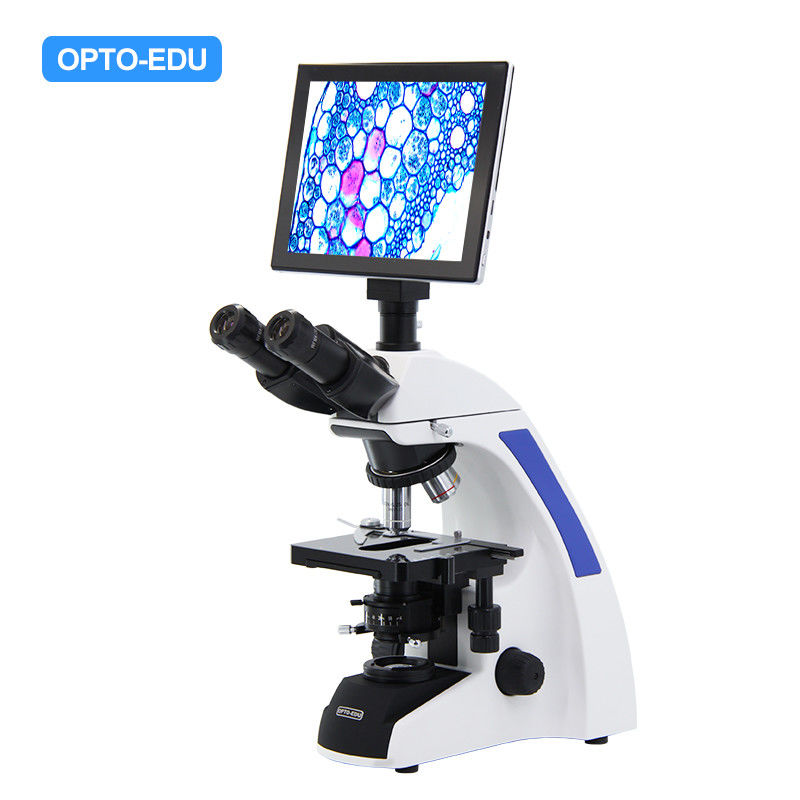

A33.1502 9.7" LCD Digital Biological Microscope
Head Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable

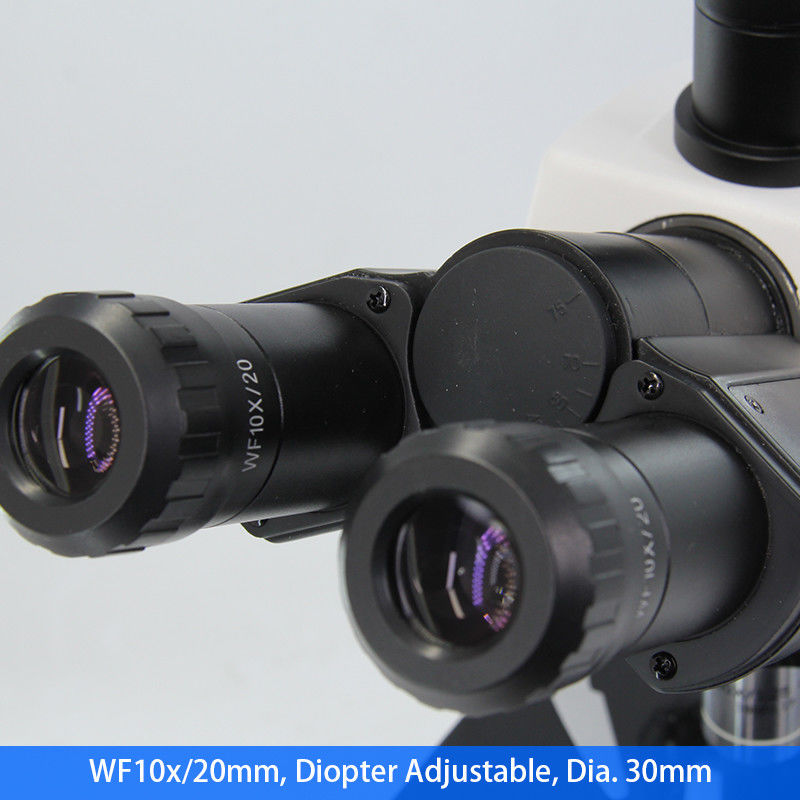

Eyepiece WF10x/20mm, Diopter Adjustable, Dia. 30mm
Objective High Contrast Chromatic Free
4x, 10x, 40x(S), 100x(Oil, S)
Focus Knob Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
Nosepiece Quadruple, Backward With Click Stops
Stage Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
Condenser Abbe Condenser N.A.1.25, Center Adjustable
Light Source 3W LED Brightness Adjustable
Adapter C-Mount 0.5x
Package 53*32.5*53.5cm/11.5Kg, 1 Set/Carton

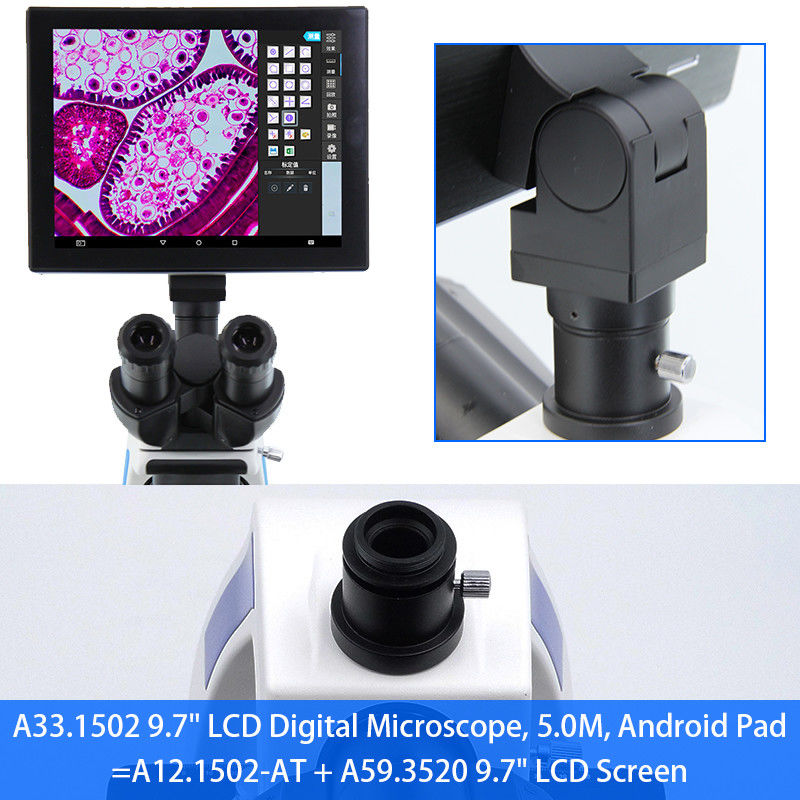

9.7" LCD Pad Digital Camera (A59.3520)
LCD 9.7" HD IPS Touch Screen With Backlight
Camera 5.0M 1/2.5" CMOS Digital Camera
Resolution 2048x1536 @15FPS
Pixel 2.2umx2.2um
Data Storage TF Card or Built-in Memory
Data Output USB2.0, HDMI, TF Card
Photo 5.0M .JPEG
Video 1080p Video Record
System Android 5.1 System
90 Languages
Support Mouse + Keyboard Control
Support WIFI
Support Bluetooth
Function S-Eye Software & Instruction Manual Installed
Mark:
Point, Crosshair, Coordinate, Text
Length Measure:
Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point To Line Distance
Distance Between 2 Circle Centers:
Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle
Geometric Measure:
Line Segment Length, Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle, Concentric Circle
Geometric Area Measure:
Polygon, Square
Power DC 12V/2A Power Adaptor, AC 100~240V
Size Pad 238x182x12mm, Camera 40x39mm
