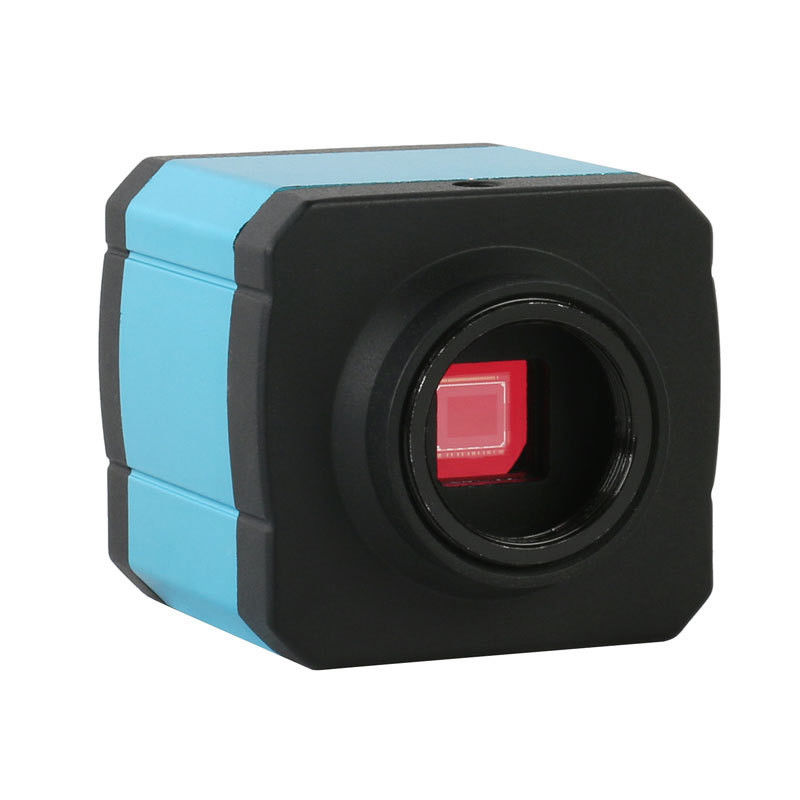

OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera

OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera

Large Image :  OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A59.4235
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Sensor: Panasonic CMOS 21M, 1/2.3" Pixel Size: 1.335μm X 1.335μm
Output: HD(Type A), USB(Type B),TF Card Photo Resolution: 38M
HD Support: 4:3, 16:9, 16:10 TF Card: TF Card
White Balance: Auto/Manual, RGB Adjustable Separtely Cross Line: 8 Lines, Color, Width, Position Adjustable; 2 Lines With Scale
Menu: Sharpness, Contrast, Saturation Adjustable Digital Zoom Support: With Remote Control Photo, Video
High Light:

opto edu hdmi microscope camera

,

OPTO-EDU usb digital microscope camera

,

60M usb digital microscope camera

  • 18M 1/2.3" CMOS Panasonic Sensor, Pixel Size 1.43x1.43μm
  • HDMI+USB Output At Same Time, TF Card 16G
  • HDMI Photo Resolution 60M, Video Resolution 2K@30fps
  • USB2.0 Output Driver Free With Measuring Function Software
  • Cross Line 2 Lines With Scale, Sharpness, Contrast, Saturation Adjustable.

OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 0

OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 1

2K HDMI + USB Output At Same Time
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 2
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 3
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 4
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 5
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 6

The software can realize preview, save, export,
Measurement Function and other functions.

OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 7
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 8
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 9
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 10
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 11
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 12
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 13
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 14
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 15
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 16
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 17
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 18
OPTO-EDU A59.4235 60M HDMI TF 1/2.3" CMOS Usb Digital Microscope Camera 19

A59.4235 2K HDMI Digital Camera, 60M
Sensor 1/2.3" Panasonic CMOS
Pixel Size 1.335μm × 1.335μm
Output HDMI(Type A), USB(Type B), TF Card
Output To USB + HDMI At Same Time
HDMI Photo Resolution 60MP (4:3), Default 38MP (4:3), Capture To TF Card
HDMI Video Resolution 2K@30FPS, 1080p@60FPS, Capture To TF Card
HDMI Control Quick Control Buttons On Camera & IR Remote Controller
HDMI Interface Menu Support English/Chinese
HDMI Photo Scale Support 4:3, 16:9
USB Output 1920*1080@30FPS 2.0M
1280*720@30FPS,
1024*768@30FPS
640*480@30FPS
(Driver Free)
TF Card 16G TF Card Included, Support Max 64GB
Exposure Auto/Manual Adjustable
White Balance Auto/Manual Adjustable
Color RGB Adjustable Separtely
Cross Line 8 Lines, Color, Width, Position Adjustable;
2 Lines With Scale
2 Lines With Dot, Color, Width, Position Adjustable;
Menu Sharpness, Contrast, Saturation Adjustable
Mono Negative Support
Mirror Image Support Horizontal & Vertical Mirror
Language Chinese/English
Digital Zoom Support
IR Remote Controller Remote Control To Take Photo, Video, Set Menu
Input DC 12V (Support 5-19V), 55-21mm Socket
Power Consumption Max 0.15W (12V,0.12A)
Adapter C/CS Mount
Product Size 55*55*60mm
Product Weight 200g
Package Size 160*100*80mm
Package Weight 450g
Packaging list Camera/Adapter/Remoter/USB Cable/HDMI Cable/
16G TF Card/Instruction Manual
