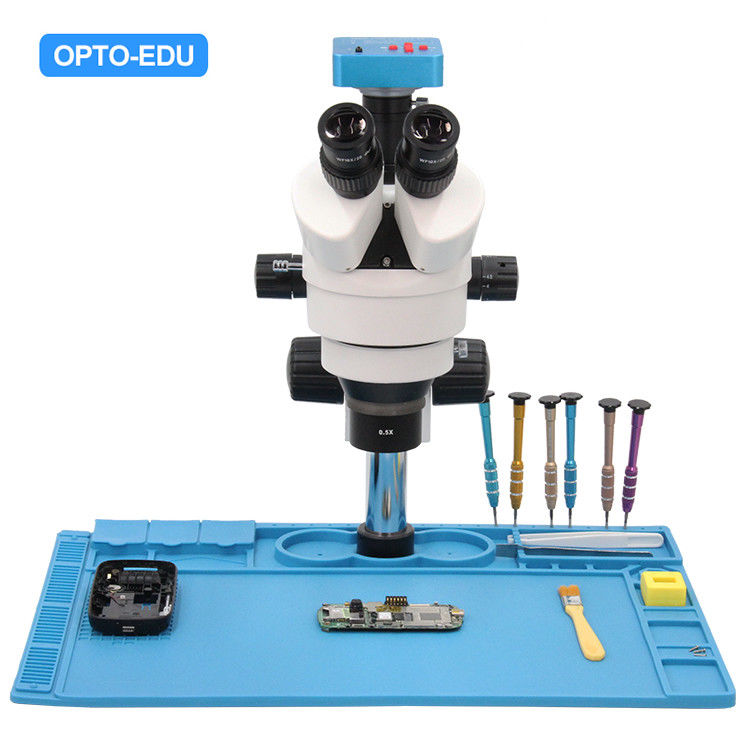

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

Large Image :  A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A23.1503
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Head: HD+USB Digital Camera 38.0M Pixels Eyepiece: WF10x/20mm, Both With Eye-cup
Zoom Lens: 0.7~4.5x Zoom Ratio: 1:6.5
Magnification: 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens W.D.: Working Distance100mm, With Standard 1x Lens
F.O.V: Field Of View 1~95.2mm Stand: Large Pole Stand, Size 200*255*8mm
Light Source: Upper 56 LEDs Right Light Brightness Adjustable
High Light:

0.7x zoom stereo microscope

,

4.5x zoom stereo microscope

,

zoom stereomicroscope

Head: Trinocular Head, Both Eye Tube Diopter Adjustable
Light Split Switch E100:P0/E0:P100
With Eyepiece Adapter + 1.0x C-Mount
Eyepiece: WF10x/20mm, Both With Eye-cup
Zoom Lens: 0.7~4.5x
Zoom Ratio: 1:6.5
Magnification: 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D.: Working Distance100mm, With Standard 1.0x Lens
F.O.V: Field Of View 1~95.2mm

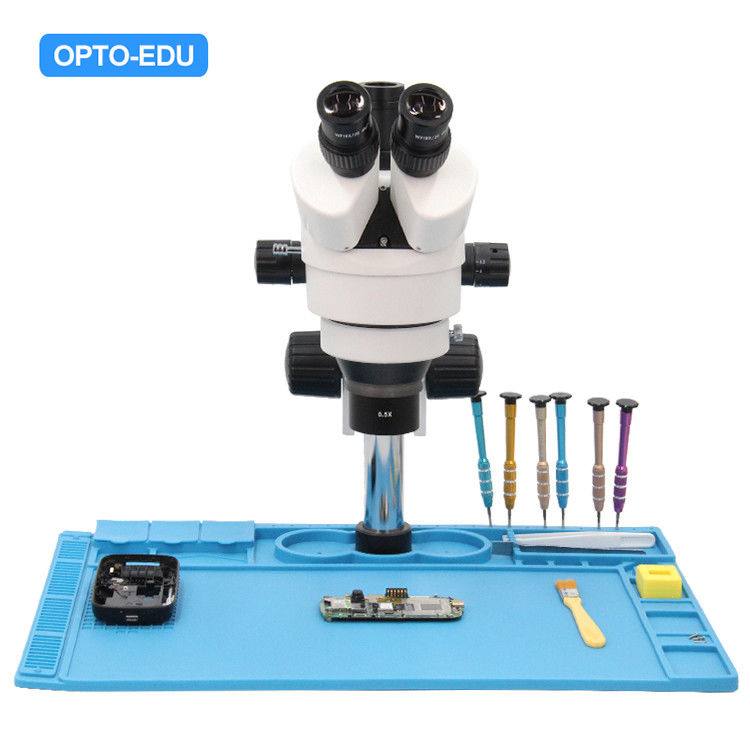

Stand: Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 0
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 1
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 2

Trinocular Head, Both Eye Tube Diopter Adjustable

Light Split Switch E100:P0/E0:P100

With Eyepiece Adapter + 1.0x C-Mount
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 3

Zoom Lens: 0.7~4.5x
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 4

Focusing Range 50mm, Distance To Center 155mm
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 5

Total Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 6

Upper 56 LEDs Right Light Brightness Adjustable
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 7

Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 8
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 9
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 10

A23.1503 DIY Phone PCB Repair Microscope
Head Trinocular Head, Both Eye Tube Diopter Adjustable
Light Split Switch E100:P0/E0:P100
With Eyepiece Adapter + 1.0x C-Mount
Eyepiece WF10x/20mm, Both With Eye-cup
Zoom Lens 0.7~4.5x
Zoom Ratio 1:6.5
Magnification 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D. Working Distance100mm, With Standard 1.0x Lens
F.O.V Field Of View 1~95.2mm
Stand Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair

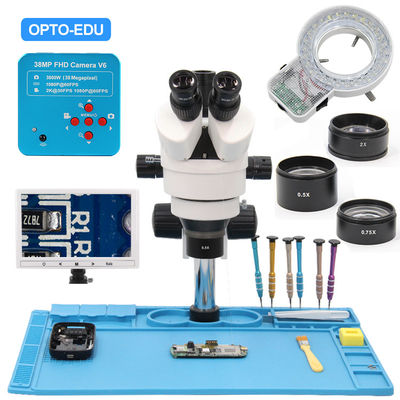

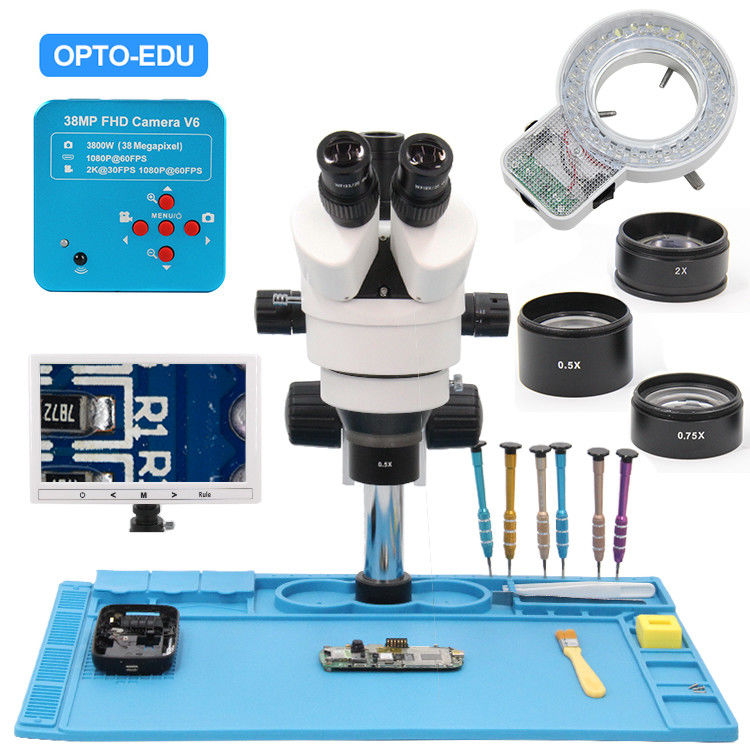

Optional Accessories Cata.No.
Eyepiece WF15x/15mm, High-eyepoint A51.1520-15
WF20x/10mm, High-eyepoint A51.1520-20
Auxiliary Lens 0.5x,W.D. 177mm A52.1520-05
0.75x,W.D. 120mm A52.1520-75
2.0x,W.D. 30mm A52.1520-20
Light Source Upper 56 LEDs Right Light Brightness Adjustable A56.2103-A
Digital Camera HDMI+USB+TF Digital Camera, 38.0M, USB Measure A59.4231

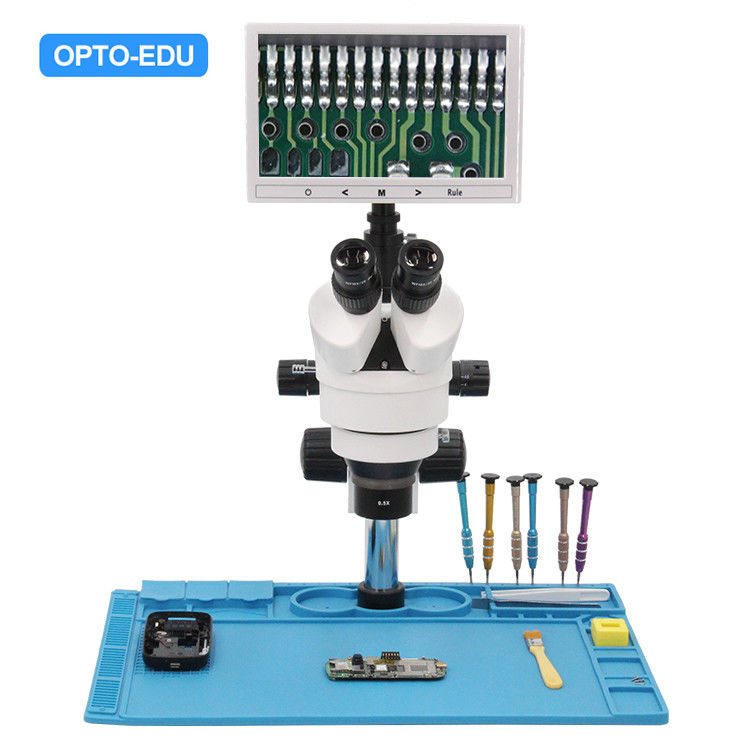

7" LCD Digital Camera, AV Output A59.5107
9" LCD Digital Camera, AV Output A59.5109
CCD Adapter Eyepiece Adapter + 0.5x C-Mount A55.1520-05

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 11

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x 12

A23.1503 Zoom Stereo Microscope Optical Data Sheet
Objective Standard 1.0x Auxiliary 0.5x Auxiliary 0.75x Auxiliary 2.0x
W,D. 100mm 177mm 120mm 30mm
Eyepiece Mag View Field Mag View Field Mag View Field Mag View Field
10X/20mm 7.0X 28.6mm 3.5X 57.1mm 5.25x 43.8mm 14X 14.3mm
  45.0X 4.4mm 22.5X 8.9mm 45x 6.5mm 90X 2.2mm
15X/15mm 10.5X 21.1mm 5.25X 42.8mm 7.87x 31.8mm 21X 10.7mm
  67.5X 3.3mm 33.75X 6.7mm 50.6x 4.7mm 135X 1.7mm
20X/10mm 14.0X 14.3mm 7.0X 28.6mm 10.5x 23.9mm 28X 7.1mm
  90.0X 2.2mm 45.0X 4.4mm 67.5x 3.6mm 180X 1.1mm
