50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope

  • High Light

    DIC Optical Metallurgical Microscope

    ,

    BD Optical Metallurgical Microscope

    ,

    50x metallurgical microscope

  • Magnification
    Optical Magnification 50x~1000x, Total Magnification 135x~2700x
  • Eyepiece
    High Eyepoint Plan Eyepiece PL10x/22mm, Diopter Adjustable
  • Head
    5º~35º Infinity Gemel Trinocular Head
  • Working Stage & Illumination
    Manual Stage
  • Table
    Table For Machine
  • Illumination
    Reflect Bright & Dark Field Illumination
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.0921
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

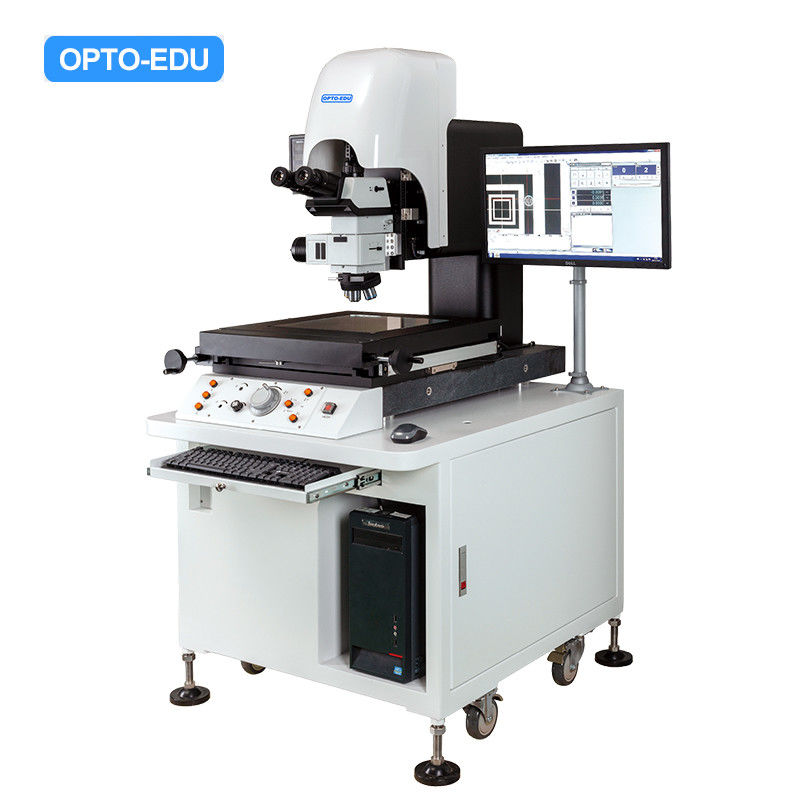

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope

Designed For Powerful Measurement Function, With Reliable Quality And Technology



A13.0921 Precision Measuring Metallurgical Microscope combines the high power observation ability of metallographic microscope with the X, Y, Z axis surface dimension measurement function of image measuring instrument. It has many observation functions such as Bright Field & Dark Field, Differential Interference Contrast (DIC), polarized light, etc. It can be widely used in semiconductor, PCB, LCD, mobile phone industry chain, optical communication, basic electronics, mold hardware, medical equipment, automotive industry, measurement industry and other fields of testing.

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope 0

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope 1

5º~35º Tiltable Infinity Gemel Trinocular Head

The tilt angle of the observation tube is adjustable from 5° to 35°, can meet the user's operation needs whether standing or sitting, and there is no need to worry about the height difference of users



Large Moving Range Working Stage

With Japan imported optical grating ruler,
3 Kinds large size working stages optional: moving range 200x100mm, 300x200mm, 300x300mm, for large or small sample observation. The stage size can be customrized according to user's need.



Newly Design With Highly Integrated Functions

A13.0921 not only reserves the location for desktop computer, but also puts a retractable keyboard in front of user. Hand wheel in two directions and various buttons are ergonomic designed, user does not need to stand up to operate.

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope 2

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope 3

50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope 4

A13.0921 Precision Measuring Metallurgical Microscope, BD, DIC -21 -32 -33
Magnification Optical Magnification 50x~1000x, Total Magnification 135x~2700x
Eyepiece High Eyepoint Plan Eyepiece PL10x/22mm, Diopter Adjustable
Head 5º~35º Infinity Gemel Trinocular Head, Erect Image, 360° Rotating, Interpupillary Range 50~76mm; Light Spliting Ratio Switch E0:P100/E100:P0
Objective Long Working Distance Infinity Plan Achromatic Metallurgical Objective
5x-DIC LMPL5x/0.15 W.D.10.8mm
10x-DIC LMPL10x/0.3 W.D.12.20mm
20x-DIC LMPLanFL20x/0.4 W.D.8.8mm, Semi-APO
50x LMPLFL50x/0.55 W.D.7.9mm
100x LMPLFL100x/0.80 W.D.2.1mm
Long Working Distance Infinity Plan Achromatic BD Metallurgical Objective
5x-DIC/0.15 W.D.9.0mm
10x-DIC/0.3 W.D.9.0mm
20x-DIC/0.4 W.D.8.5mm, Semi-APO
50x/0.55 W.D.7.5mm
100x/0.80 W.D.2.1mm
DIC DIC Prism (Reflection)
Nosepiece Reversed Quintuple Nosepiece, With DIC Slot, For Bright Field
Reversed Quintuple Nosepiece, With DIC Slot, For Bright & Dark Field
Working Stage & Illumination Manual Stage, Moving Range 200mm(X) x 100mm(Y), With Digital Indicator. Z Axis With Auto-control Box For Focusing; Z Axia Move Range 175mm. Measuring Precision: X/Y (3+L/200)um, Z Axis Repeatability Precision 2μm (20x Objective), With 5W LED Transmitted Illumination
Manual Stage, Moving Range 300mm(X) x 200mm(Y), With Digital Indicator. Z Axis With Auto-control Box For Focusing; Z Axia Move Range 175mm. Measuring Precision: X/Y (3+L/200)um, Z Axis Repeatability Precision 2μm (20x Objective), With 5W LED Transmitted Illumination
Manual Stage, Moving Range 300mm(X) x 300mm(Y), With Digital Indicator. Z Axis With Auto-control Box For Focusing; Z Axia Move Range 175mm. Measuring Precision: X/Y (3+L/200)um, Z Axis Repeatability Precision 2μm (20x Objective), With 5W LED Transmitted Illumination
Table Table For Machine
Illumination Reflect Bright & Dark Field Illumination, With BD Switch Device; With Filter Slots For Filters And Polarizing Kit; 5W LED, Intensity Adjustable;
Focusing Focus Assist Controlled By High-Precision Electric Controller, With 3 Speeds Available, With Double Reticle; Focusing Range >400mm
Polarizing Polarizer Slide For Reflect Illumination
360° Rotatry Analyser Slide For Reflect Illumination
Adapter 0.5x C-Mount, Focus Adjustable
0.65x C-Mount, Focus Adjustable
Digital Camera 1.2M Digital Camera, Pixel 1280(H) x 960(V); 60fps; Interface Gige; Sensor CMOS (Color)
Software MSU3D-Pro Measurment software
Computer DELL 3470, Intel i5 Commercial Office, Desktop Computer (i5-9400 8G 1T WIFI) 21.5" Monitor
Spanner Spanner M5
Spanner M4
Packing Foam+ Master Carton
Micrometer High Quality Micrometer Slide 0.01mm
