Infinity Tilting Trinocular Head
ETTR Erect Gemel Trinocular Head, Same Direction And Same Moving Direction For Objective And Image, Easy To View And Operate. The Head Can Be In Common Use For A13.0910 Series.
Long Working Distance Metallurgical Objectives
New Design Of Long Working Distance Professional Metallurgical Objectives. Use Semi-apochromatic And Multilayer Broadband Coating Technology, Image Clear And Sharp In The Whole Field, Color Nature And Bright. Long Working Distance Design, W.D.7.9mm For 50x, W.D.2.1mm For 100x, And There Is 20x Ultra-long Working Distance Metallurgical Objective, Which Greatly Expands The Application Field Of Mx Series. Complete Set Of Bright/darkfield Objectives Special Use For Mx6r, Luminance Of Darkfield Illumination Reaches Double More Than Traditional
Design Of Large-stroke Mobile Platform
Adopt 4‘’/6’’ Platform Design, Not Only Suitable For Corresponding Size Wafer And Fpd Inspection, But Also For Array Inspection Of Small Size Samples.
6" Three Layer Mechanical Stage, For Transmit & Reflect Light
Size 445*240mm, Moving Range For Reflect Light 158*158mm, For Transmit Light 100*100mm, Low Position X/Y Moving Handle, With Glass Plate, With Clutch Handle To Move Quickly In Full Range

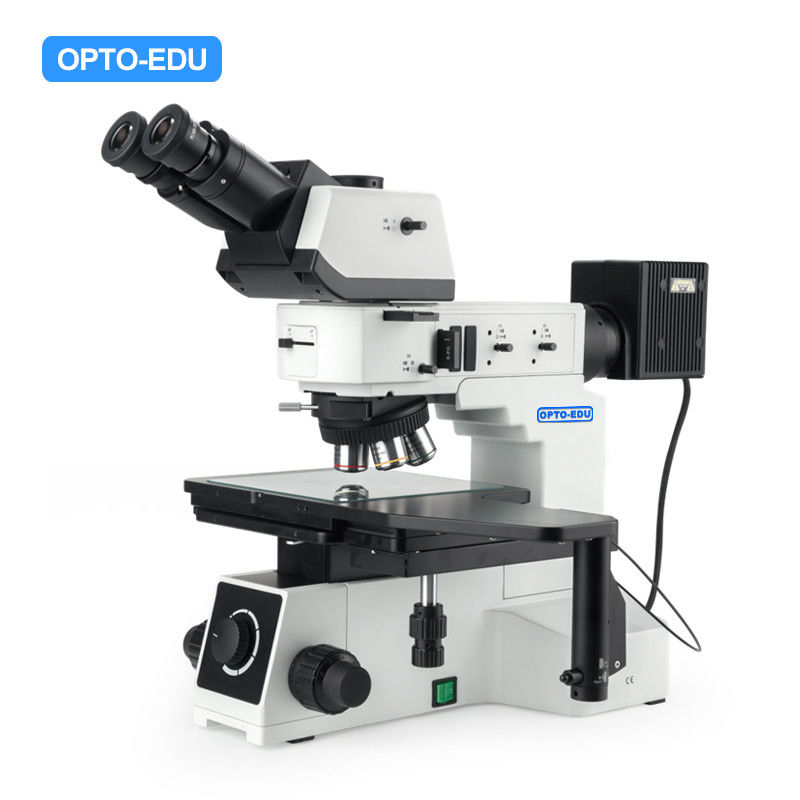

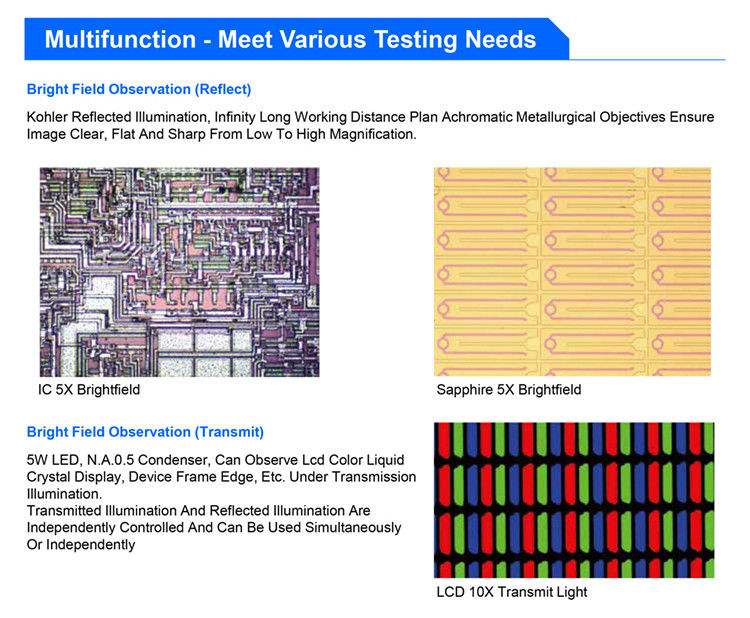

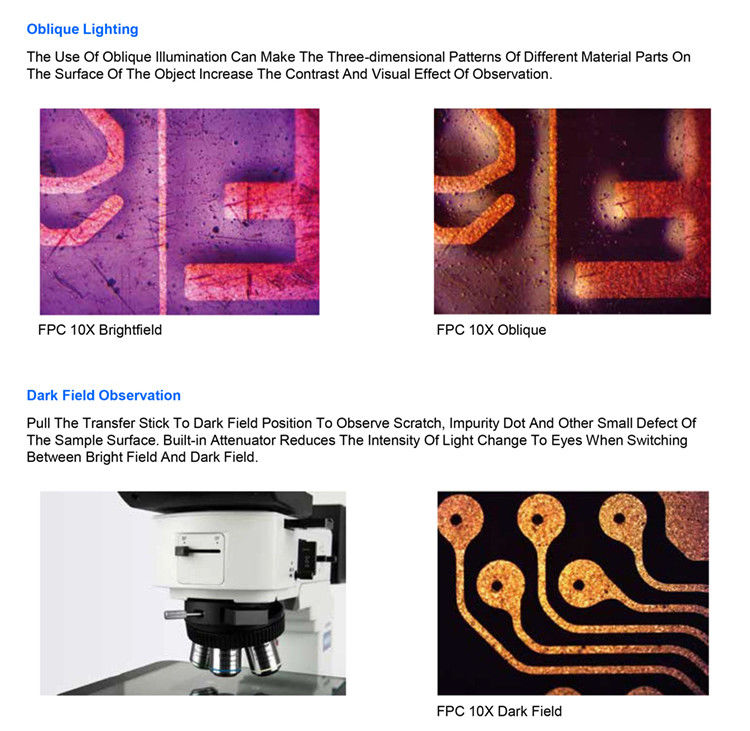

| A13.0901 BD DIC Semi-APO Polarizing Metallurgical Microscope | R | RT | Cata. No. | |
| Optical System | Bright Field, Dark Field, Polarizing, DIC, Reflect Light | ● | ||
| Bright Field, Dark Field, Polarizing, DIC, Transmit & Reflect Light | ● | |||
| Head | ETTR 5°-35° Tiltable Trinocular Head, Infinity Sedentopf, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100, Erect Image | ● | ● | A53.0911-T535 |
| CCD Adapter | 0.5x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0931-05 |
| 0.35x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0931-35 | |
| 0.65x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0931-65 | |
| 1.0x C-Mount, For 1"CCD, Focus Adjustable | ○ | ○ | A55.0931-10 | |
| Eyepiece | High Eyepoint Plan PL10x/22mm | ●● | ●● | A51.0903-1022 |
| High Eyepoint Plan PL10x/22mm With Reticle | ○ | ○ | A51.0905-1022R | |
| High Eyepoint Plan PL10x/22mm, Diopter Adjustable | ○ | ○ | A51.0904-1022T | |
| High Eyepoint Plan PL10x/22mm, Diopter Adjustable, With Reticle | A51.0905-1022RT | |||
| High Eyepoint Plan PL10x/23mm, Diopter Adjustable | ○ | ○ | A51.0904-1023T | |
| High Eyepoint Plan PL15x/16mmPL15x16 | ○ | ○ | A51.0903-1516 | |
| Objective | LWD Infinity Plan Metallurgical BF/DF DIC Objective | |||
| 5X-DIC LMPL5X/0.15 W.D.9mm | ● | ● | A5M.0939-5 | |
| 10X-DIC LMPL10X/0.3 W.D.9mm | ● | ● | A5M.0939-10 | |
| 20X-DIC LMPL20X/0.50 W.D.3.4mm | ● | ● | A5M.0939-20 | |
| LWD Infinity Plan Metallurgical BF/DF Semi-APO Objective | ||||
| 50X LMPLFL50X/0.55 W.D.7.5mm | ● | ● | A5M.0940-50 | |
| LMPL100x/0.8 WD2.1mm | ○ | ○ | A5M.0940-100 | |
| Nosepiece | Backward, Quintuple For Bright/Dark Field, With DIC Slot | ● | ● | A54.0930-MX5BD |
| DIC | DIC Interfere Set | ○ | ○ | A5M.0950 |
| Working Stage | 6" Three Layer Mechanical Stage, For Transmit & Reflect Light Size 445*240mm, Moving Range For Reflect Light 158*158mm, For Transmit Light 100*100mm, Low Position X/Y Moving Handle, With Glass Plate, With Clutch Handle To Move Quickly In Full Range |
● | ● | A54.0944-M6RT |
| Adapter for 4" Plate, for Reflect Light | ○ | ○ | A54.0944-M4A | |
| Adapter for 4" Plate, for Transmit & Reflect Light | ○ | ○ | A54.0944-M4ART | |
| 4" Double Layer Mechanical Stage, For Reflect Light, Low Position Handle, Size 230x215mm, Moving Range For Reflec Light 105*105mm, With Metal Plate, Right Hand Use | ○ | ○ | A54.0944-M4 | |
| 4" Double Layer Mechanical Stage, For Reflect Light, Low Position Handle, Size 230x215mm, Moving Range For Reflec Light 105*105mm, With Metal Plate, Left Hand Use | ○ | ○ | A54.0944-M4N | |
| 4" Double Layer Mechanical Stage, For Transmit & Reflect Light, Low Position Handle, Size 230x215mm, Moving Range For Reflec Light 105*105mm, With Glass Plate | ○ | ○ | A54.0944-M4RT | |
| Rotatable Working Stage 6", For Wafer 4", 5", 6" | ○ | ○ | A54.0944-W6 | |
| Main Body & Focusing | Reflected Frame: Coaxial Coarse And Fine Adjustment, Coarse Range 33mm, Fine Precision 0.001mm, With Pp-limited Device And Tension Adjustment. Built-in 90-240V Wide Voltage Transformer. | ● | ||
| Transmitted & Reflected Frame: Coaxial Coarse And Fine Adjustment, Coarse Range 33mm, Fine Precision 0.001mm, With Up-limited Device And Tension Adjustment. Built-in 90-240V Wide Voltage Transformer, Transmitted Lamp-house With Single 5W LED. With NA 0.5 Condenser. | ● | |||
| Reflect Light |
BF/DF Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Both Central Adjustable, With Filter Slot and Polarizing Slot, With Bright Field/Dark Field Switch, With Bright Intensity Setting And Reset Function On Stand | ● | ● | A56.0915 |
| 12V100W Halogen Light Box, Pre Centered | ● | ● | A56.0909-LH | |
| 12V100W Halogen Bulb (Philps 7724) | ● | ● | A56.0923-12100 | |
| Interference Filter, For Reflect Light, Netural White | ● | ● | A5M.0953-LBD | |
| Interference Filter, For Reflect Light, Blue, <480nm | ○ | ○ | A5M.0953-B | |
| Interference Filter, For Reflect Light, Green, 520~570nm | ○ | ○ | A5M.0953-G | |
| Interference Filter, For Reflect Light, Red, 630~750nm | ○ | ○ | A5M.0953-R | |
| Transmit Light |
Transmit Illumination, Single High Power 5W LED, Brightness Adjustable, N.A.0.5 Condenser, With Iris Diaphragm | ● | ||
| Polarizing For Reflect Light | Fixed Polarizer Flashboard | ● | ● | A5P.0924-RP |
| 360° Rotatable Analyzer Flashboard | ● | ● | A5P.0924-RA360 | |
| Fixed Analyzer Flashboard | ○ | A5P.0924-RA | ||
| Power | 90-240V Wide Voltage, One Way Power Output | ● | ||
| 90-240V Wide Voltage, Double Way Power Output | ● | |||
| Other | Allen Key M3 | ● | ● | |
| Allen Key M4 | ● | ● | ||
| Specimen Presser | ○ | ○ | A5M.0920 | |
| New Developed Optional Accessories 2020 | ||||
| Head | Trinocular Head, 30° Inclined, Inverted Image, Interpupillary Distance 50~76mm, Light Split Ratio 0:100; 20:80; 100:0, Support Super Large Wide Field Eyepiece 25mm/26.5mm | ○ | ○ | A53.0913-T30 |
| Trinocular Head, 30° Inclined, Erect Image, Interpupillary Distance 50~76mm,Light Split Ratio 0:100, 100:0, Support Super Large Wide Field Eyepiece 25mm/26.5mm | ○ | ○ | A53.0913-T30E | |
| Eyepiece | High Eyepoint Plan PL10x/25mm, Diopter Adjustable | ○ | ○ | A51.0904-1025T |
| High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable | ○ | ○ | A51.0904-10265T | |
| High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle | ○ | ○ | A51.0905-1025T | |
| High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle | ○ | ○ | A51.0905-10265T | |
| CCD Adapter | 0.5x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0930-05 |
| 0.35x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0930-35 | |
| 0.65x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0930-65 | |
| 1.0x C-Mount, For 1"CCD, Focus Adjustable | ○ | ○ | A55.0930-10 | |
| Objective | LWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective | |||
| 5X/0.15,WD=13.5mm | ○ | ○ | A5M.0941-5 | |
| 10X/0.30,WD=9mm | ○ | ○ | A5M.0941-10 | |
| 20X/0.50,WD=2.5mm | ○ | ○ | A5M.0941-20 | |
| 20X/0.40,WD=8.5mm | ○ | ○ | A5M.0941-20A | |
| 50X/0.80,WD=1.0mm | ○ | ○ | A5M.0941-50 | |
| 100X/0.90,WD=1.0mm | ○ | ○ | A5M.0941-100 | |
| Semi-APO Objective With Correcting Ring 50X/0.70, WD=2.3~2.9mm | ○ | ○ | A5M.0945-50 | |
| DIC | DIC Interfere Set, For BF/DF Semi-APO Objective Objective | ○ | ○ | A5M.0952 |
| DIC Interfere Set, For BF/DF Semi-APO Objective Objective, Olympus Level | ○ | ○ | A5M.0952-O | |
| Remark: '●' Means Standard Outfit, '○' Means Optional | ||||
